Measuring & Testing Wine

At 3x the volume and weight of the original Tilt hydrometer, the Tilt Pro's larger size allows it to more than double the battery life with preinstalled Energizer® AA lithium batteries that will keep it powered for 3 to 5 years depending on use. So much time you may forget your Tilt actually runs on a battery! The extra size and weight come with an extra bonus: improved specific gravity stability at high krausen, so you will see a steadier read-out on your iPhone, Android, or Raspberry Pi. In addition, Tilt Pro has boosted the range with a high-gain antenna that in testing increased range by 20% vs. the original Tilt. Now you can see your Tilt through thicker heads of foam and heavier stainless steel walls. To top it off they've included the extra decimal of precision available from the sensors and to the read-out so there are now decimal degrees Fahrenheit as well as higher resolution Celsius. Specific gravity now reads out to the 10,000th place (for example 1.0000). You can now see fermentation activity dropping less than a brewer's point per day. In all they've made several adjustments we believe the craft beer professional (and serious home brewer) is sure to appreciate. Specifications: Size: 1.7" (43mm) diameter (max) by 5.4" (140mm) tall Weight: 5.4 ounces (153g) Specific Gravity Measurement Range: 0.9900 - 1.1200 Specific Gravity Resolution: 0.00001 Temperature Measurement Range: 0°F - 140°F (-17.8°C - 60°C) Note: Installed lithium batteries include a built in PTC (heat activated fuse) that will temporarily cut power if batteries exceed 140°F. Temperature resolution: 0.1°F (0.1°C) Absolute Maximum Temperature Range: -40°F to 185°F (-40°C to 85°C) Battery: User-replaceable, 2x 1.5v AA battery (Li/FeS2), widely sold as "Energizer®  AA Ultimate Lithium".

Read more less

Easily determine the alcohol content of a beverage as low as 0.1% ABV Touchscreen interface with simple plug and play operation with dedicated support from ABV Technology Store data from up to 30 samples at a time and email measurements directly from the device to the operator for safe keeping WiFi connectivity allows for easy and efficient software updates pushed to the Analyzer TTB approved readings to comply with legal regulations and labeling requirements Analyzer 1000 The Analyzer uses a patented process specially tuned to measure ABV as low as 0.1%. Users can easily determine the alcohol content of a beverage and the Analyzer will enable its operator to perform such measurements at a much reduced cost. The device can perform ABV measurement over a vast range of beverages and alcohol content. In House Measurement The Analyzer is a compact bench top device made of industrial grade steel and belongs in any brewery, cidery, winery or kombuchery. The device fits well in any lab environment or beverage manufacturing facility. The device includes a touch screen interface with simple plug and play operation with dedicated support from ABV Technology. Easy to operate, clean and maintain. ABV Measurement Made Easy ABV Technology has dedicated Quality Engineers available for Analyzer support M-F 9am to 5pm CST. Once the sample is prepared, simply pour the beverage into the top through a coffee filter, close the lid and press the start button. Users can store data from up to 30 samples at a time. An automated cleaning cycle is recommended between measurements using standard lab cleaning supplies. The Analyzer is connected to the network via WiFi and measurements can be emailed to the operator for safe keeping. This also allows for easy and efficient software updates to be pushed to the Analyzer.  Why Measure ABV? Measuring alcohol by volume (ABV) is of utmost importance for beverage manufacturers as it holds several key benefits for their operations. Firstly, ABV provides an accurate representation of the alcohol content in a particular beverage, ensuring product consistency and quality control. This information is vital for beverage manufacturers to comply with legal regulations and labeling requirements, as different jurisdictions often impose specific limits on the ABV of alcoholic beverages. Additionally, precise ABV measurements allow manufacturers to calculate the correct amount of taxes and excise duties owed on their products. By ensuring ABV accuracy, beverage manufacturers can maintain customer trust and satisfaction by delivering beverages that meet the expected potency and flavor profiles. Overall, measuring ABV is a crucial step in the manufacturing process, assisting beverage companies in maintaining regulatory compliance, product consistency, and customer confidence. Features: 0% to 20% ABV measurements 0.1% sample repeatability 0.1% sample accuracy NO sample preparation Results in as little as 9 minutes Multiple cycles for high accuracy WiFi enabled for remote support Results displayed and emailed Easy calibration (Distilled water) Easy cleaning procedures Specs: Measuring Range, Alcohol: 0.1 - 20 %ABV Accuracy: 0.1 %ABV Repeatability: 0.1 %ABV Sample Size: 150 mL Dimensions (LxWxH): 14.2" x 7.5" x 12.8" (362mm x 191mm x 326mm) Weight: 28.2 lb (12.8 kg) Power Supply: 110V  Operating Temperature: 59 - 88 °F (15 - 31 °C) Storage Temperature (control chamber drained): 15 - 22 °F (-10 - 50 °C) Operating Pressure: Sea Level - 3,000m Fuse Rating: 3AG, 440V, 6.3A Pollution Rating: Pollution Degree 2 Overvoltage: Overvoltage Category II Max Relative Humidity: non-condensing ≤ 80% at 88 °F ( non-condensing ≤ 80% at 31)

Read more less

The perfect Tilt for homebrewers with stainless steel fermenters Track your fermentation progress without ever disturbing your wort! Say goodbye to pulling samples for your glass hydrometer 2 to 3x more powerful than the standard Tilt for improved signal transmission through stainless steel Slim design to easily recover the Tilt Pro Mini in small tanks with 1.5" tri-clamp dump ports When the first Tilt hydrometer was released in 2016, most of the home brew fermentation vessels on the market were either glass carboys or plastic brew buckets. Now we see more and more small-scale stainless steel. The problem is stainless isn't that great of a window when it comes to wireless data transmission. The Tilt Pro solves this problem, though it might be bigger than what you need. This is where the Tilt Pro Mini comes in with its smaller size and price and easy recovery in smaller tanks with 1.5” dump ports along with Tilt Pro features like long range (maximum allowed by FCC) and increase in sensor resolution, it takes homebrewing to a new level. The Tilt Pro Mini can be used with the same Tilt 2, Tilt Pi, and other Tilt apps and 3rd party hardware and software as the standard Tilt and Tilt Pro hydrometers. You can even use a standard Tilt and Tilt Pro Mini together if they are the same color in the Tilt 2 app, so run up to 16 different Tilts at once in the Tilt 2 app with 8 standards and 8 pro minis. Download the free Tilt app at the Apple App Store or Google Play Store or get the free Tilt Pi download. Specifications: Size: 1.13" Diameter x 4.51" Tall Will pass through a 1.5" Tri-Clamp drain for easy recovery Weight: 2.3 oz Specific Gravity Measurement Range (pre-calibrated): 0.9900 - 1.1200 (possible to user calibrate up to 1.2000) Specific Gravity Resolution: 0.0001 Temperature Measurement Range: 0°F - 185°F Temperature Resolution: 0.1°F Battery: User-replaceable, single use CR123A Li-MnO2 lithium battery 3.2v (max) Not compatible with rechargeable battery Wireless Range: 300 feet when floating in pint glass of water and 20 feet floating in 5-gallon stainless steel keg Approximately 2-3x standard Tilt and about 80% of Tilt Pro range

Read more less

The perfect Tilt for homebrewers with stainless steel fermenters Track your fermentation progress without ever disturbing your wort! Say goodbye to pulling samples for your glass hydrometer 2 to 3x more powerful than the standard Tilt for improved signal transmission through stainless steel Slim design to easily recover the Tilt Pro Mini in small tanks with 1.5" tri-clamp dump ports When the first Tilt hydrometer was released in 2016, most of the home brew fermentation vessels on the market were either glass carboys or plastic brew buckets. Now we see more and more small-scale stainless steel. The problem is stainless isn't that great of a window when it comes to wireless data transmission. The Tilt Pro solves this problem, though it might be bigger than what you need. This is where the Tilt Pro Mini comes in with its smaller size and price and easy recovery in smaller tanks with 1.5” dump ports along with Tilt Pro features like long range (maximum allowed by FCC) and increase in sensor resolution, it takes homebrewing to a new level. The Tilt Pro Mini can be used with the same Tilt 2, Tilt Pi, and other Tilt apps and 3rd party hardware and software as the standard Tilt and Tilt Pro hydrometers. You can even use a standard Tilt and Tilt Pro Mini together if they are the same color in the Tilt 2 app, so run up to 16 different Tilts at once in the Tilt 2 app with 8 standards and 8 pro minis. Download the free Tilt app at the Apple App Store or Google Play Store or get the free Tilt Pi download. Specifications: Size: 1.13" Diameter x 4.51" Tall Will pass through a 1.5" Tri-Clamp drain for easy recovery Weight: 2.3 oz Specific Gravity Measurement Range (pre-calibrated): 0.9900 - 1.1200 (possible to user calibrate up to 1.2000) Specific Gravity Resolution: 0.0001 Temperature Measurement Range: 0°F - 185°F Temperature Resolution: 0.1°F Battery: User-replaceable, single use CR123A Li-MnO2 lithium battery 3.2v (max) Not compatible with rechargeable battery Wireless Range: 300 feet when floating in pint glass of water and 20 feet floating in 5-gallon stainless steel keg Approximately 2-3x standard Tilt and about 80% of Tilt Pro range

Read more less

The perfect Tilt for homebrewers with stainless steel fermenters Track your fermentation progress without ever disturbing your wort! Say goodbye to pulling samples for your glass hydrometer 2 to 3x more powerful than the standard Tilt for improved signal transmission through stainless steel Slim design to easily recover the Tilt Pro Mini in small tanks with 1.5" tri-clamp dump ports When the first Tilt hydrometer was released in 2016, most of the home brew fermentation vessels on the market were either glass carboys or plastic brew buckets. Now we see more and more small-scale stainless steel. The problem is stainless isn't that great of a window when it comes to wireless data transmission. The Tilt Pro solves this problem, though it might be bigger than what you need. This is where the Tilt Pro Mini comes in with its smaller size and price and easy recovery in smaller tanks with 1.5” dump ports along with Tilt Pro features like long range (maximum allowed by FCC) and increase in sensor resolution, it takes homebrewing to a new level. The Tilt Pro Mini can be used with the same Tilt 2, Tilt Pi, and other Tilt apps and 3rd party hardware and software as the standard Tilt and Tilt Pro hydrometers. You can even use a standard Tilt and Tilt Pro Mini together if they are the same color in the Tilt 2 app, so run up to 16 different Tilts at once in the Tilt 2 app with 8 standards and 8 pro minis. Download the free Tilt app at the Apple App Store or Google Play Store or get the free Tilt Pi download. Specifications: Size: 1.13" Diameter x 4.51" Tall Will pass through a 1.5" Tri-Clamp drain for easy recovery Weight: 2.3 oz Specific Gravity Measurement Range (pre-calibrated): 0.9900 - 1.1200 (possible to user calibrate up to 1.2000) Specific Gravity Resolution: 0.0001 Temperature Measurement Range: 0°F - 185°F Temperature Resolution: 0.1°F Battery: User-replaceable, single use CR123A Li-MnO2 lithium battery 3.2v (max) Not compatible with rechargeable battery Wireless Range: 300 feet when floating in pint glass of water and 20 feet floating in 5-gallon stainless steel keg Approximately 2-3x standard Tilt and about 80% of Tilt Pro range

Read more less

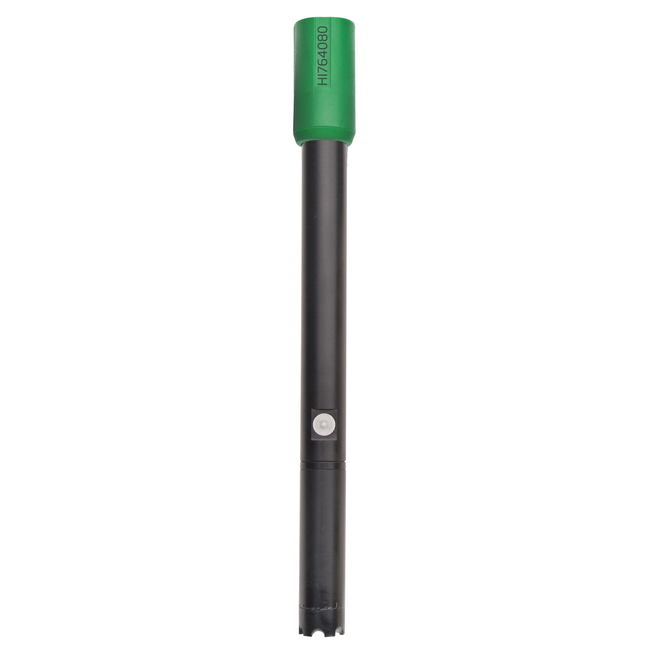

The HI 764080 is a digital dissolved oxygen electrode with built-in temperature sensor. This ultra-thin, Clark-type polarographic electrode is designed for measuring DO in aqueous solutions and contains a built-in microchip that stores sensor type, serial number, and calibration information. The sensor features a platinum cathode with a silver/silver chloride anode, an integrated temperature sensor, and easily replaceable PTFE membrane caps. This probe features a 3.5 mm connector designed exclusively to be used with Hanna Instruments edge® Tablet Meters. Ultra-Thin Body Replaceable Membranes 3.5 mm Connector Built-in Microchip The built-in microchip stores sensor type, serial number and calibration information including date, time, offset, slope, probe condition and buffers used. This information is automatically retrieved by edge® once the electrode is plugged in. The ability to transfer information allows for hot swapping of probes without having to recalibrate. All DO measurements are performed within the electrode and transferred digitally to the meter. This overcomes any noise issues associated with the traditional high impedance analog measuring system. Electrical noise can be generated from a built in temperature sensor and while working in a humid environment.   Ultra-Thin Body The ultra-thin, 12mm, design allows for convenient measurement in narrow vessels such as test tubes.   Replaceable Membranes With screw-on caps, edge® DO PTFE membranes are easy to replace for faster maintenance.   Features at-a-glance: • Digital Microprocessor • Ultra-thin design – 12mm body for convenience • Replaceable membranes – easy screw on for easy maintenance • Polarographic sensor • Built-in temperature sensor • 3.5mm digital plug – easy to plug in, no alignment necessary

Read more less

This instrument is used to test beverage or product for CO² gas and air content in either glass or PET containers and cans. It is automatically adjustable to various size bottles and cans and is available in either one or two liter sizes. Two standard pressure/temperature relationship charts are furnished with the instrument for the determination of volumes of CO² gas in alcoholic and non-alcoholic beverages. The instrument is equipped with a dual scale pressure gauge (0-60 psi and & 0-4.2 kg/cm2) and an adjustable 2″ dual scale dial thermometer (25.125ºF & -5/55ºC). This piercing device is also equipped with a 100cc burette that measures up to 25cc’s of the product’s air content. The parts list and line drawing should be used for assembly and as a reference for ordering replacement parts. Headspace “air” is defined as atmospheric air picked up during the brewing process. These instruments do not measure dissolved oxygen. Two sizes are available. One that can test vessels up to 1L in size, and the other that can test vessels up to 3L in size.

Read more less

This instrument is recommended for testing air content where greater speed and accuracy is required. It is automatically adjustable to various size bottles and cans and is available in one and three liter sizes. The parts list and line drawing should be used for assembly and as a reference for ordering replacement parts. Headspace “air” is defined as atmospheric air picked up during the brewing process. These instruments do not measure dissolved oxygen. Two sizes are available. One that can test vessels up to 1L in size, and the other that can test vessels up to 3L in size.

Read more less
