Glycol Systems

Built-in pumps and digital controllers Control multiple fermentation temperatures independently Fill with 20% glycol solution for optimal chilling performance Cold crash with good insulation Perfect complement to BrewBuilt X-Series Conicals The IceMaster Max 4 is designed to cool fermentations in small vessels or barrels. It can be used with any vessel/fermenter/tank/barrel that has a glycol jacket or submersed cooling snake/coil/rod. This chiller features 4 built-in submersible pumps with independent digital temperature controllers, allowing you to control the temperature of 4 separate fermentation or storage vessels at once. Each digital controller includes a thermal probe that should be inserted into a thermal well in your vessel or can be taped to the outside of the vessel if you don't have a thermal well. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool the liquid in your vessel to the desired set temperature. Compatibility The Max 4 can be used with any fermenter that has a built-in cooling jacket or a submersed cooling coil. It works well as the cooling source for the following: Speidel - Speidel tanks with optional cooling jackets. Barrels - If you use our barrel snake. This can be particularly attractive for a white wine ferment in a barrel. Capacity It is always difficult to determine exactly how many tanks can be chilled at one time as it depends on what is happening in each tank, how the tank is insulated, and what the ambient temperature is. Cold stabilizing always requires the most energy and requires well insulated tanks. We are currently experimenting with capacities but can provide this rough guide to get you started. 1 - 60 Gallon Tank or Barrel 2 - 15-30 Gallon Tanks 4 - 5 to 15 Gallon Tanks Set Up In order to hook up the IceMaster to your fermenter or tank's cooling system, you will need 2 lengths of tubing. All tubing connections should be secured with hose clamps. Length 1: Barb of 1st bulkhead (IN) to cooling system outlet Length 2: Barb of 2nd bulkhead (OUT) to cooling system inlet Specifications: 4 built-in submersible pumps with independent digital controllers Pump controllers read in °F/°C Temperature controller reads in °C Labeled IN and OUT stainless bulkheads with 3/8" OD barbs Tank Capacity: 30L/8 Gal. Water Capacity Compressor: 3/8 HP Cooling Capacity: 780 Watt/2600btu/0.26 ton Refrigerant: R134a Voltage: 110V (3.6 amps) Dimensions: 16.1" x 16.1" x 26" Wheels included CE Certified Max Head: 21.3 ft (6.5 m) Warning: Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.

Read more less

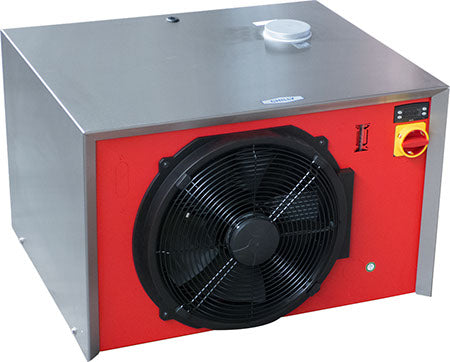

Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory. Compact chiller with commercial level cooling power Maintain fermentation temperatures, cold-stabilize insulated tanks, or maintain storage temperatures Position inside the winery or outside in a covered position Fill from the exterior without the need to remove covers or panels Program and monitor temperatures via the digital controller Made in Germany by Kreyer This Chilly45 unit allows you to easily cool your ferment temperatures, cold-stabilize smaller insulated tanks, or maintain a wine tank storage temperature. This unit can be used inside the winery or placed in a covered position on the outside of the winery. Manufactured by Kreyer, the World's leading producers of wine-cooling equipment. Ready to go - fill with water or a water/glycol solution and plug in. They are equipped with an efficient scroll-type compressor. Note: This unit runs off 208V single phase power. It will not run off 220V. Uses Cooling of must for cold soaks, slow starting ferments Stabilization of tataric crystals Controlling fermenting temperatures Maintaining storage temperatures in tanks/barrels (ask about our barrel snake!) Features Sheet metal housing, electrolitic galvanized high surface quality, powder-coated and abrasion-resistant encasing cover that is easily detachable 208v single phase 60Hz 14 amp supply voltage 1.28 tons (15,000 btu) of cooling power 30L/8G Insulated Plastic tank to hold water or glycol Easy to fill from outside Centrifugal recirculation pump made by Speck. Digital Thermostat Integrated pump pressure switch allows unit to work with digital automatic temperature controlers on multiple tanks. NEW Micro Channel evaporator is quieter, more efficient and uses 30% less cooling gas. High Tech, Scroll-type, efficient, low noise compressor R513a refrigerant Non-Ferrous water circuit - No Rusting! Outlet is 3/4" MPT, which accomodates hose fittings with gaskets, and includes a 1/2" barb fitting 29.75" Length 23.6" Width 19.68" Height All units pass multiple tests prior to shipment 6 Month Electrical Warranty 1 Year Mechanical Warranty CE Certified Need a small glycol system designed for your needs? Contact Morebeer! Pro at info@morebeerpro.com or MoreWine! Pro at info@morewinepro.com

Read more less

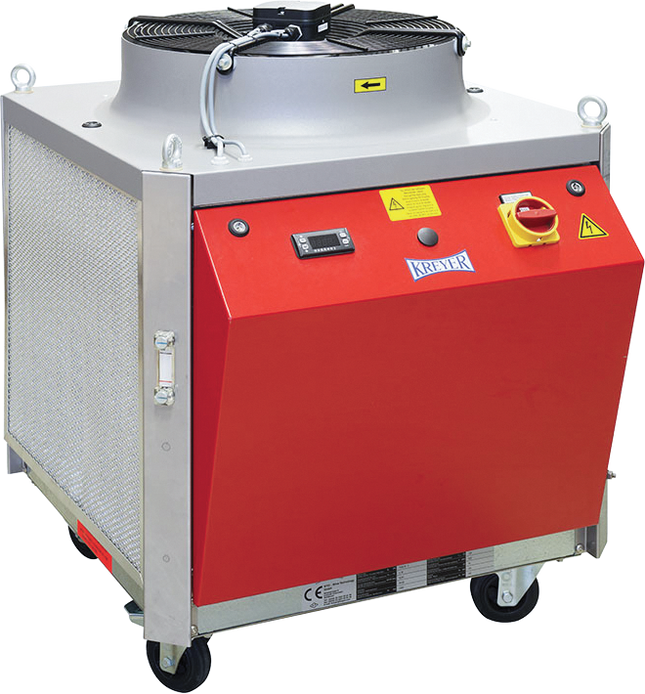

Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in late May. Cooling & heating in one premium quality unit Control fermentation temperatures, cold-stabilize insulated tanks, or heat tanks during cold weather Fill from the exterior without the need to remove covers or panels Program and monitor temperatures via the digital controller Non-Return Kit installed as standard to prevent backflow when positioned below your tank jacket, heat exchanger, or piping system Four locking casters offer ease-of-mobility when moving the unit around the winery 3 Ton / 36,000 Btu cooling capacity 230V, Single Phase power Made in Germany by Kreyer Cooling and Heating in one unit! Every Winemaker can appreciate the benefits of precise temperature control during all stages of production. This mobile unit allows you to easily control your ferment temperatures, heat your tanks during winter to expedite Malo-Lactic fermentation, or cold-stabilize your white wines. This unit can be used as portable unit in a larger winery or as a fixed system supplying a glycol loop in a smaller winery. Unit is used for heating or cooling but cannot supply both at the same time. Manufactured by Kreyer, the World's leading producers of wine-cooling equipment. Note: This unit runs off 230V single phase power. It will not run off 208V. Uses: Cooling of must for cold soaks, slow starting ferments Heating up must after a cold soak period Cold Stabilization of tartaric crystals Controlling fermenting temperatures through cooling or heating Maintaining storage temperatures in tanks/barrels Check out these features: Cools or Heats 3 Tons (36,000btu) of cooling power (larger Chilly Max's are available) .85 Tons of heating power Can cool glycol/water bath down to -10C/14F or up to 42C/107F 230 v Single Phase Power Supply Required Rolls on four locking casters Sheet metal housing, electrolytic galvanized high surface quality, powder-coated and abrasion-resistant casing 7 Gallon Insulated Plastic glycol/water reservoir Easy to fill from outside Evaporator coil made of stainless steel High-quality Grundfos recirculation pump Built in pressure switch shuts down recirculation pump when not needed Digital Thermostat Lifting/Crane Hooks for transport All panels remove for easy access All units pass multiple tests prior to shipment German Engineering Controlled by compact PC boards with a temperature accuracy up to 0.1 degree Celsius. 33"L x 25"W x 31.5"T Unit has 1" Male BSP w/ 3/4" Female BSP inlet / outlet 6 Month Electrical Warranty 1 Year Mechanical Warranty CE Certified Please Note: This unit REQUIRES 230 v Single Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord. Available in larger sizes. For additional product options View the resource.

Read more less

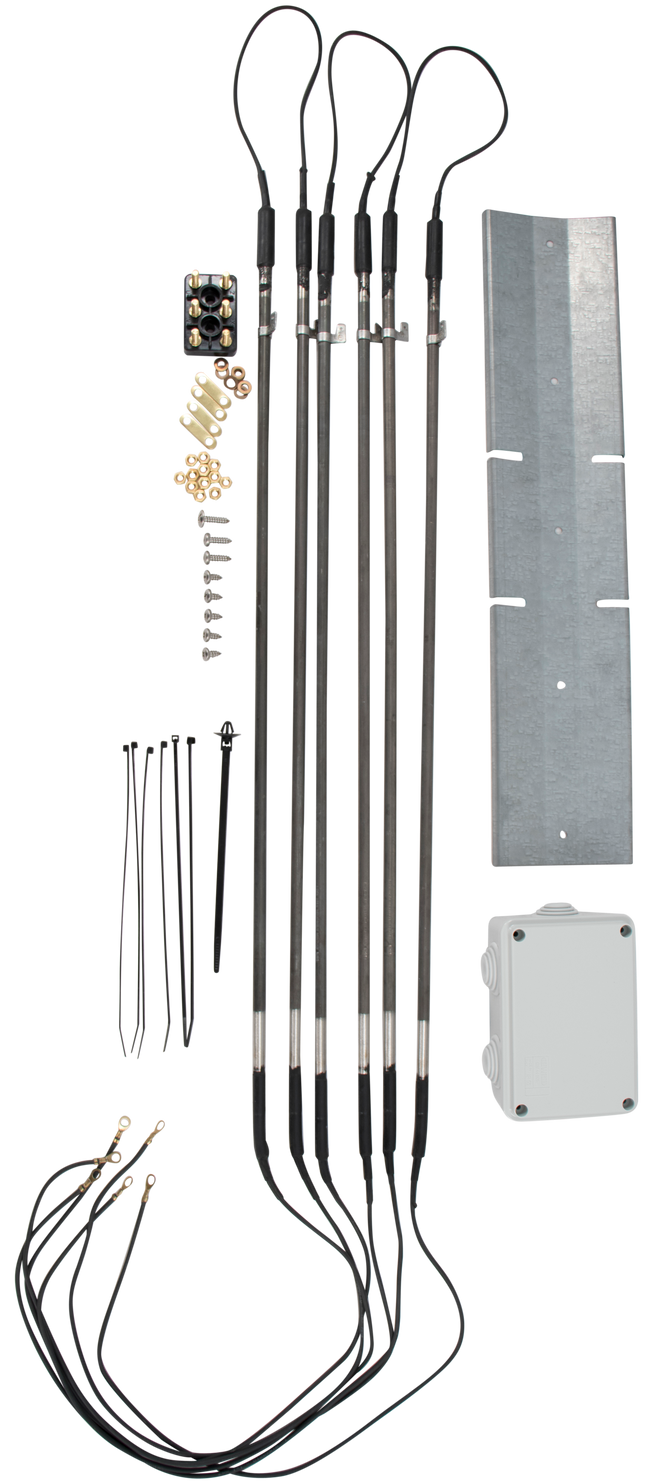

When using a Kreyer Fan unit for below freezing temperatures, you must also use their matching defrost kit. Kreyer Defrost Kits consist of an electric heating element or spiral and are fitted directly to their respective fan unit cooling fins. The Defrost Kit melts any iced condensate that can accumulate on the fins when the fan is used with Glycol-Water set below the freezing point. The Defrost Kit will periodically melt any iced condensate allowing you to use your fan unit at low temperatures. Requires 230V Single Phase 50/60Hz Best if used with Kreyer Masterlog Controller (SDML) Please note: example image shown. The defrost kit may not exactly match this image.

Read more less

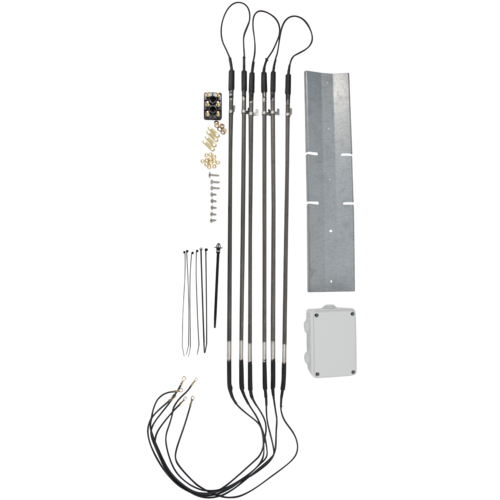

When using a Kreyer Fan unit for below freezing temperatures, you must also use their matching defrost kit. Kreyer Defrost Kits consist of an electric heating element or spiral and are fitted directly to their respective fan unit cooling fins. The Defrost Kit melts any iced condensate that can accumulate on the fins when the fan is used with Glycol-Water set below the freezing point. The Defrost Kit will periodically melt any iced condensate allowing you to use your fan unit at low temperatures. Requires 230V Single Phase 50/60Hz Best if used with Kreyer Masterlog Controller (SDML) Please note: example image shown. The defrost kit may not exactly match this image.

Read more less

When using a Kreyer Fan unit for below freezing temperatures, you must also use their matching defrost kit. Kreyer Defrost Kits consist of an electric heating element or spiral and are fitted directly to their respective fan unit cooling fins. The Defrost Kit melts any iced condensate that can accumulate on the fins when the fan is used with Glycol-Water set below the freezing point. The Defrost Kit will periodically melt any iced condensate allowing you to use your fan unit at low temperatures. Requires 230V Single Phase 50/60Hz Best if used with Kreyer Masterlog Controller (SDML) Please note: example image shown. The defrost kit may not exactly match this image.

Read more less

Rolling casters compatible with the Kreyer MiniChilly 05/09/17. Direct replacements to the rolling casters included on the MB MiniChillys (GLY405 / GLY406). Set of 4 wheels with mounting screws included.

Read more less

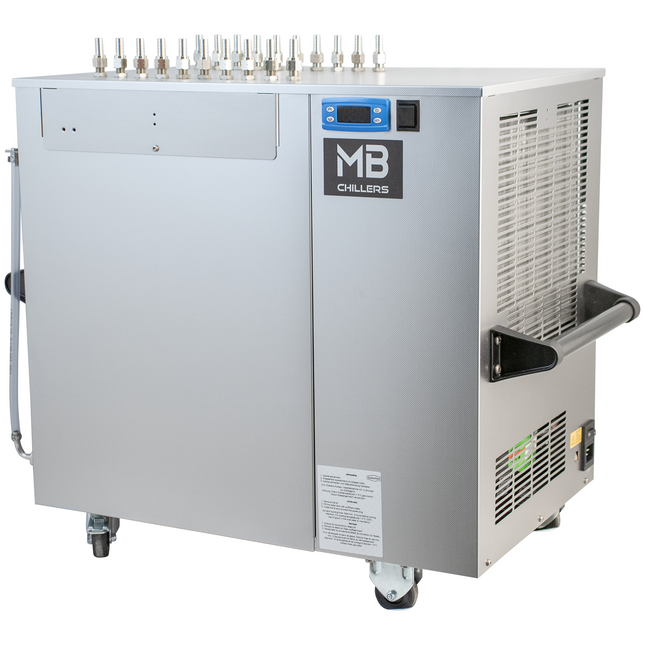

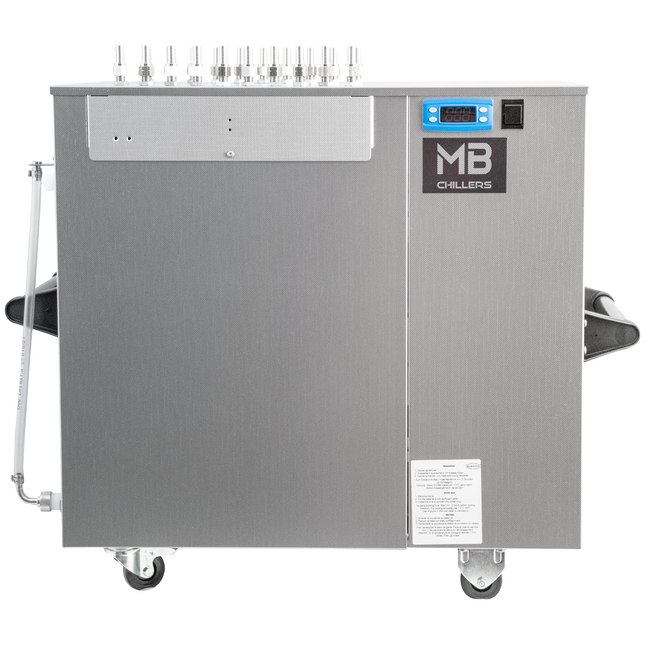

The German made 1.2 horse power MB Chiller is an ideal solution for the avid home winemaker looking to chill up to 10 fermenters at once. The idea of the MiniChilly is that for each fermenter you want to a chill a pump kit is added. A pump kit (GLY35) includes a submersible pump that is placed in the cold bath of the Mini Chilly along with a digital controller that is placed next to your fermenter. Silicone tubing is included to make the connections. The digital controller includes a thermal probe that should be inserted into a thermal well in your vessel or can be taped to the outside of the vessel if you don't have a thermal well. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool the liquid in your vessel to the desired set temperature. In this way each tank can be set at different temperatures. The MiniChilly is made by Quantor/Kreyer of Germany who is the largest manufacturer of glycol systems for breweries and wineries in the world. Made with high quality manufacturing and components, the MiniChilly is a durable system for many years of problem-free wine making. The unit features a stainless steel case with stainless 3/8" barbs in the top that allow for a clean connection of the silicone tubing that will run from each pump to each tank. The MiniChilly is able to chill its reservoir down to 21°F when a 30% glycol solution is used. The compact size and included casters make it easy to move around the winery when needed. Applications: Cooling of fermentation and storage tanks Cooling must and wine for clearing and cold stabilization Cooling rooms and storage halls with additional fan coils Capacity: Many chiller ratings are based on the theoretical power of the compressor, while the cooling capacity of the MiniChilly is rated at a realistic ambient temperature. This is much more useful for predicting the MiniChilly’s performance in real world applications. Of course, you could cool a greater number of smaller tanks but you’re ultimately limited to the 10 connections. Actual cooling capacities will vary based on the insulation of the tank. For the examples below we assume neoprene or better. Cooling Capacity Example: Up to 10 x 110L well-insulated tanks fermenting at 68°F in 80°F ambient temperature. For every fermenter you want to cold crash remove 4 fermenting fermenters from the capacity. Set Up: In order to hook up the MiniChilly to your fermenter or tank's cooling system, you will need 4 lengths of tubing per pump. All tubing connections should be secured with hose clamps. Length 1: Submersible pump outlet to inner barb of 1st bulkhead Length 2: Outer barb of 1st bulkhead to cooling system inlet Length 3: Cooling system outlet to outer barb of 2nd bulkhead Length 4: Inner barb of 2nd bulkhead to MiniChilly reservoir (should drain freely, no connection necessary) Technical Characteristics: Power: 110V-1Ph/50-60Hz Compressor Power: 1.2hp/900watts Cooling Capacity at 32°F glycol temp and 90°F Ambient Temp: 1.05 KW/1050 Watts (60Hz 110V) Cooling Capacity at 60°F glycol temp and 90°F Ambient Temp: 1.92 KW/1920 Watts (60Hz 110V) Stainless Steel Unit Water Temperature Range: 21°F - 86°F (-6°C - 30°C) Ambient Temperature Range: 50°F - 90°F (10°C - 32°C) Refrigerant R134a Free Glycol Water-Bath for Mini-Pumps Fittings 3/8" for Plastic Tubes of Individual Pumps Solid Wheels w/ Breaks for Easy Mobility Universal C19 Plug On/Off Switch Water-Level Sight-Tube Grooves for Individual Pump Cables Safety Inner Separation Water Side from Electric Side Tank Capacity: 12.68 gal. (48 L) Dimensions: 29.5"L x 15.75"W x 21.75"H Weight: 112.5 lbs Made in Germany CE Certified
