Heat Exchangers

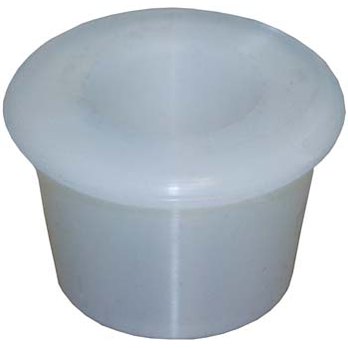

Use this silicone sleeve to fit a cooling snake into a the existing air lock hole on a Variable Volume Fermenter. Silicone sleeve makes an air tight seal between lid and cooling snake. Note that if you want to use the cooling snake during an active ferment you will need to modify the lid to be fitted with an airlock - we suggest a tri-clover fitting be welded in the top and a piece of tubing connected to this that runs into a bucket of water. We can help you choose the necessary fittings. Dimensions: Bottom OD - 1 5/8" Top OD - 1 15/16" ID - 1 1/8" Dimensions installed on Snake: Bottom OD - 1 3/4" Top OD - 2"

Read more less

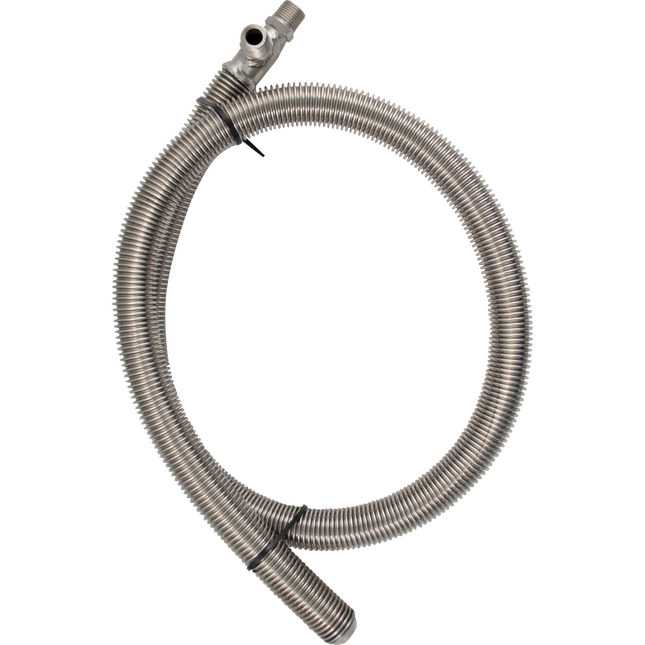

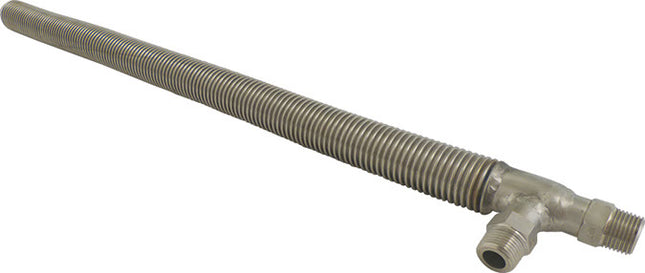

A unique alternative to cooling plates. This tube-within-a-tube snake is used to recirculate glycol or cooled water through your wine to keep temperatures down. Can be used in a tank, macrobin, or barrel. The inner tube runs through the middle of the outer shell, but is shorter. Glycol can run through one tube and back through the other, completing the loop. Snakes are outfitted with 1/2in. male NPT threads on both the inlet and outlet.  The inlet is at 90 degrees and the outlet is straight. .25m Square meter of Cooling Surface. Ideal for use in an Oak Barrel or Small Tank. Can also be used for heating. Optional silicon sleeve for sealing.

Read more less

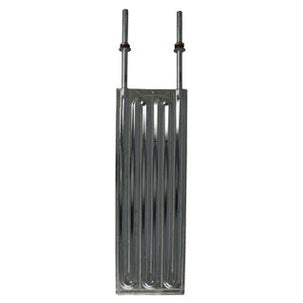

Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment. This is a stainless steel setup, ensuring no chance of off-flavor in your wine. You drill two 1-1/16" to 1-1/8" holes into the lid. We provide two gaskets and a lock nut to seal on both sides of your lid, securing the plate in place. Plate measures 31.5" H x 14.5" W Inlet and Outlet 1/2" Male BSPP thread 300 mm long tubes Bulkheads located approx. 175  mm above the plate 0.64 Square meters of cooling surface Made from 304 stainless steel

Read more less

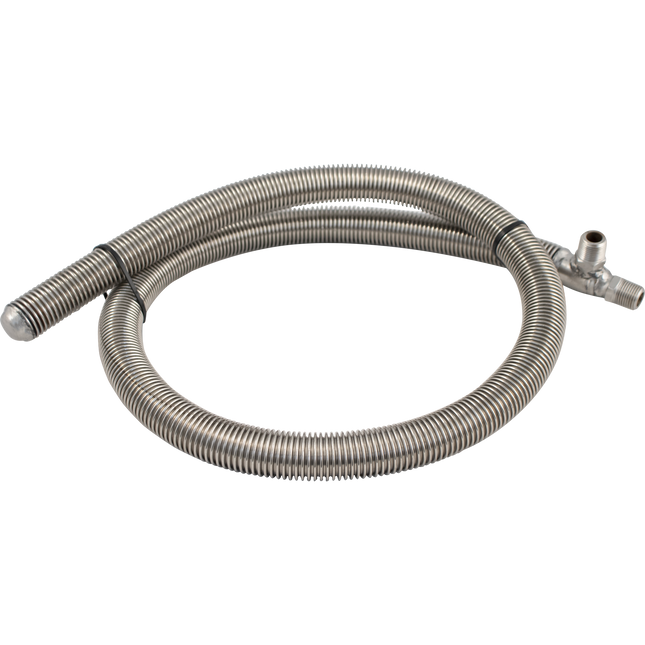

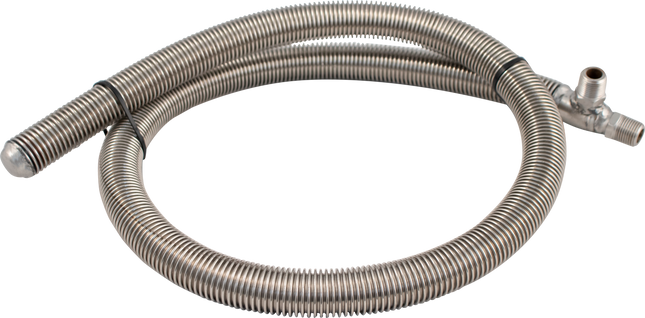

A new & unique alternative to cooling plates. This tube-within-a-tube snake is used to recirculate glycol or cooled water through your ferment to keep temperatures down. It can be used in a tank, macrobin, or barrel. The inner vinyl tube runs through the middle of the corrugated stainless tubing, but is shorter than the stainless tubing. Glycol can run through one tube and back through the other, completing the loop. Snakes are outfitted with 1/2in. male NPT threads on both the inlet and outlet.  The inlet is at 90 degrees and the outlet is straight. .40m Square meter of Cooling Surface Ideal for use with an Oak Barrel or Small Tank. Can also be used for heating. Optional silicon sleeve for sealing.

Read more less

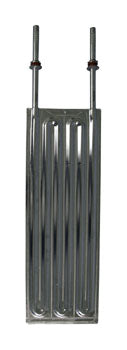

Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment. This is a stainless steel setup, ensuring no chance of off-flavor in your wine. You drill two 1-1/16" to 1-1/8" holes into the lid. We provide two gaskets and a lock nut to seal on both sides of your lid, securing the plate in place. Plate measures 14.5" W x 24" H Inlet and Outlet 1/2" Male BSPP thread 300 mm long tubes Bulkheads located approx. 175 mm above the plate 0.48 Square meters of cooling surface Made from 304 stainless steel

Read more less

A unique alternative to cooling plates. This tube-within-a-tube snake is used to recirculate glycol or cooled water through your ferment to keep temperatures down. It can dropped directly into a tank, macrobin, or even barrel. The inner vinyl tube runs through the middle of the corrugated stainless tubing, but is shorter than the stainless tubing. Glycol can run through one tube and back through the other, completing the loop. Snakes are outfitted with 1/2in. male NPT threads on both the inlet and outlet.  The inlet is at 90 degrees and the outlet is straight. .55 Square Meters of Cooling Surface Can also be used for heating. Optional silicon sleeve for sealing.

Read more less

Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment. By threading our thermowell (FE616) into the extra 1/2" female coupler that comes on every MoreWine Variable Volume Fermenter and inserting the probe from our digital controller (FE610) you can use a digital controller to automatically control temperature. The controller turns a pump on every time the temperature rises above your set-point, sending coolant through the plate. To build these units we take the stock cooling plates and slide, bored-out, male-threaded couplers half-way down the feed tubes and weld them in place. You drill two 1 1/16 to 1 1/8" holes into the lid. We provide two gaskets and nuts that thread on both sides of the couplers securing the plate in place.  Plate measures 22.5"W x 47.5"H Inlet and Outlet 1/2" Male BSPP thread 300 mm long tubes Bulkheads located approx. 175 mm above the plate 1.44 Square meters of cooling surface Made from 304 stainless steel

Read more less

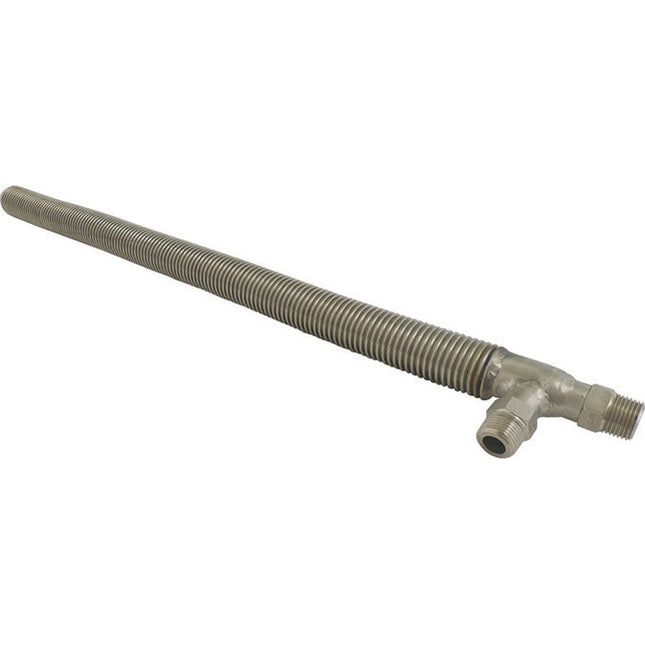

Cold stabilization in one barrel or control fermentation temperatures in a 100L tank. With an overall length of 20 in. this little snake can be used to control temperatures in any small batch. You will need a glycol system or at least a cold or hot water source to connect to the snake. How it works:  This tube-within-a-tube snake is used to recirculate glycol or cooled/heated water through your wine to regulated temperatures. The inner vinyl tube runs through the middle of the corrugated stainless tubing, but is shorter than the stainless tubing. Glycol can run through one tube and back through the other, completing the loop. Use our custom made Snake Bung to make an air tight seal. Slides over the snake and seals it to the barrel or the traditional air lock hole in a variable volume lid (provided the hole is approximately 1 3/4 in. in diameter.) Or punch a 1 3/4in. hole in any tank or lid. Snakes are outfitted with 1/2in. male NPT threads on both the inlet and outlet.  The inlet is at 90 degrees and the outlet is straight. 1 3/8" diameter.  0.11 m² Surface area. Can also be used for heating

Read more less

Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment. This is a stainless steel setup, ensuring no chance of off-flavor in your wine. You drill two 1-1/16" to 1-1/8" holes into the lid. We provide two gaskets and a lock nut to seal on both sides of your lid, securing the plate in place. Plate measures 24" H x 10.6" W Inlet and Outlet 1/2" Male BSPP thread 300 mm long tubes Bulkheads located approx. 175 mm above the plate 0.36 Square meters of cooling surface Made from 304 stainless steel

Read more less

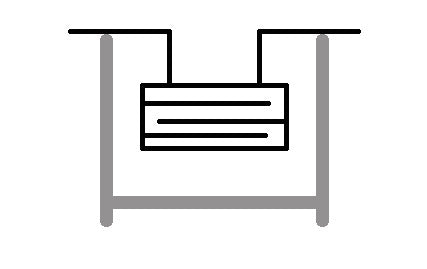

A custom fabricated 304 stainless steel cooling plate for Macro Bins designed specifically for MoreWine!. The plate hangs in place by the inlet/outlet pipes and is held in the center of your bin. 40" wide x 14.5" tall, yields 0.37 square meters of cooling surface. 1/2 inch MPT threaded inlet and outlet. Please note that the illustration shown is for demonstration purposes only and is not to scale.

Read more less

A unique alternative to cooling plates. This tube-within-a-tube snake is used to recirculate glycol or cooled water through your ferment to keep temperatures down. It can be used in a tank, macrobin, or barrel. The inner vinyl tube runs through the middle of the corrugated stainless tubing, but is shorter than the stainless tubing. Glycol can run through one tube and back through the other, completing the loop. Snakes are outfitted with 1/2in. male NPT threads on both the inlet and outlet.  The inlet is at 90 degrees and the outlet is straight. .75 Square Meters of Cooling Surface Can also be used for heating Optional silicon sleeve available for sealing

Read more less

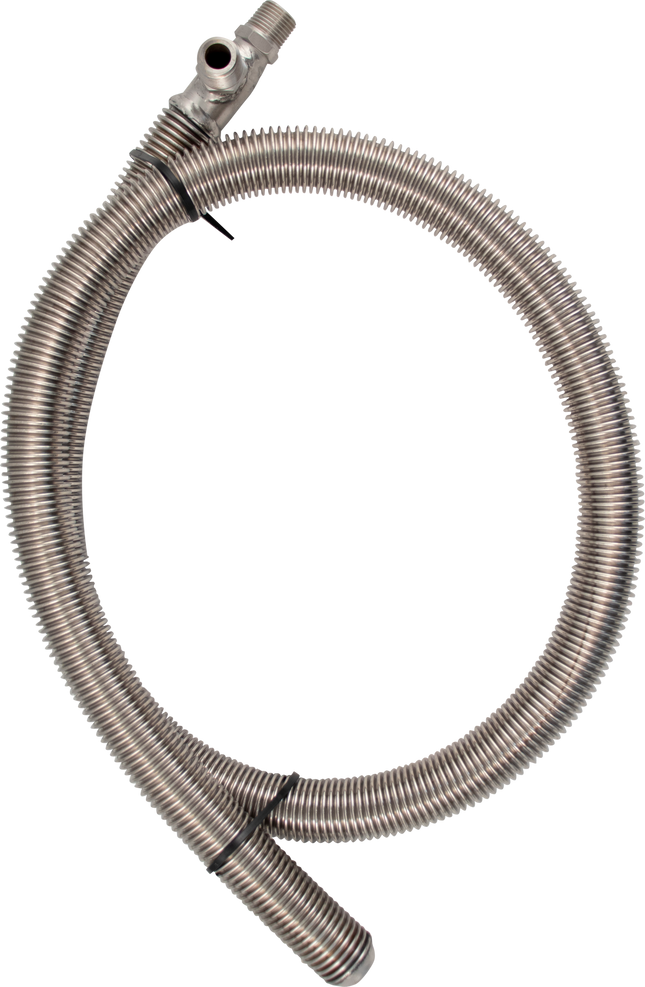

A unique alternative to cooling plates. This tube-within-a-tube snake is used to recirculate glycol or cooled water through your ferment to keep temperatures down. It can be used in a tank, macrobin, or barrel. The inner vinyl tube runs through the middle of the corrugated stainless tubing, but is shorter than the stainless tubing. Glycol can run through one tube and back through the other, completing the loop. Snakes are outfitted with 1/2in. male NPT threads on both the inlet and outlet.  The inlet is at 90 degrees and the outlet is straight. 1.2 Square Meters of Cooling Surface Can also be used for heating Optional silicon sleeve available for sealing

Read more less
