Wheeled crush pad pump rolls directly under the Jolly 40 or Jolly 60 Crusher Destemmer
-
Stainless steel construction throughout
-
Screw feed moves grapes to the elliptical must pump with 3" tri-clamp outlet
-
Up to 16,000 lbs per hour processing capacity
-
Made in Italy by EnoItalia

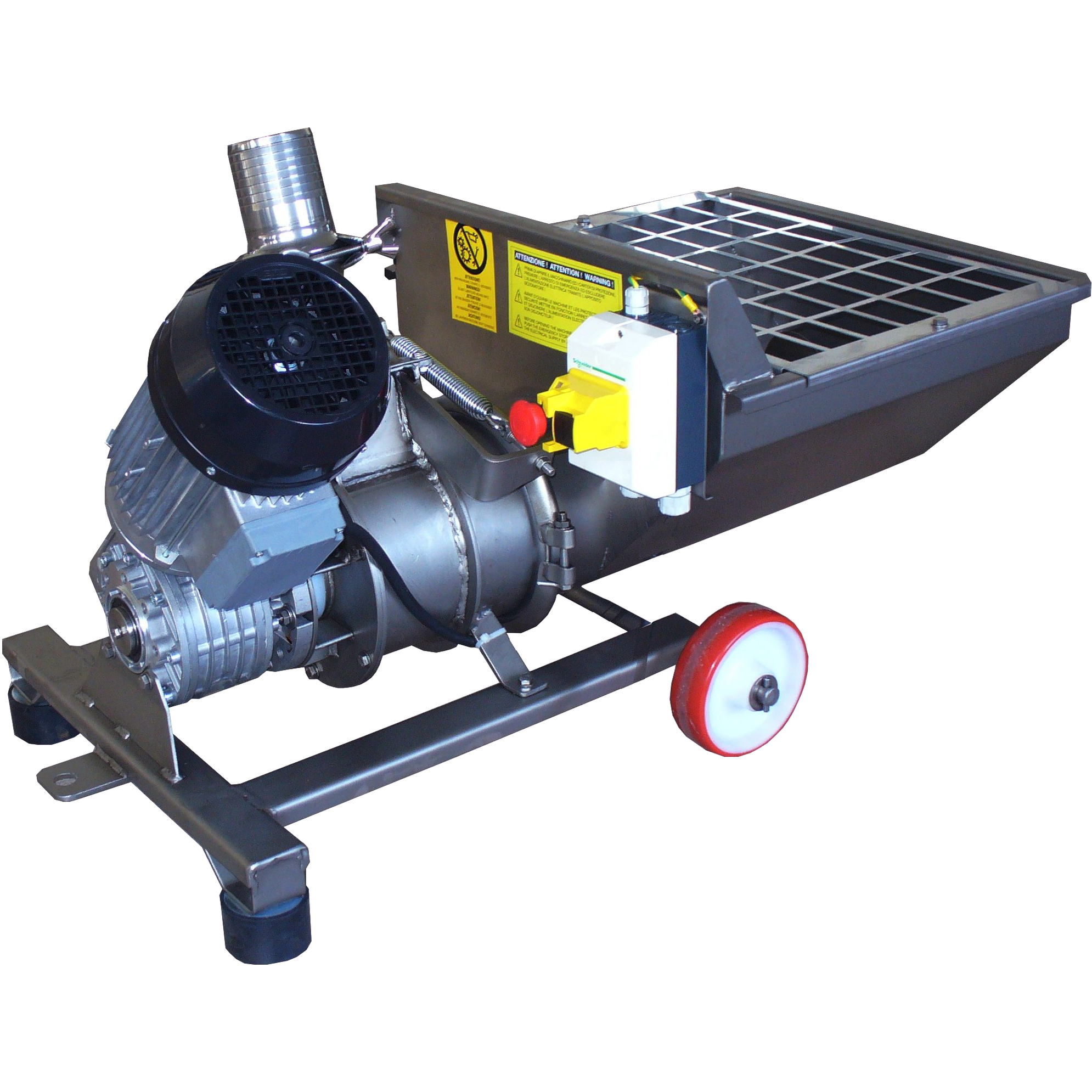

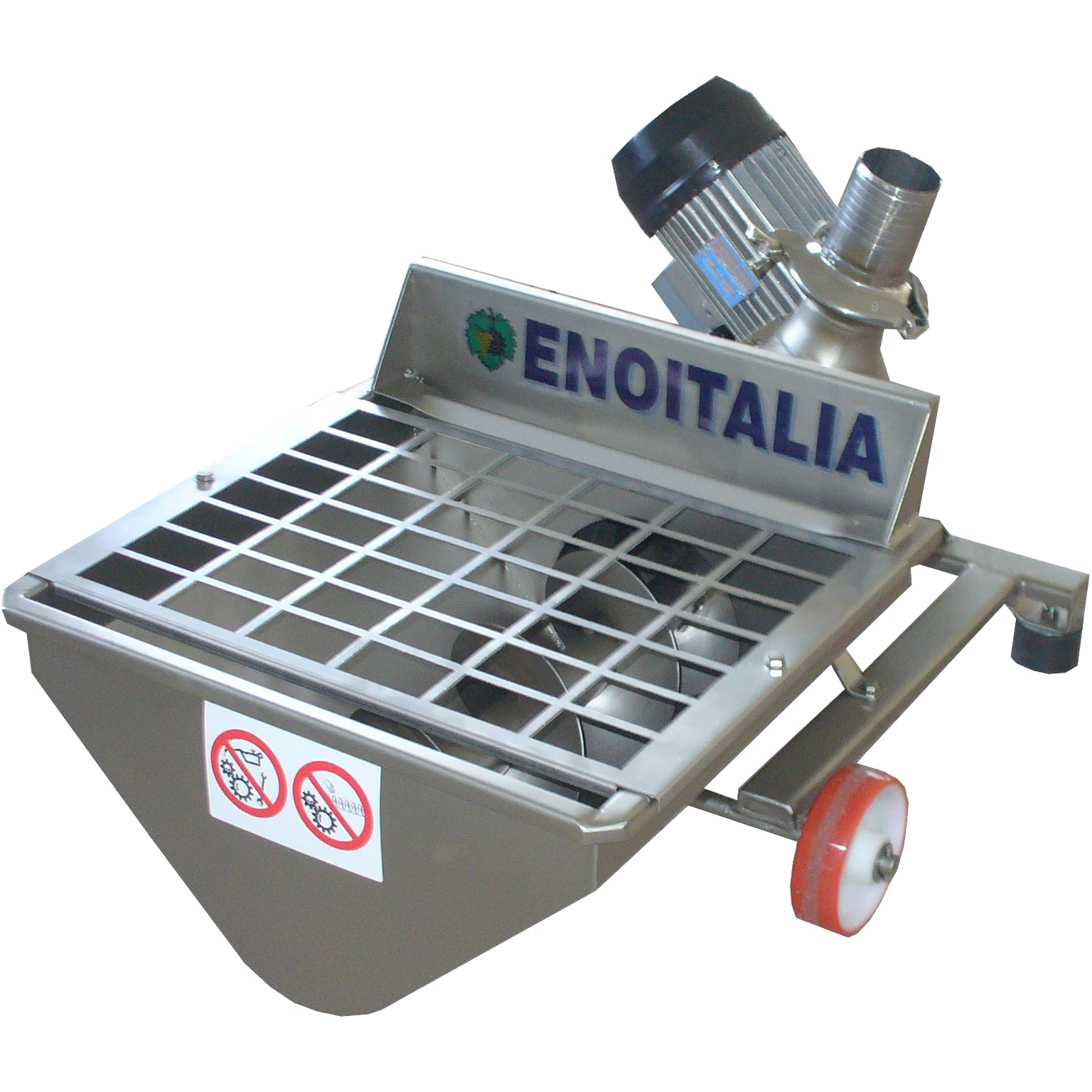

A 3-Phase Crush Pad Specific must pump that transfers crushed grapes from your Crusher Destemmer to your tank or bin. Entire pump is on wheels and will slide under the Jolly 40 or Jolly 60 Crusher Destemmer. Grapes would fall into the awaiting stainless hopper. Stainless screw moves grapes into the eliptical, paddle style must pump that then moves them through 3" tubing to final destination. Considered more gentle than using a rubber impeller must pump. Only available in 3 phase power.
Details:
-
Power: 2.5 HP Three Phase 220 v draws 4.7 amps
-
Capacity: 12,000 to 16,000 pounds per hour
-
Shaft Speed: 47-58RPM
-
Max Pressure: 7.2 PSI (0.5 BAR)
-
Out Let Barb: 3" Tri-Clamp
-
Max Discharge Height: 9 feet
-
Max Discharge Distance: 30 feet
-
Weight: 220 Pounds
-
Pump Body: Stainless Steel
-
Loading Hopper & Screw: Stainless Steel
-
Refillable automatic lubricator
-
Hinged discharge cone can be opened for inspection
-
Single speed pump
Please Note: This unit REQUIRES 220V Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.
This item does not qualify for free shipping.
