Sparkling Wines: Can handle the high pressure associated with bottling sparkling wines/champagnes up to 6 bar (87 psi).
-
Versatile: Can also bottle all other carbonated beverages.
-
Automated Efficiency: PLC control automates filling, pressure, and level balancing for precise and consistent results.
-

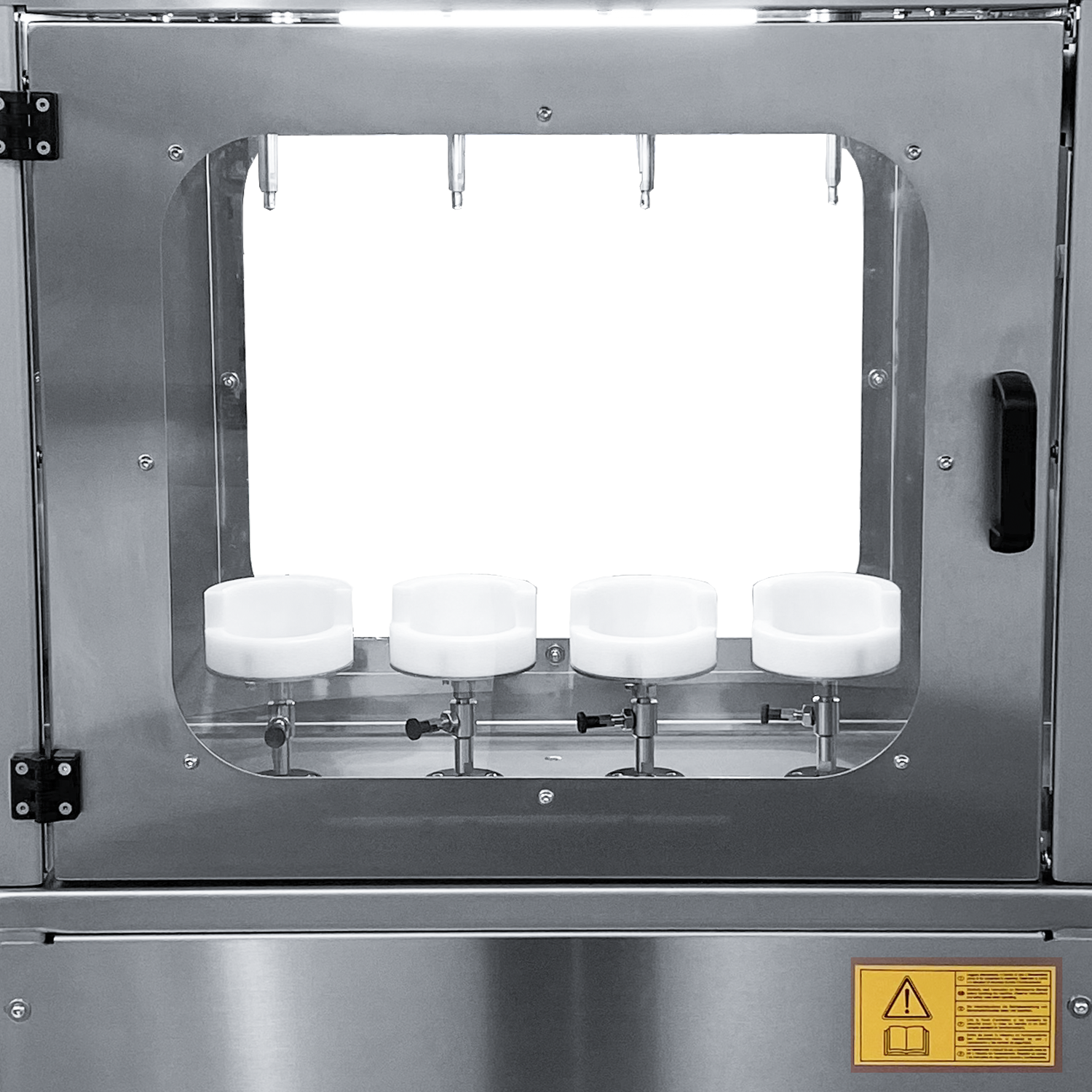

Flexible Operation: Fill one to four containers simultaneously with customizable fill levels for each.
-
Reduced Oxidation: Integrated automatic degassing system minimizes oxygen exposure, preserving beverage quality.
-
Safety Features: Includes a pre-evacuation system, door-opening safety circuit, and PED-certified storage tank for secure operation.

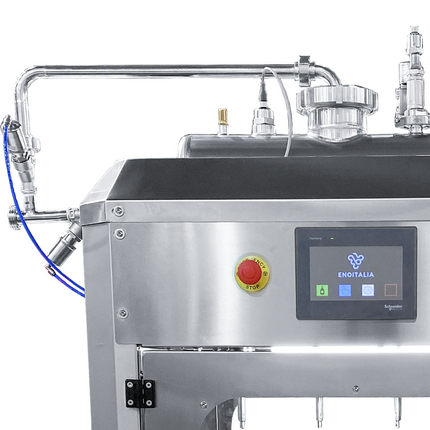

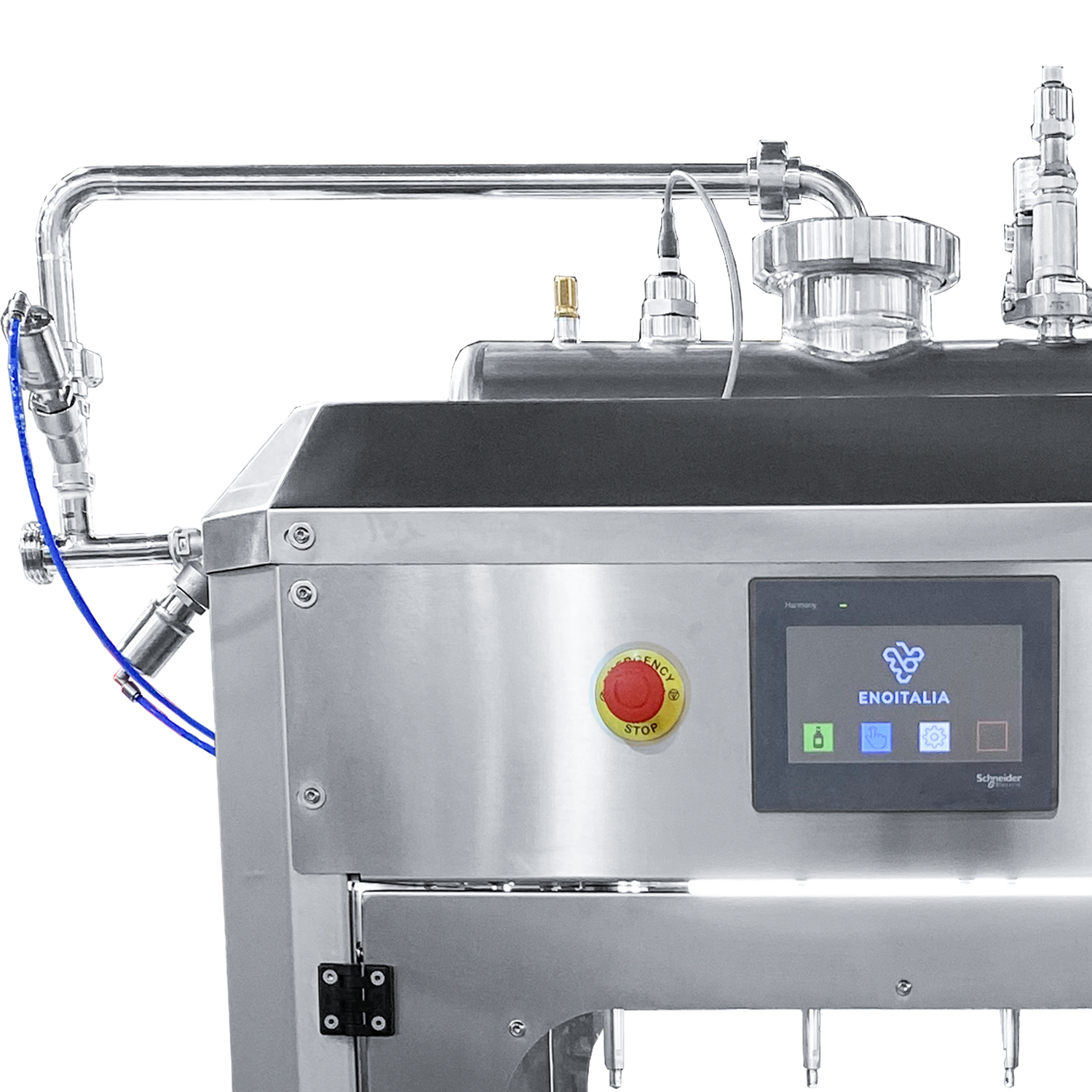

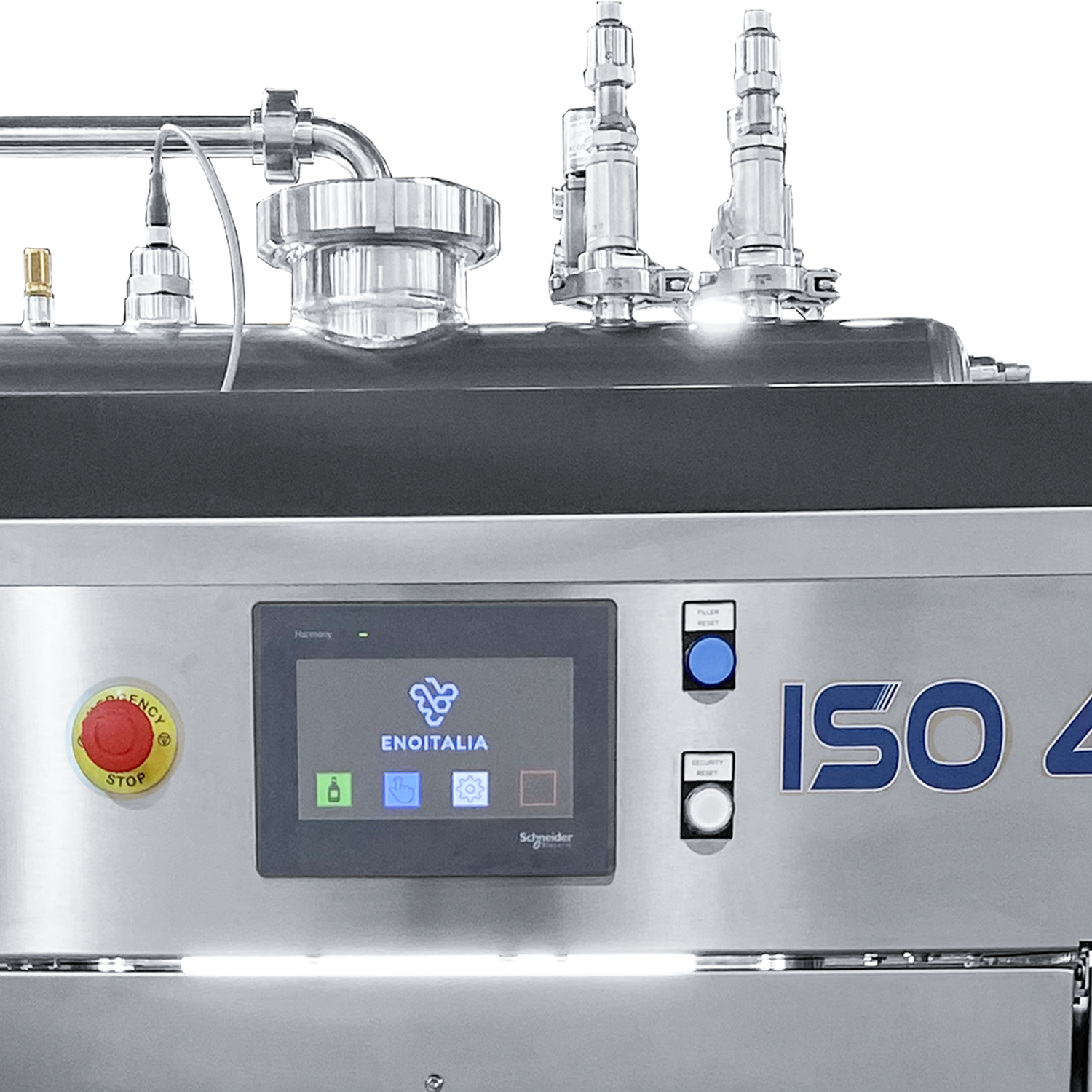

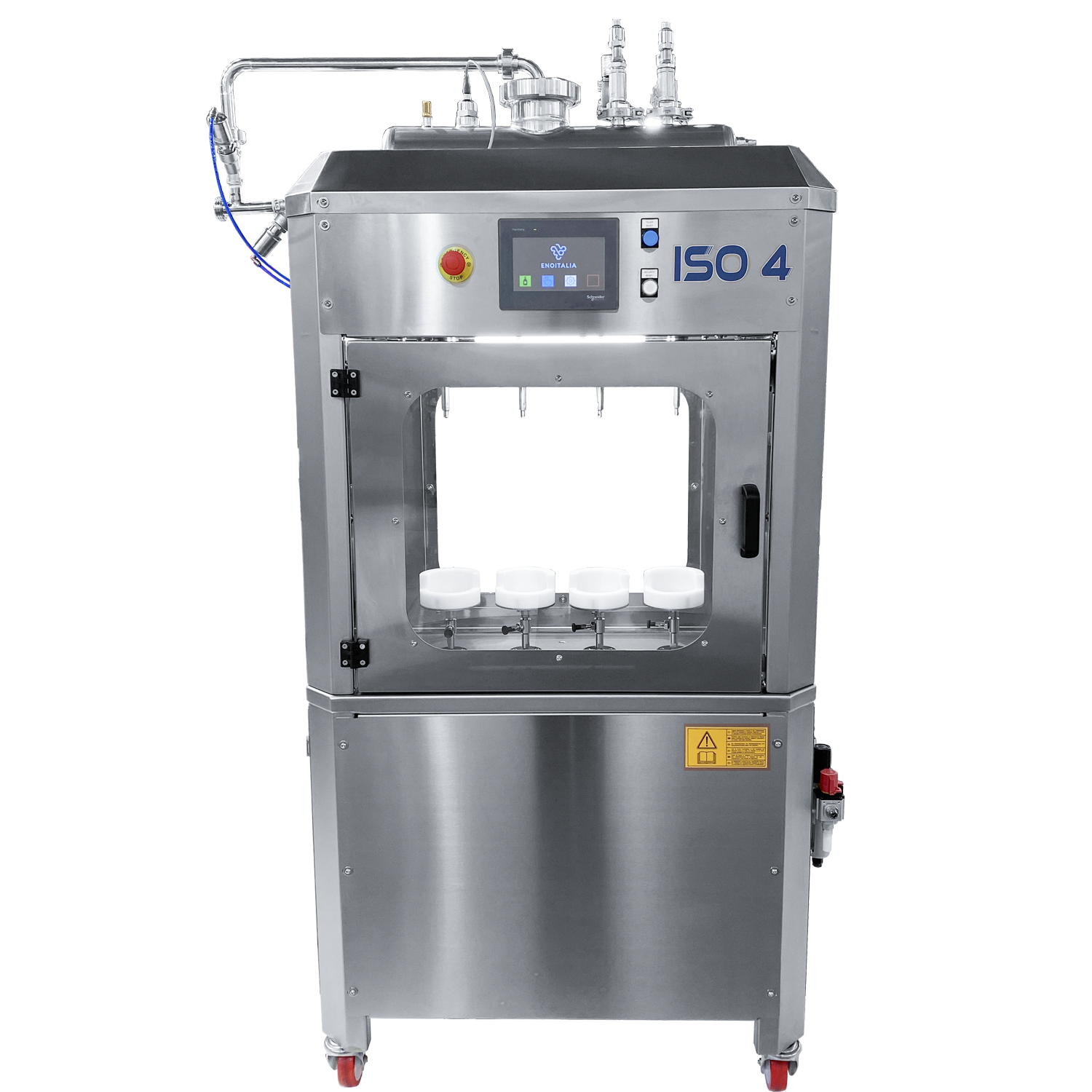

This semiautomatic, four-head, isobaric, counter-pressure filling machine is suitable for bottling beverages at pressures up to 6 bar (87 psi), including sparkling wines and beer. Equipped with a PLC (Programmable Logic Controller) for automatic control, it precisely manages filling, pressure, and level balancing while ensuring operational safety. The PED-certified storage tank allows for direct connection to bulk storage, streamlining the bottling process.
To operate, simply input the initial liquid pressure and container capacity into the programmable controller. This system allows for customized filling levels for each container and the flexibility to fill one to four containers simultaneously.
Includes:
-
Pre-evacuation system with a vacuum pump that can be set to one or more cycles
-
Door-opening safety circuit connected to the pressure level in the bottle
-
Washing circuit with fixed head hydrosphere sprayer
-
Automatic degassing system to minimize oxidation
-

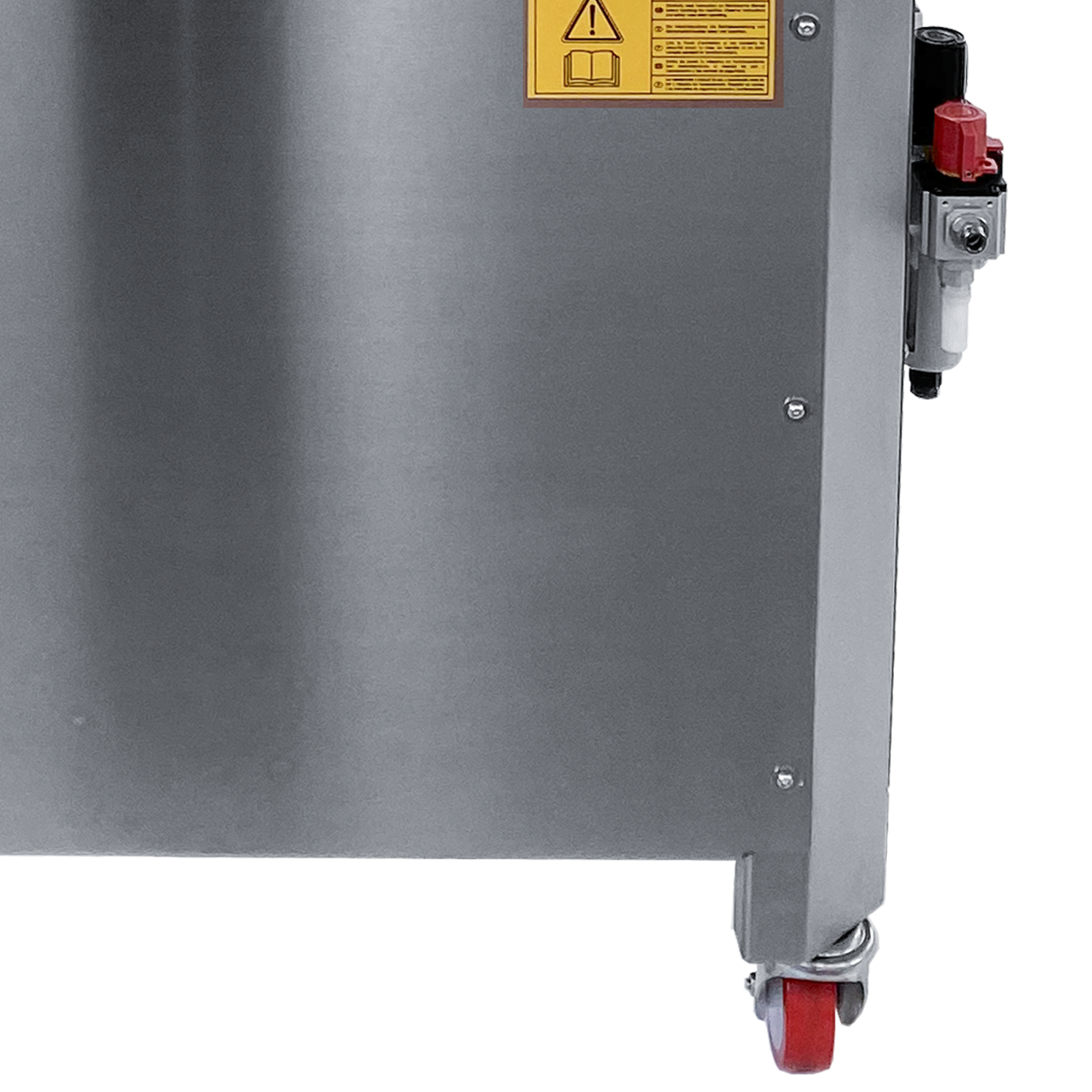

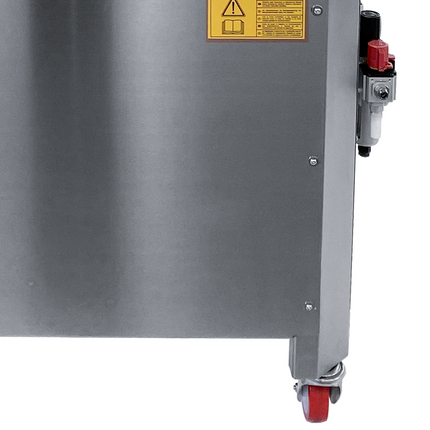

Stainless steel structure on wheels, with internal LED lighting
Specs:
-
Workable bottle volume: 0.33-1.5L (11 to 50.7 ounces)
-
220V, Single Phase
-
Variable production depending on format and temperature: approx. 200 bottles/hour (750mL)
Please Note: This item may come with a bare cord or with a European style plug. You will need a professional electrician to wire the pump with the appropriate plug.
