Pairs perfectly with the EnoItalia Jolly 60 and Jolly 180 Reverse series crusher destemmers
-
Position the selection table below the Jolly Reverse unit to receive grapes for further sorting and quality control
-
Vibrating action evenly spreads grapes on the table surface for easy visual inspection
-
Raisins, underripe grapes, moldy grapes, etc. are removed by hand so you end up with the best must possible for winemaking
-
Features variable speed control, rolling casters, and height-adjustable legs
Vibrating sorting tables are considered the gold standard of sorting, allowing you to make the very highest quality wine from your grapes. They are amazing for removing raisins, underripe grapes, moldy grapes, etc in addition to all MOG (Matter Other than Grapes) such as stems, leaves, and any other foreign material. While they offer the potential of immaculately clean must you do need at least two quick people to work the sorting table. If labor is an issue, consider our Jolly 60 Reverse with Built-in Automatic Sorting Table. While the auto sort will not reach the absolute pinnacle of pristine fruit that a vibrating sorting table with great labor can, great labor is getting harder to find!

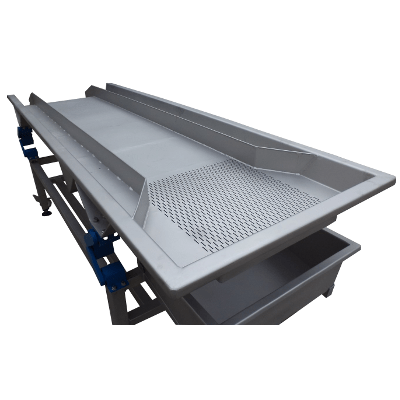

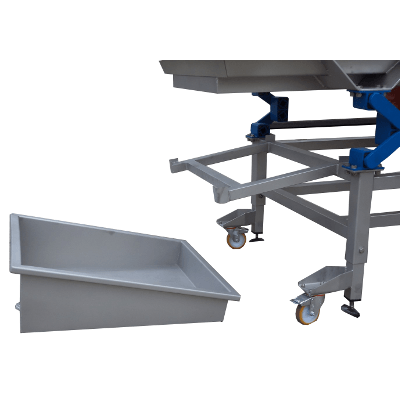

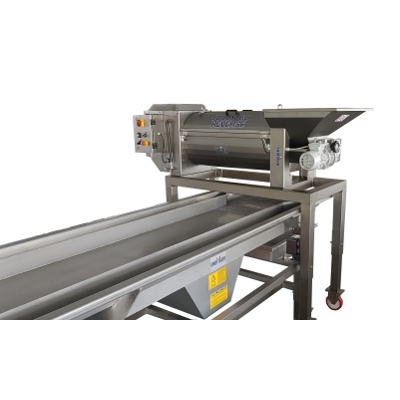

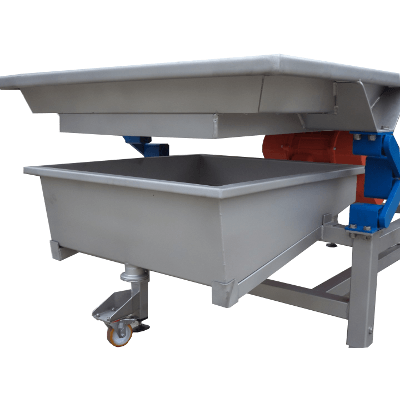

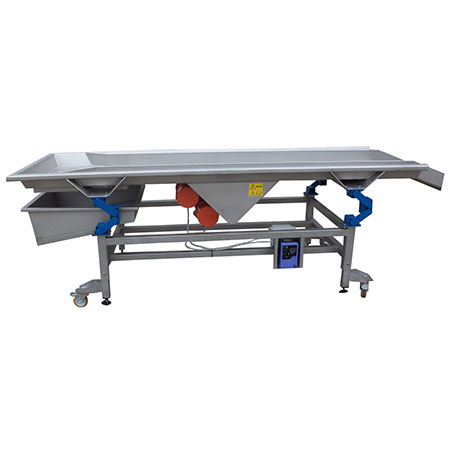

The Vibrating Selection Table pairs perfectly with the EnoItalia Jolly 60 and Jolly 180 Reverse series crusher destemmers. The table is made entirely of 304 stainless steel with a micro-shot peening surface treatment. Position the table below the Jolly Reverse unit to receive grapes for further sorting and quality control. Grapes drop down onto a slotted area where oxidized juice and seeds are automatically dropped into a collection pan. From there the vibrating action evenly spreads grapes on the table surface for easy visual inspection where moldy, damaged grapes, raisins, stems, leaves or any debris that made it through the destemmer can be removed by hand. The support frame is equipped with 4 swivel casters, telescopic legs that can be adjusted to three different height positions, and 4"-high product containment side rails. The constant advancement of grapes down the sorting table is enabled by the use of two 0.37 kW vibrating motors that cause grapes to 'dance' down the table.
The operating portion of the table is 31.5" wide by 10' long. A removable grate complete with DN 50 connection allows the elimination of liquid from the slotted discharge area. As standard, it is supplied complete with a CE-compliant electrical panel and an electronic speed variator.

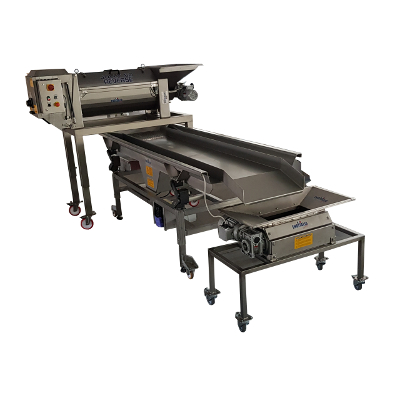

Grapes can either gravity drop off into a waiting collection bin or an optional EnoItalia grape crusher, along with must pump, can be placed at the end of the sorting table. Inquire with our sales staff for more information.
Specs:
-
Internal Width: 31.5"
-
Table Length: 10 ft.
-
Capacity: 2-10 ton/h
-
1.5 kW
