Wine Filters

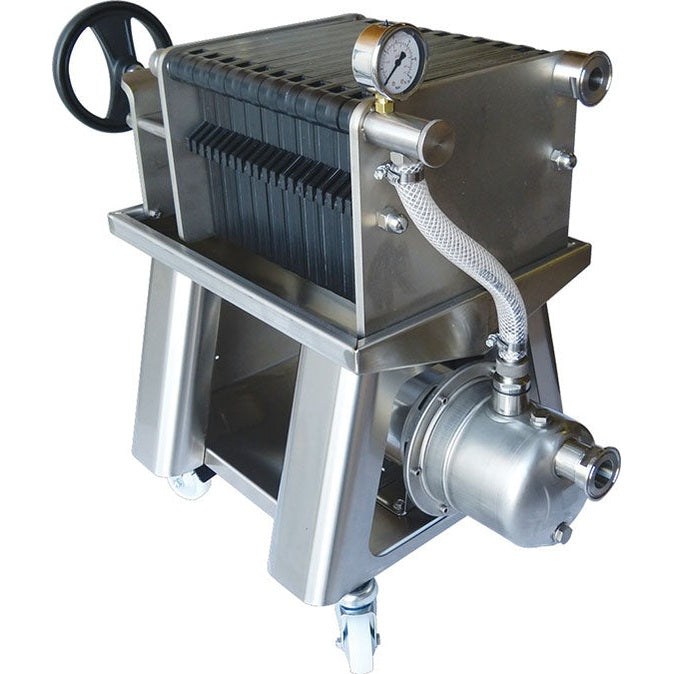

Marchisio Wine Plate Filter | Noryl Plates | 20x20 | 20 Plate | Stainless Rolling Cart | 600L/h | 110V

    Description

    • Rolling cart wine plate filter
    • Plates made from food-grade Noryl
    • Built-in stainless centrifugal pump
    • Built-in pressure gauge
    • 1.5" tri-clamp inlet/outlet
    • 600L/h wine filtering capacity
    • Made in Italy by Marchisio

    Small commercial plate filter that will accomodate 20 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.

    Features:

    • 304 Stainless Steel Construction
    • Four Casters for easy movement. Two of the casters have locks
    • Built-in centrifugal stainess steel pump with on/off switch
    • 21 Food-Grade Noryl plastic plates included.
    • Double filtration kit available
    • Built-in pressure gauge
    • Maximum pump pressure is 2.5 bar (35 p.s.i.)
    • Up to 600L (158 gal) Flow rate per hour
    • 620x420x560mm/24x16.5x22 inches
    • 90 lbs
    • 1.5" Tri-Clamp inlet and outlet
    • Pads should be placed in the machine rough-smooth-smooth-rough




    Marchisio Wine Plate Filter | Noryl Plates | 20x20 | 20 Plate | Stainless Rolling Cart | 600L/h | 110V

      Product form

      SKU: WE906N

      $3,139.99

        This item does not qualify for free shipping.

        This item ships freight only.

        WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        • Rolling cart wine plate filter
        • Plates made from food-grade Noryl
        • Built-in stainless centrifugal pump
        • Built-in pressure gauge
        • 1.5" tri-clamp inlet/outlet
        • 600L/h wine filtering capacity
        • Made in Italy by Marchisio

        Small commercial plate filter that will accomodate 20 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.

        Features:

        • 304 Stainless Steel Construction
        • Four Casters for easy movement. Two of the casters have locks
        • Built-in centrifugal stainess steel pump with on/off switch
        • 21 Food-Grade Noryl plastic plates included.
        • Double filtration kit available
        • Built-in pressure gauge
        • Maximum pump pressure is 2.5 bar (35 p.s.i.)
        • Up to 600L (158 gal) Flow rate per hour
        • 620x420x560mm/24x16.5x22 inches
        • 90 lbs
        • 1.5" Tri-Clamp inlet and outlet
        • Pads should be placed in the machine rough-smooth-smooth-rough




        Documents
        Manuale ANTARES (en) (2)
        wfilter (3)

        You Might Also Need

        Stainless Tri-Clamp | 1.5
        Stainless Tri-Clamp | 1.5" T.C. x 3/4" Female BSPP
        $28.99
        ByPass for PMP100
        ByPass for PMP100
        $164.99

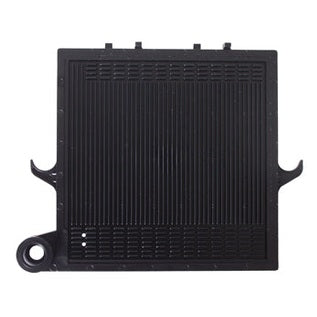

        20x20 Noryl Filter Plate (1)
        20x20 Noryl Filter Plate (1)
        $38.49

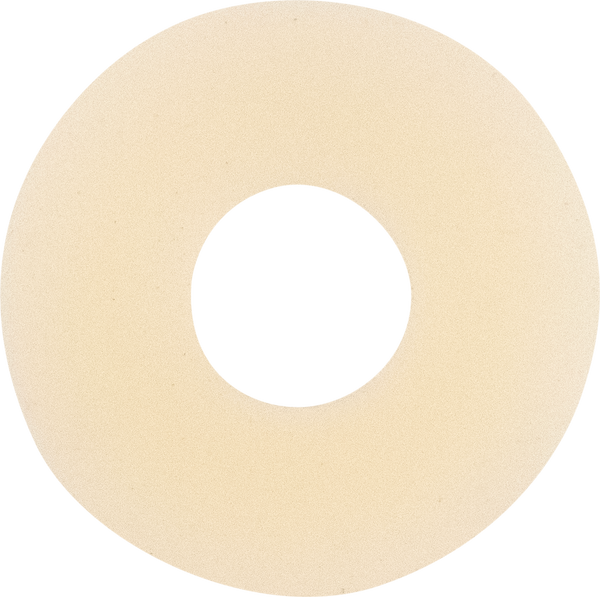

        Plate Gasket (20 x 20)
        Plate Gasket (20 x 20)
        $4.99

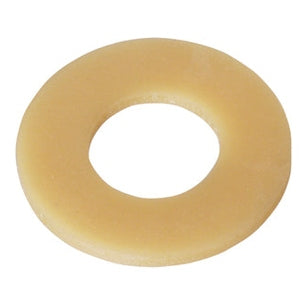

        End Plate Gasket
        End Plate Gasket
        $3.89

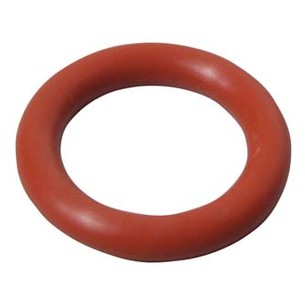

        HI Temp O-ring for weldless valve kits
        HI Temp O-ring for weldless valve kits
        $0.99

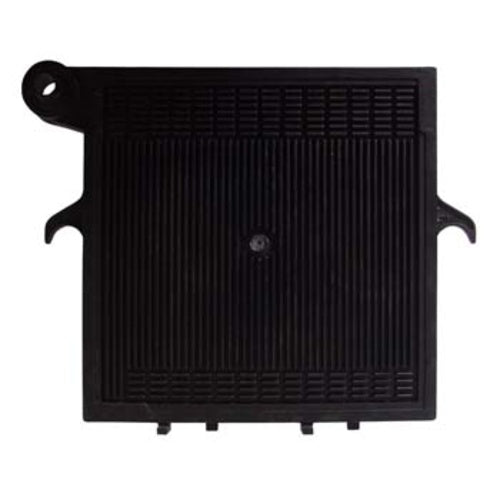

        20x20 Noryl End Plate (Black) - Handle Side
        20x20 Noryl End Plate (Black) - Handle Side
        $60.99

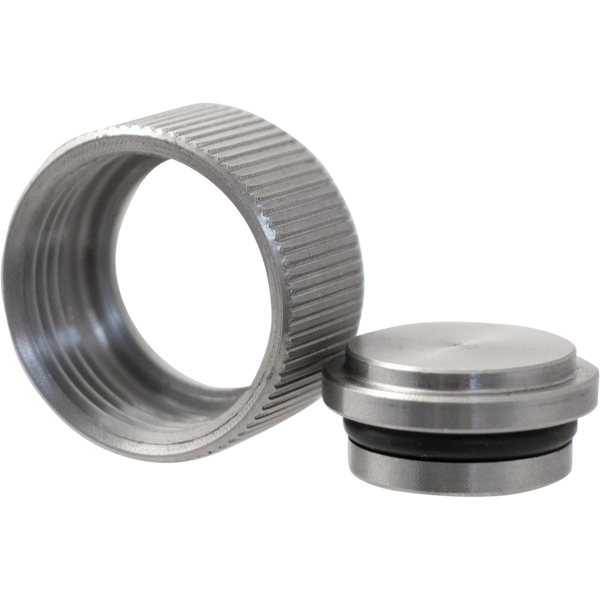

        Replacement Stopper Plug for 20x20 Noryl Plate Filters
        Replacement Stopper Plug for 20x20 Noryl Plate Filters
        $32.99

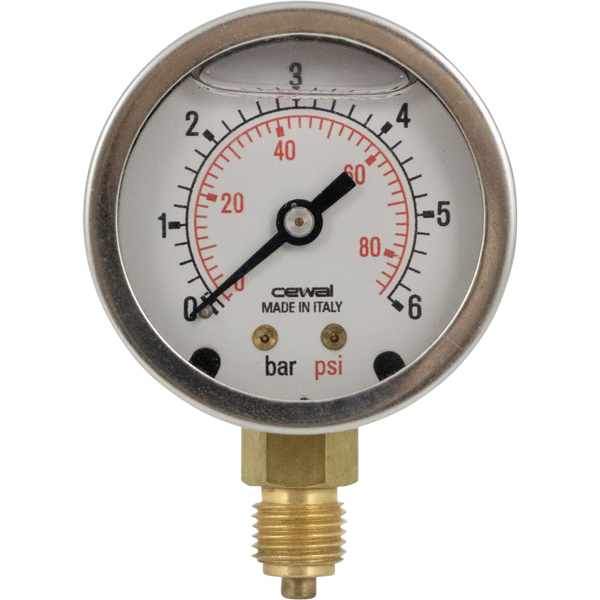

        Replacement Pressure Gauge for Marchisio Wine Plate Filter w/ Noryl Plates
