Wine Filters

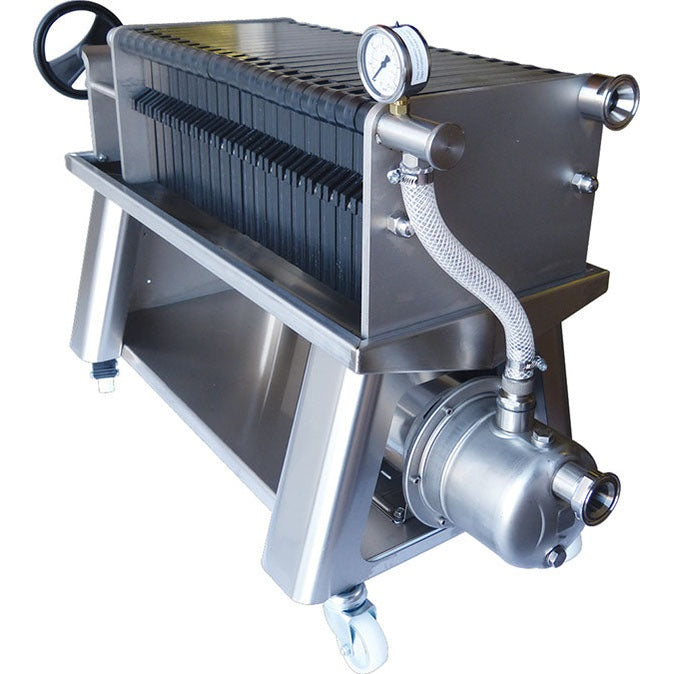

Marchisio Wine Plate Filter | Noryl Plates | 20x20 | 40 Plate | Stainless Rolling Cart | 1,200L/h | 110V

    Description

    • Rolling cart wine plate filter

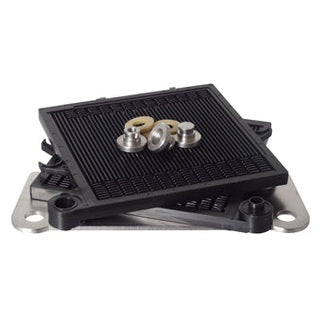

    • Plates made from food-grade Noryl
    • Built-in stainless centrifugal pump
    • Built-in pressure gauge
    • 1.5" tri-clamp inlet/outlet
    • 1,200L/h wine filtering capacity
    • Made in Italy by Marchisio

    Commercial plate filter featuring 41 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.

    Features:

    • 304 Stainless Steel Construction
    • Four Casters for easy movement. Two of the casters have locks
    • Built-in centrifugal stainess steel pump with on/off switch.
    • 41 Food-Grade Noryl plastic plates included.
    • Double filtration kit available
    • Built-in pressure gauge
    • Maximum pump pressure is 2.5 bar (35 p.s.i.)
    • Up to 1200L (317 gal) Flow rate per hour
    • 940x480x590mm/37x19x23 inches
    • 114 lbs
    • 1.5" Tri-Clamp inlet and outlet
    • Pads should be placed in the machine rough-smooth-smooth-rough
    • Minimum number of plates that can be used is 30



    Marchisio Wine Plate Filter | Noryl Plates | 20x20 | 40 Plate | Stainless Rolling Cart | 1,200L/h | 110V

      Product form

      SKU: WE908N

      $2,499.99

        This item does not qualify for free shipping.

        This item ships freight only.

        WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        • Rolling cart wine plate filter
        • Plates made from food-grade Noryl
        • Built-in stainless centrifugal pump
        • Built-in pressure gauge
        • 1.5" tri-clamp inlet/outlet
        • 1,200L/h wine filtering capacity
        • Made in Italy by Marchisio

        Commercial plate filter featuring 41 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.

        Features:

        • 304 Stainless Steel Construction
        • Four Casters for easy movement. Two of the casters have locks
        • Built-in centrifugal stainess steel pump with on/off switch.
        • 41 Food-Grade Noryl plastic plates included.
        • Double filtration kit available
        • Built-in pressure gauge
        • Maximum pump pressure is 2.5 bar (35 p.s.i.)
        • Up to 1200L (317 gal) Flow rate per hour
        • 940x480x590mm/37x19x23 inches
        • 114 lbs
        • 1.5" Tri-Clamp inlet and outlet
        • Pads should be placed in the machine rough-smooth-smooth-rough
        • Minimum number of plates that can be used is 30
