Advanced Modular Control System: Designed for homebrewers and microbreweries, the Brewtools FCS brings industrial-level precision with features like temperature, pressure, and gravity monitoring for ultimate brewing control.   Comprehensive Starter Kit: Includes essential components such as FCS Display and I/O Modules, temperature and pressure sensors, and all necessary cables and adapters to start customizing your fluid control setup.   Automated Fermentation Profiles: Automate cooling, heating, and pressure management with software-driven profiles, simplifying complex processes while ensuring consistency in your brews.   Expandable & Customizable: Add solenoids, pumps, airlocks, and adapters to fit your specific brewing needs, compatible with both Brewtools and non-Brewtools tanks.   Constant Monitoring & Alerts: Early warning notifications for equipment issues like solenoid valves or heating elements ensure smooth operation and protect your brewing investment. An upgraded version of the FCS Starter Kit w/ Density Sensor is also available. FCS is a modular control system designed, developed and manufactured by Brewtools in Norway. The vision behind the system is to take industrial technology and make that available for microbreweries and homebrewers. Using the latest electronic component technology and clever software engineering, Brewtools is able to make features that used to be very expensive and complicated available for everyone. The system can measure temperature, pressure, density/gravity*, level* and power consumption and based on that — control cooling, heating, pressure/CO2 in, pressure/CO2 out, agitation*, automatic hop additions* under pressure and more! Fermentation profiles will automate the whole process and give you ultimate control of your fermentation process. (*Not available at first launch.) The system will also constantly monitor the process and notify you if something isn't right. For example, the system will measure the current draw of solenoid valves and heating elements, and will notify you if these components aren't working as they should. Please Note: The software is currently in a state of early adopter beta, and should not be used for critical production. Brewtools will continue to develop software and new sensors/actuators based on customer feedback and requests. If you cannot find a sensor or actuator that fits your setup, please reach out to us and let us know. Note that we do not take responsibility for any lost/destroyed beer or raw materials.   Brewtools FCS Starter Kit The Brewtools FCS Starter Kit includes all the essential parts to get you started setting up your own custom-designed Fluid Control System. FCS Display Module and FCS I/O Module with power supply 1 temperature sensor (TC 1.5" 160mm) 1 pressure sensor with gas out solenoid All cables and adapters needed (3m length) The kit does not include a valve/pump for cooling as these are tank dependent, and you may already have a solenoid for your existing glycol loop. For non-Brewtools tanks, you also may need an adapter and/or tee to connect the spunding valve/pressure sensor assembly. Accessories To complete your FCS kit setup, some accessories are needed. A solenoid for cooling (Ø4.5mm - 34mm or 1.5") with 2-pin LP12 cable and DIN43650 Type A adapter or a submersible pump (comes with cable). A ball clamp and a connecting rod. An airlock for the pressure out solenoid valve is recommended. For smaller tanks we recommend our polycarbonate airlock. For larger tanks (300l+) you should use a TC34mm to 12mm barb and a 10x16mm silicone tube or equivalent. Tri-Clamps and gaskets. Based on your tank and setup, you may need some extra tri-clamps or gaskets. For MiniUni+, you need to replace the Mini Spunding valve with an M24 to Tri Clamp adapter and a 90 degree TC34mm elbow to fit your spunding assembly (if you want to use our TC air lock. No need for elbow if you use tubing as airlock). Rembember clamps/gaskets. If you don't have a Brewtools Unitank, we recommend getting TC 1.5" to 34mm adapter for the spunding setup. You will also need a 34mm Tri-Clamp and 34mm gasket. Tees and crosses are also available in multiple sizes to give you more ports. Starter Kit Included Parts: FCS Display Module, 5" FCS I/O Module 2x RTD, 5x CAN, 4x Relay Power Supply, 24V 40W, LP12 2-pin Pressure Sensor, CAN BUS 24V, M12 Solenoid valve, TC34mm + M12, DC24V Ø2.0 Temp Sensor, PT1000, TC 1.5", 160mm Cable, LP12 6-pin, 3m Cable, LP12 5-pin, 3m Cable, LP12 3-pin, 3m Cable, LP12 2-pin, 3m Adapter, LP12 2-pin to DIN 43650 Type B Recommended Separate Parts: Solenoid valve for cooling with adapters/cables or submersible pump Ball Mount connector and pipe clamp etc. Airlock (Top mounted or barb with silicone tube) Adapters and fittings to fit your tank Brewtools Product Number: 7713567

Read more less

Advanced Modular Control System: Designed for homebrewers and microbreweries, the Brewtools FCS brings industrial-level precision with features like temperature, pressure, and gravity monitoring for ultimate brewing control.   Comprehensive Starter Kit: Includes essential components such as FCS Display and I/O Modules, temperature and pressure sensors, and all necessary cables and adapters to start customizing your fluid control setup.   Automated Fermentation Profiles: Automate cooling, heating, and pressure management with software-driven profiles, simplifying complex processes while ensuring consistency in your brews.   Expandable & Customizable: Add solenoids, pumps, airlocks, and adapters to fit your specific brewing needs, compatible with both Brewtools and non-Brewtools tanks.   Constant Monitoring & Alerts: Early warning notifications for equipment issues like solenoid valves or heating elements ensure smooth operation and protect your brewing investment. This version of the FCS Kit includes the Density/Temp Sensor which replaces the temperature-only sensor in the basic FCS Starter Kit. FCS is a modular control system designed, developed and manufactured by Brewtools in Norway. The vision behind the system is to take industrial technology and make that available for microbreweries and homebrewers. Using the latest electronic component technology and clever software engineering, Brewtools is able to make features that used to be very expensive and complicated available for everyone. The system can measure temperature, pressure, density/gravity*, level* and power consumption and based on that — control cooling, heating, pressure/CO2 in, pressure/CO2 out, agitation*, automatic hop additions* under pressure and more! Fermentation profiles will automate the whole process and give you ultimate control of your fermentation process. (*Not available at first launch.) The system will also constantly monitor the process and notify you if something isn't right. For example, the system will measure the current draw of solenoid valves and heating elements, and will notify you if these components aren't working as they should. Please Note: The software is currently in a state of early adopter beta, and should not be used for critical production. Brewtools will continue to develop software and new sensors/actuators based on customer feedback and requests. If you cannot find a sensor or actuator that fits your setup, please reach out to us and let us know. Note that we do not take responsibility for any lost/destroyed beer or raw materials.   Brewtools FCS Starter Kit The Brewtools FCS Starter Kit includes all the essential parts to get you started setting up your own custom-designed Fluid Control System. FCS Display Module and FCS I/O Module with power supply 1 density/temp sensor (TC 1.5") 1 pressure sensor with gas out solenoid All cables and adapters needed (3m length) The kit does not include a valve/pump for cooling as these are tank dependent, and you may already have a solenoid for your existing glycol loop. For non-Brewtools tanks, you also may need an adapter and/or tee to connect the spunding valve/pressure sensor assembly. Accessories To complete your FCS kit setup, some accessories are needed. A solenoid for cooling (Ø4.5mm - 34mm or 1.5") with 2-pin LP12 cable and DIN43650 Type A adapter or a submersible pump (comes with cable). A ball clamp and a connecting rod. An airlock for the pressure out solenoid valve is recommended. For smaller tanks we recommend our polycarbonate airlock. For larger tanks (300L+) you should use a TC34mm to 12mm barb and a 10x16mm silicone tube or equivalent. Tri-Clamps and gaskets. Based on your tank and setup, you may need some extra tri-clamps or gaskets. For MiniUni+, you need to replace the Mini Spunding valve with an M24 to Tri Clamp adapter and a 90 degree TC34mm elbow to fit your spunding assembly (if you want to use our TC air lock. No need for elbow if you use tubing as airlock). Remember clamps/gaskets. If you don't have a Brewtools Unitank, we recommend getting a TC 1.5" to 34mm adapter for the spunding setup. You will also need a 34mm Tri-Clamp and 34mm gasket. Tees and crosses are also available in multiple sizes to give you more ports. Setting Up the FCS for Your Tank Mounting To mount to your tank a ball clamp and a connecting rod are very useful. This will work with most any size or style tank. Solenoid Valve & Related Connection Hardware for Cooling For Brewtools tanks that use 34mm connection you will need a Ø4.5mm - 34mm solenoid valve. For BrewBuilt, Spike, Ss BrewTech, or Commercial tanks you will need a TC 1.5" to 34mm adapter and 1.5" TC Solenoid Valve. Either way, you will need a 2-pin LP12 cable and DIN43650 Type A adapter to connect the solenoid valve to the Brewtools FCS I/O Module. Would You Like a Visible Air Lock on the Spunding Valve? The Brewtools pressure relief solenoid spunding valve releases CO2 at the set point you choose on your controller.  To visually see the CO2 release, adding on an airlock for the pressure out solenoid valve is a nice option. For tanks under 300L, we recommend the 34mm polycarbonate airlock that connects to the Brewtools Solenoid Valve. For tanks larger than 300L, you should use a blowoff. For blowoffs, use a TC34mm to 12mm barb and a 10x16mm silicone tube or equivalent ran into a bucket of water. You will also need a 34mm Tri-Clamp and 34mm gasket. Tees and crosses are also available in multiple sizes to give you more ports. For the MiniUni+ For MiniUni+, you need to replace the Mini Spunding Valve with an M24 to TC adapter and a 90-degree 34mm TC elbow to fit your spunding assembly (if you want to use the TC air lock. No need for elbow if you use tubing for a blowoff). You will need the clamps/gaskets to make the connection.   Starter Kit Included Parts: FCS Display Module, 5" FCS I/O Module 2x RTD, 5x CAN, 4x Relay Power Supply, 24V 40W, LP12 2-pin Pressure Sensor, CAN BUS 24V, M12 Solenoid valve, TC34mm + M12, DC24V Ø2.0 Density/Temp Sensor, TC 1.5", CAN BUS 24V Cable, LP12 6-pin, 3m Cable, LP12 5-pin, 3m (2 pcs) Cable, LP12 2-pin, 3m Adapter, LP12 2-pin to DIN 43650 Type B Recommended Separate Parts: Solenoid valve for cooling with adapters/cables or submersible pump Ball Mount connector and pipe clamp etc. Airlock (Top mounted or barb with silicone tube) Adapters and fittings to fit your tank Brewtools Product Number: 7713792

Read more less

Ball Lock adapter (Gas) to TC 34mm. The adapter is made for CMB or other gas-fittings. M16x1.5mm inside threads for accessories. The Gas model is identified with a groove near the TC connector.

Read more less

Used with Brewtools glycol chiller adapter fittings. 27mm x 16mm x 2.5mm. 2 pieces.

Read more less

2" TC Sanitary heating element designed for use in santary applications where ease of cleaning is important. The heating element is designed to get the lowest possible watt density and is very easy to clean. Perfect for use with Brewtools Unitanks with kveik yeast or other high temperature fermentation applications. Can also be used in cominbation with 2" TC pipes for RIMS applications. Note that the product comes without any temperature or power control. The manufacturer does not take responsibility for incorrect use or use with too much power output. A PID-regulator may be needed to maintain accurate temperatures. Diameter: Ø42mm (1.65")  Length: ~300mm (~11.8") Included: Heating element Power cable 2 meter

Read more less

2" TC Sanitary heating element designed for use in santary applications where ease of cleaning is important. The heating element is designed to get the lowest possible watt density and is very easy to clean. Perfect for use with Brewtools Unitanks with kveik yeast or other high temperature fermentation applications. Can also be used in cominbation with 2" TC pipes for RIMS applications. Note that the product comes without any temperature or power control. The manufacturer does not take responsibility for incorrect use or use with too much power output. A PID-regulator may be needed to maintain accurate temperatures. Diameter: Ø42mm (1.65")  Length: ~300mm (~11.8") Included: Heating element Power cable 2 meter

Read more less

Kit for dryhopping and adding other ingredients to a pressurized fermenter without oxygen. This is the correct size for the Brewtools F40 and F80 Unitanks. Included in the box: Butterfly-valve, TC 3" TC Adapter, 3" to 34mm TC Pipe, 3", L=200mm Tri Clamp, 3" (2 pcs) Tri Clamp, 34mm (3 pcs) TC34mm Manual PRV TC34mm Ball Lock connector, Gas TC Tee, 34mm, L=60mm TC Gasket, 3", (3 pcs) TC Gasket, 34mm DN20, 5-pack

Read more less

Kit for dryhopping and adding other ingredients to a pressurized fermenter without oxygen. This is the correct size for the Brewtools F150 Unitank. Included in the box: Butterfly-valve, TC 4" TC Adapter, 4" til 34mm TC Pipe, 4", L=200mm Tri Clamp, 4" (2 pcs) Tri Clamp, 34mm (3 pcs) TC34mm Manual PRV TC34mm Ball Lock connector, Gas TC Tee, 34mm, L=60mm TC Gasket, 4", (3 pcs) TC Gasket, 34mm DN20, 5-pack The volume of the HopDrop Kit is 1.5L. Pellet capacity in weight will vary

Read more less

Standard hose clamp, AISI 316L

Read more less

BrewTool's solution to filtration of fermented beer. The filter kit is installed directly on the butterfly valve out of the fermenter. The filter kit can also be used for other purposes and can be customized with many accessories and adapters. If the filter clogs, simply remove one Tri Clamp and rinse it in sanitizer without further disassembly. Normal use: Assemble the filter kit and leave in sanitizer Install the filter kit on the fermentation tank valve Purge with Co2 a couple of times and relieve the pressure using the PRV Open the valve, and let the air out using the PRV Connect your ball lock connector to your keg or bottling setup If used on hot side (over 140°F/60°C) we recommend replacing the Poly TC pipe and filter holder with stainless steel equivalents. The filter kit can be doubled up and you can use a coarse and fine filter in combination using simple parts available as accessories. More fittings using M16 threads can be used to extend or if you want to use 34mm TC on the filter output. If you want to use it for TC 34mm or 1.5" we offer adapters to 2". Included parts: Ball lock adapter, 2", Liquid with M16 threads 3 pcs Filter, stainless steel 30mm, 300, 600 and 1000 micron Filter holder made from food grade Nylon (PA), M16 TC 2" to 34mm Tee TC 34mm Manual PRV 3 pcs 2" Tri Clamps 1 pcs 34mm Tri Clamp 2 pcs TC gasket with filter groove (blue) 1 pcs 2" Poly TC pipe, 200mm 2" and 34mm gaskets

Read more less

An inline oxygenation kit designed to inject oxygen during transfer to fermenter. We recommend placing a sight glass after the TC tee, to keep an eye on the O2 flow. Requires an oxygen tank with a pressure regulator. Included: TC 34mm Tee Barbed O2/CO2 stone holder, 6-10mm tube O2/CO2 stone, 0.5micron. G1/8" threads 3 TC 34mm clamps 1 5-pack of TC 34mm gaskets 1 gasket for the stone

Read more less

John Guest PM series push-fit adapter, 10mm x 4mm. Used to connect the Push-fit Coil to the Brewtools Unitank Light sample valve.

Read more less

Laser cut filters made from steel blasted and electropolished stainless steel. Simple cleaning and maximum durability. Gap width: 1.3mm Pre-cut hole for weldless fitting to use with future accessories.

Read more less

Laser cut filters made from steel blasted and electropolished stainless steel. Simple cleaning and maximum durability. Gap width: 1.3mm Pre-cut hole for weldless fitting to use with future accessories.

Read more less

Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory. Laser cut filters made from steel blasted and electropolished stainless steel. Simple cleaning and maximum durability. Gap width: 1.3mm Pre-cut hole for weldless fitting to use with future accessories.

Read more less

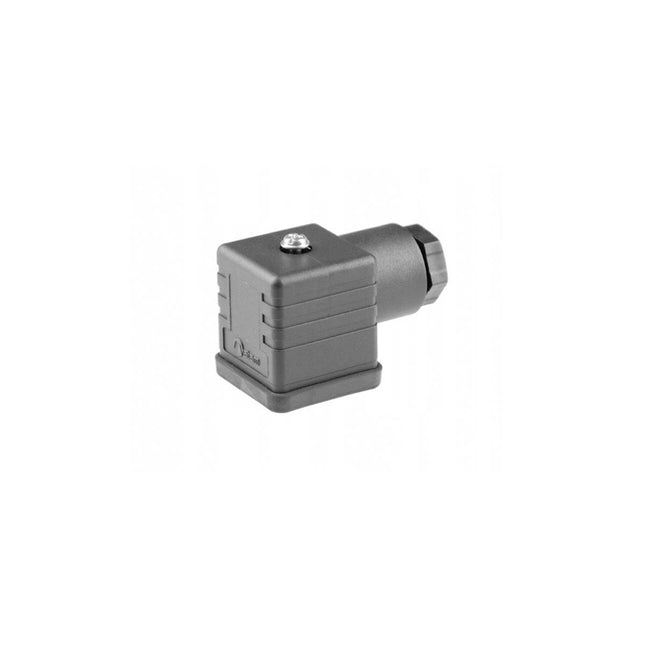

LP12 to DIN adapter (DIN43650 Form A). Used to connect solenoid valves to the Brewtools FCS I/O Module using a LP12 2-pin cable.

Read more less

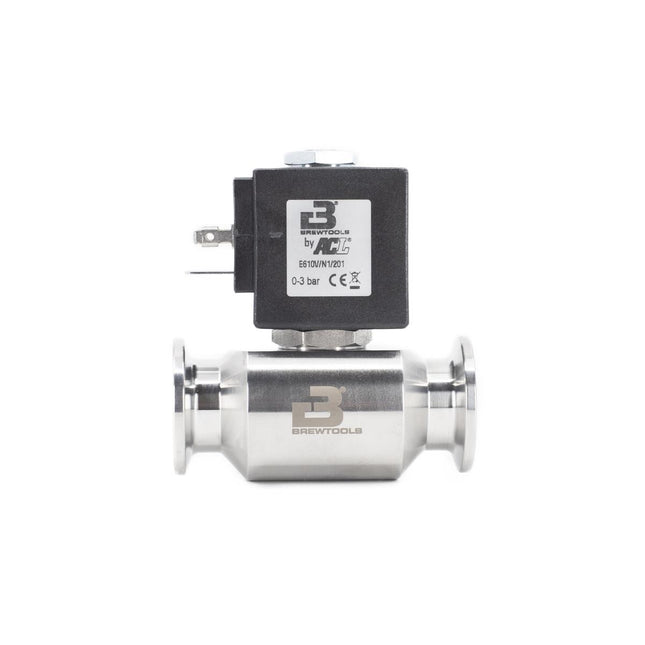

The Brewtools Type B Adapter for Gas Release Solenoid Valve is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.   Cable for use between 2-pin cable and 24 VDC solenoid valves (gas).   Connector A: LP12, 2-pin male plug (in-line connector) Connector B: DIN 43650 Form B Color: Black Length: 0.1m (3.9")

Read more less

LP12 2-pin cable for solenoids, pumps, and the Brewtools FCS Display and I/O Modules. 3m or 9.8 feet in length.

Read more less

LP12 5-pin cable for CAN devices. 1m or 3.2 feet in length. Brewtools Product Number: 7713276

Read more less

LP12 5-pin cable for CAN devices. 2m or 6.5 feet in length. Brewtools Product Number: 7713277

Read more less

The Brewtools LP12-7-Pin Cable for Relay Modules is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.   Cable for use between FCS I/O module and FCS relay module (5A).   Connector A: LP12, 7-pin male plug Connector B: LP12, 7-pin female plug Color: Black Length: 3m (9.8 ft.)

Read more less

M24 Threads to 34mm T.C. Adapter.  For the MiniUni+, this adapter can be used to replace the Pressure Kit spunding valve with a 34mm T.C. Elbow to install the FCS spunding assembly. M16 x 1.5mm inside threads for accessories.

Read more less

Due to high demand, the pallet qty is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more in mid December.     The Quantor MiniChilly 17 is highly recommended by Brewtools for chilling their F-series Unitanks. These glycol chillers are compact, high-quality units often used in professional settings. Made from stainless steel components and easy to install. They feature an integrated pump with a stirring function that ensures even temperatures throughout the reservoir. Rather than individual pumps for each fermenter, this unit is intended to be provide cooling solution to a single chilling loop where each fermenter will call for glycol circulation independently via solenoid valves. The MiniChilly 17 is recommended for up to 8 x 150L fermentation tanks of which 3 are cold crashed, or up to 4 x 300L fermentation tanks of which 1 is cold crashed. Check out the Brewtools cooling system page for setup details and recommended accessories for building a chilling loop with the MiniChilly 17. Specifications: Controller: EWplus 961 Power connector: Schuko - C19 Power: 790W (1+ HP) Refrigerant: R290 (Propane) Cooling capacity @ 32°F: 1000W (3412 BTU/hr) Cooling capacity @ 59°F: 1650W (5627 BTU/hr) Tank volume: 12.68 gal Dimensions: 29.5" x 16.5" x 23.6" 115V Manufactured in Germany by Quantor/Kreyer. NOTE: The product must stand still 24 hours before use after installation.
