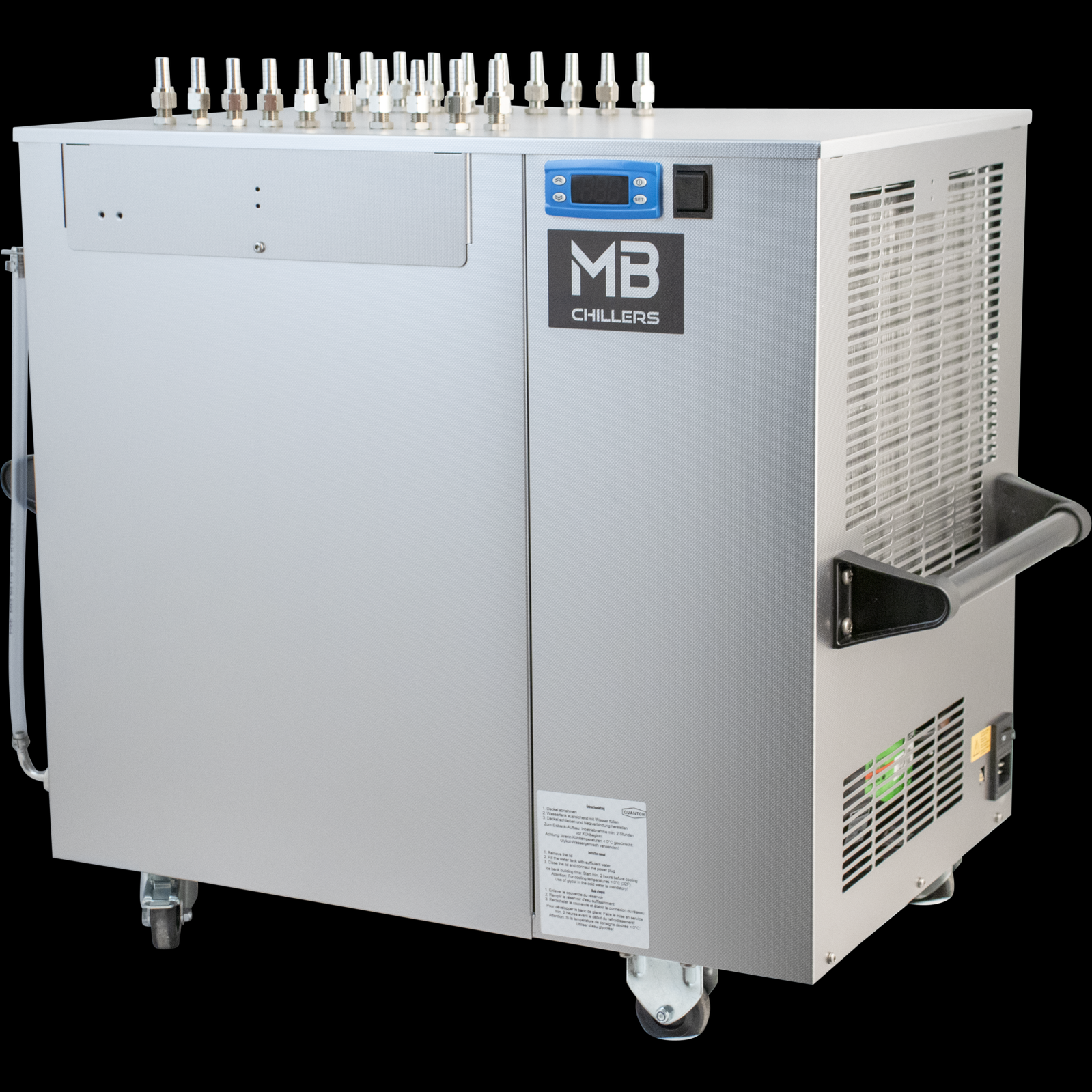

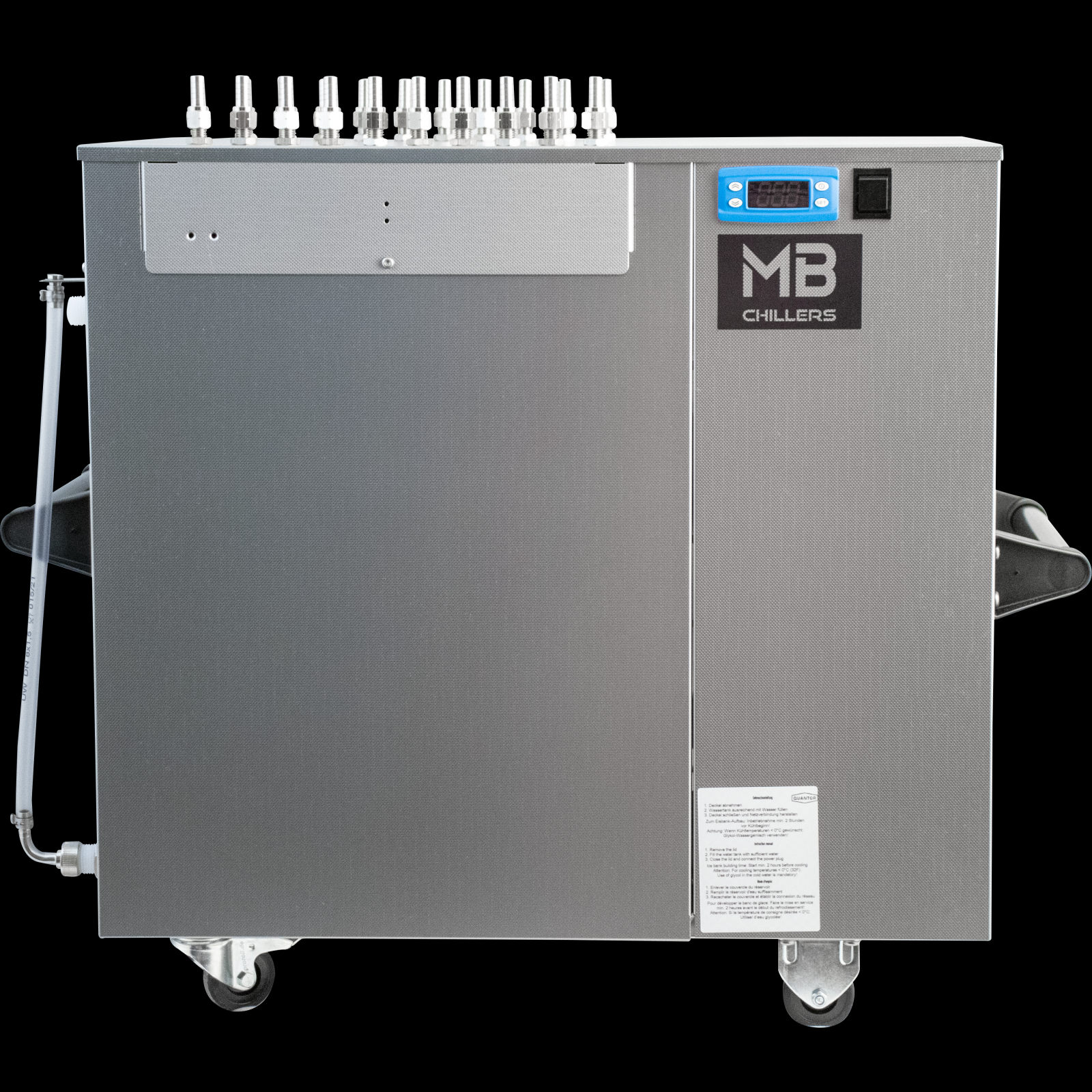

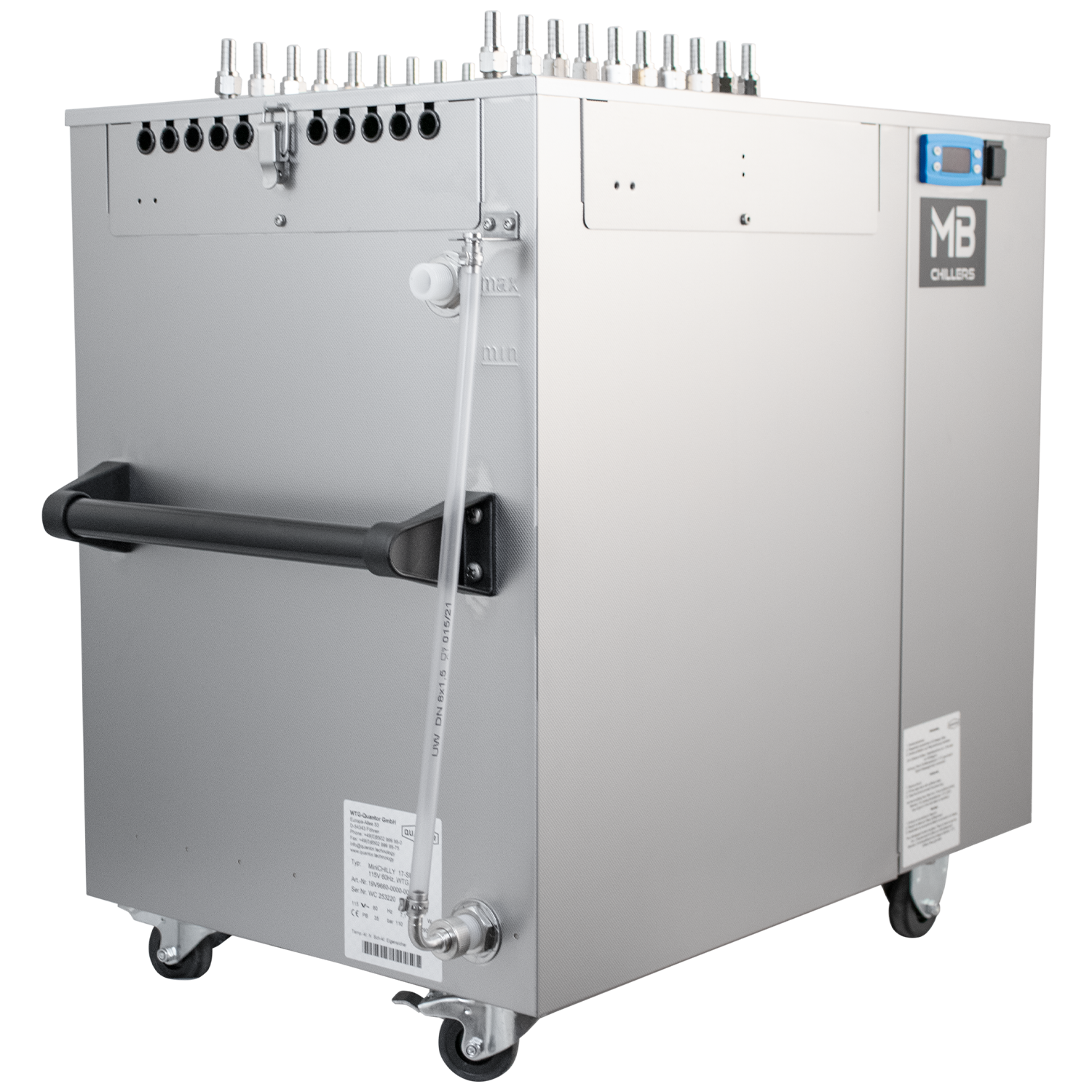

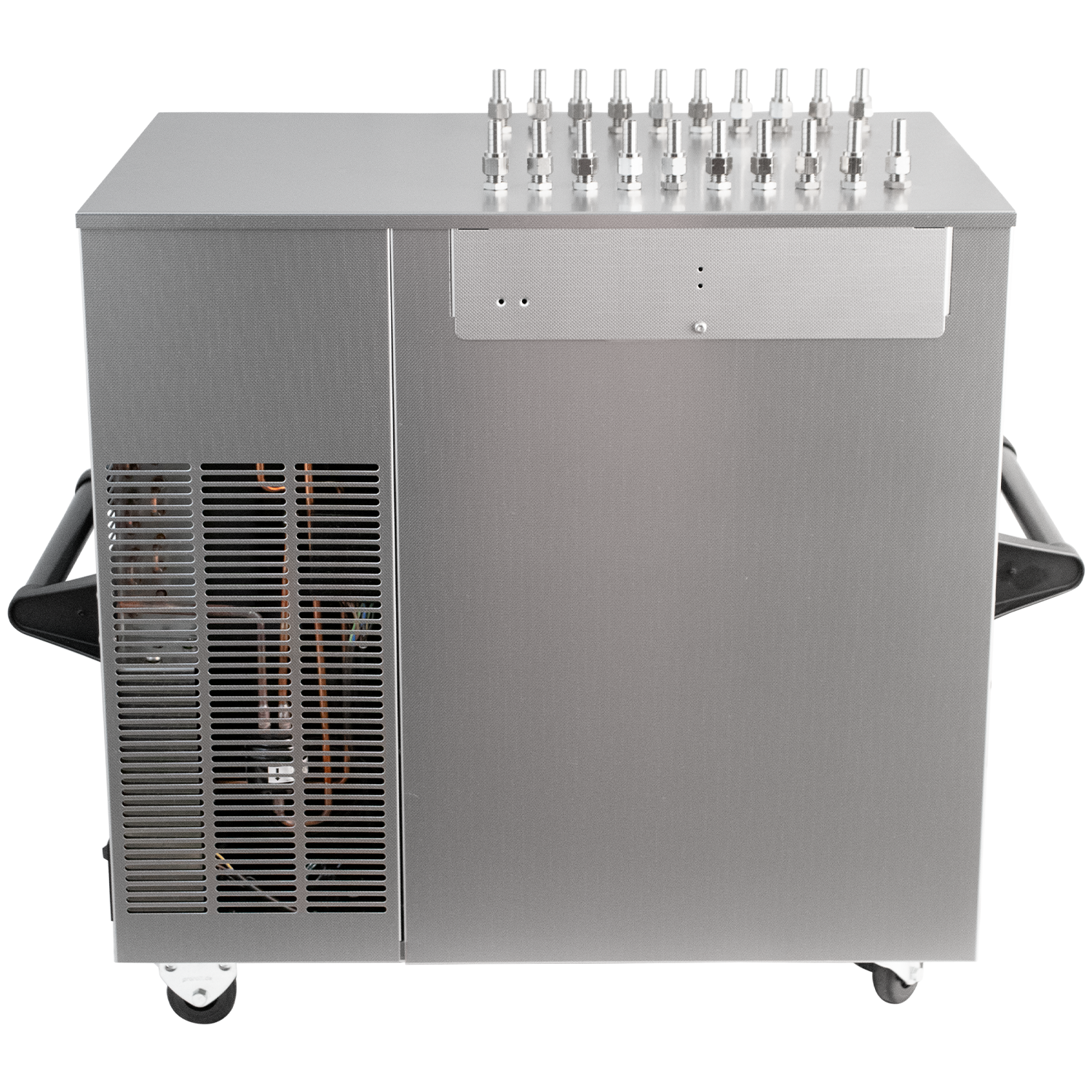

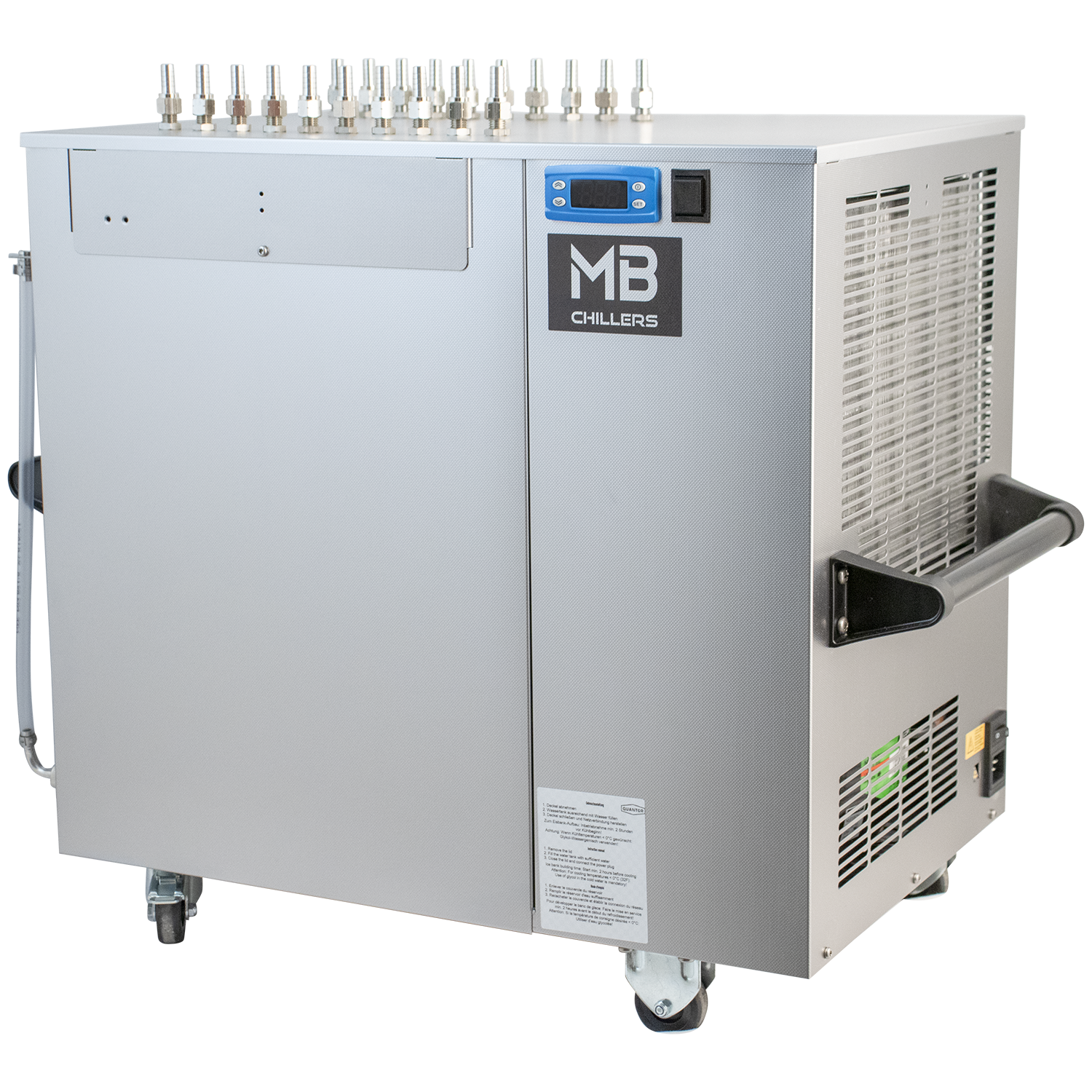

MB® MiniChilly | Multi-Tank Glycol Chiller | Bulkhead Sets for 10 Fermenters | Digital Temp Control | Rolling Casters | Stainless Steel Enclosure | 1.2 HP

    Description

    The German made 1.2 horse power MB Chiller is an ideal solution for the avid home winemaker looking to chill up to 10 fermenters at once.

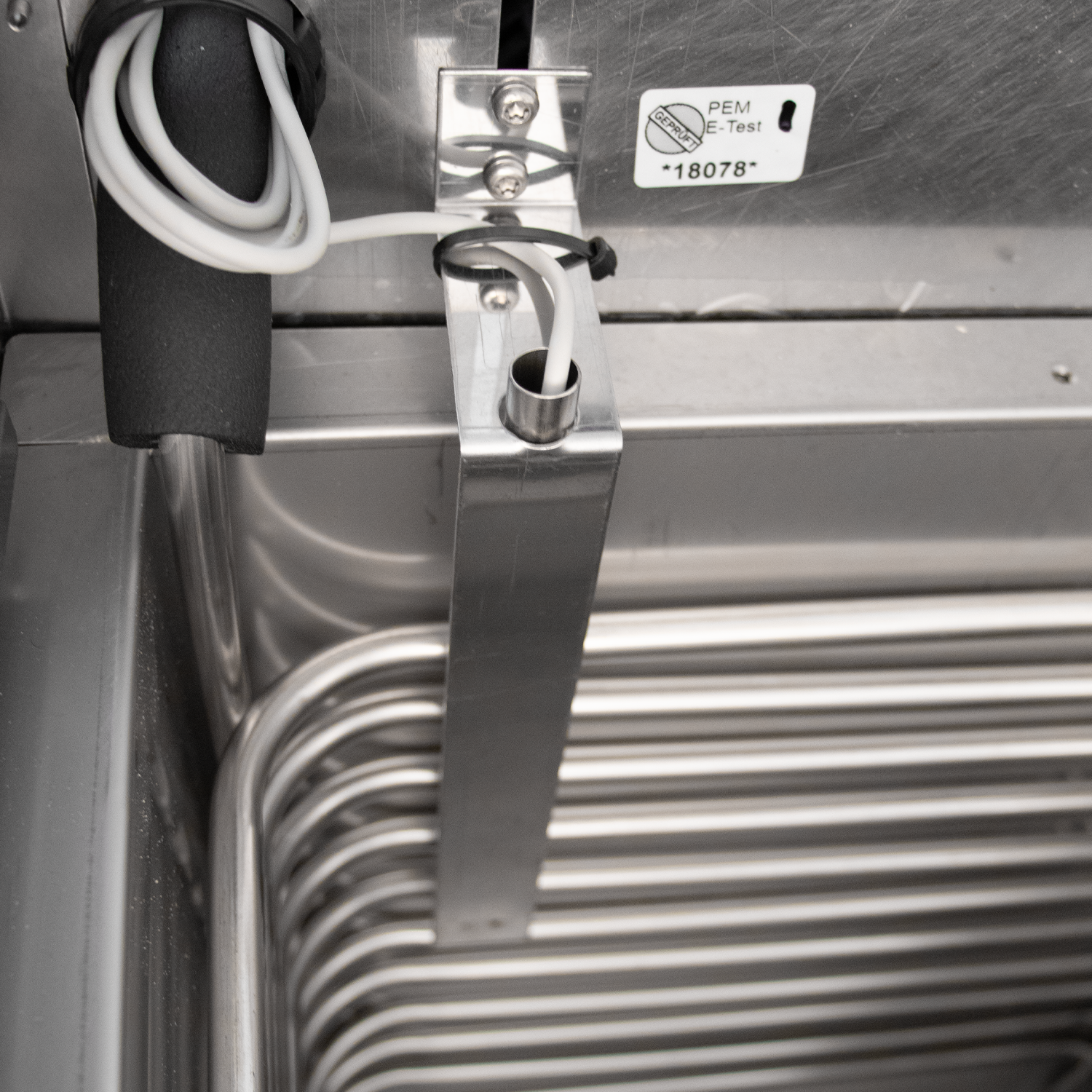

    The idea of the MiniChilly is that for each fermenter you want to a chill a pump kit is added. A pump kit (GLY35) includes a submersible pump that is placed in the cold bath of the Mini Chilly along with a digital controller that is placed next to your fermenter. Silicone tubing is included to make the connections. The digital controller includes a thermal probe that should be inserted into a thermal well in your vessel or can be taped to the outside of the vessel if you don't have a thermal well. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool the liquid in your vessel to the desired set temperature. In this way each tank can be set at different temperatures.

    The MiniChilly is made by Quantor/Kreyer of Germany who is the largest manufacturer of glycol systems for breweries and wineries in the world. Made with high quality manufacturing and components, the MiniChilly is a durable system for many years of problem-free wine making.

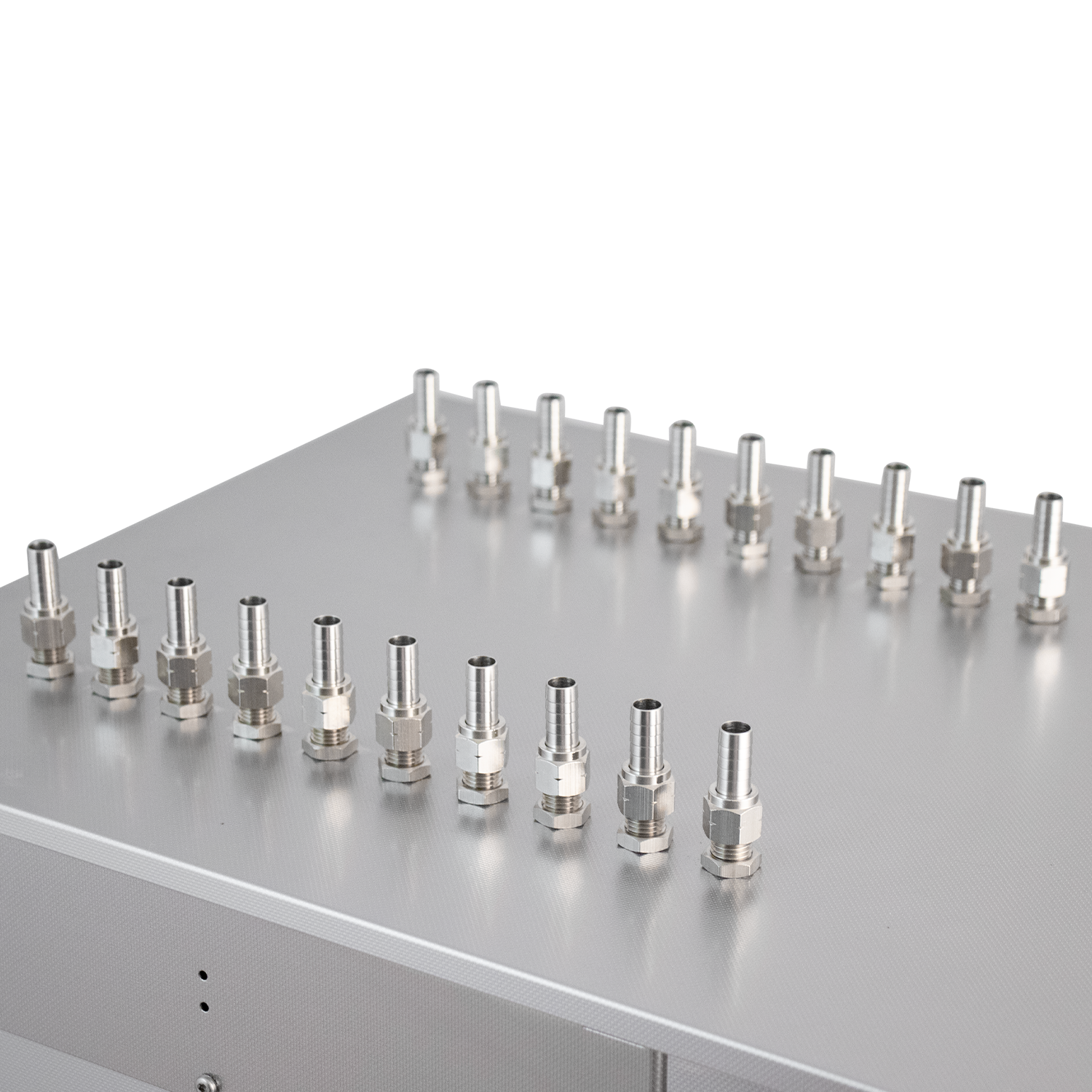

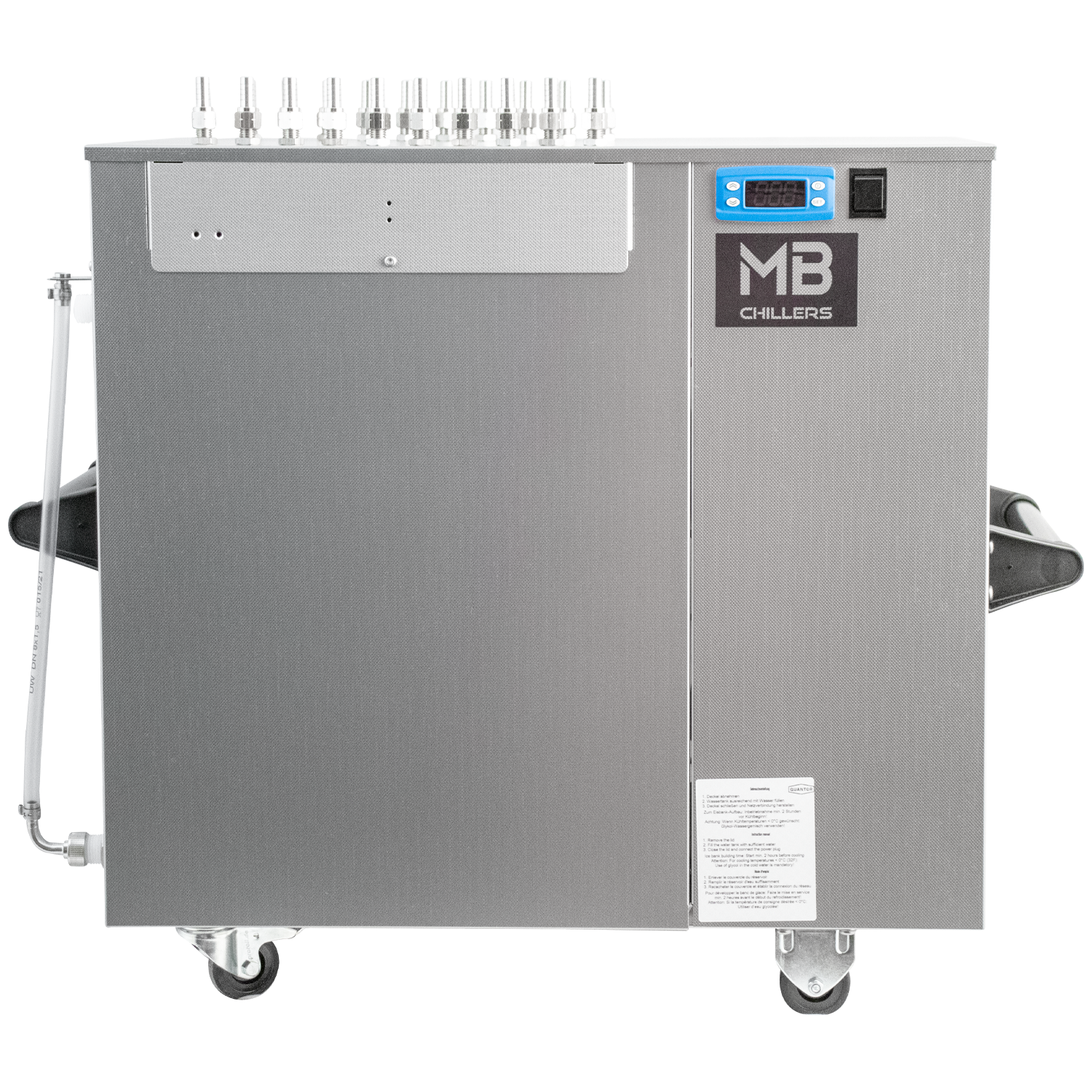

    The unit features a stainless steel case with stainless 3/8" barbs in the top that allow for a clean connection of the silicone tubing that will run from each pump to each tank. The MiniChilly is able to chill its reservoir down to 21°F when a 30% glycol solution is used. The compact size and included casters make it easy to move around the winery when needed.

    Applications:

    • Cooling of fermentation and storage tanks
    • Cooling must and wine for clearing and cold stabilization
    • Cooling rooms and storage halls with additional fan coils

    Capacity:
    Many chiller ratings are based on the theoretical power of the compressor, while the cooling capacity of the MiniChilly is rated at a realistic ambient temperature. This is much more useful for predicting the MiniChilly’s performance in real world applications. Of course, you could cool a greater number of smaller tanks but you’re ultimately limited to the 10 connections. Actual cooling capacities will vary based on the insulation of the tank. For the examples below we assume neoprene or better.

    Cooling Capacity Example:
    Up to 10 x 110L well-insulated tanks fermenting at 68°F in 80°F ambient temperature. For every fermenter you want to cold crash remove 4 fermenting fermenters from the capacity.

    Set Up:
    In order to hook up the MiniChilly to your fermenter or tank's cooling system, you will need 4 lengths of tubing per pump. All tubing connections should be secured with hose clamps.

    • Length 1: Submersible pump outlet to inner barb of 1st bulkhead
    • Length 2: Outer barb of 1st bulkhead to cooling system inlet
    • Length 3: Cooling system outlet to outer barb of 2nd bulkhead
    • Length 4: Inner barb of 2nd bulkhead to MiniChilly reservoir (should drain freely, no connection necessary)
    Technical Characteristics:
    • Power: 110V-1Ph/50-60Hz

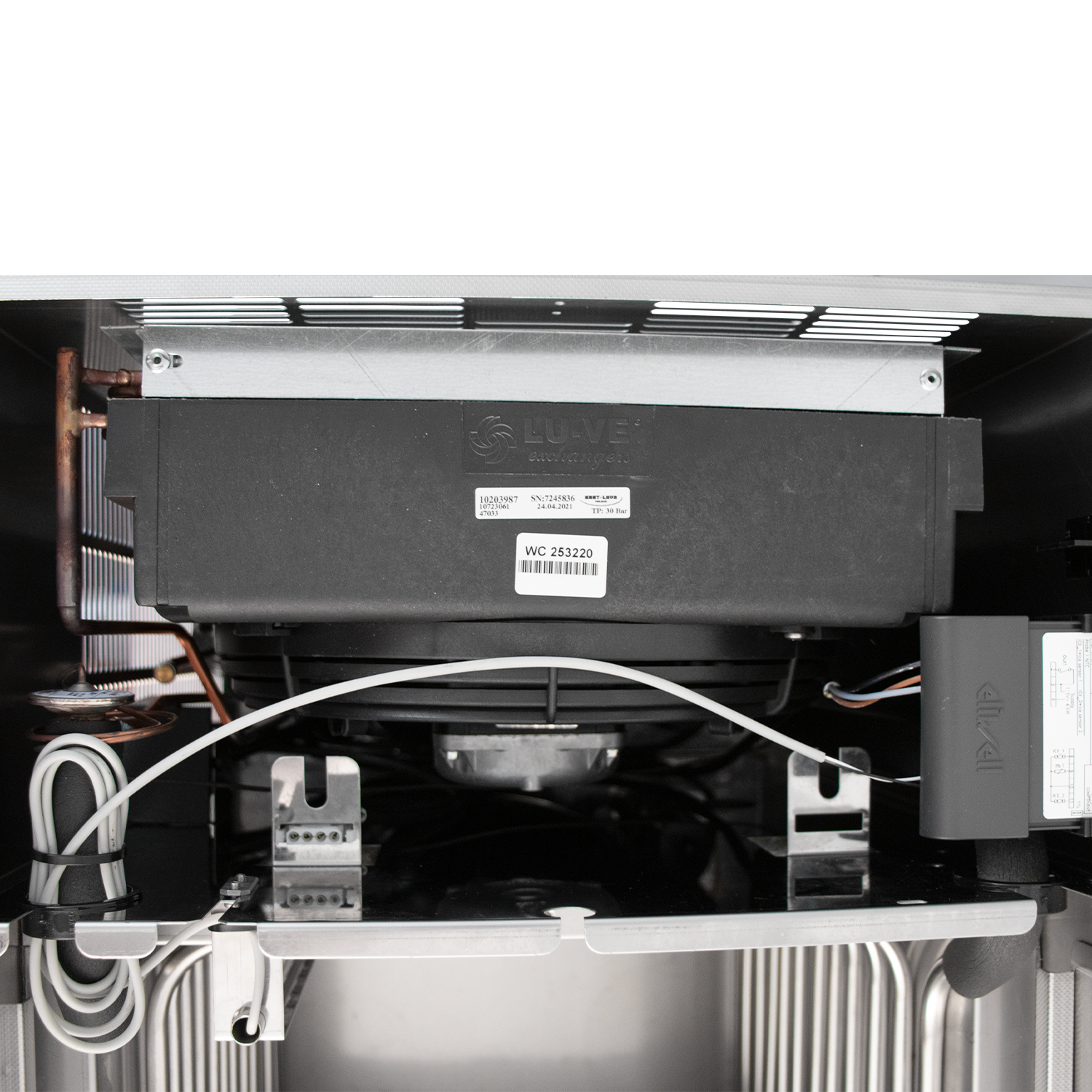

    • Compressor Power: 1.2hp/900watts
    • Cooling Capacity at 32°F glycol temp and 90°F Ambient Temp: 1.05 KW/1050 Watts (60Hz 110V)
    • Cooling Capacity at 60°F glycol temp and 90°F Ambient Temp: 1.92 KW/1920 Watts (60Hz 110V)
    • Stainless Steel Unit
    • Water Temperature Range: 21°F - 86°F (-6°C - 30°C)
    • Ambient Temperature Range: 50°F - 90°F (10°C - 32°C)
    • Refrigerant R134a

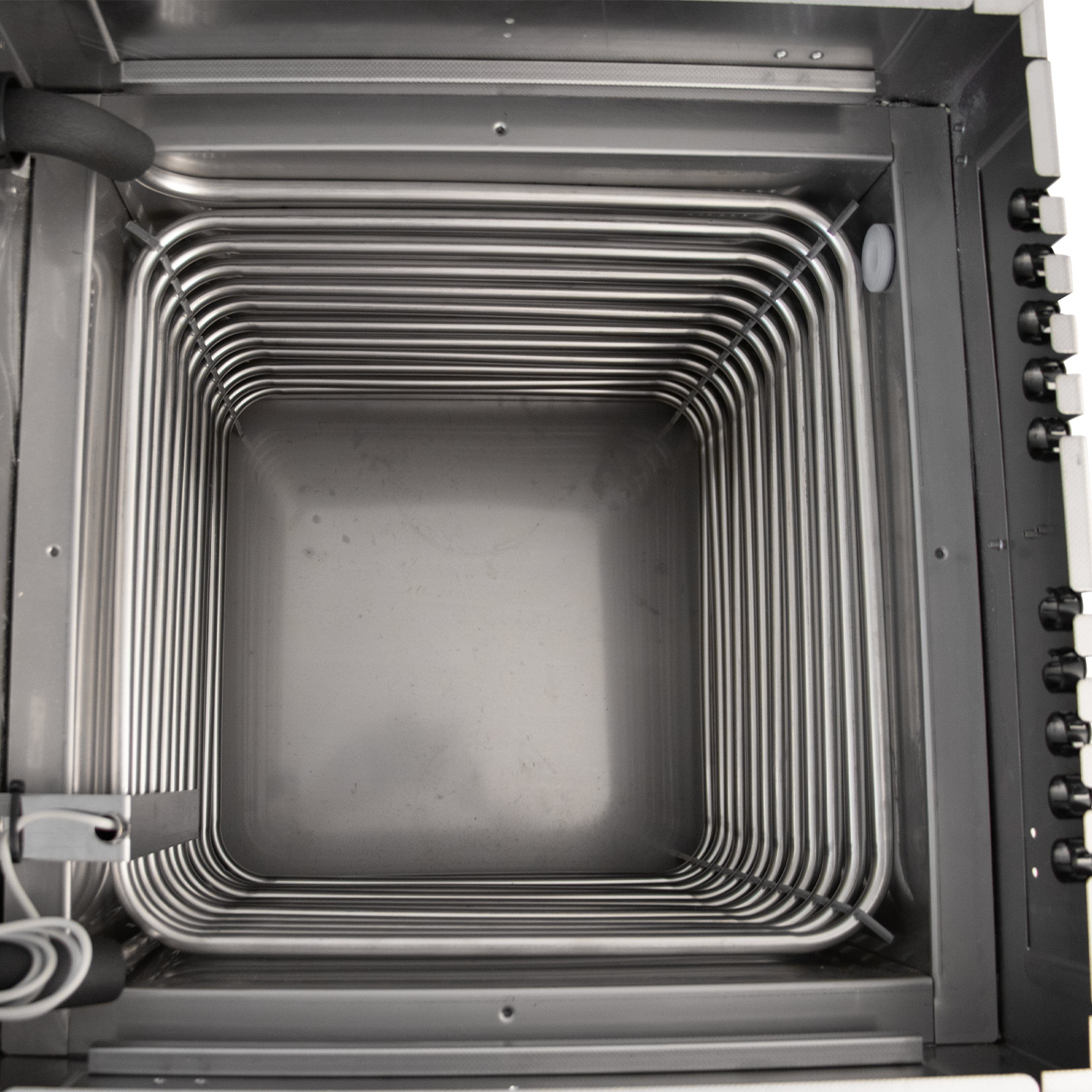

    • Free Glycol Water-Bath for Mini-Pumps
    • Fittings 3/8" for Plastic Tubes of Individual Pumps

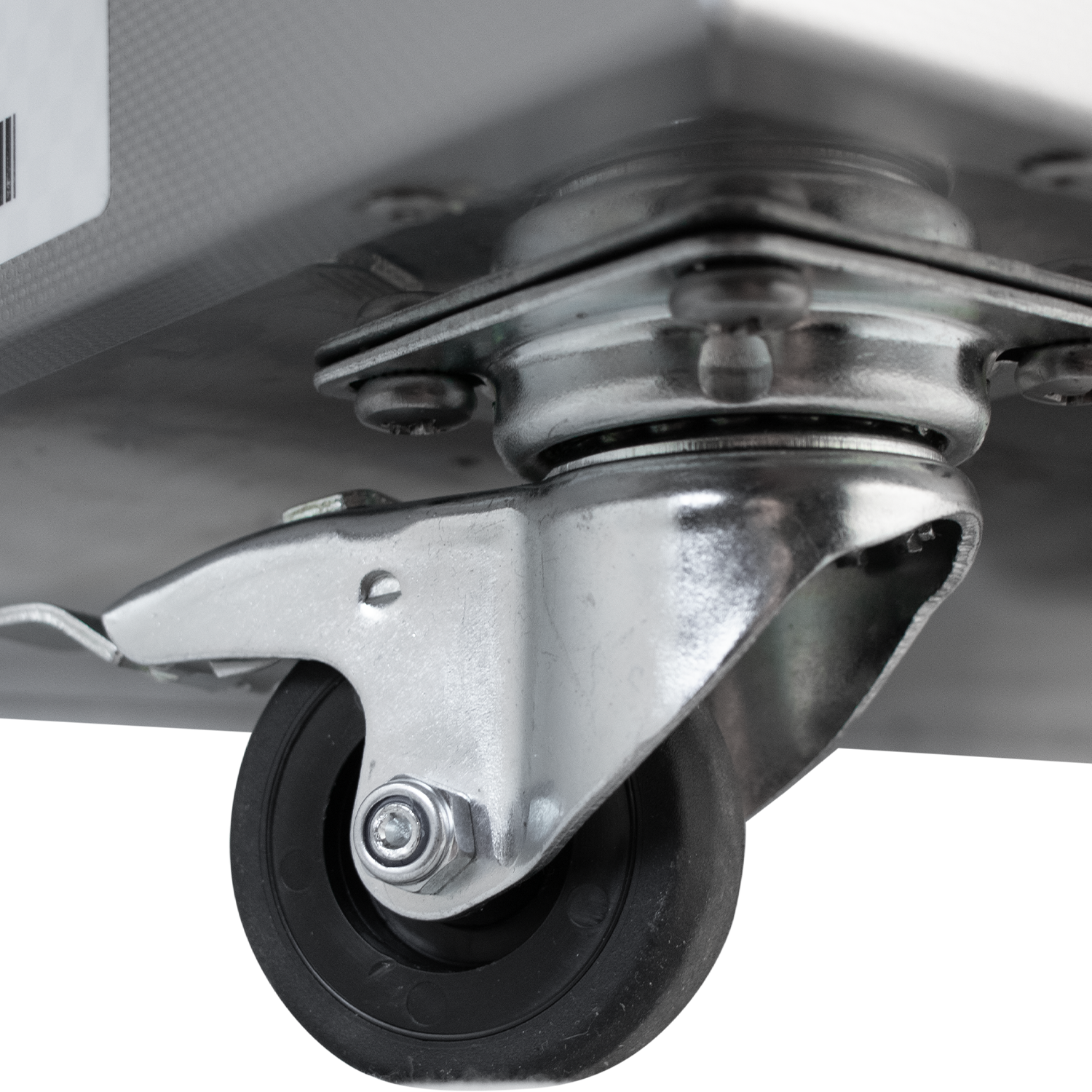

    • Solid Wheels w/ Breaks for Easy Mobility

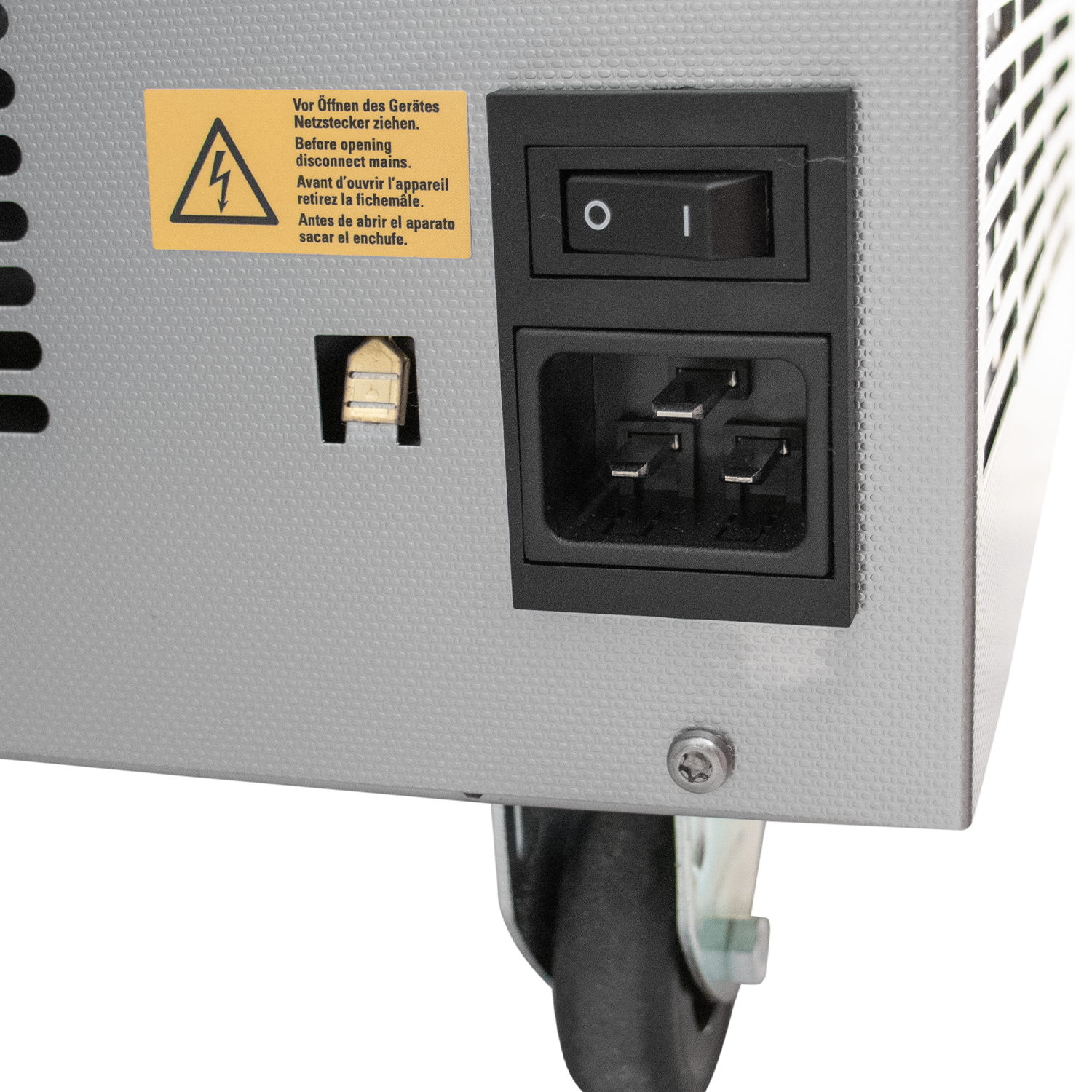

    • Universal C19 Plug
    • On/Off Switch

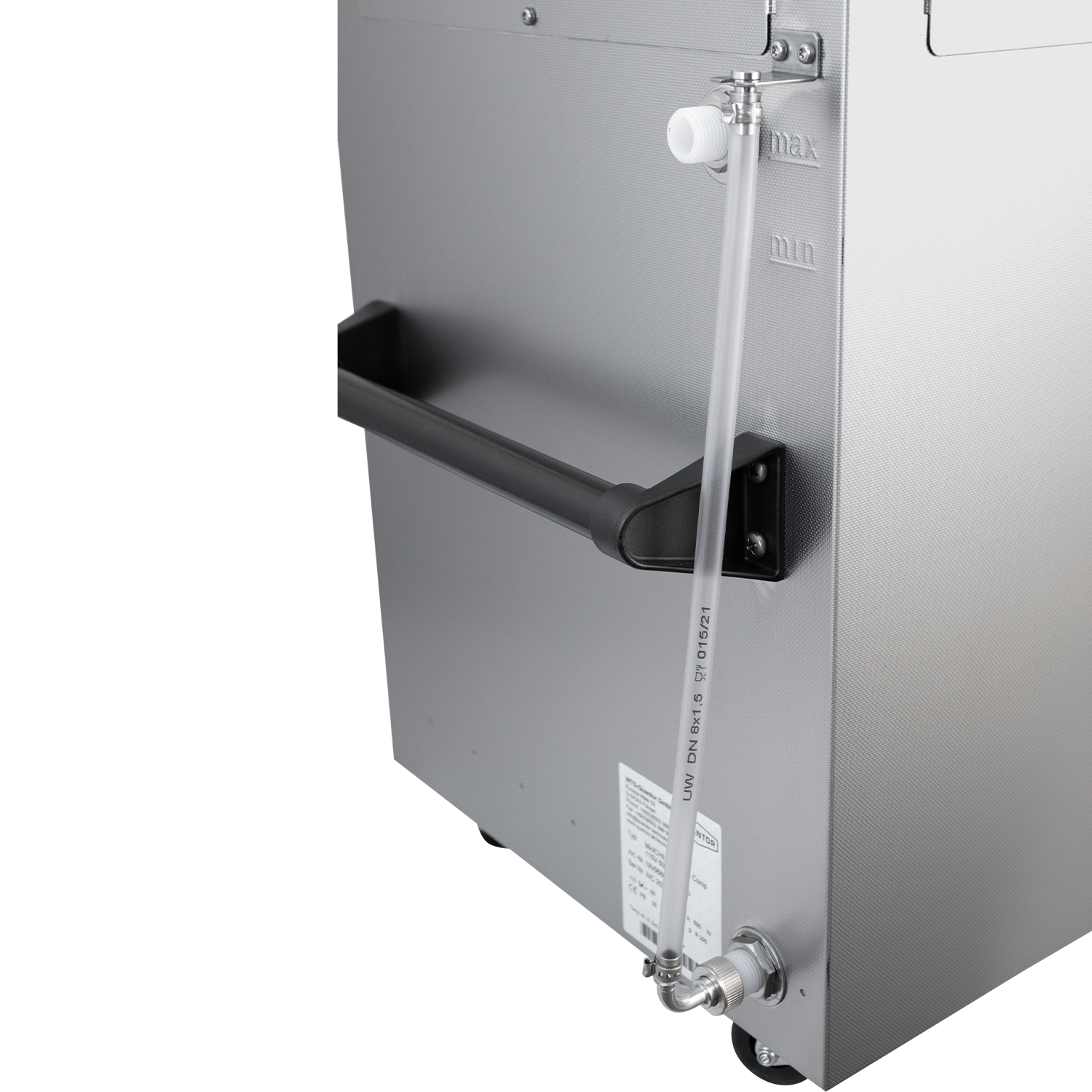

    • Water-Level Sight-Tube

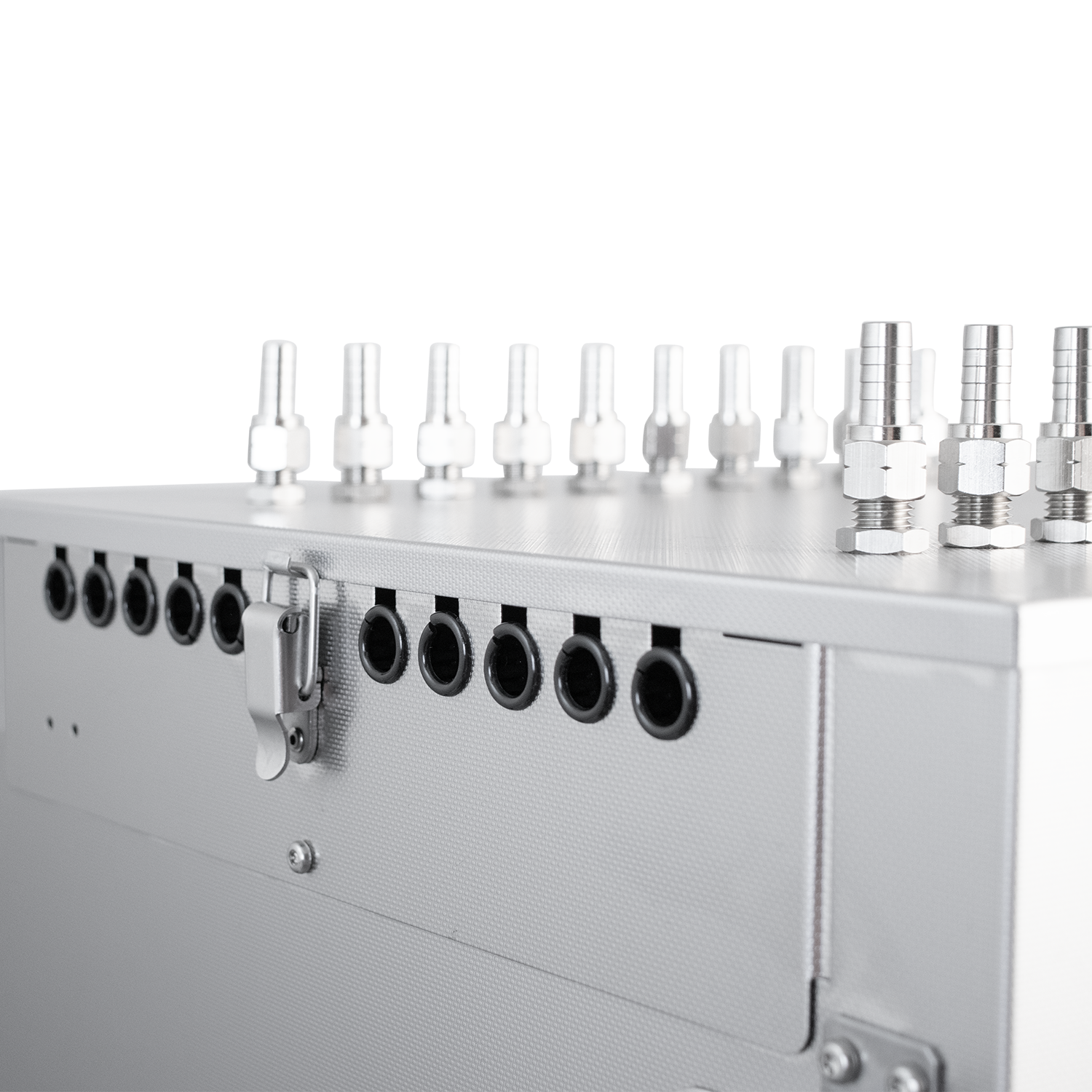

    • Grooves for Individual Pump Cables
    • Safety Inner Separation Water Side from Electric Side
    • Tank Capacity: 12.68 gal. (48 L)
    • Dimensions: 29.5"L x 15.75"W x 21.75"H
    • Weight: 112.5 lbs
    • Made in Germany
    • CE Certified

    MB® MiniChilly | Multi-Tank Glycol Chiller | Bulkhead Sets for 10 Fermenters | Digital Temp Control | Rolling Casters | Stainless Steel Enclosure | 1.2 HP

      Product form

      SKU: GLY406

      $3,699.99
