Stainless Steel Plate Heat Exchanger

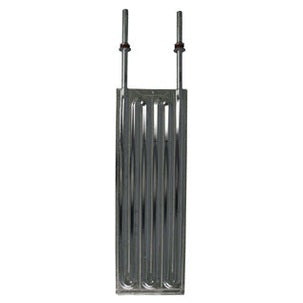

Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment. This is a stainless steel setup, ensuring no chance of off-flavor in your wine. You drill two 1-1/16" to 1-1/8" holes into the lid. We provide two gaskets and a lock nut to seal on both sides of your lid, securing the plate in place. Plate measures 31.5" H x 14.5" W Inlet and Outlet 1/2" Male BSPP thread 300 mm long tubes Bulkheads located approx. 175  mm above the plate 0.64 Square meters of cooling surface Made from 304 stainless steel

Read more less

Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment. This is a stainless steel setup, ensuring no chance of off-flavor in your wine. You drill two 1-1/16" to 1-1/8" holes into the lid. We provide two gaskets and a lock nut to seal on both sides of your lid, securing the plate in place. Plate measures 14.5" W x 24" H Inlet and Outlet 1/2" Male BSPP thread 300 mm long tubes Bulkheads located approx. 175 mm above the plate 0.48 Square meters of cooling surface Made from 304 stainless steel

Read more less

Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment. By threading our thermowell (FE616) into the extra 1/2" female coupler that comes on every MoreWine Variable Volume Fermenter and inserting the probe from our digital controller (FE610) you can use a digital controller to automatically control temperature. The controller turns a pump on every time the temperature rises above your set-point, sending coolant through the plate. To build these units we take the stock cooling plates and slide, bored-out, male-threaded couplers half-way down the feed tubes and weld them in place. You drill two 1 1/16 to 1 1/8" holes into the lid. We provide two gaskets and nuts that thread on both sides of the couplers securing the plate in place.  Plate measures 22.5"W x 47.5"H Inlet and Outlet 1/2" Male BSPP thread 300 mm long tubes Bulkheads located approx. 175 mm above the plate 1.44 Square meters of cooling surface Made from 304 stainless steel

Read more less

Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment. This is a stainless steel setup, ensuring no chance of off-flavor in your wine. You drill two 1-1/16" to 1-1/8" holes into the lid. We provide two gaskets and a lock nut to seal on both sides of your lid, securing the plate in place. Plate measures 24" H x 10.6" W Inlet and Outlet 1/2" Male BSPP thread 300 mm long tubes Bulkheads located approx. 175 mm above the plate 0.36 Square meters of cooling surface Made from 304 stainless steel

Read more less

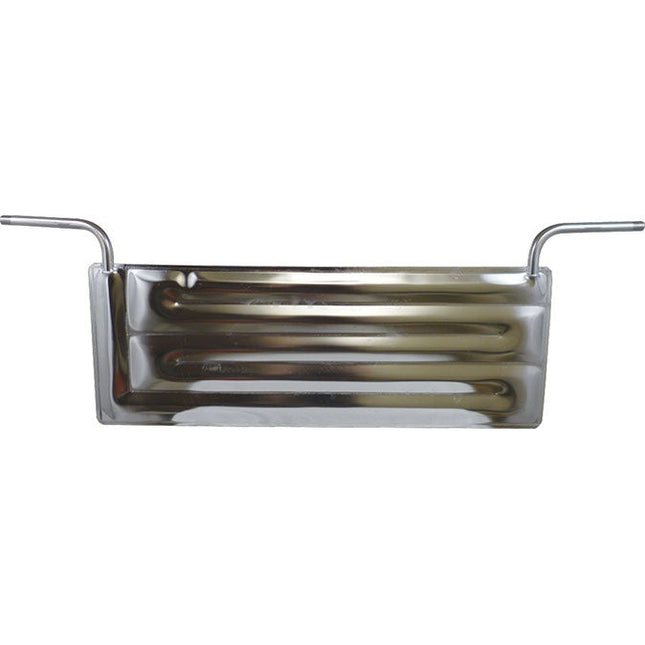

A custom fabricated 304 stainless steel cooling plate for Macro Bins designed specifically for MoreWine!. The plate hangs in place by the inlet/outlet pipes and is held in the center of your bin. 40" wide x 14.5" tall, yields 0.37 square meters of cooling surface. 1/2 inch MPT threaded inlet and outlet. Please note that the illustration shown is for demonstration purposes only and is not to scale.

Read more less
