Pre-Configured Custom Order Wine Tanks

Speidel has developed a stainless steel fermenting egg that combines the advantages of the egg shape with the advantages of a stainless steel tank and a unique design. The Black Eye looks like a space satellite from the outside and provides a gentle and well controllable fermentation inside. Due to its unique shape, the yeast can circulate smoothly during the fermentation phase. In science it is assumed that this free circulation is an advantage for the fermentation process and thus for the entire aroma spectrum. Thanks to the perfect welding seams and the highly smooth inner walls, the fermenting chamber is also very easy to clean.   Tank shell and tank bottom made of AISI304 stainless steel, surface IIId (2R), marbled outside Tank top made of AISI316 stainless steel, surface IIId (2R), marbled outside DOM NW400 centered in the middle og the tank top with flap lid with venting nozzle 2''TC Free-standing base tank on three welded-on legs Sampling - Weld-on thread NW10 DIN11851 with sealing cap (for the installation of sampling tap) Racking Outlet - Weld-on 1.5''TC Cooling Jacket - Laser-welded double jacket for cooling with two 1" BSP male threaded ports Temperature Measurement - Weld-on thread NW10 DIN11851 Bottom Outlet - Vaulted, stable tank bottom, in bottom centre with forward drawn discharge pipe and outlet with 1.5''TC

Read more less

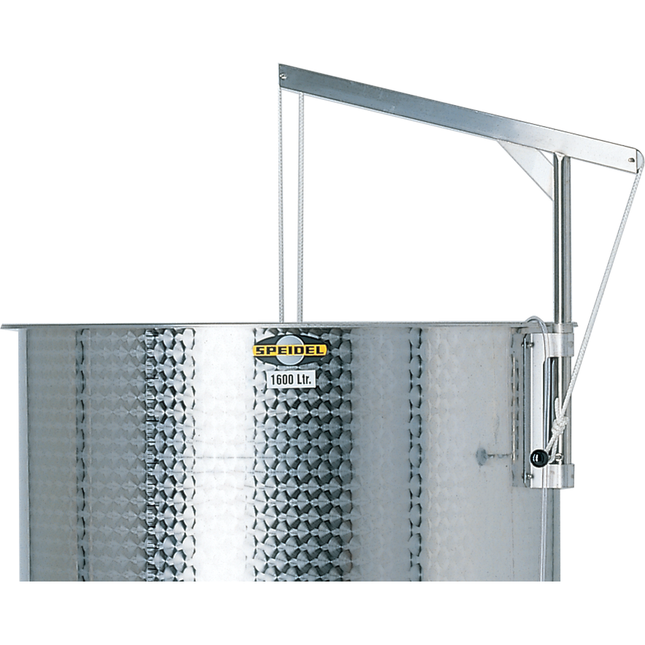

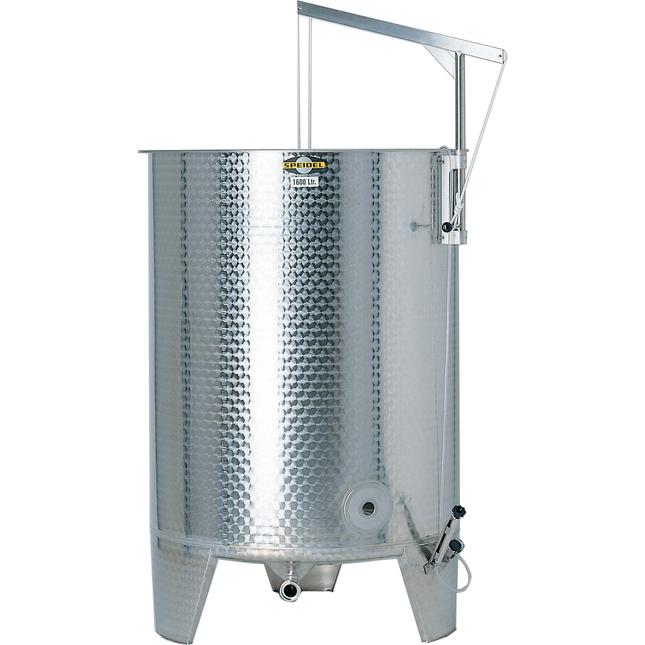

The FO Variable Volume tank is Speidel's flagship Variable Volume tank for storage. Available in 28 different capacities from 1,100L up to over 15,000L. This preconfigured tank comes with: Racking outlet with a 2 in TC connection Bottom outlet with a 2 in. TC connection Floating lid with transparent sealing hose, air pump and pressure gauge Crane with cable for the floating lid Key Features Available in 28 sizes covering 6 different tank diameters from 1,100L to 15,200L (larger tanks available with special shipping arrangements) 1,100L & 1,650L Tanks equipped with 1.5" TC racking and drainage ports. All other tanks equipped with 2" TC. Larger fittings available by request Reinforced racking ports prevent tank wall flex and can support the weight of a tank mixer. All tanks have welded-on mounting points for lid lifting arms. Tanks from 1,650L include a lifting arm; from 2,200L up the arm is winch-operated Click Here for more information on the key features of all Speidel Tanks.
