Stainless Steel Tri-Clamp Fittings & Valves

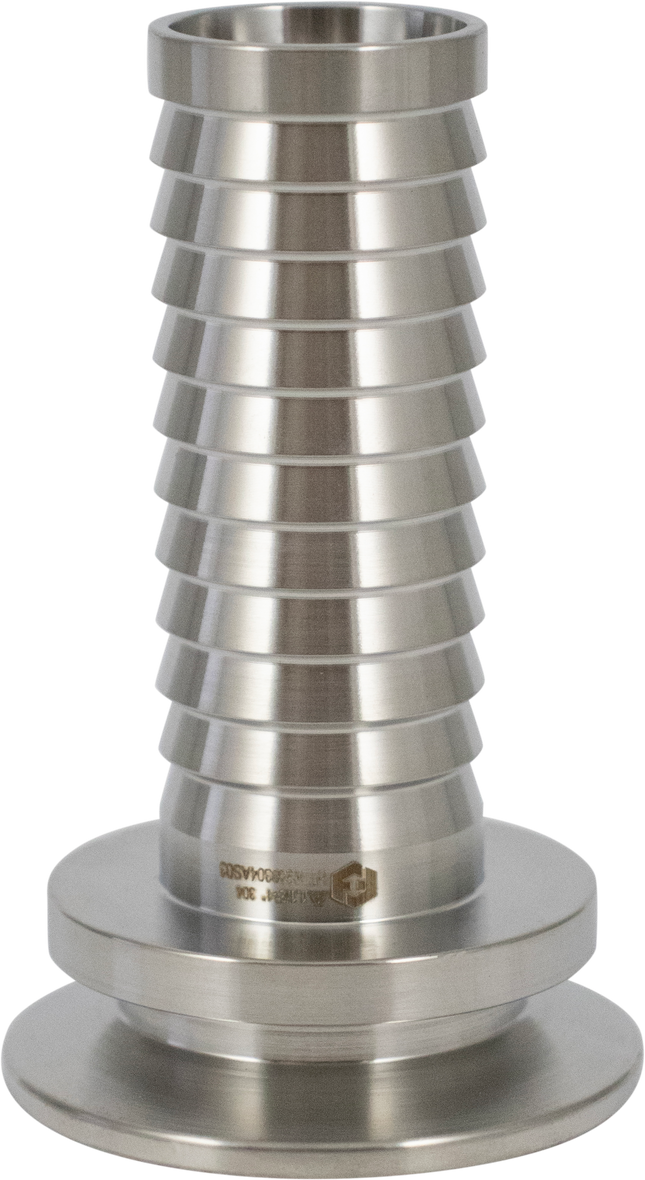

This ForgeFit barb hose end is intended for use with 1" professional beverage tubing. This is the same fitting we use on our pre-fabricated beverage hose assemblies. When designing this fitting, we made sure it has all the features we wanted in a barb intended for professional applications. The hose barb has a shoulder to keep the hose from creeping up towards the fitting end. The long barb promotes solid engagement with the hose and the end has a gentle internal taper to transition the product flow smoothly from the fitting to the tubing. 1.5" tri-clamp connection with 1" OD 2.62" long barb. Overall length 3.25". 3A certified 304 stainless.

Read more less

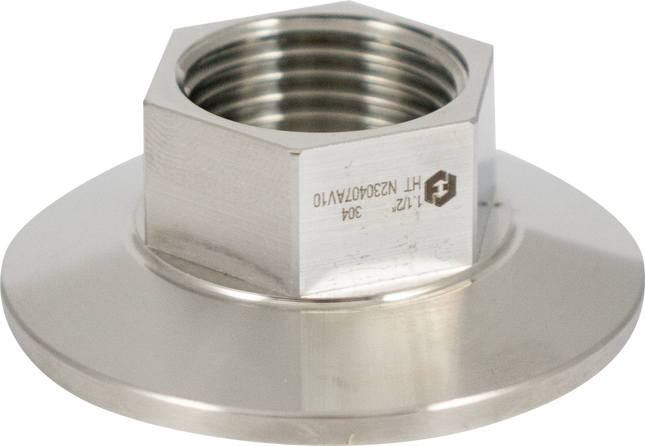

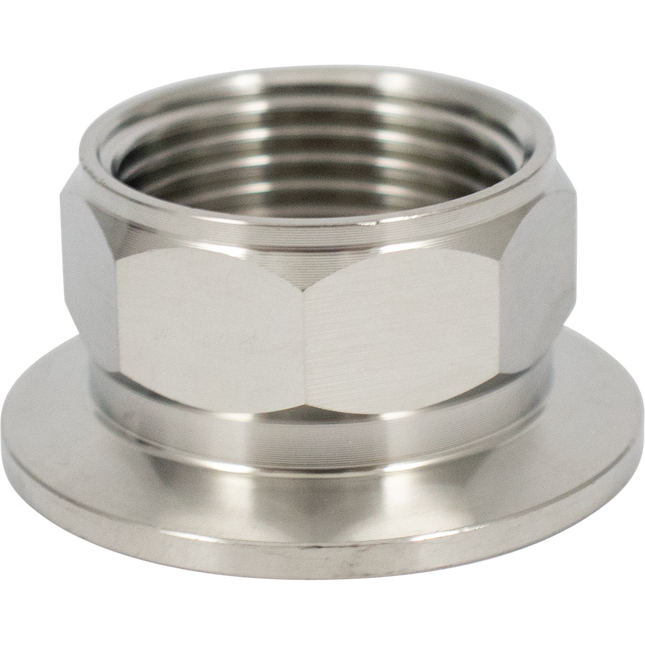

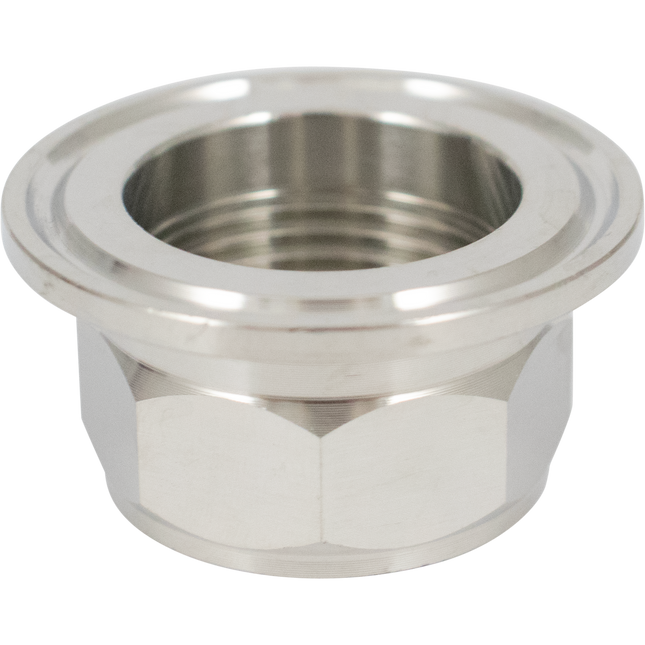

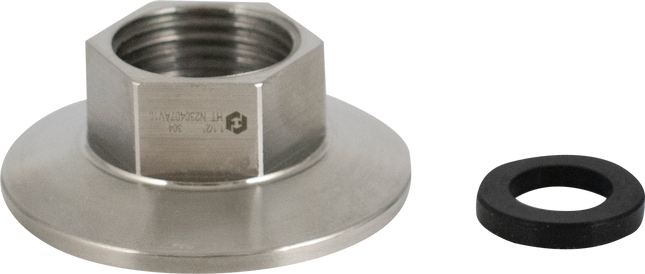

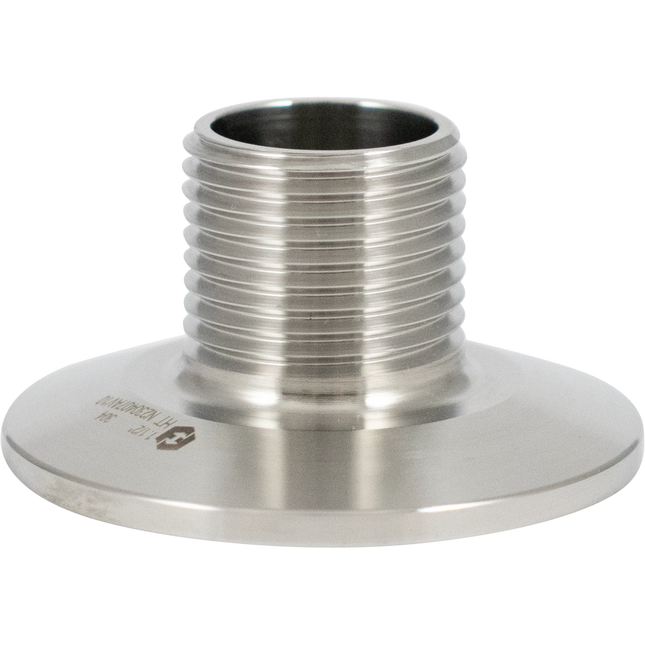

Convert standard 5/8" beer thread to 1.5" tri-clamp. Made from 304 stainless steel.

Read more less

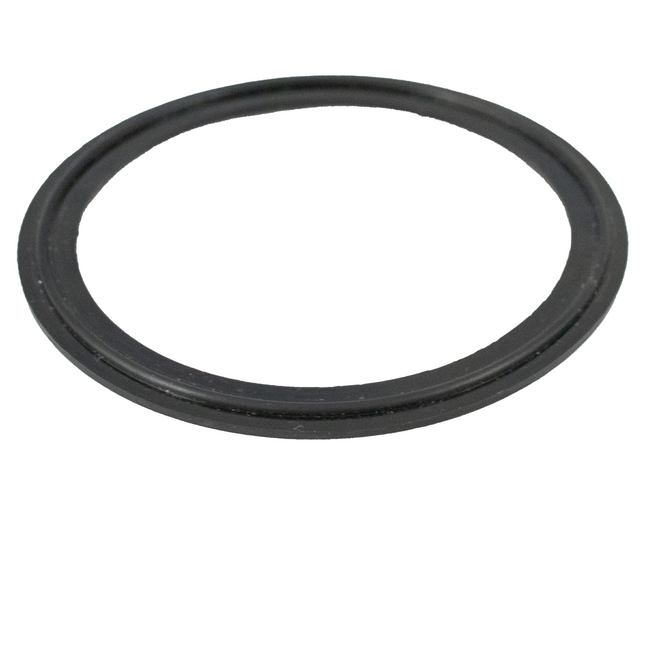

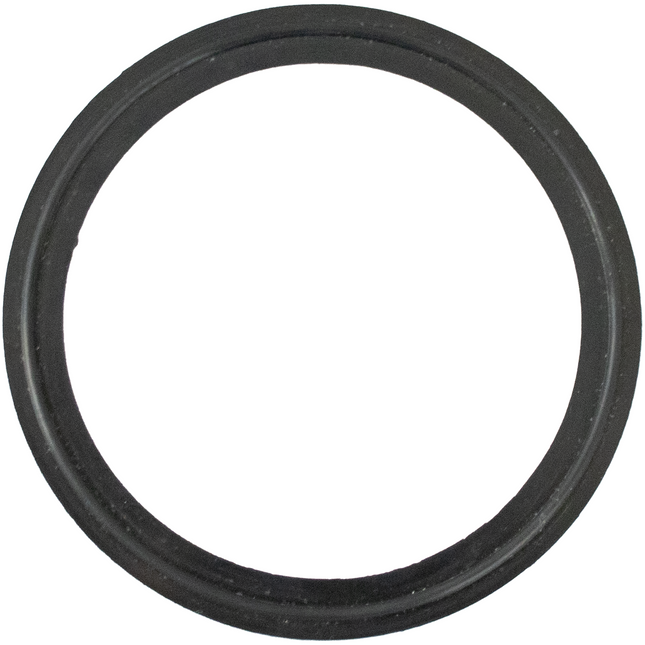

EPDM gasket for 3.5" tri-clamp connection. Temperature rated from -30°F to 300°F. This gasket is a direct replacement part for the ForgeFit 2" Full Port Ball Valve.

Read more less

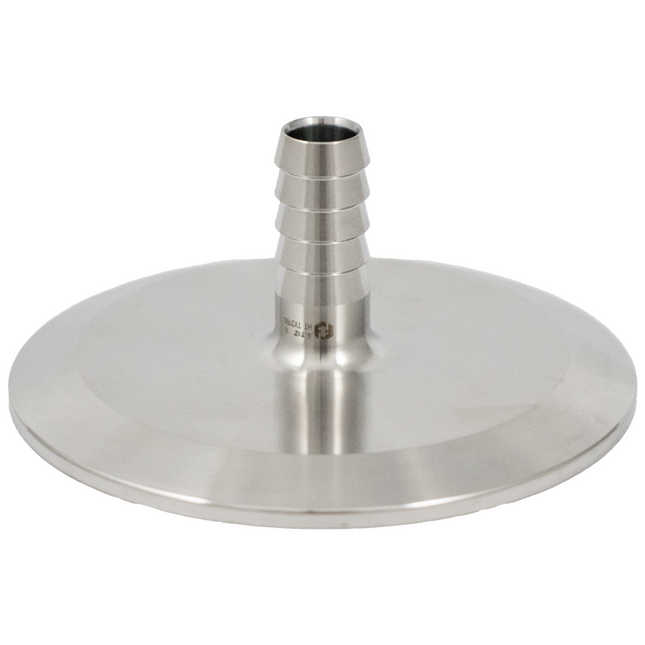

Use this barbed fitting to connect 1/2" ID tubing to a 3" tri-clamp fitting. Works seamlessly with the BrewBuilt X3 Conical's 3" butterfly valve bottom port. Tri-clamp fittings are the gold standard in professional breweries and they've been widely adopted in homebrewing as T.C. kettles, fermenters, and pumps become more widely available. Tri-clamp fittings allow you to make a sanitary connection without any nooks or crannies for contaminants to hide in and they can be cleaned in place. 3" tri-clamp 1/2" OD barb Made from 304 stainless steel

Read more less

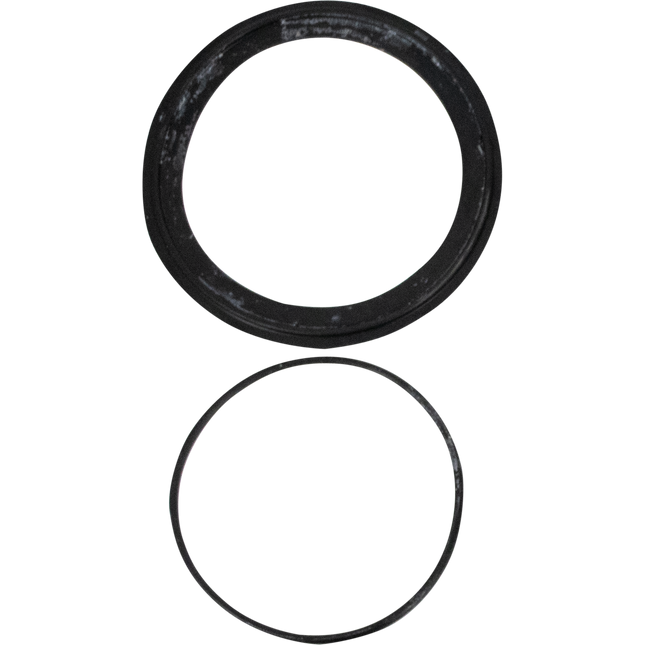

This rebuild kit includes a 3.5" T.C. Gasket and 3mm x 77mm O-ring to aid in the repair of the ForgeFit 2" T.C. Ball Valve. The 3.5" T.C. Gasket requires a food grade grease for assembly with the FF190 Ball Valve.

Read more less

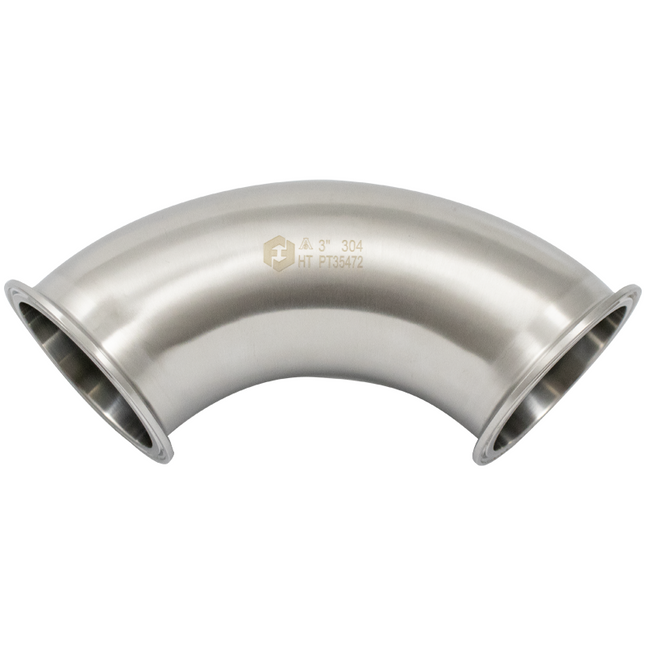

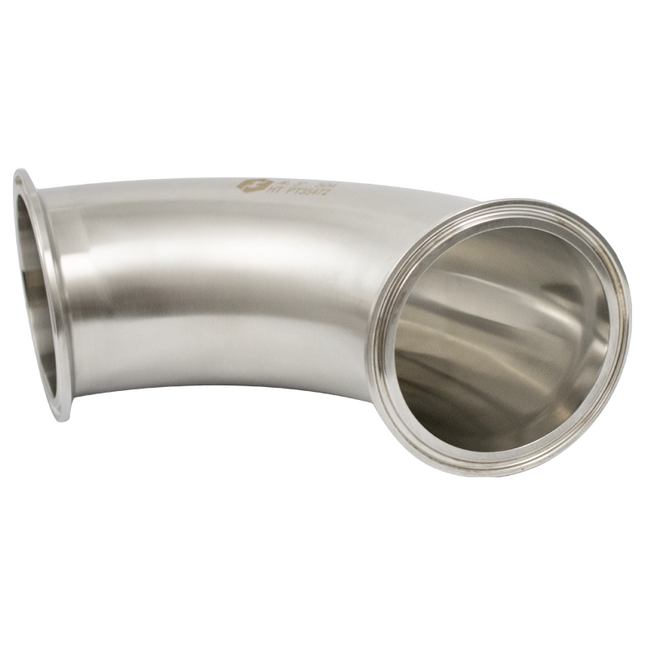

This elbow fitting features 3" tri-clamp connections at both ends and is made from high-quality stainless steel. Perfect for pairing with the BrewBuilt X3 Conical's 3" bottom port for routing yeast and trub dumps. 3" tri-clamp 90° bend Made from 304 stainless steel

Read more less

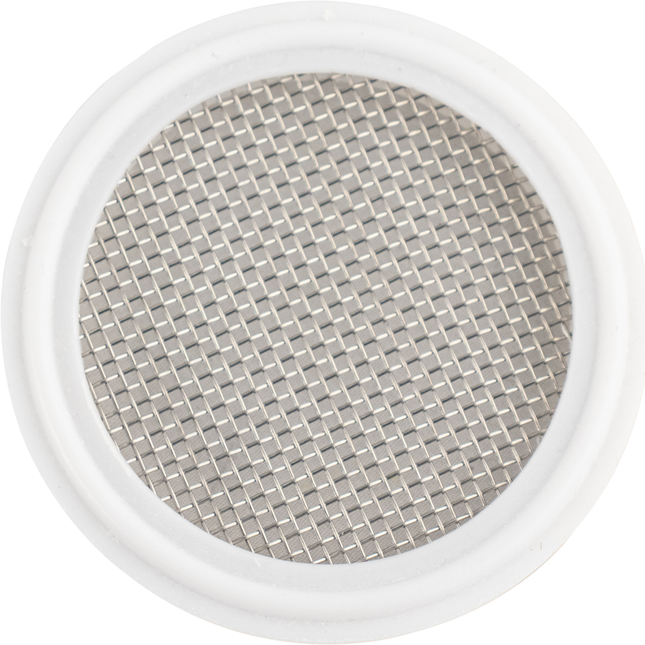

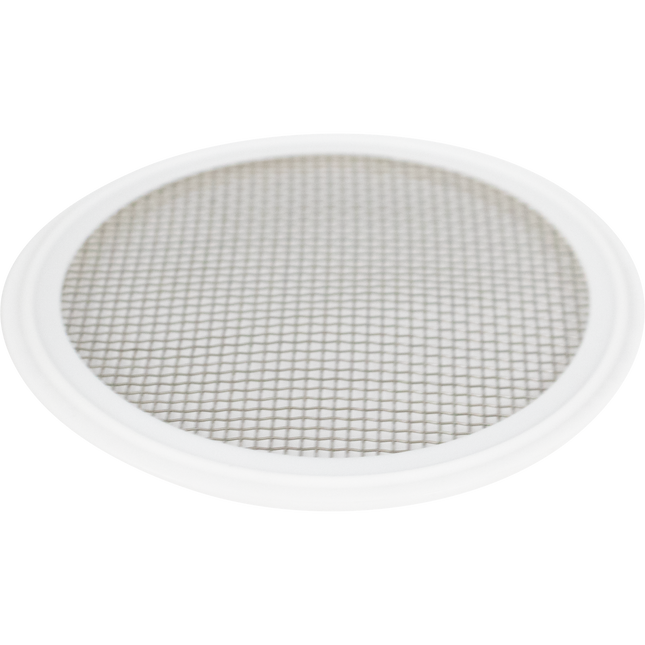

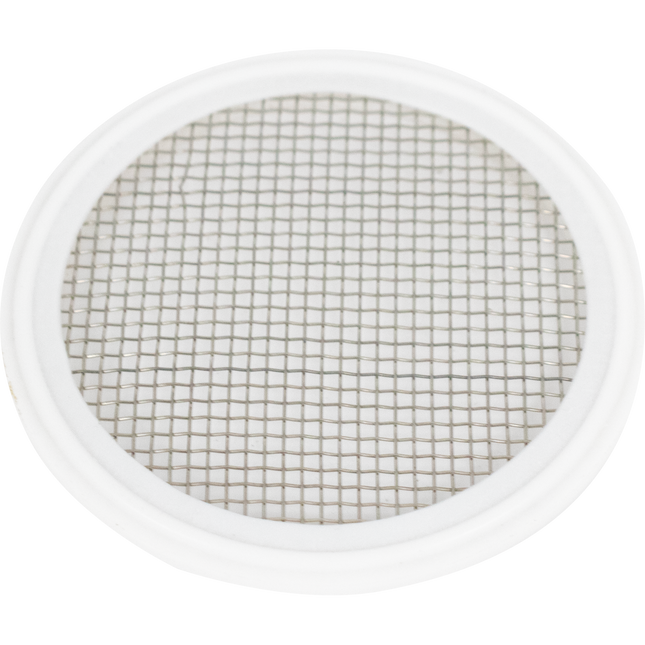

Teflon gasket with 304 stainless mesh screen for 2" tri-clamp connections. Can be used as a filter screen to trap large particulates passing through T.C. fittings. Often used for distillation to retain activated carbon for filtering neutral spirits or used in pot distillation to retain botanicals in the vapor stream. The screen has a mesh size of 16 which will block particles larger than 1.19mm or 1190 microns. This mesh size makes this screen ideal for use in a filer setup with activated carbon. Kegland Part Number: KL30496

Read more less

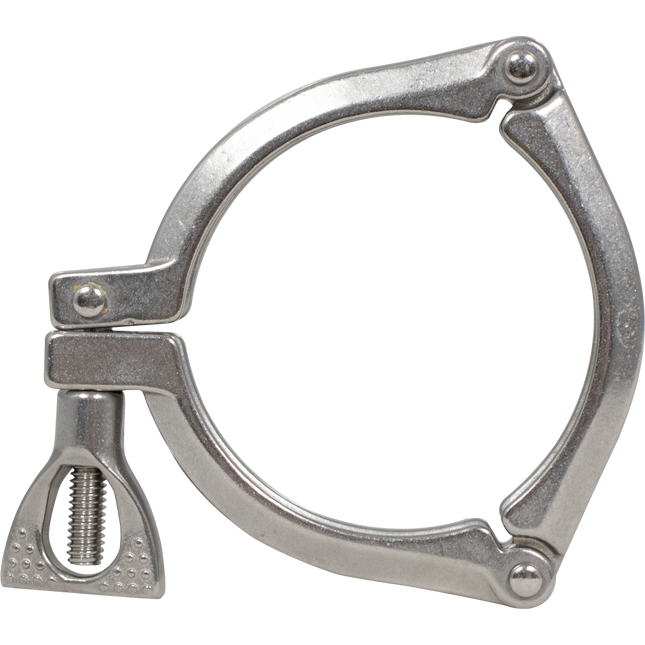

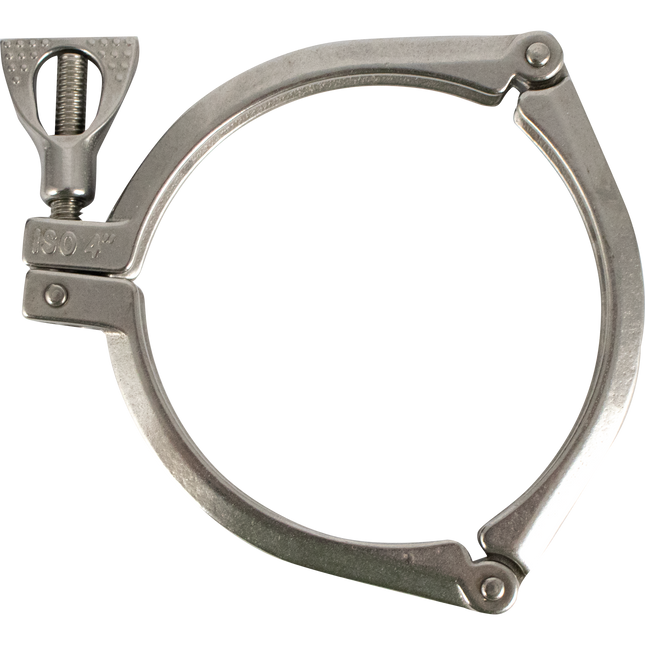

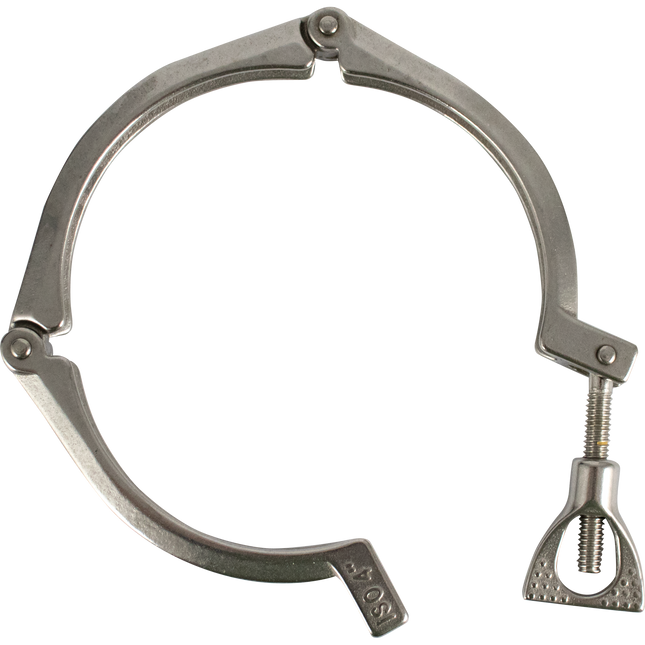

This stainless steel tri-clamp features two hinges and folds into three pieces. Some brewers find this style of clamp easier to work with on large equipment that requires a 4" clamp. KegLand Part Number: KL32902

Read more less

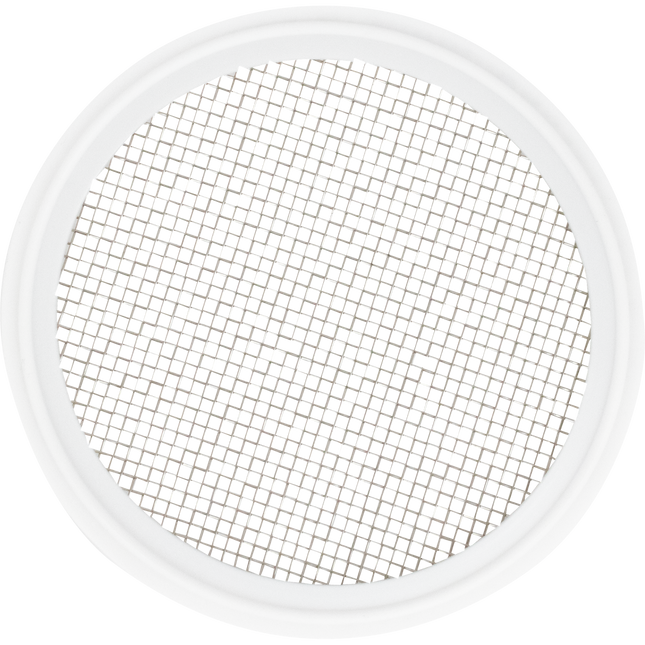

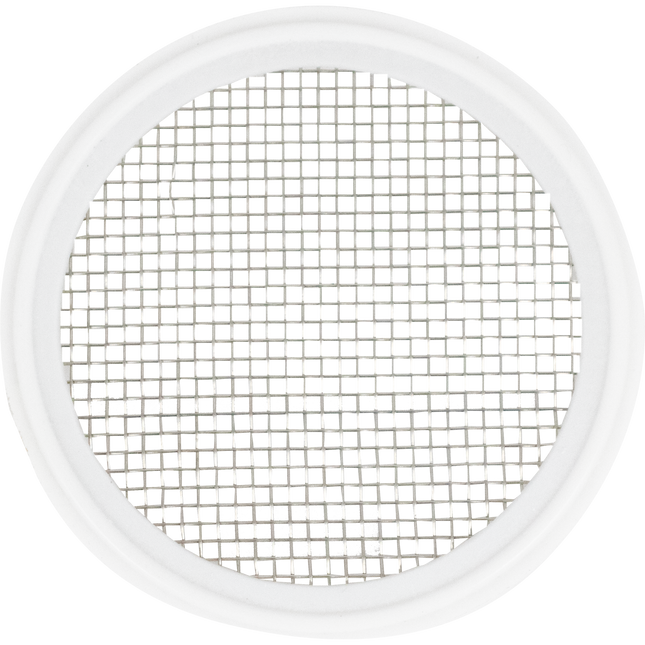

Teflon gasket with 304 stainless mesh screen for 4" tri-clamp connections. Can be used as a filter screen to trap large particulates passing through T.C. fittings. Often used for distillation to retain activated carbon for filtering neutral spirits or used in pot distillation to retain botanicals in the vapor stream. The screen has a mesh size of 7 which will block particles larger than 2.83mm or 2830 microns. This slightly larger mesh size makes this screen ideal for use in a distillation basket. KegLand Part Number: KL28394

Read more less

Teflon gasket with 304 stainless mesh screen for 3" tri-clamp connections. Can be used as a filter screen to trap large particulates passing through T.C. fittings. Often used for distillation to retain activated carbon for filtering neutral spirits or used in pot distillation to retain botanicals in the vapor stream. The screen has a mesh size of 7 which will block particles larger than 2.83mm or 2830 microns. This slightly larger mesh size makes this screen ideal for use in a distillation basket. KegLand Part Number: KL28868

Read more less

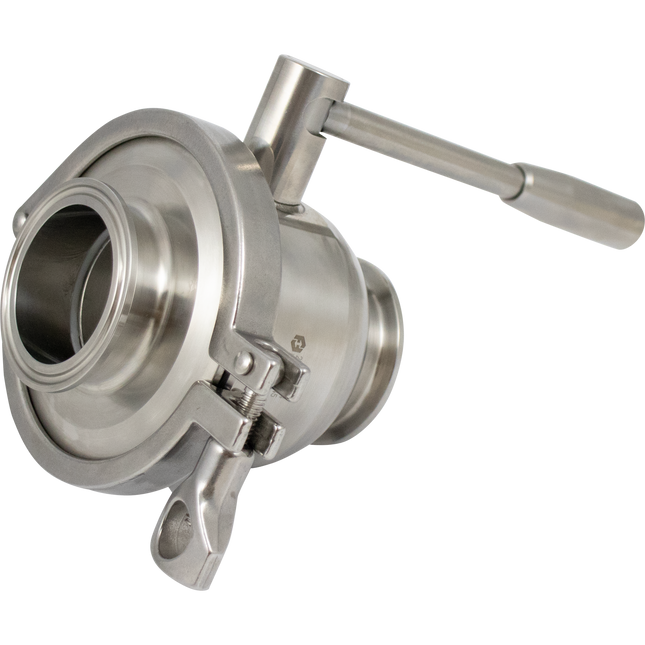

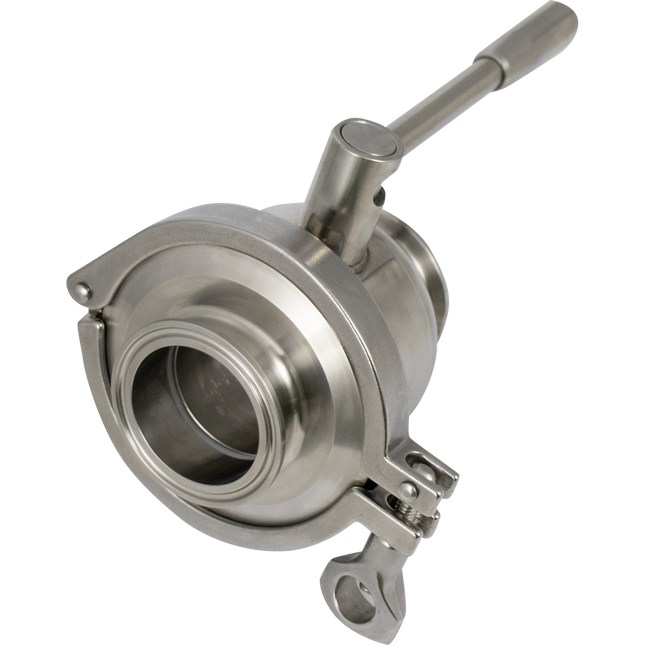

This 2" tri-clamp ball valve is full port and completely disassembles for easy sanitation. It is perfect for inserting a mixer into a wine tank or for mixing hops in a beer tank. No tools are required for disassembly. Simply turn the valve to the closed position, remove the 3.5" tri-clamp, remove the bottom thumb screw (drain), and tilt the ball out of the socket by rotating the top towards you. Reassemble in reverse order. Use food safe grease on all surfaces. Note: Take care to not allow fermentation inside the valve. Do not open the valve during fermentation. The drain screw can be removed while the valve is closed to drain the valve. 2" tri-clamp 3.5" T.C. assembly Made from 304 stainless steel

Read more less

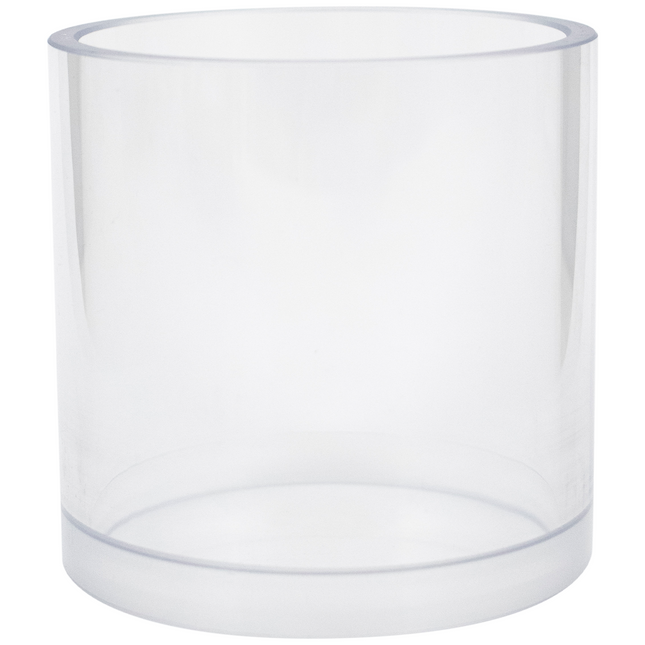

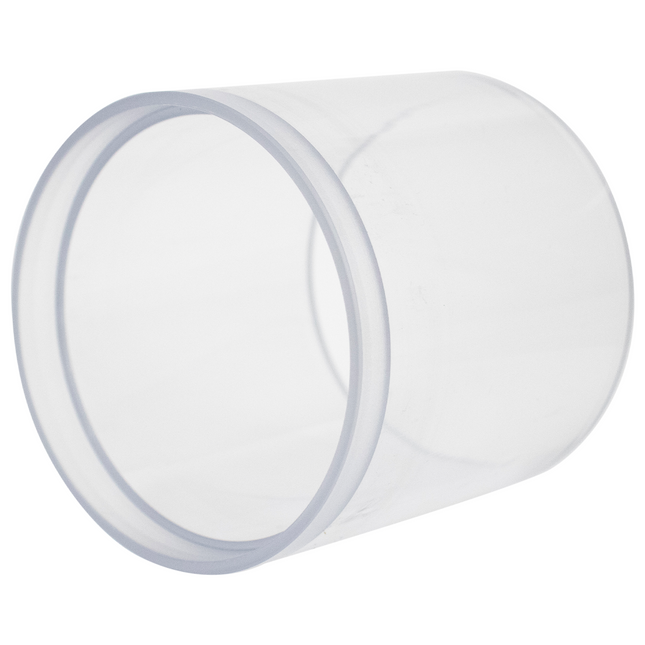

Replacement reservoir for 1.5" tri-clamp spunding valve. Compatible with both 1 BAR BrewBuilt model (CON4P36) and 2 BAR MB model (CON4P35-MB).

Read more less

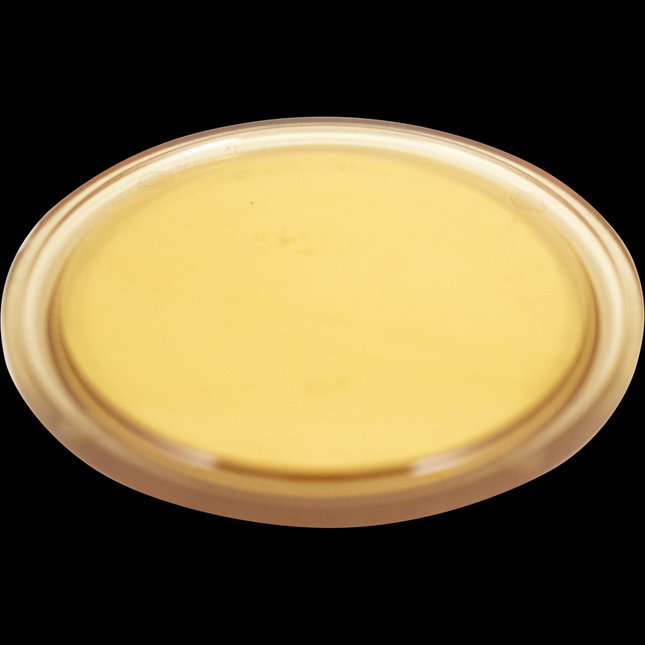

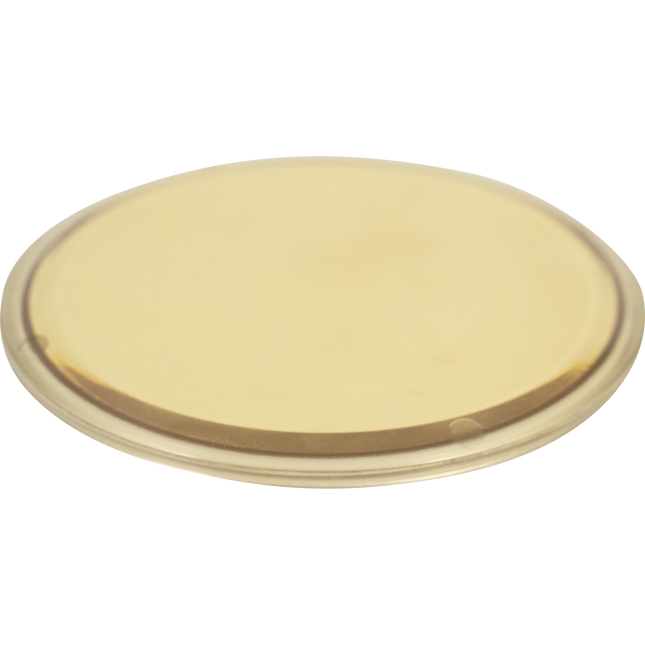

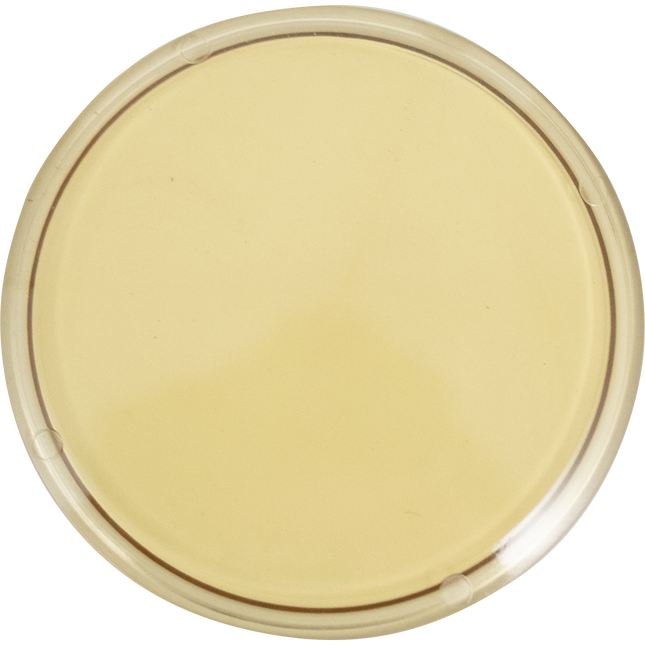

This sight glass lens is suitable for use with any 3" tri-clamp ferrule with a 3" clamp and gasket. Made of Polyphenylsulfone (PPSU) which offers the clarity of transparency of glass with a much higher shatter and heat resistance. This is a direct replacement part for the Pro Sight Glass Distillation Lid. PPSU is an excellent choice for components that are exposed to high temperatures (up to 392°F) and corrosive media due to its exceptional chemical resistance, as well as being extremely impact resistant, and with the added benefit of being see-through. KegLand Part Number: KL22071

Read more less

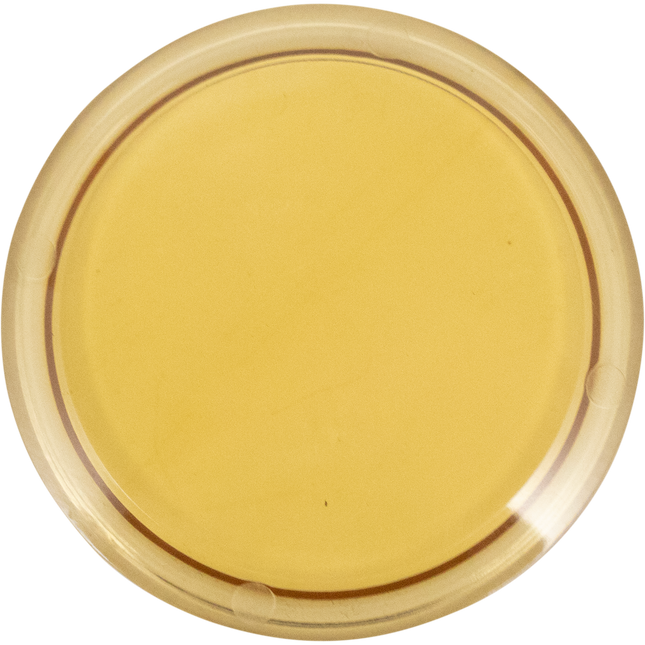

This sight glass lens is suitable for use with any 2" tri-clamp ferrule with a 2" clamp and gasket. Made of Polyphenylsulfone (PPSU) which offers the clarity of transparency of glass with a much higher shatter and heat resistance. PPSU is an excellent choice for components that are exposed to high temperatures (up to 392°F) and corrosive media due to its exceptional chemical resistance, as well as being extremely impact resistant, and with the added benefit of being see-through. KegLand Part Number: KL25973

Read more less

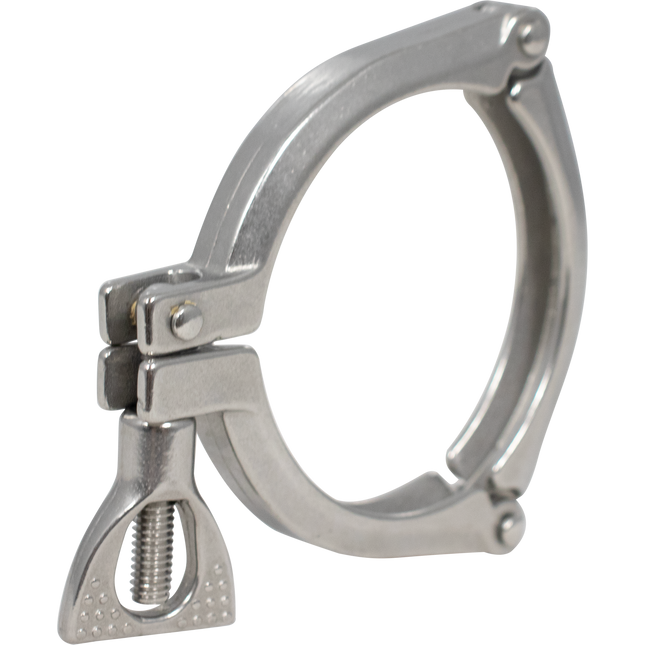

This stainless steel tri-clamp features two hinges and folds into three pieces. Some brewers find this style of clamp easier to work with on large equipment that requires a 3" clamp. Direct replacement part to the clamp included with the FermZilla Tri-Conical fermenter. KegLand Part Number: KL25799

Read more less

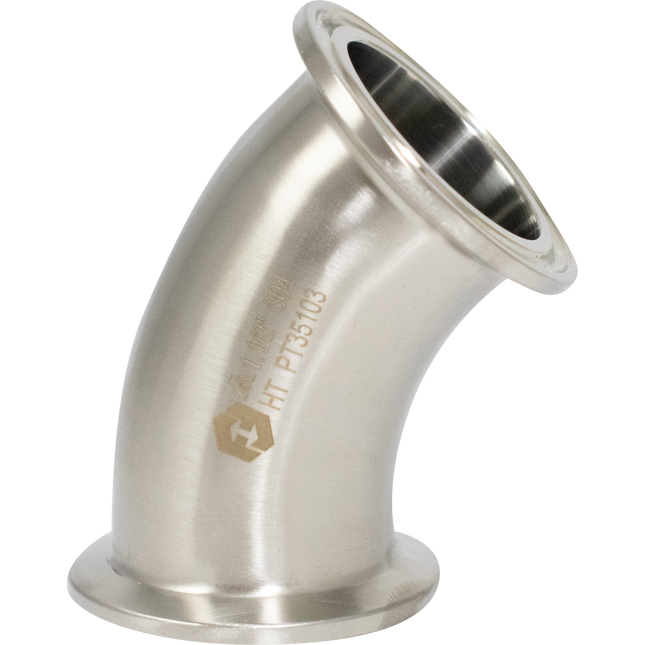

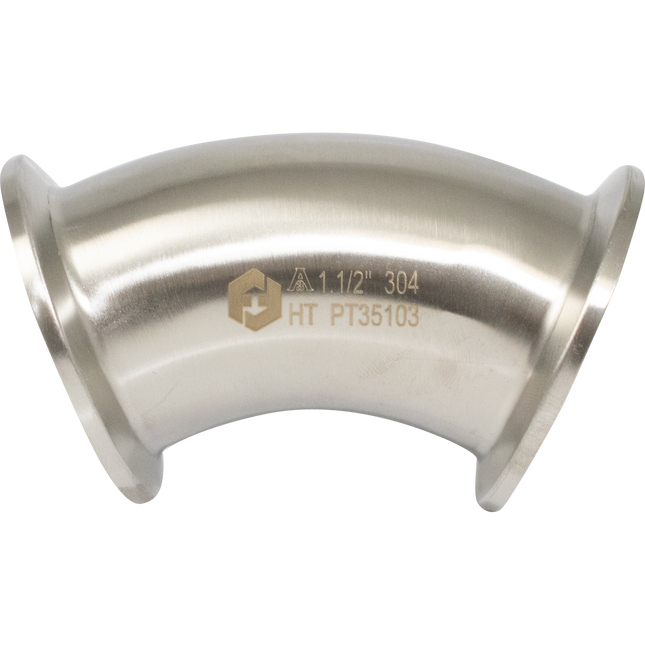

304-type stainless steel tri-clamp 45° elbow with 1.5" clamp ends.

Read more less

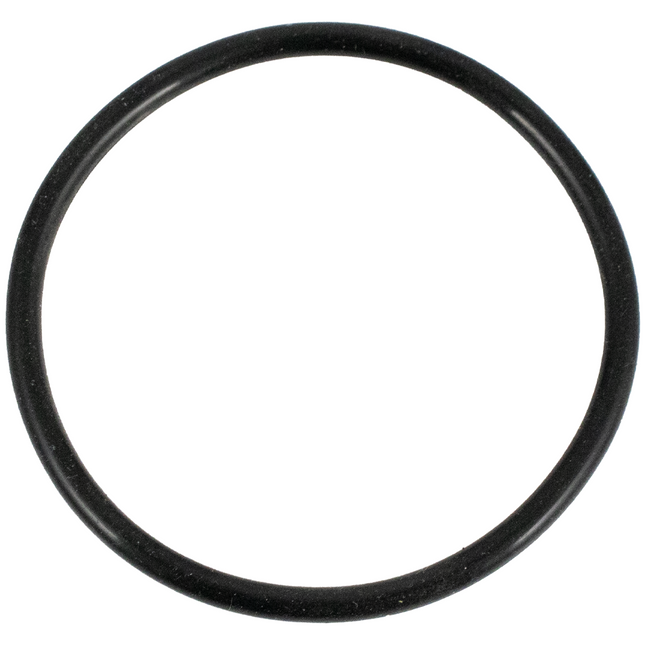

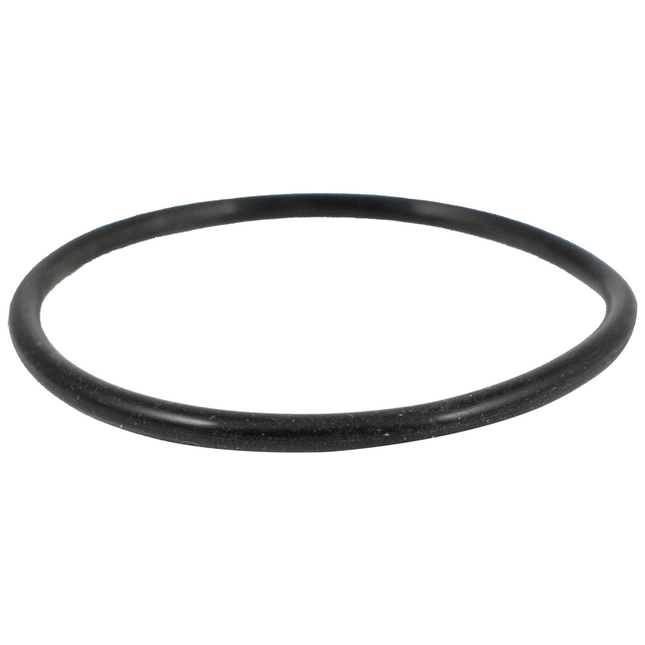

Replacement sealing O-ring for 1.5" stainless tri-clamp spunding valves. Single ring. Made from EPDM. Compatible with the BrewBuilt® and MB® tri-clamp spunding valves.

Read more less

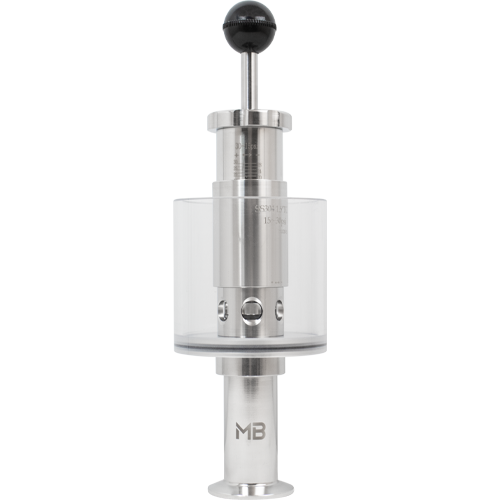

Ferment under pressure with precisely tuned pressure settings Pressure fermentations help to suppress unwanted esters Make clean lagers faster and at higher temperatures Easy-to-read etched pressure scale from 15 to 30 psi Hand adjustable—turn clockwise or counterclockwise to raise or lower your setting Made from 304 stainless steel with polycarbonate cylinder MB is a brand dedicated to crafting and sourcing high-quality, professional-level brewing supplies The MB T.C. spunding valve will give you the highest level of accuracy when fermenting under pressure. Designed for use with any pressurizable stainless steel conical with 1.5" T.C. top ports. For larger units, the spunding valve can also be integrated into the blowoff pipework and used with a pressure gauge and tri-clamp tee. The polycarbonate cylinder that surrounds the spunding valve can be filled with water or sanitizer to keep your tank 100% sanitary throughout the fermentation process. Adjustable from 15-30 psi Made from 304 stainless steel 11.75" H x 4" Ø For Your Safety: Never exceed the maximum rater working pressure of your vessel at any time during operation. The fixed-pressure PRV on your conical should always remain in place while using this spunding valve.

Read more less

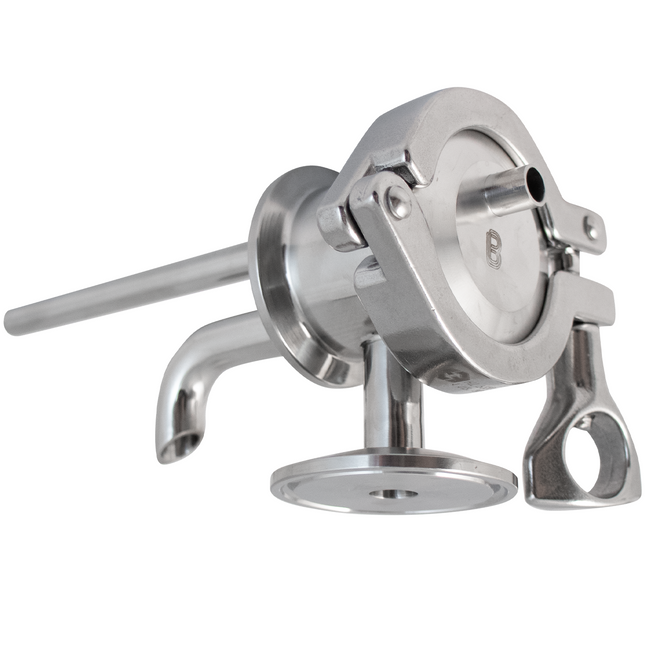

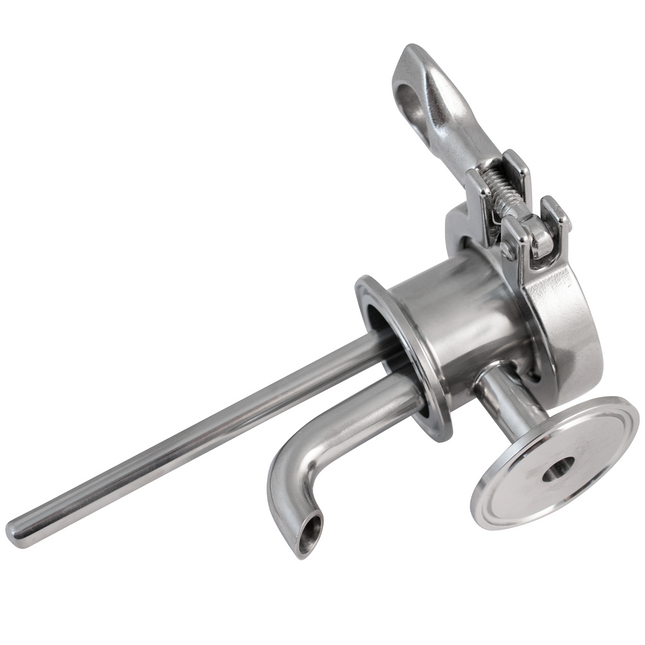

Recirculate wort in your boil kettle without sacrificing one of your tri-clamp ports. The BrewBuilt Whirlpool Return Fitting & Thermowell Offset kit allows you to use any tri-clamp kettle's thermometer port to recirculate wort while also taking temp readings. This kit is perfect for kettles that only have two tri-clamp ports—eliminating the need to drill out a hole in your kettle to add a third port for wort recirculation. Attach your preferred valve or tri-clamp fitting to the side inlet and, during whirlpool, draw wort from your bottom port and pump it back through the Whirlpool Return Fitting. Kit Includes: Whirlpool Return Fitting Thermowell Offset (1) 1.5" Tri-Clamp (1) 1.5" Tri-Clamp Gasket (EPDM)

Read more less

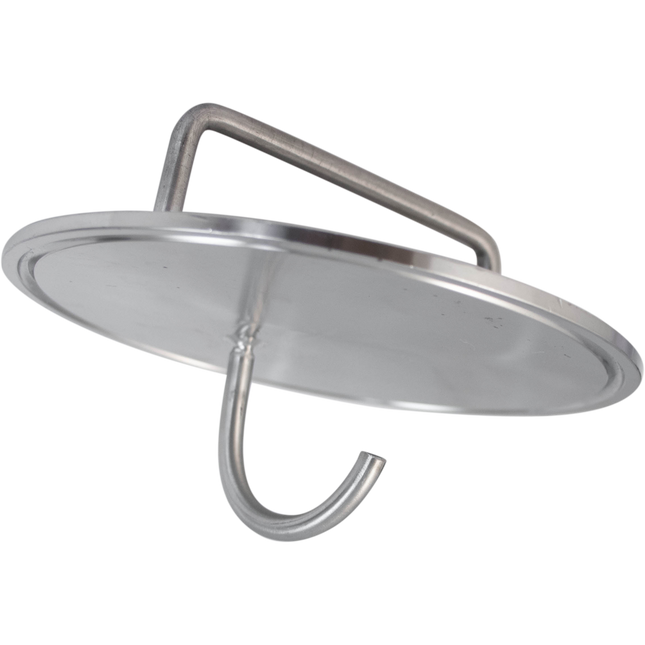

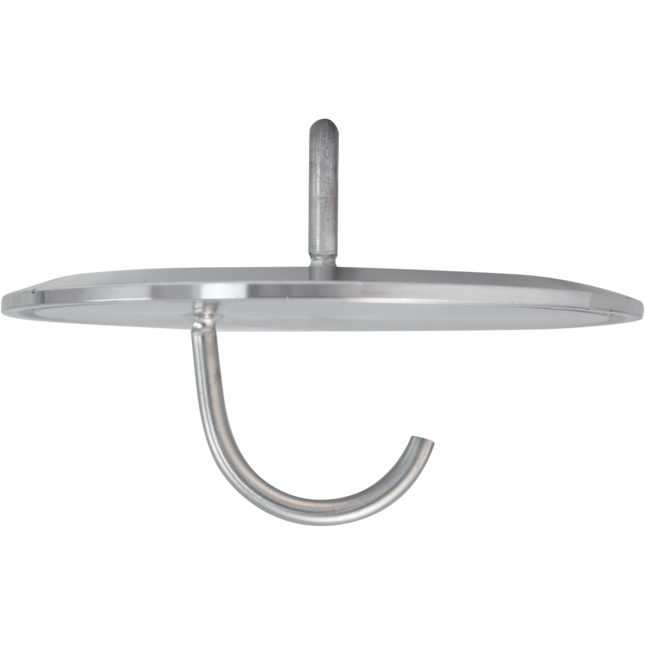

This hop port cover is intended for use with MB conical fermenters. Features a welded hook on the underside to hang bagged flavoring additions and a welded handle on top for easy removal. Made from 304 stainless steel.

Read more less

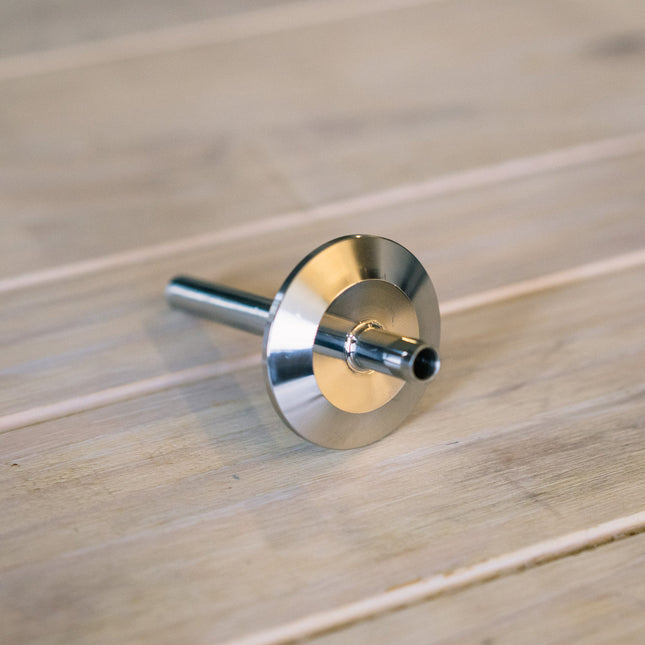

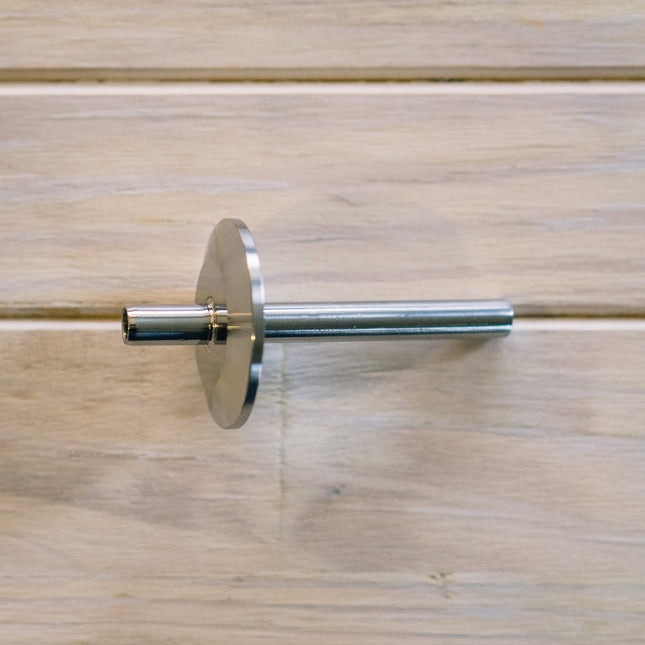

Features: 304 Stainless Steel Compatible with 1/4" probes Does not include TC gasket 2.75" Thermowell

Read more less

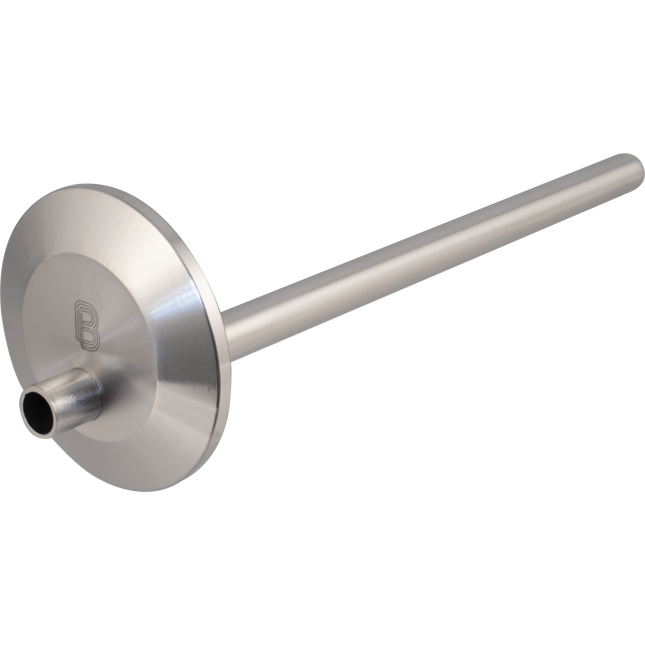

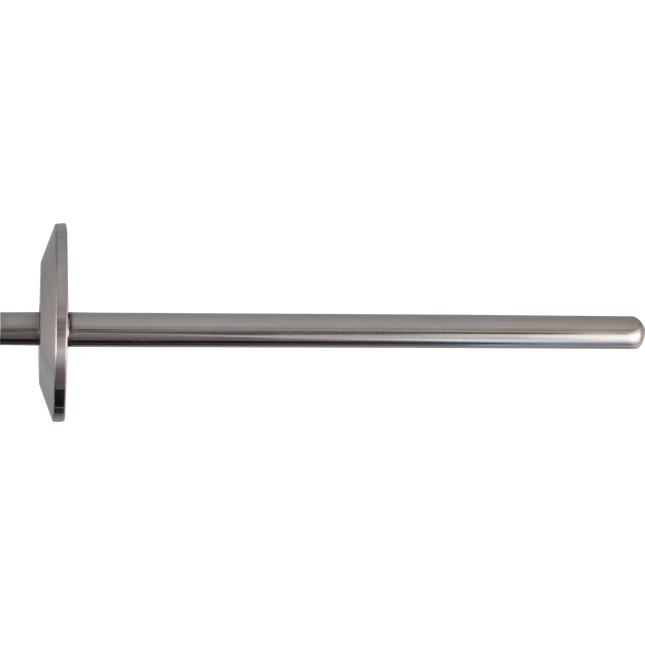

This unique thermowell fitting is has the probe offset from the center of the fitting, leaving room for additional hardware such as the BrewBuilt Whirlpool Return Fitting. Pairing the two fittings allows you to recirculate wort in your boil kettle while still getting temperature readings from your thermometer or temperature probe. The thermowell has a 6" probe that fits all BrewBuilt kettles so that you can get the most accurate temperature measurement of your wort.

Read more less
