Stainless Steel Plate Heat Exchanger

Wine Cooling Plate | Stainless Steel | Weldless | 31.5 in. x 14.5 in.

    Description

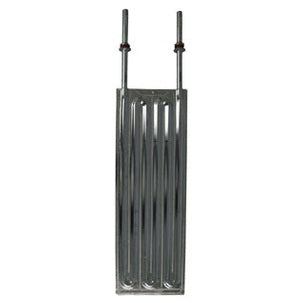

    Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment.


    This is a stainless steel setup, ensuring no chance of off-flavor in your wine. You drill two 1-1/16" to 1-1/8" holes into the lid. We provide two gaskets and a lock nut to seal on both sides of your lid, securing the plate in place.

    • Plate measures 31.5" H x 14.5" W
    • Inlet and Outlet 1/2" Male BSPP thread
    • 300 mm long tubes
    • Bulkheads located approx. 175  mm above the plate
    • 0.64 Square meters of cooling surface
    • Made from 304 stainless steel

    Wine Cooling Plate | Stainless Steel | Weldless | 31.5 in. x 14.5 in.

      Product form

      SKU: WE779

      $364.99

        Free Shipping on orders over $79

        WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        Cool your fermenting must or wine using this weldless, easy-to-install, 304 stainless steel cooling plate that can be inserted into the lid of any Variable Volume Fermenter. Cold water or glycol is recirculated through the cooling plates thereby reducing the temperature of your ferment.


        This is a stainless steel setup, ensuring no chance of off-flavor in your wine. You drill two 1-1/16" to 1-1/8" holes into the lid. We provide two gaskets and a lock nut to seal on both sides of your lid, securing the plate in place.

        • Plate measures 31.5" H x 14.5" W
        • Inlet and Outlet 1/2" Male BSPP thread
        • 300 mm long tubes
        • Bulkheads located approx. 175  mm above the plate
        • 0.64 Square meters of cooling surface
        • Made from 304 stainless steel
