Bottling Wine

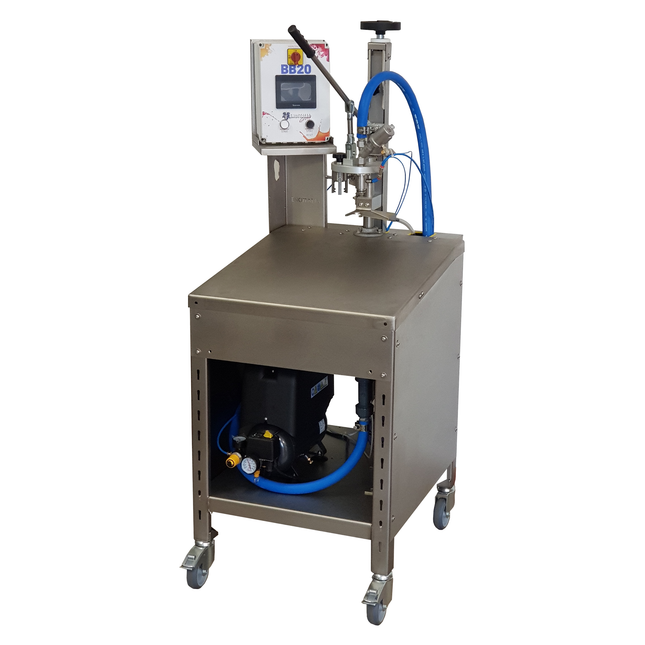

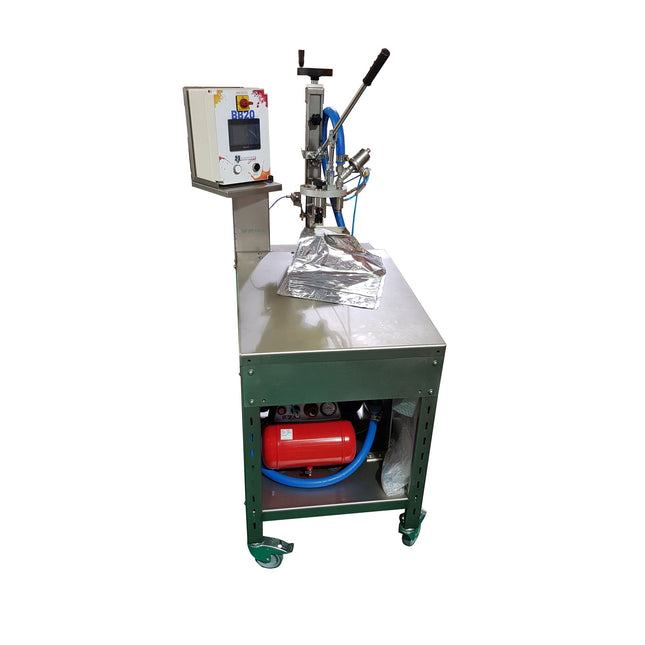

Semi-Automatic Operation: BB20 vacuums, fills, and nitrogen flushes. Operator installs bag and uses built in swing arm with pincer tool to remove and reinstall valve. Perfect for wine, olive oil & more Fill within 5cL CIP cleaning with liquid or steam Touch screen control for easy programming The BB20 is a semi-automatic bag-in-box filler manufactured by Enoitalia in Italy.  The beauty of this machine is the simplicity. The BB20 automatically carries out the cycle of vacuuming the bag, filling, and then finally nitrogen flushing. The operator inserts the bag and activates the swing arm pincer tool to remove the valve. After filling the operator again uses the swing arm to quickly reinstall the valve after the bag is filled. The possibility to choose between different types of flow sensors allows the BB20 to be used with liquids of different viscosities, including wine, fruit juices, olive oil and more. Filling can be carried out at room temperature or hot up to 212°F / 100°C. In the case of hot filling, specific accessories are available depending on your set up. A self-priming volumetric pump with rubber impeller is installed as standard. This pump offers a high flow rate, the possibility to prime/draw from any container, an anti-pressure by-pass valve and a total drain valve for emptying the filling circuit. Precision The electric panel allows the control and management of all the filling phases, guaranteeing a repeatability of the volumes filled with an error of ± 5cl. Small corrections can be made if needed.   Control Panel The electronic panel allows the control and management of all the filling phases, including volume to fill, time to fill, vacuum time, nitrogen time, management of calibration, and counting of volume. Cleaning Use of a drip-free filling valve Complete emptying of the pipes by means of a drain valve located on the pump Washing CIP circuit with stainless steel tap Preset programs for sanitizing with detergents or for sanitizing with steam 230°F / 110°C (requires the appropriate kit for high temperatures).  Other Advantages Structural and mechanical components are made completely in AISI 304 stainless steel Filling head height adjustment with external handwheel Possibility to request adapters for countless types of caps and bags (purch, berker, QCS, QCD, etc.) Inclined stainless steel top to facilitate sanitizing and handling of the bags Multilingual display (Italian, English, French, German, Russian, Spanish, Croatian) Components: PLC panel control touch screen type, multilanguage multiprogram Electromagnetic sensor Burkert type, for cold liquid (like wine / water) Vacuum and Nitrogen system Automatic air piston for blocking the filling head Impeller pump HP 1.5 with by-pass, model EURO 30, capacity 4500 lt/h Quiet, oil-less air 1.5hp air compressor Double start switch Capacity of 1 liter up to 30 liter Semiautomatic hand-wheel for adjusting the filling head’s height Pincer tool to open and close taps. VITOP standard (other on demand) Stainless steel stand with casters SS fitting for cleaning circuit (CIP). Automatic program fo cleaning Total drain valve installed on pump body Fitting connection 1.5" T.C. Specs: 1.5" T.C. connection with 20 mm hose Capacity: 5L  bags -- 250 per hour 10L bags -- 180 per hour 20L bags -- 130 per hour Power: 1.1 HP, 220V, 50-60hz, single-phase Dimensions: 23.6" x 32.3" x 63" (600 x 820 x 1600) Weight: 308.6 lbs (140 kg)

Read more less

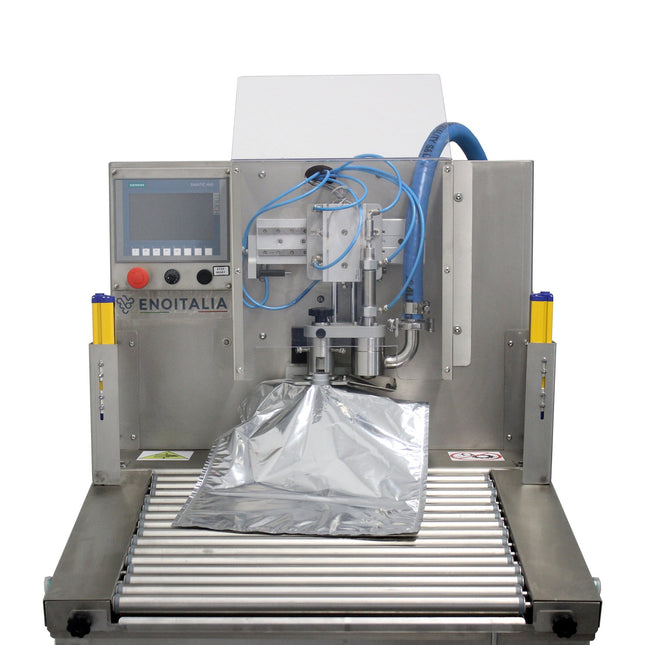

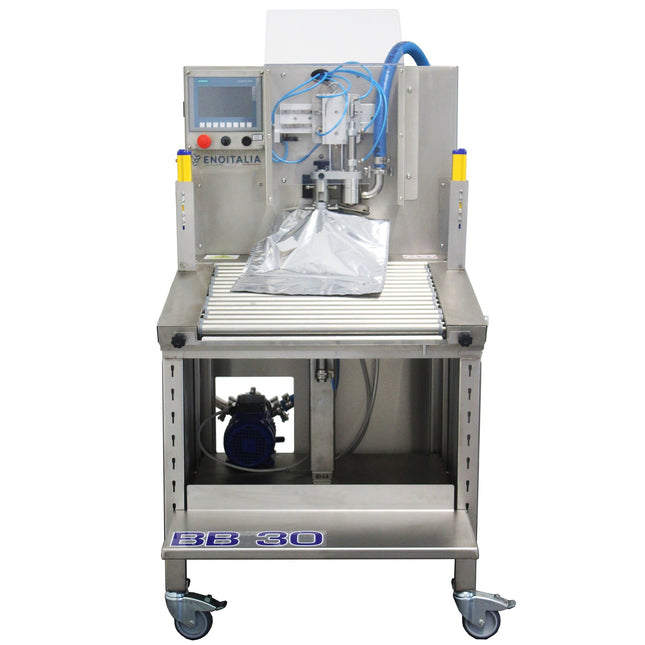

Semi-Automatic Operation: BB30 vacuums, fills, and nitrogen flushes. Operator installs bag and the machine automatically removes valve, fills, and reinstalls valve. Perfect for wine, olive oil & more Fill within 5cl CIP cleaning with liquid or steam Touch screen control for easy programming The BB30 a semi-automatic bag-in-box filler manufactured by Enoitalia in Italy.  The beauty of this machine is the simplicity. The BB30 automatically carries out the cycle of vacuuming the bag, filling, and then finally nitrogen flushing. The operator inserts the bag and activates the machine to remove the valve, fill the bag, and reinstall the valve in one smooth, seamless operation. The possibility to choose between different types of flow sensors allows the BB30 to be used with liquids of different viscosities, including wine, fruit juices, olive oil and more. Filling can be carried out at room temperature or hot up to 212°F / 100°C. In the case of hot filling, specific accessories are available depending on your set up. A self-priming volumetric pump with rubber impeller is installed as standard. This pump offers a high flow rate, the possibility to prime/draw from any container, an anti-pressure by-pass valve and a total drain valve for emptying the filling circuit. Precision The electric panel allows the control and management of all the filling phases, guaranteeing a repeatability of the volumes filled with an error of ± 5cl. Small corrections can be made if needed.   Control Panel The electronic panel allows the control and management of all the filling phases, including volume to fill, time to fill, vacuum time, nitrogen time, management of calibration, and counting of volume. Cleaning Use of a drip-free filling valve Complete emptying of the pipes by means of a drain valve located on the pump Washing CIP circuit with stainless steel tap Preset programs for sanitizing with detergents or for sanitizing with steam 230°F / 110°C (requires the appropriate kit for high temperatures).  Other Advantages Structural and mechanical components are  made completely in AISI 304 stainless steel Filling head height adjustment with external handwheel Possibility to request adapters for countless types of caps and bags (purch, berker, QCS, QCD, etc.) Inclined stainless steel top to facilitate sanitizing and handling of the bags Multilingual display (Italian, English, French, German, Russian, Spanish, Croatian) Components: PLC panel control touch screen type, multilanguage multiprogram Electromagnetic sensor Burkert type, for cold liquid (like wine / water) Vacuum and Nitrogen system Automatic air piston for blocking the filling head Impeller pump HP 1.5 with by-pass, model EURO 30, capacity 4500 lt/h Quiet, oil-less air 1.5hp air compressor Double start switch Capacity of 1 liter up to 30 liter Semiautomatic hand-wheel for adjusting the filling head’s height Automated removal and reinstallation of the bag valve. VITOP standard (other on demand) Stainless steel stand with casters SS fitting for cleaning circuit (CIP). Automatic program fo cleaning Total drain valve installed on pump body Fitting connection 1.5" T.C. Specs: 1.5" T.C. connection with 20 mm hose Capacity: 3L bags -- 450 per hour 5L bags -- 300 per hour 10L bags -- 240 per hour 20L bags -- 180 per hour Power: 2 HP, 220V, 50-60hz, single-phase Dimensions: 31.5" x 39.4" x 59" (800 x 1000 x 1500) Weight: 308.6 lbs (140 kg)

Read more less

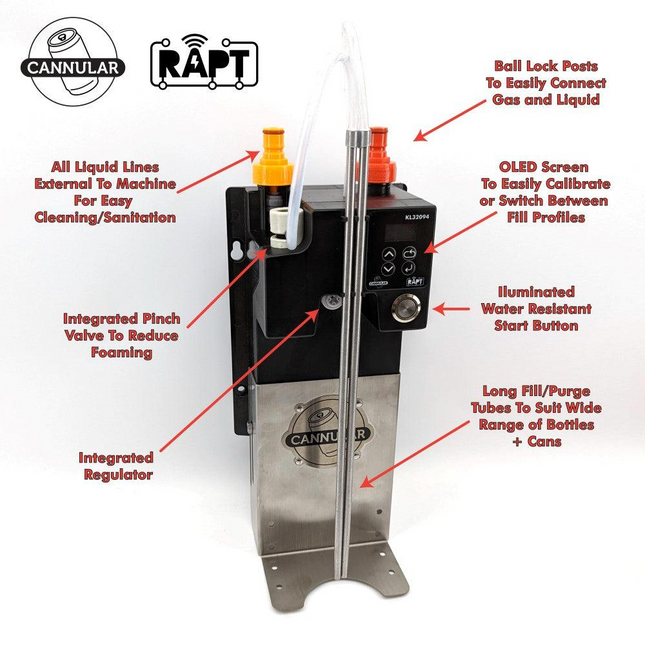

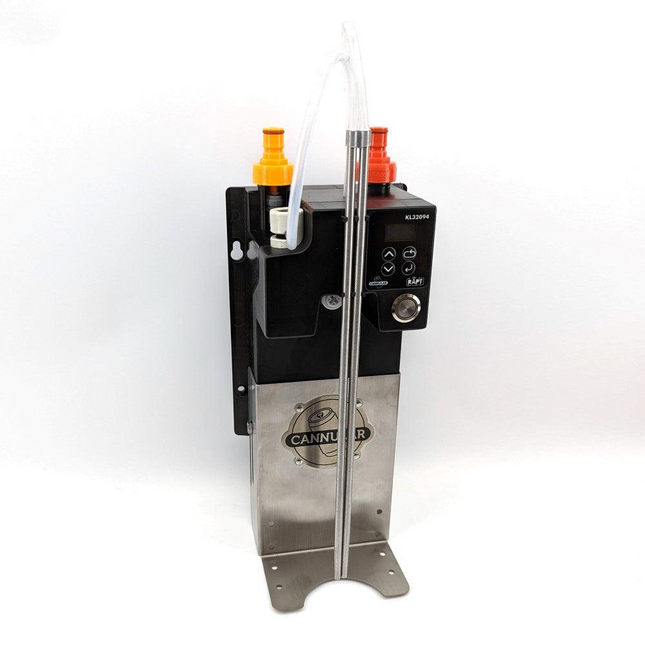

Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more in early September.       Automated Filling System: Fill any beverage into any bottle, can, jar, or glass automatically with this internet-connected, RAPT-enabled Cannular Can and Bottle Filler, offering a more sanitary and user-friendly experience than competitors. Integrated Pinch Valve and Regulator: The pinch valve allows easy removal of the beer line for cleaning, while the integrated regulator eliminates the need for an external regulator, preventing damage from high-pressure gas sources. OLED Digital Display and WiFi Connectivity: The OLED display simplifies calibration and allows real-time adjustments, while WiFi connectivity to the RAPT.io portal logs usage data and enables remote management of settings and profiles. Versatile and Multi-Purpose: With adjustable stainless steel tubes and a height range suitable for bottles up to 11.8" and cans up to 10.6", this filler can handle still or carbonated beverages, making it ideal for various containers including wine bottles, beer cans, and more. Low Dissolved Oxygen (DO) Pickup: The filler effectively purges oxygen from the container, ensuring substantially lower dissolved oxygen levels, which enhances the quality and longevity of your beverage. Fill any beverage into any bottle, can, jar, or glass automatically with this internet-connected, RAPT-enabled, Cannular Can and Bottle Filler. Featuring two adjustable stainless steel tubes, the Cannular Filler will use one to purge oxygen out of the vessel and then use the second one to fill the vessel to a precise level based on an internal pressure sensor. OLED Digital Display The OLED display makes calibration super easy. It also enables you to keep track of filling speed, number of cycles/fills, purge time, fill height, and also enables you to make on-the-fly adjustments to your filling requirements so you can conveniently tweak the settings while filling. Integrated Ball Lock Connectors The integrated ball lock connectors allow you to quickly attach your beer and gas ball lock disconnects. We recommend the use of the Duotight Ball Lock Quick Disconnects in Gas and Liquid to connect to these inputs and outputs. Integrated Pinch Valve The integrated pinch valve is one of the things that makes this unit far superior to other filling machines. The pinch valve enables you to easily remove the beer line for cleaning so the stainless tube, silicone hose, and yellow ball lock cap removes completely and can be put into the dishwasher or cleaned in the sink. The pinch valve is mechanically simple and therefore reliable. It is not subject to small particles like hops getting stuck in the device and eliminates the need for pre-filtration. It simply pinches down on the silicone tube to shut off the flow. This design also enables laminar flow that reduces foaming. The pinch valve improves reliability, makes it easier to operate, and a piece of cake to clean. Integrated Regulator Other filling machines require an external regulator that may need to drop the pressure lower than your normal keg dispensing pressure. Unlike these other fillers, this filler has an integrated regulator which saves time and setup costs. This integrated regulator means you will not damage your machine by accidentally connecting it to a high-pressure gas source. You can hook up your gas line without the need for another external regulator or to fool around with your gas supply at all. Just set the integrated regulator once during setup and forget about it. Multi-Purpose The long stainless tubes and adjustable height make this device useful for pretty much any bottles up to 11.8" (30cm) high or cans up to 10.6" (27cm) high. It can also be used for still or carbonated beverages, so this device is useful for wine bottles, beer cans, champagne, crown seal bottles, and pretty much any other bottle/can/vessel that has a neck opening greater than 0.59" (15mm). It can also be used for filling glasses, jars, or other vessels. Fill Profiles Some other machines require a full calibration to change from one vessel type to another. This machine allows you to pre-save fill profiles depending on what you are doing. Save a filling profile for your 12 oz cans and then save a different filling profile for your 750mL wine bottles. Use our pre-saved presets or alternatively make your own fill profiles with different purge times and fill height. These are also synced with the RAPT.io portal so you can save profiles and share them with friends or deploy them to several other devices. RAPT.io Connected (via WiFi) As well as all the features above, this filler connects to your WiFi and keeps track of your Cans Per Minute (CPM), fill speed, and even temperature (if you purchase the external Instant Read Temperature Probe separately). It will log all usage information so you can keep track of how your machine is running or even keep track of your staff to make sure they are cycling the machine at an acceptable rate. The connectivity to the RAPT.io portal will enable you to more easily change settings, update profiles, and keep track of your fill days so you can historically keep track of how your fill day went and which day you processed each batch. Low DO Pickup The quality and longevity of your beverage are often defined by how well you keep oxygen off your product. This filler purges the oxygen out of the can and will enable you to get substantially lower dissolved oxygen. Wall Mounted Design This type of can and bottle filler has primarily been designed for wall-mounting configuration. This allows you to bring a can or bottle up to the filler from the underside of the unit. To wall mount this unit you can download and print this template. 24V DC Power Supply KegLand Part Number: KL37785

Read more less

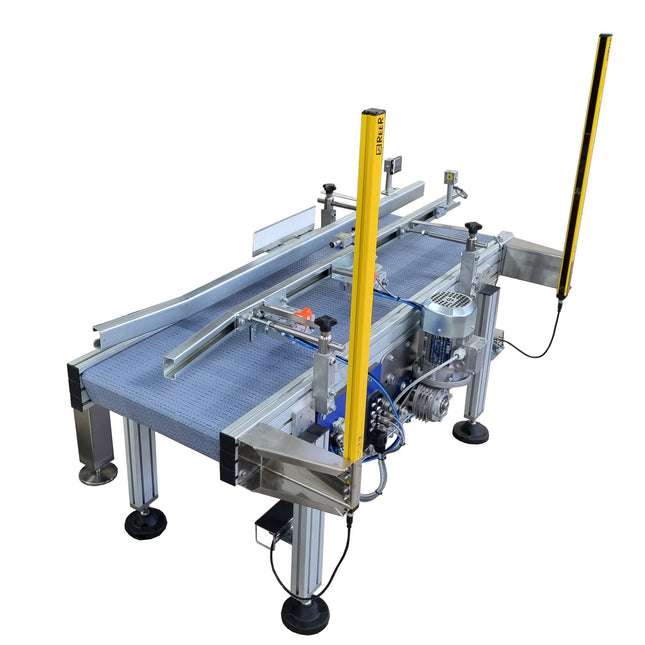

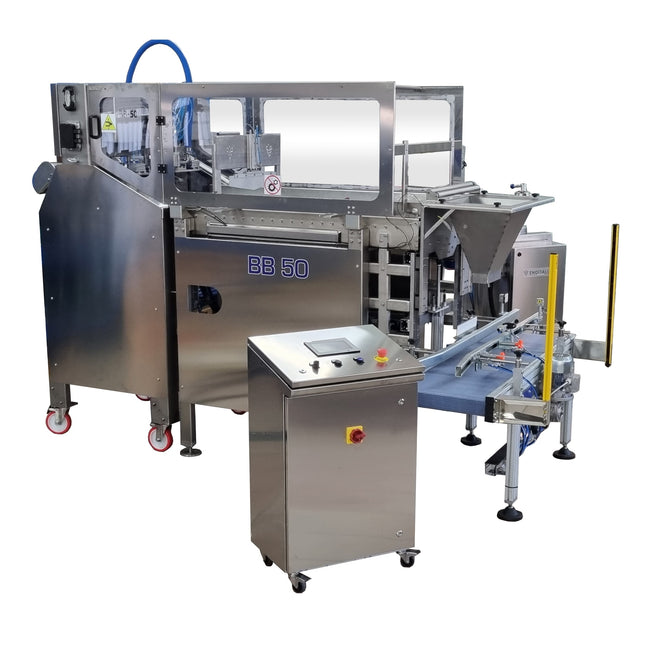

Fully automatic operation: BB50 pulls in bag film, fills, cuts bag, and feeds down conveyor belt for packaging Bag valve is automatically removed and reinstalled during the vacuum filling process In addition to wine, it can be configured for olive oil, creams, sauces, soaps, and other industrial liquids Automatic motorized conveyor at end point where bags are dropped through the hopper into boxes Touchscreen control panel installed in stainless steel enclosure on rolling casters The BB50 is a fully automatic bag-in-box filler manufactured by EnoItalia in Italy. The most advanced model of EnoItalia’s bag-in-box fillers, the BB50 automatically feeds bags into its vacuum filling system, cuts and separates the bags, and feeds them down a conveyor for box packaging. The system consists of three modules – the filling machine itself, a stainless steel enclosed control panel, and a motorized roller conveyor where boxes receive the filled bags. The possibility to choose between different types of flow sensors allows the BB30 to be used with liquids of different viscosities, including wine, fruit juices, olive oil and more. Filling can be carried out at room temperature or hot up to 212°F / 100°C. In the case of hot filling, specific accessories are available depending on your set up. A self-priming volumetric pump with rubber impeller is installed as standard. This pump offers a high flow rate, the possibility to prime/draw from any container, an anti-pressure by-pass valve and a total drain valve for emptying the filling circuit. If you will install a filter station before the filler, it is recommended to install a buffer tank in between the filter and the filler. Two options are available: the Atmospheric Tank and the Isobaric Tank. The Atmospheric Tank is a simple solution, 200L in size with internal level sensor and external control for a pump. The Isobaric Tank is a more professional 100L automatic buffer tank that uses nitrogen to push liquid into the filler. With this configuration, the BB50 will not include the pump, and the control panel will have an automatic program to set the pressure used during filling or washing. Precision: The Autotuning function allows automatic calibration of the machinery, eliminating the need to carry out countless samples. Repeatability of volumes with an error of ± 0.2%. Control Panel: The Siemens PLC control panel allows you to manage all the filling phases, adapting the machine to any type of liquid treated (wine, fruit juices, oil, water, creams, etc.). From the touch screen control panel, you can program and manage the filling cycle, adjust working speed, calibrate dosages, and execute washing and sanitizing operations. Cleaning: The machine can be sanitized with a CIP circuit using the special stainless steel tap and the automatic program. Furthermore, the BB50 is designed to perform 230°F / 110°C steam sanitization. Other Advantages: Structural and mechanical components are made completely in AISI 304 stainless steel Equipped with a 9500 L/h self-priming volumetric pump with rubber impeller and speed regulation inverter Possibility to request adapters for countless types of caps and bags (purch, berker, QCS, QCD, etc.) Multilingual display (Italian, English, French, German, Russian, Spanish, Croatian) Components: Siemens PLC panel control w/ 7" touchscreen Remote assistance kit with LAN connection Control panel installed on stainless steel cart with rolling casters, 16' cable connection Automatic separation of bags Self-priming electric pump with rubber impeller - 9,300 L/h, 900 RPM Electronic speed variator for pump Vacuum filling system Continuous filling of bags with VITOP tap (other taps on demand) SS fitting for cleaning circuit (CIP). Automatic program fo cleaning Total drain valve installed on pump body Specs: 1.5" T.C. connection Capacity: 3L bags -- 500 per hour 5L bags -- 480 per hour 10L bags -- 280 per hour 20L bags -- 200 per hour Power: 2.5 HP, 380V, 50hz, three-phase 5 poll Dimensions: 130" x 44" x 99" (3300mm x 1100mm x 2500mm) Weight: 1,433 lbs (650 kg)

Read more less

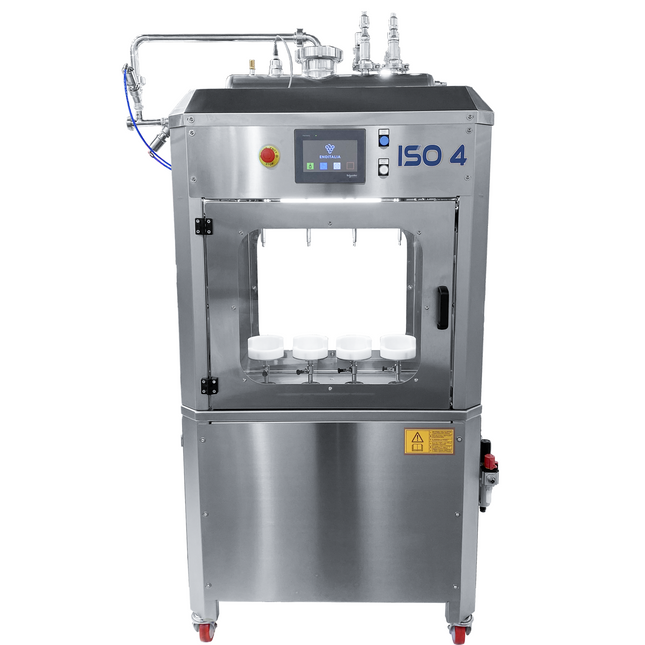

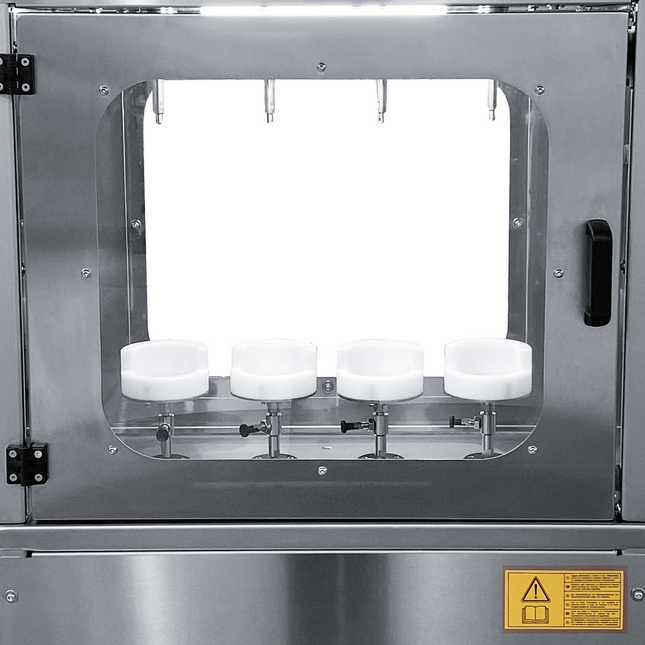

Sparkling Wines: Can handle the high pressure associated with bottling sparkling wines/champagnes up to 6 bar (87 psi). Versatile: Can also bottle all other carbonated beverages.  Automated Efficiency: PLC control automates filling, pressure, and level balancing for precise and consistent results. Flexible Operation: Fill one to four containers simultaneously with customizable fill levels for each. Reduced Oxidation: Integrated automatic degassing system minimizes oxygen exposure, preserving beverage quality. Safety Features: Includes a pre-evacuation system, door-opening safety circuit, and PED-certified storage tank for secure operation. This semiautomatic, four-head, isobaric, counter-pressure filling machine is suitable for bottling beverages at pressures up to 6 bar (87 psi), including sparkling wines and beer. Equipped with a PLC (Programmable Logic Controller) for automatic control, it precisely manages filling, pressure, and level balancing while ensuring operational safety. The PED-certified storage tank allows for direct connection to bulk storage, streamlining the bottling process. To operate, simply input the initial liquid pressure and container capacity into the programmable controller. This system allows for customized filling levels for each container and the flexibility to fill one to four containers simultaneously. Includes: Pre-evacuation system with a vacuum pump that can be set to one or more cycles Door-opening safety circuit connected to the pressure level in the bottle Washing circuit with fixed head hydrosphere sprayer Automatic degassing system to minimize oxidation Stainless steel structure on wheels, with internal LED lighting Specs: Workable bottle volume: 0.33-1.5L (11 to 50.7 ounces) 220V, Single Phase Variable production depending on format and temperature: approx. 200 bottles/hour (750mL) Please Note: This item may come with a bare cord or with a European style plug.  You will need a professional electrician to wire the pump with the appropriate plug.

Read more less
