Stainless Steel Tri-Clamp Fittings & Valves

Replacement gasket for the ForgeFit® 1.5" butterfly valve. We recommend replacing your butterfly gasket at least every 3 years. If you wait until you have a leak, your valve has already been unsanitary for some time.

Read more less

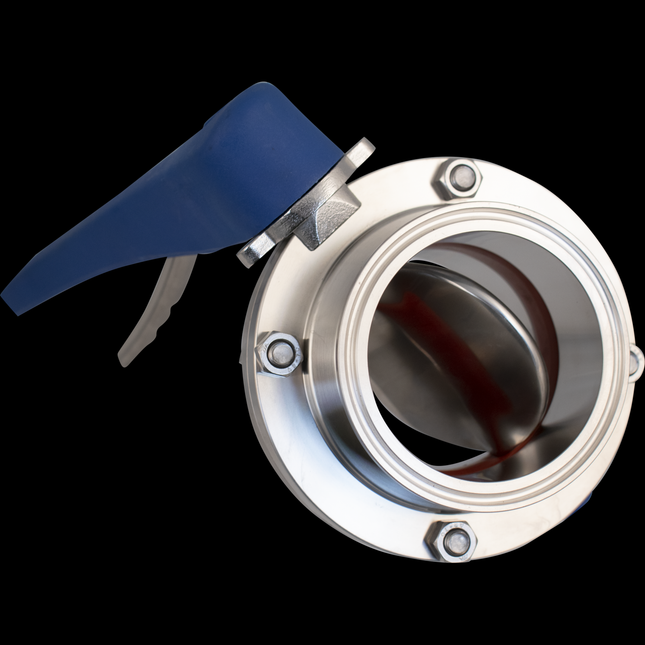

This 1.5" Tri-Clamp Butterfly Valve features stainless steel construction and 7-position handle. The stainless steel handle can be rotated 180° for right or left hand operation.

Read more less

The most popular choice for sanitary connections, tri-clamp fittings are widely used in the food & beverage industry due to their ability to be cleaned in place. Tri-clamps join two fittings together without any nooks or crannies for contaminants to hide. Use anywhere you want to ensure a sanitary connection. 2.5" tri-clamp Made from 304 stainless steel

Read more less

Teflon gasket with 304 stainless mesh screen for 2" tri-clamp connections. Can be used as a filter screen to trap large particulates passing through T.C. fittings. Often used for distillation to retain activated carbon for filtering neutral spirits or used in pot distillation to retain botanicals in the vapor stream. The screen has a mesh size of 7 which will block particles larger than 2.83mm or 2830 microns. This slightly larger mesh size makes this screen ideal for use in a distillation basket. KegLand Part Number: KL11921

Read more less

For commercial brewery application with a range of 0-2.2 Bar. For homebrew fermenters, see the BrewBuilt® Spunding Valve Automatically release pressure inside your fermenter during pressure fermentations Compatible with any stainless steel pressurizable fermenter with 1.5" tri-clamp ports In-line pressure gauge for easy reference of tank pressure reads from 0-35 PSI Made from 304 stainless steel and comes fully assembled This tri-clamp spunding valve provides professional-level accuracy for fermenting under pressure. Attach to any pressurizable stainless steel conical with 1.5" TC ports and set your desired blow-off pressure. A pressure gauge sits in-line from the conical to the spunding valve so you can reference the current pressure inside your vessel at any time. The polycarbonate cylinder that surrounds the spunding valve can be filled with water or sanitizer to keep your tank 100% sanitary throughout the fermentation process. Not designed for homebrewing conicals where the maximum allowed pressure does not exceed 1 Bar.   The pressure gauge reads from 0-35 psi or 0-0.25 MPa. The spunding valve is scaled in both psi and BAR, up to 32 psi (2.2 BAR). Comes fully assembled 1.5" tri-clamp connection In-line pressure gauge Made from 304 stainless steel For Your Safety: Never exceed the maximum rated working pressure of your vessel at any time during operation. The fixed-pressure PRV on your conical should always remain in place while using this spunding valve.

Read more less

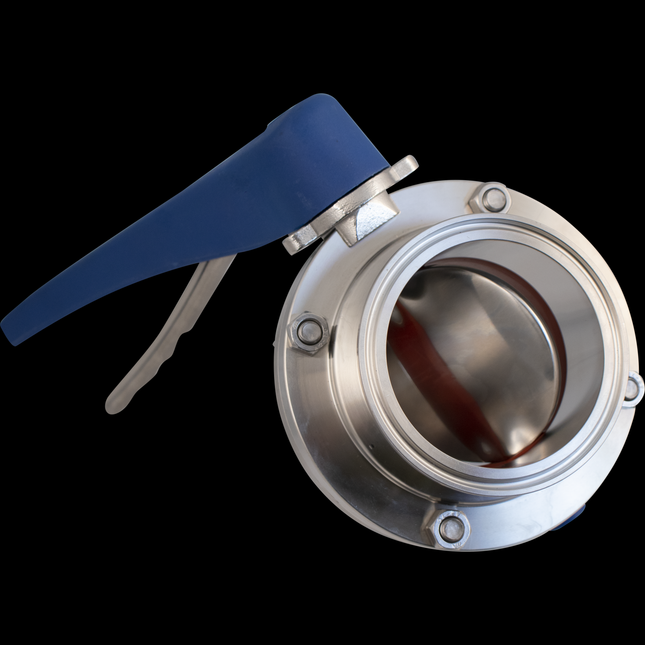

This 2" Tri-Clamp Butterfly Valve features stainless steel construction and 7-position handle. The handle can be rotated 180° for right or left hand operation.

Read more less

End cap for 3" tri-clamp fittings. Made from 304 stainless steel.

Read more less

3" x 2" tri-clamp concentric reducer. Made from 304 stainless steel.

Read more less

Silicone gasket for 4" tri-clamp connection. Temperature rated from -58°F to 446°F.

Read more less

1.5" tri-clamp "clean in place" spray ball. A pump capable of 29 PSI minimum is recommended for this product.

Read more less

2" TC Ferrule for welding onto a tank or section of pipe. 304-type stainless steel. ID is approximately 1-7/8th.

Read more less

1.5" tri-clamp with 1/2" BSP male threads. Made from 304 stainless steel. BSP vs. BSPP BSP (or BSPT) fittings have a tapered thread and require teflon tape to form a seal between the male and female fitting. BSP fittings are generally intended to be used with their counterpart of the same thread type. ONLY 1/2" and 3/4" BSP fittings are compatible with US-standard NPT fittings of the same size. BSPP fittings, on the other hand, have a straight thread, require a gasket seated inside the female fitting to form a seal, and are not compatible with NPT. KegLand Part Number: KL01847

Read more less

Teflon gasket with 304 stainless mesh screen for 1.5" tri-clamp connections. Can be used as a filter screen to trap large particulates passing through T.C. fittings. Often used for distillation to retain activated carbon for filtering neutral spirits or used in pot distillation to retain botanicals in the vapor stream. This screen can also be used with the 1.5" Hop Bong as an inline filter. The screen has a mesh size of 7 which will block particles larger than 2.83mm or 2830 microns. This slightly larger mesh size makes this screen ideal for use in a distillation basket. KegLand Part Number: KL28516

Read more less

Adapts 2" Tri-Clover fitting to 1" Male Pipe Thread. 304-type stainless steel.

Read more less

This 2" Tri-Clamp Butterfly Valve features stainless steel construction and 7-position handle. The stainless steel handle can be rotated 180° for right or left hand operation.

Read more less

Convert 1.5" tri-clamp to Female Quick Disconnect. Perfect for pumping and transferring from or to a tank with tri-clamp connections. Made from 304 stainless steel.

Read more less

The BrewBuilt tri-clamp thermometer features a large 3" face for easy reads and 6" probe for deep penetration into your conical fermenter or T.C. kettle. Dial face reads from 0-220°F and -10-100°C. 3" dial face 6" probe 1.5" T.C. Reads in °F and °C

Read more less

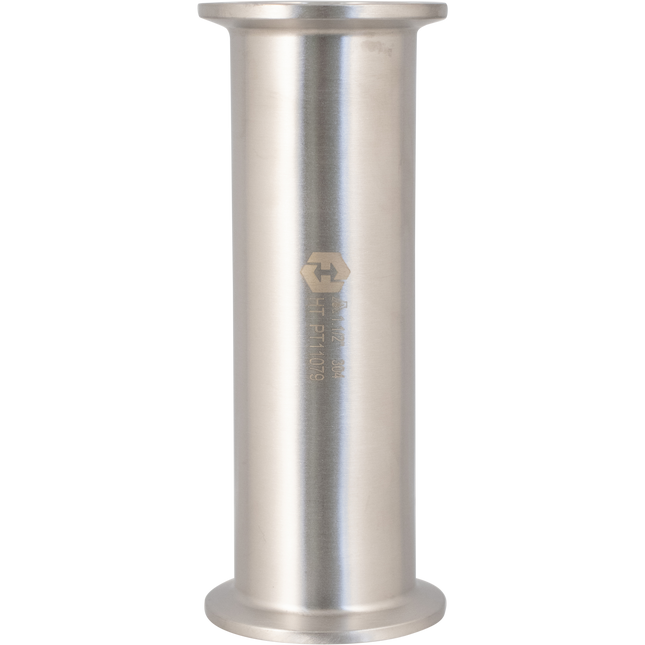

Extension tube with 2" tri-clamp fittings on both ends. 10" in length. Made from 304 stainless steel. Kegland Part Number: KL10665

Read more less

The most popular choice for sanitary connections, tri-clamp fittings are widely used in the food & beverage industry due to their ability to be cleaned in place. Tri-clamps join two fittings together without any nooks or crannies for contaminants to hide. Use anywhere you want to ensure a sanitary connection. 4" tri-clamp Made from 304 stainless steel

Read more less

Replacement gasket for the ForgeFit® 2" butterfly valve. We recommend replacing your butterfly gasket at least every 3 years. If you wait until you have a leak, your valve has already been unsanitary for some time.

Read more less

Speidel 1" DIN to 1.5" TC adapter. If you have a mixture of TC and DIN fittings, there is finally an adapter to help you connect everything together. To top it all off it is made with the expert craftmanship of Speidel.

Read more less

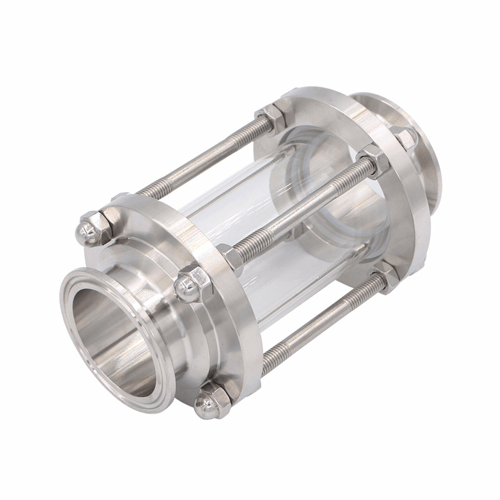

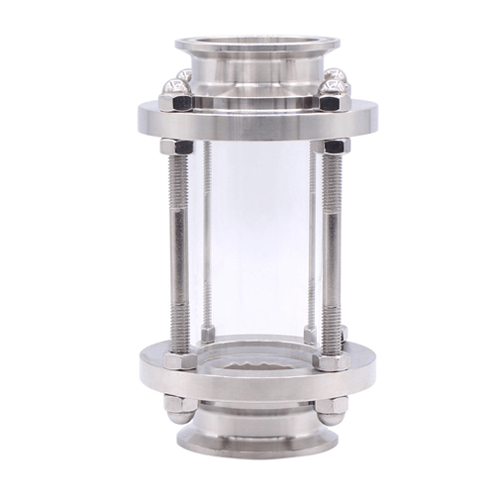

Monitor fermentation activity in a stainless steel conical Check flow and liquid clarity during transfers Harvest yeast and store with end caps Keep an eye on the flow during transfer or monitor yeast activity during fermentation with this 1.5" tri-clamp sight glass. Place the sight glass in-line when you transfer wort from kettle to fermenter to help you oversee how your in-line oxygenator is flowing. One of the few disadvantages of a stainless steel conical is that you can't watch the yeast as they go to work. With a sight glass you'll be able to observe how your yeast are performing throughout the fermentation process. This also makes for a great way to harvest yeast. Simply attach it to your dump valve and close off the other end with a T.C. end cap, collect the yeast and remove the sight glass, cap it at the other end and store it for your next batch. 1.5" tri-clamp Approximately 6.25" long Max Pressure: 120 PSI Max Temperature: 300°F Made from 316 stainless steel KegLand Part Number: KL01816

Read more less

This 3" Tri-Clamp Butterfly Valve features stainless steel construction and 7-position handle. The handle can be rotated 180° for right or left hand operation.

Read more less

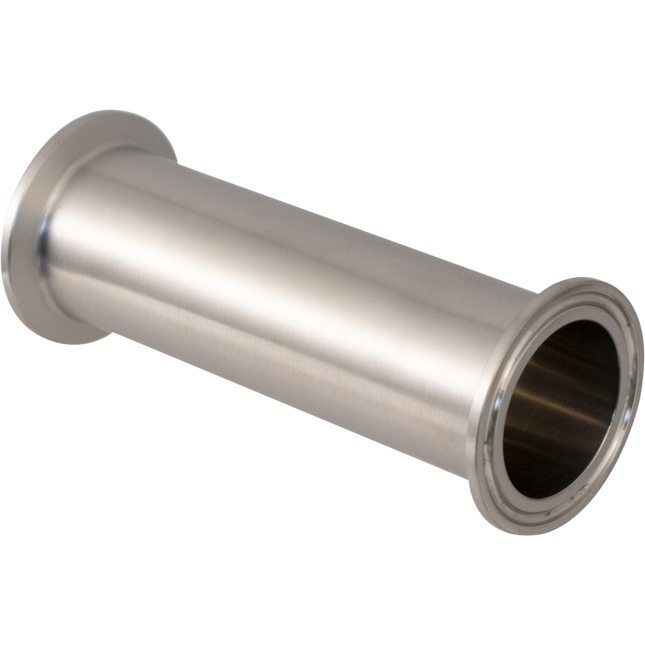

304-type stainless steel tri-clamp extension tube with 1.5" clamp ends. 5" long. This is the same length as a Tee. It is used to swap instruumentation in and out of an established system.
