In the winery, a Must Pump is used to transfer the juice and skins of the grape, whether it be to the fermenter from the crusher/destemmer, or during the ferment to pump the fermenting wine over and break up the cap. Must Pumps can handle passing solids through the pump head, and have more powerful, heavy duty motors designed to push the thick must. A Wine Pump is used to transfer fermented wine post pressing and for racking, filtration and bottling. Wine pumps are not made to move solids, and in many cases would be damaged if you were to pass anything too large through them.
Different pumps have different characteristics and capabilities when it comes to moving liquid, and these characteristics can make a particular pump design more or less desirable for a particular application.
Please feel free to contact us by giving us a call at 1-800-600-0033 or by e-mailing us at info@morewinemaking.com with any wine pump related questions. We will be more than happy to help you choose the wine pump that best suits your individual needs.
Wine Pumps
-

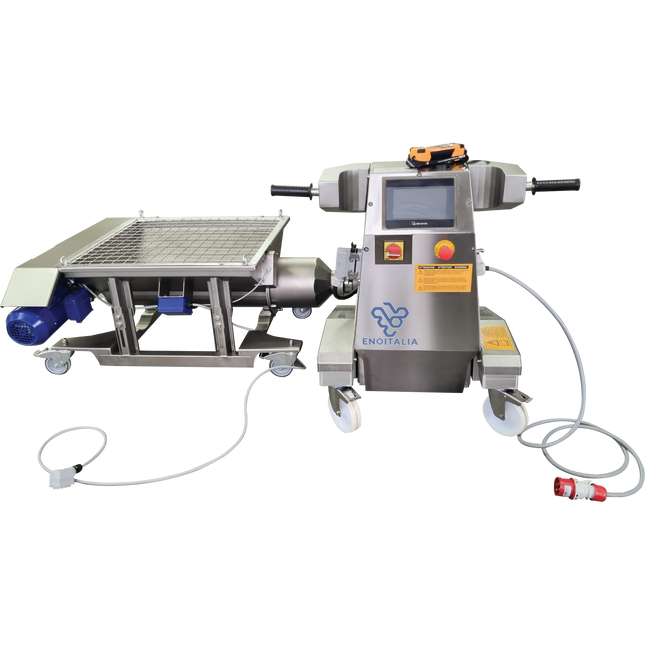

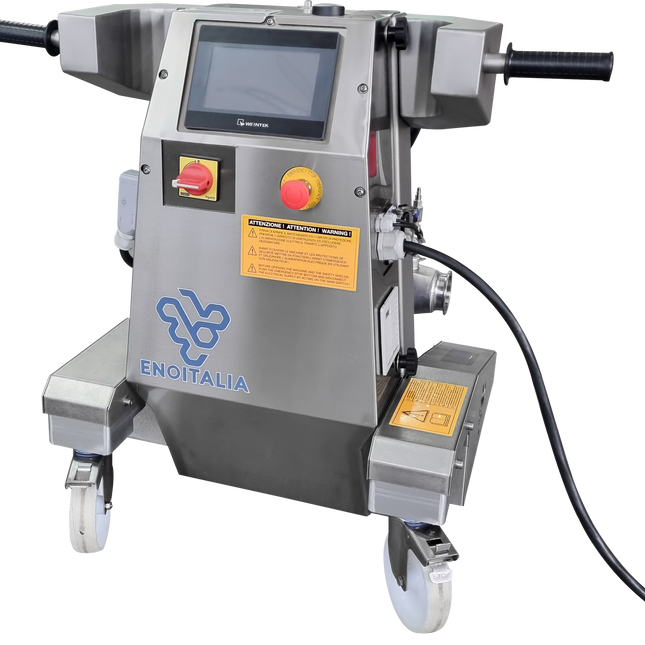

EnoItalia Lobe Pump | Programmable EuroFill Lobe Rotor Pump | Motorized Receiving Hopper | 7.5 kW | 220V
All the programmable benefits of the EuroFill pumps Perfectly machined stainless steel lobe rotors Ideal for pushing wine through plate and frame, lenticular, and/or cartridge filters Dry stop protection Wireless remote Motorized receiving hopper included The ultimate one winery pump for all applications The Lobe Rotor pump from EnoItalia is the ultimate winery pump, representing the best of all worlds. Combines all the major benefits of the EuroFill pump, via the programmable PLC, with all the benefits of a Lobe Rotor pump. Lobe Rotor pumps can also be used for filtering applications where positive pressure is necessary to pump wine through a sheet or membrane. Lobe Rotor pumps also have some of the lowest shear values which protects skins and seeds from being macerated during the pumping process. The 'smart' component is what sets this EnoItalia pump apart from other lobe rotor pumps. The built-in programmed logic controller brain allows you to know the volume pumped during any transfer. You can also program the volume you wish to transfer. The potential applications are unlimited. Program the pump to fill a barrel. Create perfect blends. Do timed pump overs. Includes the optional receiving hopper that can be used under a destemmer crusher to collect whole destemmed, or crushed grapes. Max capacity 50,700 lbs with destemmed grape, and 44,000 lbs with fermented grape. Benefits: The only pump you will need in your winery that allows you to use if for all applications. The highest quality, lowest shear value keeps skins and seeds intact to reduce unwanted tannin. The smartest plc brain for programmed volume transfers. This is the ultimate winery pump. Positive pressure allows for use in filtering applications Motorized receiving hopper included Features: Speed control Timed and programmable volume pumping Dry stop protection - pump turns off to protect pump when dry Direction reversal Pressure switch Connection for a motorized collection buffer Wireless remote control Easy to use PLC programmable controls Low profile and easily moved 3" tri-clamp inlet/outlet 3" DIN connector for hopper included 220v 60hz 3 Phase 7.5 kW Receiving hopper: 220v 3 Phase 0.75 kW
$30,799.99 - $33,999.99
-
EnoItalia Flexible Impeller Pump | Euro 60 | Must Pump | Self-Priming | Remote Control | Stainless Control Box & Trolley Cart | 100 GPM | 3 in. T.C. | 230V
Self-priming must pump with variable flow control from 0 to 100 gallons per minute Flexible rubber impeller gently pushes must and wine Stainless steel pump head with 3" tri-clamp connections Remote control operation with 30 ft. long cord Stainless steel control box Stainless steel rolling cart Made in Italy by EnoItalia This unit features a stainless steel control box not pictured in the primary image. Updated images coming soon. The Euro 60 Flexible Impeller pump is a 3" T.C. self-priming pump with a Stainless Steel head, controlled via a frequency inverter that allows for flow control from 0 - 100 gal / minute. These units can be controlled via the remote control on a 30' cord, or from the control panel mounted on the pump itself. Pumps are reversible, self-priming up to 15', and can be used with wine, juice, or must. The wheeled pump cart allows for easy movement and maneuverability around the winery or crushpad, and stainless steel construction insures that it'll survive through hectic wine seasons! Completely food grade components have no impact on the quality of the wine, and a low shear value due to the larger TC fittings. This pump is a true all around winery pump because it can be used with must and wine. If you have a commercial crush pad with a larger destemmer crusher like a Jolly40 or above, and you process small berries, you will want to consider the Gamma 80 as it works better with dry fruit (lots of skin and not as much flesh). However the Euro60 works well with most musts and then can be your work horse to move must and wine in the winery, making it a great value you can use year around. Although the Euro 60 is self-priming, the pump should never be run dry. Features: Stainless steel head with flexible rubber impeller Gear reduction for increased low speed torque Stainless steel cart Remote control Flow rate from 0 to 100 gpm Flow is reversible Max Pressure: 33 PSI (2.3 BAR) 3" Tri-Clover inlet and outlet 4KW/5.3HP motor Will work with 208v or 230v Single Phase Power 14 amp draw Recommended temperature range: 40 - 150°F (5 - 65°C) Made by Enoitalia of Europe Please note: the unit will arrive with a bare power cord. You will need an electrician to wire the appropriate plug.
$5,499.99 - $5,849.99
-
EnoItalia Elliptical Rotor Pump | Gamma 180 | Crush Pad Pump | 25,000 lbs/h | 3 in. T.C. | 220V
Heavy-duty, elliptical rotor, roll-in crush pad pump Ideal pump for moving must or whole berries with little to no liquid Stainless steel pump body with 3" tri-clamp connections Hinged stainless door for inspection and cleaning Made in Italy by EnoItalia Gamma pumps are heavy duty, elliptical rotor, stainless steel pumps designed to move must from your destemmer to your fermentation tanks or bins. They are often referred to as Roll-in Crush Pad Pumps because they are on wheels and slide directly under your destemmer crusher. While rubber impeller pumps can be made to work for this purpose impeller pumps are not as good in situations where there is very little liquid. Examples would be when you are trying to process whole berries or processing very small berry cabernet sauvignon. Gamma pumps are also softer on the fruit than an impeller pump. Elliptical Crush pad pumps are professional solutions. The Gamma 80 works with either our Jolly40 or Jolly60 while the Gamma180 works with the Jolly100. Features: Stainless steel pump body Stainless Receiving hopper with screw 5.5 HP/4kW Motor Requires 3 phase, 220v, 60 Hz Power Up to 25,000 lbs/12,000kg pumped per hour Max Pressure: 21.7 PSI (1.5 BAR) Shaft speed: 47/58 rpm 3 in Tri Clamp connection fitting Up to 15 ft / 4.5 m discharge height Up to 90 ft / 27.4 m discharge distance Hinged stainless door for inspection, cleaning Automatic refillable lubricator Please Note: This unit REQUIRES 220V Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.
$10,349.99
