Electric Motor Wine Pump

When siphoning is impractical or too time consuming, the home winemaker needs a pump. We helped pioneer the use of diaphragm pumps as an economical, gentle method to move small volumes of wine. This new take on an old favorite includes speed control. Now you can dial in the flow from 0 to 3 gallons per minute. Gentle, economical, flexible, and wow are all adjectives we would use to describe the performance. When this pump was first introduced to us, we loved the idea, but had concerns that the speed control would compromise the longevity of the motor. We build much larger pumps (our ChunkyPumps for commercial wineries) and normally you need a $700 frequency drive to control motor speed. However, we kept in touch with the manufacturer and after three years in which he has not had any issues, and after our own testing, we are now sold that this pump performs as promised. The manufacturer offer a 1 year warranty. A diaphragm pump works by moving wine through one pulsating diaphragm into the next. In this design, as opposed to a centrifugal pump which has a small head spinning at high speeds, the shear value is small meaning the wine is not as "beat up". A diaphragm pump is self-priming, meaning that it will "pump air" creating suction that will pull liquid out of your container and into the pump head. This makes the pump very easy to use for the home winemaker. This pump comes with 1/2" barbed ports for easy connectivity.  Comes with 4' tubing on both sides. 110 Volts, 0.5 Amp, 60 Hz. Includes a built-in pre filter to help prevent solid materials from entering the pump head and potentially damaging the diaphragms, which would prevent the pump from being able to move liquid. The clear plastic top of the pre filter unscrews for cleaning.

Read more less

The ultimate pump for home winemaking use. Self-priming (will push air) so that it can draw out of a tank. Gentle diaphram action so as to not "beat up" the wine. Made of food-grade, NSF approved, materials polypropylene and santoprene, so no metallic interaction with wine. Pumps 3 gallons per minute. Flow can be restricted with an inline valve positioned on the outflow side. Self-regulating motor is designed to temporarily shut down, and then turn back on, when restriction pressure exceeds pump capacity. Has a heat limitation of 125 degrees Fahrenheit so cannot be used in brewing applications. Pump is equipped with 1/2" Male NPT posts on the inlet and outlet. Does not include the plastic barb fittings you will need to purchase separately. Please see the "You Might Also Need" section below for our recommendations regarding which fittings to attach to the pump. Please Note: The diaphragms in this pump are very sensitive to sediment and particulates and can be damaged if any solids are taken into the pump head. We recommend using an Inline Pre-Filter (FIL26) if you think there's a risk of sucking up solids with your inlet hose (pumping during pressing, for instance). Technical Specifications PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump CHECK VALVE: (1-Way Operation) Prevents Reverse Flow CAM: 3.0 Degree MOTOR: Permanent Magnet, P/N 11-195-01, Thermally Protected VOLTAGE: 115 VAC Nominal PRESSURE SWITCH: Factory Set @ 45 PSI Shut-Off, Turn On 25 5 PSI LIQUID TEMPERATURE: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max. PRIME: Self-Priming Up To 9.0 Ft. Vertical, Max. Inlet Pressure 30 PSI (2.1 Bar) PORTS: 1/2" - 14 Male Parallel Thread Materials: PLASTICS- Polypropylene VALVES- Santoprene DIAPHRAGM - Santoprene FASTENERS- Zinc Plated Steel NET WEIGHT: 5.3 Lbs (2.4 Kg) APPROVALS: UL, C-UL Listed, N.S.F. Listed

Read more less

Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid July.     Self-priming stainless steel impeller pump with for moving wine or beer Cast stainless pump head with 1.5" tri-clamp connections On/off switch for easy operation 11 gallons per minute reversible flow rate Made in Italy by EnoItalia Centrifugal pump with cast stainless head. 1.5" T.C. inlet and outlet.  Self-Priming. Reversible direction. Stainless impeller.  Best used for transferring wine or beer between tanks.   Specifications 11 GPM Max Pressure: 15.9 PSI (1.1 BAR) 1.5" Tri-clamp fittings Single Speed 1400RPM 194°F Max Temp Rating 14 LBS 12.6"x9.5"x7" 110V Note: Because this product is manufactured in Europe, it will come with a European plug. You will need to re-wire for use in the USA. Please see our European Equipment Wiring Colors guide for instructions on how to convert to a domestic plug.

Read more less

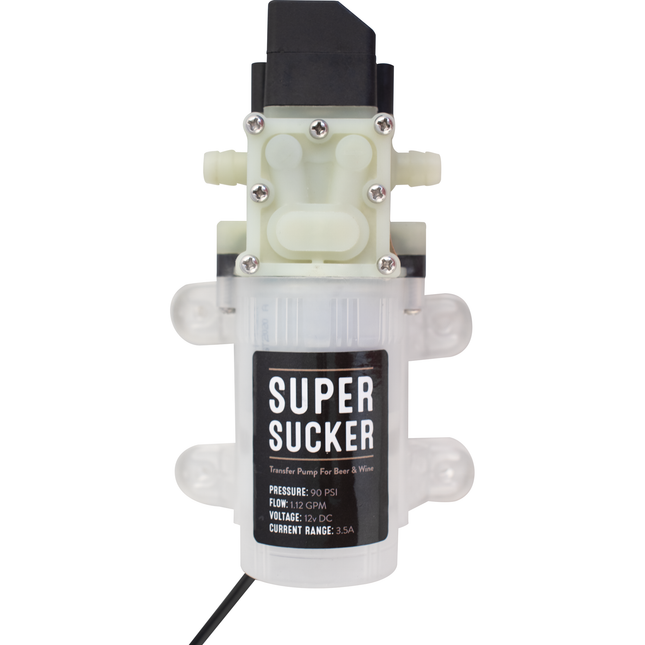

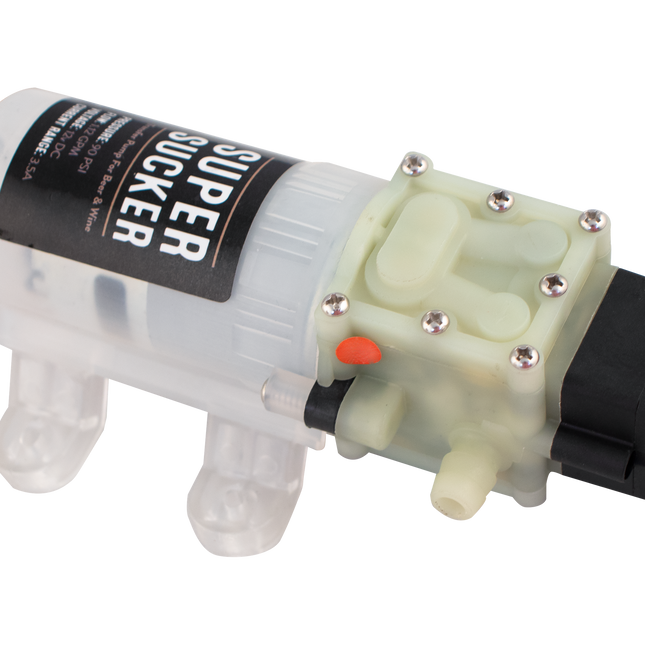

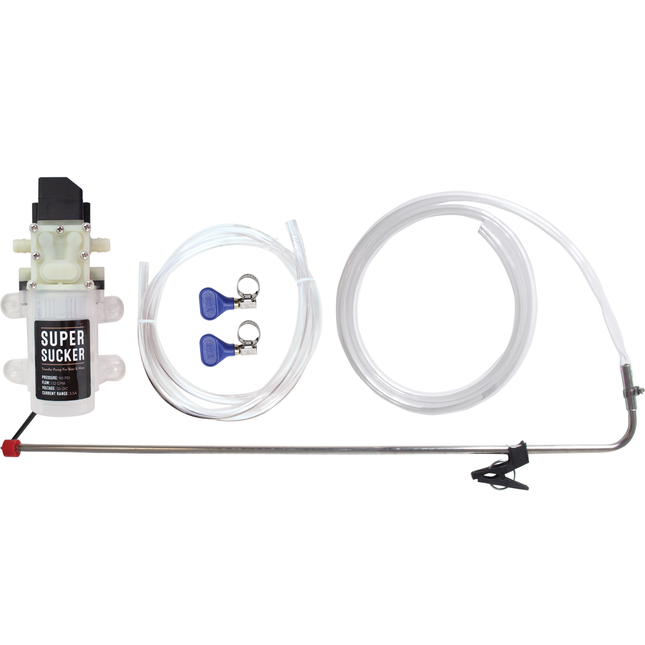

The Super Sucker transfer pump is the quickest, most hassle-free solution to transfer your wine between vessels. Rack from primary fermenter to secondary or from secondary fermenter to bottling bucket or bottle filler reservoir, and do it without the excess oxygen exposure that results from hand-pumping a siphon or blowing into a carboy hood. Simply run transfer tubing from a racking cane to the pump and then to your receiving vessel, flip the switch, and let the Super Sucker do the work while you kick back and enjoy a cold beverage. With the Super Sucker you don't need gravity or CO2 pressure to move liquid around. Thanks to the pump's considerable max lift height, you can leave your heavy, full fermenter on the ground and place the receiving vessel side-by-side or even above the fermenter on a countertop. The 10 mm barbed inlet and outlet are perfect for use with 3/8" ID tubing. We recommend using our Racking Cane Siphon Kit plus 5 ft. of 3/8" vinyl tubing. Secure pump connections with butterfly hose clamps for easy set up and break down. Features: Self-Priming 10 mm Barbed Inlet/Outlet On/Off Switch Max Flow: 1.12 Gal/min Suction: 5 in. Max Lift: 150 in. (12.5 ft.) Maximum Temperature: 140°F Pressure: 90 psi Voltage: 12V DC (3.5A)

Read more less

Self-priming flexible impeller pump for moving wine or juice Stainless steel pump head with 1.5" tri-clamp connections On/off switch for easy operation 4.4 gallons per minute flow rate Made in Italy by EnoItalia The Euro 20 is a great pump for smaller production.  Featuring a SS head with 1.5” TC fittings, this flexible impeller pump is great for moving wine or juice.   We have this pump set up with a forward and reverse on/off switch on the body, simplifying operation.  This unit comes with mounting points for if you want to mount it to a cart or filler/filter. Features: Flow rate is 4.4 gpm Max Pressure: 46 PSI (3.2 BAR) 1.5" Tri-Clover inlet and outlet 220V single phase Input Voltage Required Bare Cord for wiring with the appropriate plug 0.5 HP motor 1.7 amps Recommended temperature range: 40 - 150°F (5 - 65°C) SS head w/ Flexible Impeller Please Note: This item may come with a bare cord or with a European style plug.  You will need a professional electrician to wire the pump with the appropriate plug.

Read more less

Self-priming flexible impeller pump with stainless trolley cart for moving wine or juice Stainless steel pump head with 1.5" tri-clamp connections On/off switch for easy operation 19.8 gallons per minute flow rate Stainless bypass for reducing flow rate Made in Italy by EnoItalia The Euro 30 is a great versatile winery pump for all around cellar needs.  The sanitary connections are 1.5" TC to allow for easy hook up of hoses, filters, fillers, you name it.  The 2 wheeled cart can make it into tight places in the winery, and scoots out of the way when not needed.  With the included SS Bypass, you can reduce flow rates up to 25%.  SS head and cart mean easy maintenance, and a power switch on the body keeps all necessary controls conveniently accessible. Although the Euro 30 is self-priming, the pump should never be run dry. Features: Flow rate is 19.8 gpm Max Pressure: 40 PSI (2.8 BAR) 1.5" Tri-Clover inlet and outlet 220 v single phase Input Voltage Required (6.5 amp draw) 1.5 HP motor Recommended temperature range: 40 - 150°F (5 - 65°C) Handy SS trolley cart for easy movement around the winery SS Bypass for reducing flow SS head w/ flexible impeller Light assembly required - pump is separate from cart in box 220v bare cord  - You will need to wire on the appropriate 220v plug

Read more less

Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you as soon as it's available. The current estimated availability is Summer 2025. Flexible impeller pump for moving wine or juice Stainless steel pump head with 1.5" tri-clamp connections On/off switch for easy operation 4.4 gallons per minute flow rate Pre-wired with 110V plug Made in Italy by EnoItalia This version of the Italian-made Euro 20 features a pre-wired 110V plug. Unlike the 220V model, this pump is ready for use and does not require a plug to be wired to a bare cord. The Euro 20 is a great pump for smaller production. Featuring a SS head with 1.5” TC fittings, this flexible impeller pump is great for moving wine or juice. We have this pump set up with a forward and reverse on/off switch on the body, simplifying operation.  This unit comes with mounting points for if you want to mount it to a cart or filler/filter. Features: Flow rate is 4.4 gpm Max Pressure: 46 PSI (3.2 BAR) 1.5" Tri-Clover inlet and outlet 110V single phase Pre-Wired Plug 0.5 HP motor 1.7 amps Recommended temperature range: 40 - 150°F (5 - 65°C) SS head w/ Flexible Impeller

Read more less

Stainless steel pump with food-grade plastic impeller with for moving wine or beer 1.5" tri-clamp connections 13 gallons per minute flow rate Made in Italy by Marchisio This pump features a stainless body, housing, and bracket. It utilizes an impeller made from food-grade plastic. The impeller does not push air by itself so to prime it you unthread the priming nut on top of the filter housing and fill with water or wine. Comes with 1.5" T.C.  inlet and outlet. Has a .8 hp motor and moves 13 gallons per minute with no head. Will pump up to a height of 70'. 110v. Overall dimensions are 14.5" L x 7"W x 7"H. Weighs 15.4 lbs. Optional by-pass can be installed to restrict flow up to 25%.  This pump can handle some small solid particulate, such as grain particles, and is food grade up to 113° F. Please note the instruction manual references 230V for the voltage, but these pumps are custom configured by the manufacturer in 110V.

Read more less

This stainless steel cart makes it easy to wheel around your pump and is small enough to fit into tight spaces. Comes with pre-drilled holes for mounting. Compatible with Euro 20 and Euro 30 flexible impeller pumps.

Read more less

Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you as soon as it's available. The current estimated availability is Summer 2025. Self-priming flexible impeller pump for moving wine or juice Stainless steel pump head with 1.5" tri-clamp connections On/off switch for easy operation 19.8 gallons per minute flow rate Stainless bypass for reducing flow rate Made in Italy by EnoItalia The Euro 30 is a great versatile winery pump for all around cellar needs.  The sanitary connections are 1.5" TC to allow for easy hook up of hoses, filters, fillers, you name it. With the included SS Bypass, you can reduce flow rates up to 25%.  SS head means easy maintenance, and a power switch on the body keeps all necessary controls conveniently accessible. Features: Flow rate is 19.8 gpm Max Pressure: 40 PSI (2.8 BAR) 1.5" Tri-Clover inlet and outlet 220 v single phase Input Voltage Required (6.5 amp draw) 1.5 HP motor Self-priming Recommended temperature range: 40 - 150°F (5 - 65°C) SS Bypass for reducing flow SS head w/ flexible impeller 220v bare cord  - You will need to wire on the appropriate 220v plug  Please Note: This item may come with a bare cord or with a European style plug.  You will need a professional electrician to wire the pump with the appropriate plug.

Read more less

Self-priming flexible impeller pump with stainless trolley cart for moving wine or juice Stainless steel pump head with 1.5" tri-clamp connections On/off switch for easy operation 4.4 gallons per minute flow rate Made in Italy by EnoItalia The Euro 20 is a great pump for smaller production.  Featuring a SS head with 1.5” TC fittings, this flexible impeller pump is great for moving wine or juice.   We have this pump set up with a forward and reverse on/off switch on the body, simplifying operation.  Features: Flow rate is 4.4 gpm Max Pressure: 46 PSI (3.2 BAR) 1.5" Tri-Clover inlet and outlet 220V single phase Input Voltage Required Bare Cord for wiring with the appropriate plug 0.5 HP motor 1.7 amps Recommended temperature range: 40 - 150°F (5 - 65°C) SS head w/ Flexible Impeller Please Note: This item may come with a bare cord or with a European style plug.  You will need a professional electrician to wire the pump with the appropriate plug.

Read more less

The Straight Barb Fitting is an optional replacement to the Elbow Barb Fittings that come standard on the Super Transfer Pump (H308).

Read more less

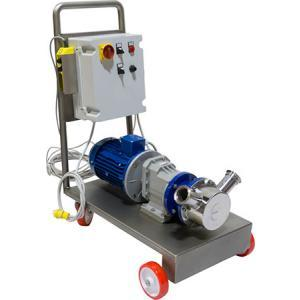

Used – Refurbished This unit is used. It has been restored to working order. It will have cosmetic defects and show signs of previous use. It is still covered by our No Hassle Return Policy and 1 Year Warranty Policy.   The perfect pump for moving wine from one vessel to the other.  These Flexible Impeller Pumps are controlled by a Variable Frequency Drive, allowing for wine or juice transfers as fast as 20 gallons per minute, down to a complete stop.  A sturdy Stainless Steel cart with nylon wheels allows for easy manueverability in the winery, and a lifetime of use.  The pump can be controlled from the panel itself, or remotely via the wired controller, giving this workhorse even more flexibility. We worked for a year to develop this particular pump with Enoitalia of Italy.  The value and price are really amazing. So much that we stopped making our own line of Chunky Pumps at the end of 2016.  Enoitalia has been making pumps for decades and while they are excellent at destemmer crushers and other equipment, pumps are their core specialty.  We will support the pump in the USA with common spare parts but we also have the backing and support of Enoitalia if anything was to go wrong.       Stainless steel head with flexible rubber impeller     Remote control with 40' cord included     VFD allows for flow rate from 0 to 19.8 gpm     1.5" Tri-Clover inlet and outlet     220 v single phase Input voltage required (6.5 amp draw)     Recommended temperature range: 40 - 150°F (5 - 65°C)     Handy SS trolley cart for easy movement around the winery     1.5 HP Motor     Self-priming Please Note: This item may come with a bare cord or with a European style plug.  You will need a professional electrician to wire the pump with the appropriate plug. Please Note: This pump will NOT come with fittings. It will have 1.5" Tri Clamp ferrules, and the appropriate fittings can be chosen from the "You Might Also Need" section below.

Read more less

Condition: Used - Good This unit is used. It shows wear from use but is in good condition and works perfectly. It may have cosmetic defects or show other signs of previous use.  It is still covered by our No Hassle Return Policy and 1 Year Warranty Policy.   The Euro 20 is a great pump for smaller production.  Featuring a SS head with 1.5” TC fittings, this flexible impeller pump is great for moving wine or juice.   We have this pump set up with a forward and reverse on/off switch on the body, simplifying operation.  This unit comes with mounting points for if you want to mount it to a cart or filler/filter. Features: Flow rate is 4.4 gpm 1.5" Tri-Clover inlet and outlet 220V single phase Input Voltage Required Bare Cord for wiring with the appropriate plug 0.5 HP motor Food grade to 150 degrees Fahrenheit SS head w/ Flexible Impeller

Read more less

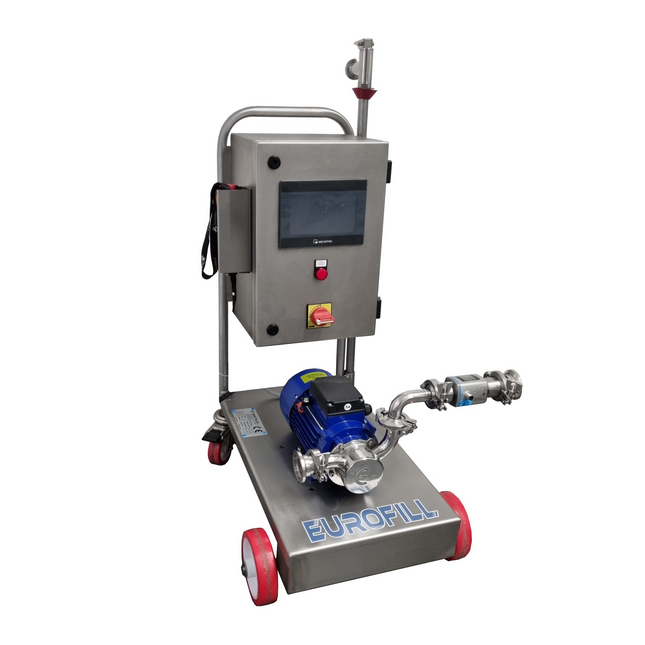

Combines all the benefits and advantages of our best-selling rubber impeller Enoitalia Euro Pumps with inline volume measurement.  This is a pump with a brain! Enter in the volume of wine you would like to pump and the EuroFill turns off when that volume has been pumped. With a built-in flow meter, PLC (programmable logic controller) and a touch screen this pump will reduce human error and make your cellar life a lot easier. Filling barrels, blending exact volumes of wine, and dosing larger tanks with specialized ingredients are a few of the most useful applications. You can also control pumping by time which can be useful for pump overs and cleaning solutions.   Includes a wireless remote control.  Made by Enoitala, a pump specialist, in Tuscany Italy.  Sold and supported in the USA by MoreWine!.  Unique Applications: Know the volume pump during any transfer Program an exact volume you want pumped Easily create perfect blends Fill barrels by volume (and then top off) Can be used for all general pumping application Features: Rubber impeller pump with electronic speed control Programmable Logic Controller (PLC) for manual or automatic operation Endress induction flow meter Programmable dosing, counting, and timer Remote control 7" Touchscreen Stainless steel control panel and trolley Dry run protection Pressure switch Specifications: Capacity: 0-6,340 GPH (0-24,000 L/h) Max Pressure: 33 PSI (2.3 BAR) 3" Tri-Clamp Inlet/Outlet 220V, Single Phase 4 kW Please note: the unit will arrive bare without a power cord, plug, or controls to power the motor on or off. You will need an electrician to wire the appropriate power cord and controls to the motor.

Read more less

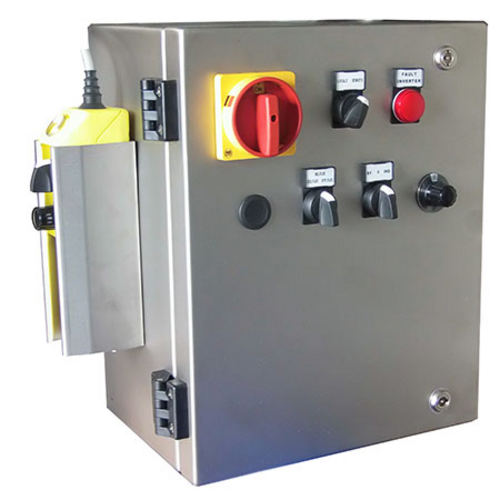

Self-priming wine pump with variable flow control from 0 to 20 gallons per minute Flexible rubber impeller gently pushes wine Stainless steel pump head with 1.5" tri-clamp connections Remote control operation with 40 ft. long cord Stainless steel control box Stainless steel rolling cart Made in Italy by EnoItalia This unit features a stainless steel control box not pictured in the primary image. Updated images coming soon. The perfect pump for moving wine from one vessel to the other.  These Flexible Impeller Pumps are controlled by a Variable Frequency Drive, allowing for wine or juice transfers as fast as 20 gallons per minute, down to a complete stop.  A sturdy Stainless Steel cart with nylon wheels allows for easy manueverability in the winery, and a lifetime of use.  The pump can be controlled from the panel itself, or remotely via the wired controller, giving this workhorse even more flexibility. We worked for a year to develop this particular pump with Enoitalia of Italy.  The value and price are really amazing. So much that we stopped making our own line of Chunky Pumps at the end of 2016.  Enoitalia has been making pumps for decades and while they are excellent at destemmer crushers and other equipment, pumps are their core specialty.  We will support the pump in the USA with common spare parts but we also have the backing and support of Enoitalia if anything was to go wrong. Although the Euro 30 is self-priming, the pump should never be run dry. Stainless steel head with flexible rubber impeller Remote control with 40' cord  included VFD allows for flow rate from 0 to 19.8 gpm Max Pressure: 40 PSI (2.8 BAR) 1.5" Tri-Clover inlet and outlet 220 v single phase Input voltage required (6.5 amp draw) 1.5 HP motor Recommended temperature range: 40 - 150°F (5 - 65°C) Handy SS trolley cart for easy movement around the winery The pump is reversible and can be controlled from the panel itself, or remotely via the wired controller, giving this workhorse even more flexibility. Please Note: This pump will NOT come with fittings.   It will have 1.5" Tri Clamp ferrules, and the appropriate fittings can be chosen from YMANs below.

Read more less

Self-priming must pump with variable flow control from 0 to 100 gallons per minute Flexible rubber impeller gently pushes must and wine Stainless steel pump head with 3" tri-clamp connections Remote control operation with 30 ft. long cord Stainless steel control box Stainless steel rolling cart Made in Italy by EnoItalia This unit features a stainless steel control box not pictured in the primary image. Updated images coming soon. The Euro 60 Flexible Impeller pump is a 3" T.C. self-priming pump with a Stainless Steel head, controlled via a frequency inverter that allows for flow control from 0 - 100 gal / minute.  These units can be controlled via the remote control on a 30' cord, or from the control panel mounted on the pump itself.  Pumps are reversible, self-priming up to 15', and can be used with wine, juice, or must. The wheeled pump cart allows for easy movement and maneuverability around the winery or crushpad, and stainless steel construction insures that it'll survive through hectic wine seasons!  Completely food grade components have no impact on the quality of the wine, and a low shear value due to the larger TC fittings. This pump is a true all around winery pump because it can be used with must and wine. If you have a commercial crush pad with a larger destemmer crusher like a Jolly40 or above, and you process small berries, you will want to consider the Gamma 80 as it works better with dry fruit (lots of skin and not as much flesh).  However the Euro60 works well with most musts and then can be your work horse to move must and wine in the winery, making it a great value you can use year around. Although the Euro 60 is self-priming, the pump should never be run dry. Features: Stainless steel head with flexible rubber impeller Gear reduction for increased low speed torque Stainless steel cart Remote control  Flow rate from 0 to 100 gpm Flow is reversible Max Pressure: 33 PSI (2.3 BAR) 3" Tri-Clover inlet and outlet 4KW/5.3HP motor Will work with 208v or 230v Single Phase Power 14 amp draw Recommended temperature range: 40 - 150°F (5 - 65°C) Made by Enoitalia of Europe Please note: the unit will arrive with a bare power cord. You will need an electrician to wire the appropriate plug.

Read more less

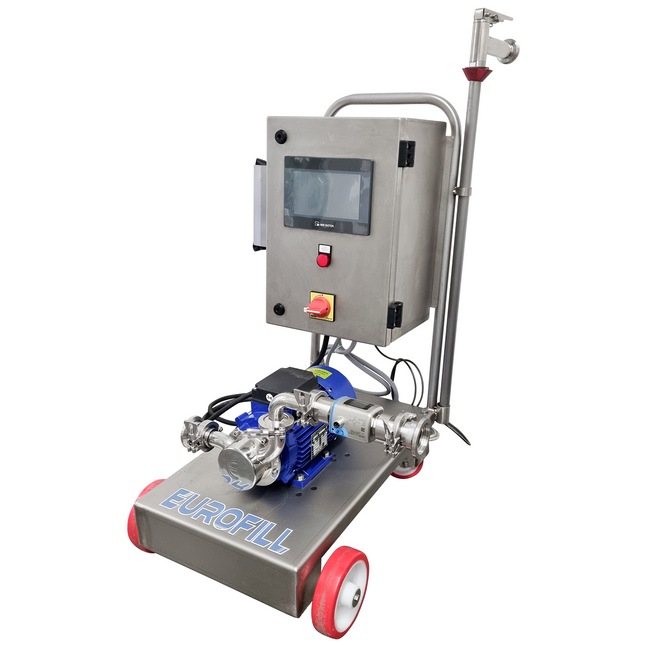

Combines all the benefits and advantages of our best-selling rubber impeller Enoitalia Euro Pumps with inline volume measurement.  This is a pump with a brain! Enter in the volume of wine you would like to pump and the EuroFill turns off when that volume has been pumped. With a built-in flow meter, PLC (programmable logic controller) and a touch screen this pump will reduce human error and make your cellar life a lot easier. Filling barrels, blending exact volumes of wine, and dosing larger tanks with specialized ingredients are a few of the most useful applications. You can also control pumping by time which can be useful for pump overs and cleaning solutions.   Includes a wireless remote control.  Made by Enoitala, a pump specialist, in Tuscany Italy.  Sold and supported in the USA by MoreWine!.  Unique Applications: Know the volume pump during any transfer Program an exact volume you want pumped Easily create perfect blends Fill barrels by volume (and then top off) Can be used for all general pumping application Features: Rubber impeller pump with electronic speed control Programmable Logic Controller (PLC) for manual or automatic operation Endress induction flow meter Programmable dosing, counting, and timer Remote control 7" Touchscreen Stainless steel control panel and trolley Dry run protection Pressure switch Specifications: Capacity: 0-1,373 GPH (0-5,200 L/h) Max Pressure: 40 PSI (2.8 BAR) 1.5" Tri-Clamp Inlet/Outlet 220V, Single Phase 2.2 kW Please note: the unit will arrive bare without a power cord, plug, or controls to power the motor on or off. You will need an electrician to wire the appropriate power cord and controls to the motor.

Read more less

Heavy-duty, elliptical rotor, roll-in crush pad pump Ideal pump for moving must or whole berries with little to no liquid Stainless steel pump body with 3" tri-clamp connections Hinged stainless door for inspection and cleaning Made in Italy by EnoItalia Gamma pumps are heavy duty, elliptical rotor, stainless steel pumps designed to move must from your destemmer to your fermentation tanks or bins. They are often referred to as Roll-in Crush Pad Pumps because they are on wheels and slide directly under your destemmer crusher.  While rubber impeller pumps can be made to work for this purpose impeller pumps are not as good in situations where there is very little liquid. Examples would be when you are trying to process whole berries or processing very small berry cabernet sauvignon. Gamma pumps are also softer on the fruit than an impeller pump.  Elliptical Crush pad pumps are professional solutions. The Gamma 80 works with either our Jolly40 or Jolly60 while the Gamma180 works with the Jolly100.  Features: Stainless steel pump body Stainless Receiving hopper with screw 5.5 HP/4kW Motor Requires 3 phase, 220v, 60 Hz Power Up to 25,000 lbs/12,000kg pumped per hour Max Pressure: 21.7 PSI (1.5 BAR) Shaft speed: 47/58 rpm 3 in Tri Clamp connection fitting Up to 15 ft / 4.5 m discharge height Up to 90 ft / 27.4 m discharge distance Hinged stainless door for inspection, cleaning Automatic refillable lubricator Please Note:  This unit REQUIRES 220V Three Phase power and will not function on anything else.   Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.

Read more less
