ILTEC Parts & Accessories

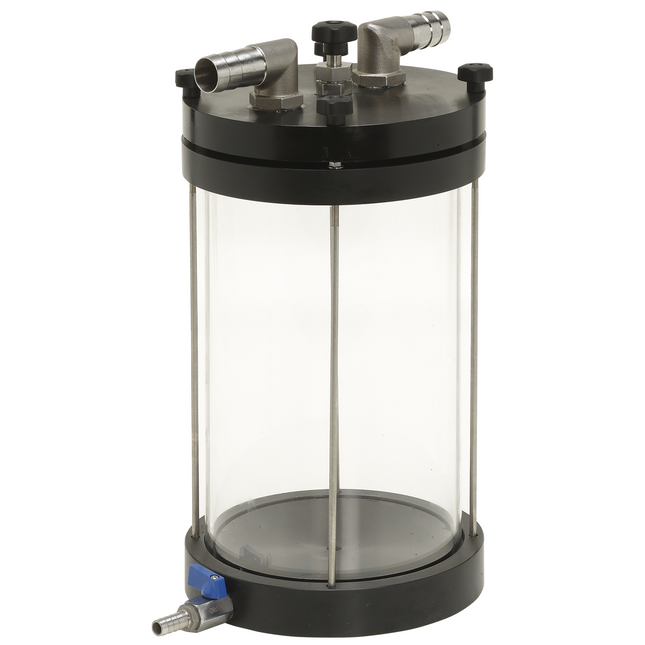

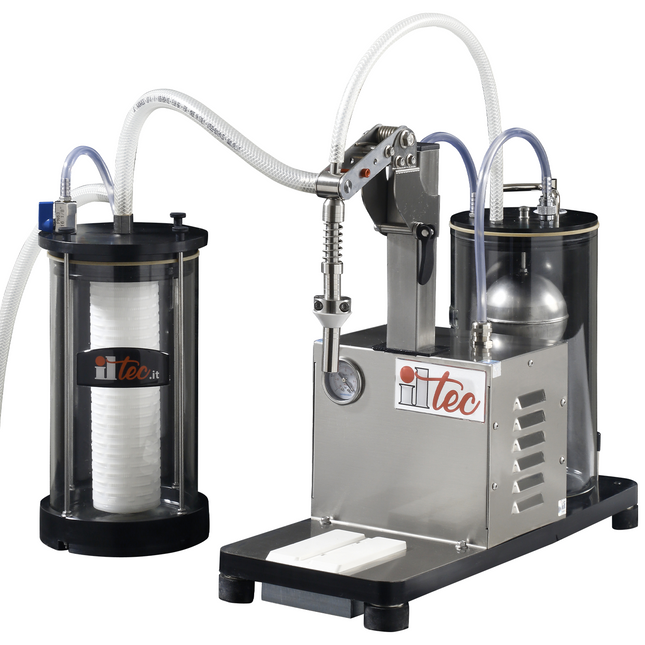

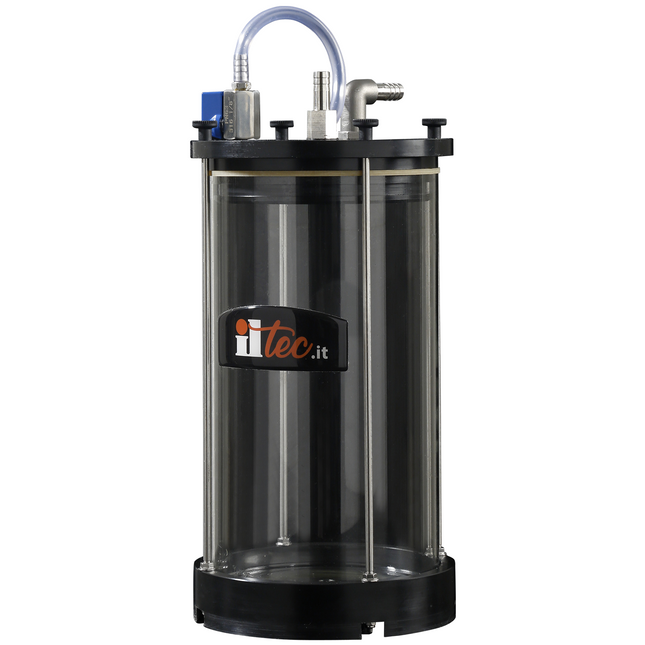

Designed for use with Ultrafiller 1, Dual Fluid, and Ultrafiller 2 Mignon systems Supports filter cartridges from 0.45 to 50 micron for precise filtration across various liquids Effectively filters spirits, EVO oil, beer, wine, and more, ensuring clarity and quality The Ultrafiller Single-Cartridge Filter Holder is an ideal solution for filtering products during the bottling process. The 3/8" intake tube is compatible with Ultrafiller 1, Dual Fluid, and Ultrafiller 2 Mignon systems. A versatile range of filter cartridges ensures efficient filtration for a variety of liquids, including fine spirits, EVO oil, beer, wine, and more.  Filter cartridges are available in sizes ranging from 0.45 to 50 micron in polypropylene or stainless steel.

Read more less

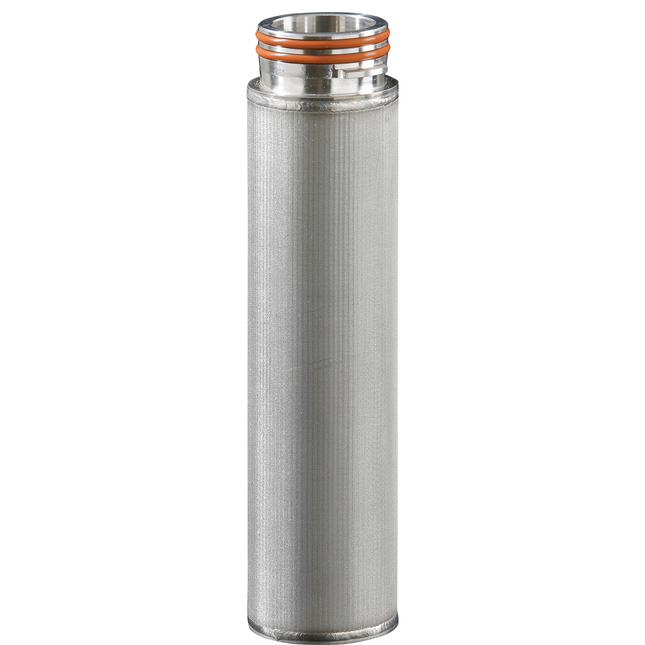

Compatible with ILTEC Ultrafiller Single or Three-Cartridge Filter Housings Made from stainless steel Available in 5-, 10-, 50-micron sizes Stainless Steel Filter Cartridges for use with the ILTEC Ultrafiller Ultrafiller Single Cartridge or Three-Cartridge Filter Housing.   Polypropylene vs. Stainless Filter Cartridges PP Cartridges: Single-use or limited reuse: Ideal for small batches or when very fine filtration (under 1 micron) is required. More affordable upfront: But cost can accumulate with replacements. Commonly used for wine: Especially for final filtration before bottling. SS Cartridges: Reusable and long-lasting: More sustainable and cost-effective in the long run. Easy to sanitize: Can be boiled or cleaned with various solutions. Preferred by most users: Especially distilleries. Cannot achieve very fine filtration: Not suitable for all winemaking needs. In short, PP cartridges are best for small-batch winemakers needing ultra-fine filtration below 1 micron.  However,  SS cartridges offer a more sustainable and economical solution for most other filtering needs due to their reusability and longevity.  Ultimately, the best choice depends on your specific requirements, including the type and volume of liquid being filtered, desired filtration level, and budget.   Available Sizes: 5 micron 10 micron 50 micron

Read more less

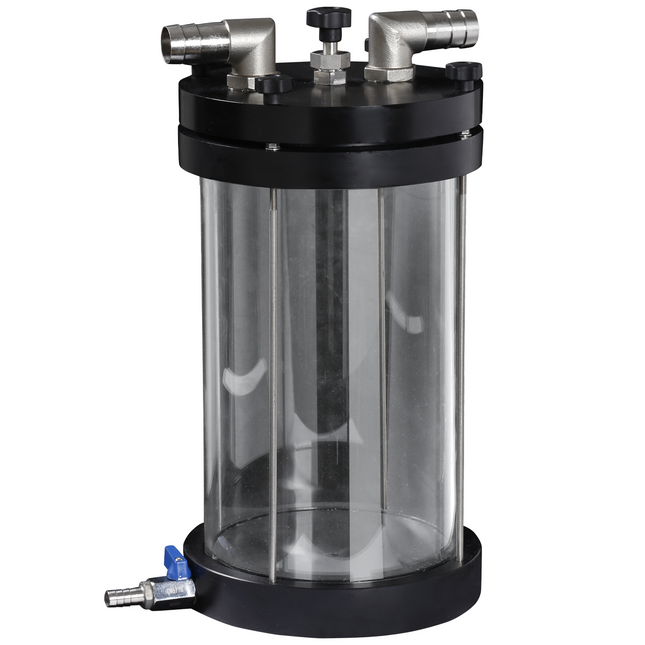

Designed for use with Ultrafiller 4 system Supports filter cartridges from 0.45 to 50 micron for precise filtration across various liquids Effectively filters spirits, EVO oil, beer, wine, and more, ensuring clarity and quality The Ultrafiller Three-Cartridge Filter Holder is perfect for those who need to filter their product before bottling and allows you to use cartridges of various micron ratings in a single pass. The 1" intake tube is compatible with Ultrafiller 4 systems. The wide range of combinable filter cartridges allows you to cover all liquids, from the finest spirits to extra virgin olive oil, beer, wine and more. Filter cartridges are available in sizes ranging from 0.45 to 50 micron in polypropylene or stainless steel.

Read more less

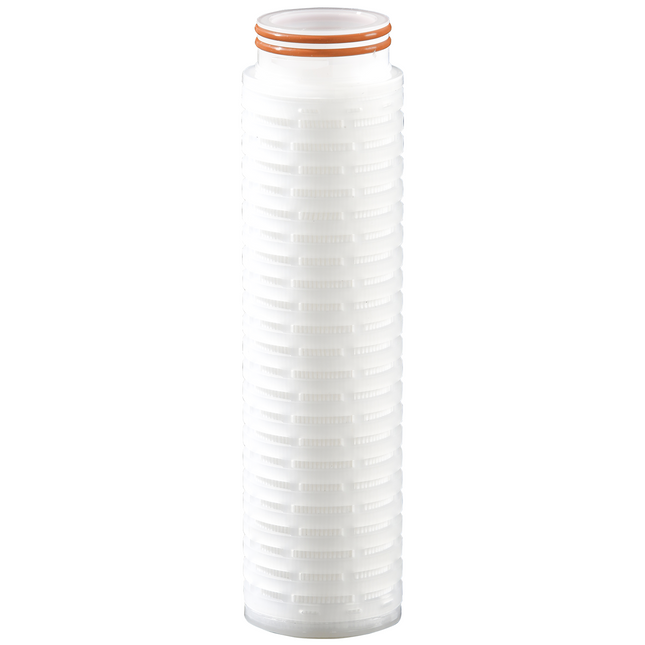

Pleated filter cartridges made from polypropylene (PP) Compatible with ILTEC Ultrafiller Single or Three-Cartridge Filter Housings Available in 0.45-, 1-, 5-, & 10-micron sizes Polypropylene Pleated Filter Cartridges for use with the ILTEC Ultrafiller Single Cartridge or Three-Cartridge Filter Housing.   Polypropylene vs. Stainless Filter Cartridges PP Cartridges: Single-use or limited reuse: Ideal for small batches or when very fine filtration (under 1 micron) is required. More affordable upfront: But cost can accumulate with replacements. Commonly used for wine: Especially for final filtration before bottling. SS Cartridges: Reusable and long-lasting: More sustainable and cost-effective in the long run. Easy to sanitize: Can be boiled or cleaned with various solutions. Preferred by most users: Especially distilleries. Cannot achieve very fine filtration: Not suitable for all winemaking needs. In short, PP cartridges are best for small-batch winemakers needing ultra-fine filtration below 1 micron.  However,  SS cartridges offer a more sustainable and economical solution for most other filtering needs due to their reusability and longevity.  Ultimately, the best choice depends on your specific requirements, including the type and volume of liquid being filtered, desired filtration level, and budget.   Available Sizes: 0.45 micron 1 micron 5 micron 10 micron

Read more less

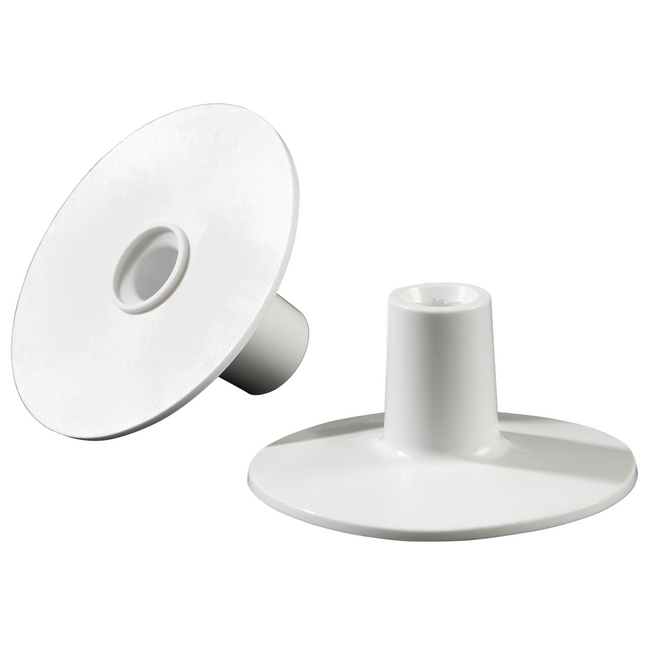

This extra-large rubber tip can be used with the standard Ultrafiller nozzle by replacing the standard rubber cone. Perfect for filling jars up to 3.75" (95mm) in diameter with brine, oil or spirits.

Read more less

Mignon filling nozzle for the Ultrafiller 1. With a diameter of only 0.31" (8mm), this nozzle preferred for filling the smallest bottles and well suited for use with oil or spirits.

Read more less

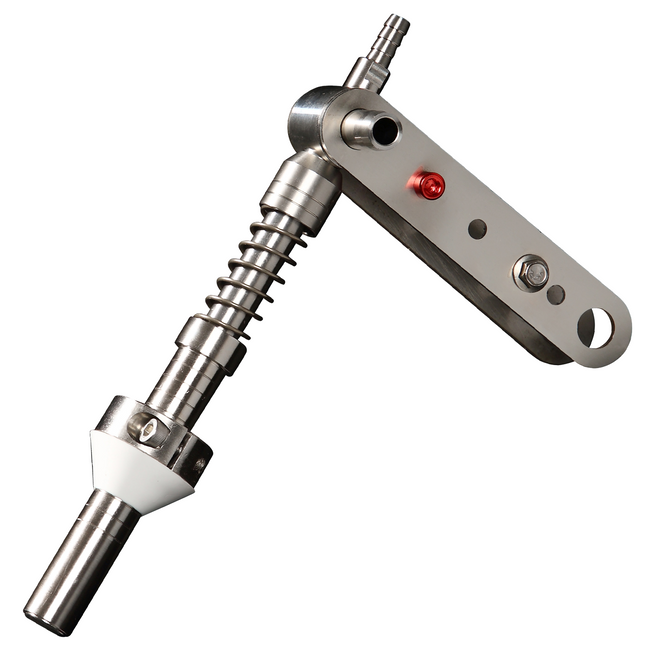

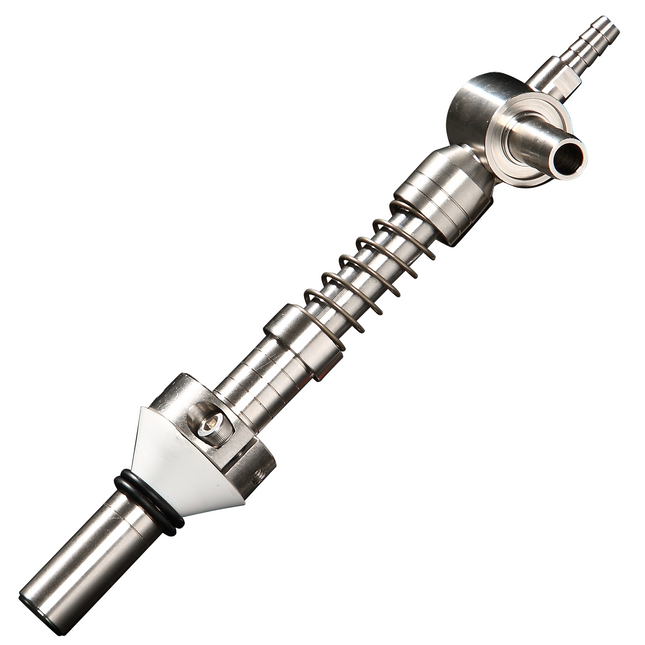

Standard filling nozzle for the Ultrafiller 2 and 4.

Read more less

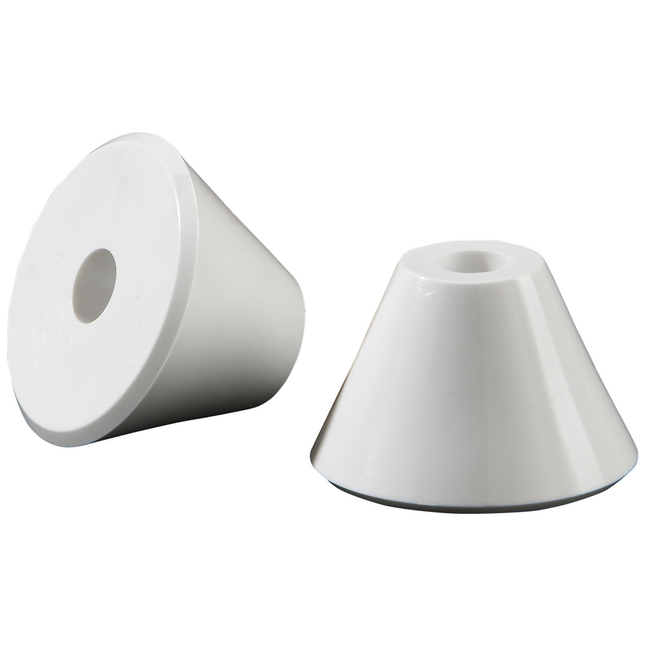

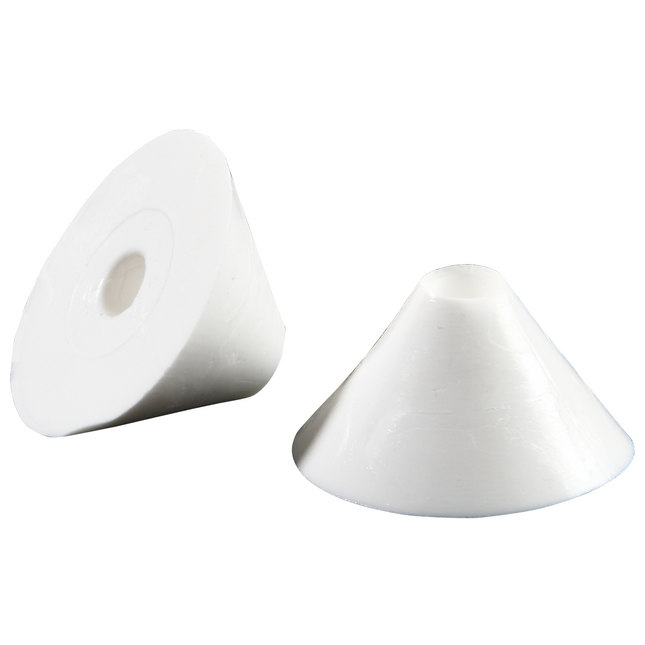

Replacement rubber cone for Ultrafiller Pomodoro Nozzles. Single replacement cone.

Read more less

Replacement rubber cone for Ultrafiller Mignon Nozzles. Single replacement cone.

Read more less

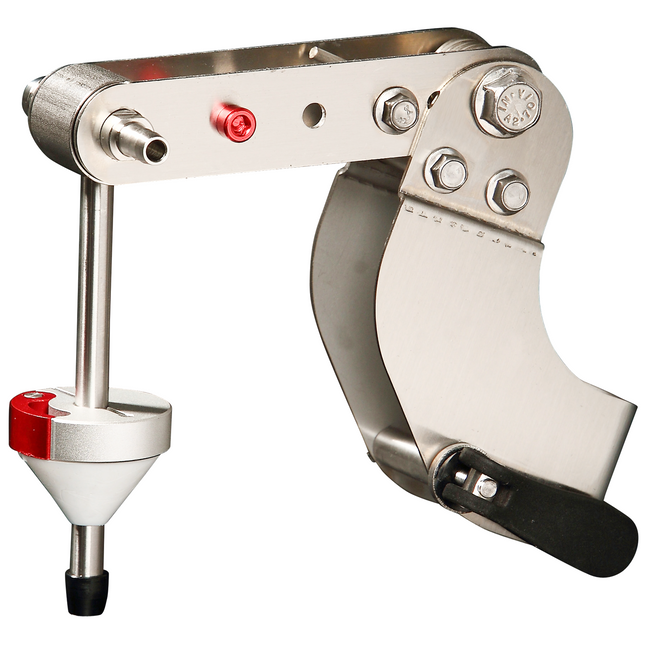

Standard filling nozzle and bracket for the Ultrafiller 2 and 4.

Read more less

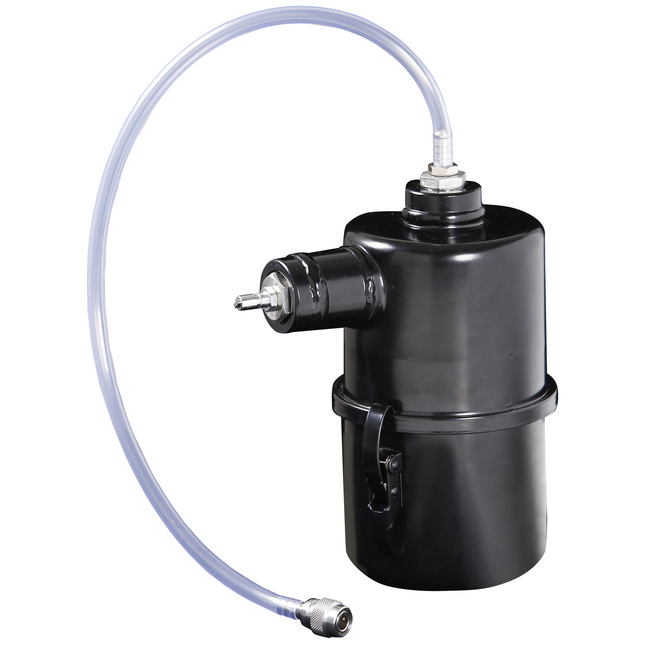

Prevents vacuum pump failure when bottling sugary or hot products by effectively filtering impurities.   Comes with pre-assembled tubes and adapters for quick and hassle-free setup; designed for vertical mounting.   Built to withstand prolonged use in dusty environments, with a metal mesh filter element and easy-to-clean components.   When using the Ultrafiller to fill liqueurs, spirits, syrups, or other sugary products—as well as hot products such as juices—it is essential to equip the machine with the oil bath filter. This filter protects the vacuum pump, which could fail over time without proper filtration. Please note that the oil bath filter is not included with the Ultrafiller and must be purchased separately. Important: Failure to use this filter when bottling the above-mentioned products will void the warranty for the bottling machine. Mounting Instructions  Before using the filter, fill the cup with food-grade mineral oil up to the indicated level. Medium-density oils are recommended for optimal performance. Install the filter between the vacuum pump and the recovery tank. The kit includes pre-assembled tubes and hose adapters for your convenience. Always mount the filter vertically: Connect the OUT port to the pipe leading from the motor.   Connect the IN port to the pipe and quick-release fitting supplied with the tank. (Refer to the detailed instructions for further guidance.) Maintenance  These filters are designed for prolonged use, even in dusty environments, offering excellent filtration and durability. To maintain optimal performance:  Regularly change the oil, ensuring the level remains at the indicated mark.   Remove impurities that accumulate during operation.    For particularly dusty conditions, disassemble and wash the lower parts of the filter daily. Materials  Painted sheet metal container  Metal mesh filter element  Operating temperature range: 32°F to 197°F
