Thick Wall Pressure Tubing

3/8 in. ID Beverage Tubing Technical Specifications: 3/8" line provides .20 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 3/8" line holds 3/4 of an ounce per foot. Made from PVC. Outer diameter of tubing is approximately 5/8"

Read more less

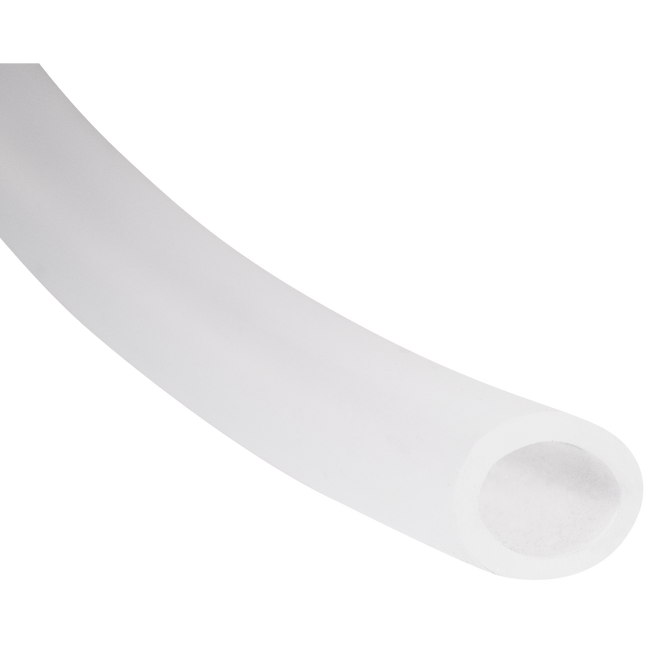

Translucent, food-grade tubing temperature rated to 500F. Odorless, tasteless, and inert Silicone tubing is FDA food-grade approved from -100F to 500F. Translucent natural color allows you to see the flow. The perfect tubing for building a personal brewery, especially for any time that the wort in contact with tubing will be above 180F. This tubing is not designed to hold pressures above 20psi. 3/8" ID * 5/8" OD * Will burst at 30 PSI at 70F. 3/8" ID 5/8" OD 30 PSI Burst at 70F Platinum Cured

Read more less

5/16 in. ID Beverage Tubing Technical Specifications: 5/16" line provides .40 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 5/16" line holds 1/2 of an ounce per foot. Made from PVC.

Read more less

1/2 in. ID Beverage Tubing Technical Specifications: 1/2" line provides .025 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 1/2" line holds 1 1/3 of an ounce per foot. Made from PVC.

Read more less

1/4" is used in beer lines that are 10-25' in length. It is also used as gas line when you want a really tight fit, particularly with homebrew quick disconnects. Soak 1/4" line in hot water before atttaching to larger 5/16" fittings. Technical Specifications: 1/2" Outer Diameter. 1/4" line provides .65 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 1/4" line holds 1/3 of an ounce per foot. Made from PVC.

Read more less

This is premium beverage tubing that stays flexible even when cold. We use to sell a less expensive tubing but we were not satisfied with the performance on our own draft systems. We think it is definitely worth the little extra cost. 3/16" is the best size for most beer lines under 9' in length. Ideally, 5' provides the correct restriction for serving beer in the 8-14 psi range. Technical Specifications: 3/16" line provides 2.2 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 3/16" line holds 1/6 of an ounce per foot. Made from PVC. 7/16" OD

Read more less

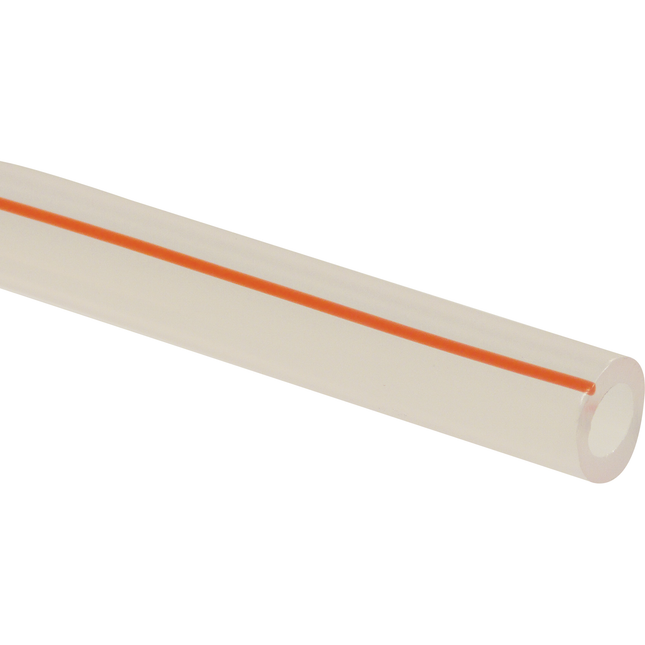

Ultra Barrier™ Gas tubing from EJ Beverage is constructed of a unique compound that provides for an excellent alternative to PVC.  Advantages to this unique tubing are: Clear tubing with red stripe for identification as low pressure gas line PVC Free and BPA Free - containes no DEHP phthalates or other plasticizers Environmentally friendly production - does not emit dioxins Extremely low extractables/leachables High flexibility Remains flexible at lower temperatures Ultra-low permeability Superior Barrier properties Temperature range of -40 to 125° F Working pressure of 51 psi

Read more less

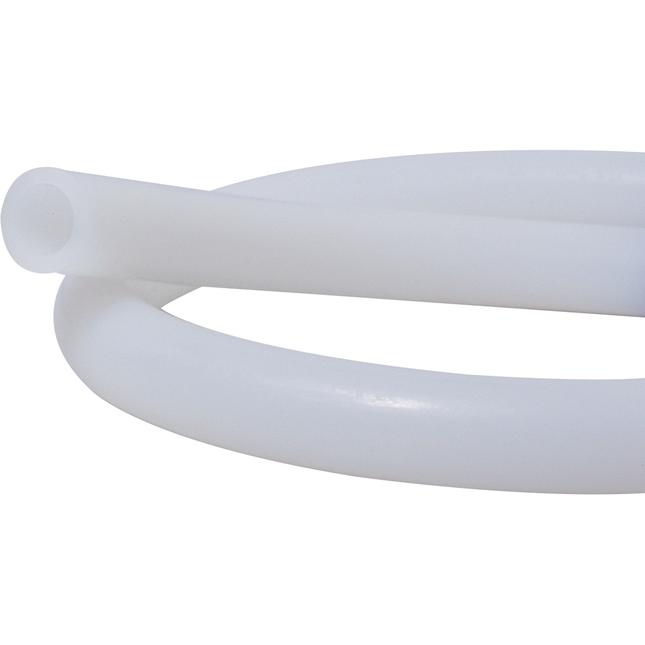

A highly flexible, environmentally friendly, beverage tubing that is BPA and PVC Free. Ultra-Barrier(TM) Beverage tubing from EJ Beverage is an excellent alternative to PVC. It is constructed of a unique compound that is PVC Free and BPA Free; it contains no DEHP phthalates or other plasticizers. It does not emit dioxins and has extremely low extractables/leachables. This amazing tubing remains flexible at lower temps, has ultra-low permeability, and superior barrier properties. If you want a tubing that won't leach large amounts of chemicals, this is it. Temperature range of -40 to 125F For long draws where you want as little resistance as possible. Technical Specifications: 1/2" line provides .025 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 1/2" line holds 1 1/3 of an ounce per foot. PVC Free. PVC Free and BPA Free - containes no DEHP phthalates or other plasticizers Environmentally friendly production - does not emit dioxins Proven to have no significant impact on taste or flavor Extremely low extractables/leachables High flexibility Remains flexible at lower temperatures Ultra-low permeability Superior Barrier properties Temperature range of -40 to 125° F Working pressure of 33 psi

Read more less

PVC tubing for gas and beer lines in kegging systems. 1/4 in inside diameter tubing with thick walls.

Read more less

A highly flexible, environmentally friendly, beverage tubing that is BPA and PVC Free. Ultra Barrier™ Beverage tubing from EJ Beverage is an excellent alternative to PVC. It is constructed of a unique compound that is PVC Free and BPA Free; it contains no DEHP phthalates or other plasticizers. It does not emit dioxins and has extremely low extractables/leachables. This amazing tubing remains flexible at lower temps, has ultra-low permeability, and superior barrier properties. If you want a tubing that won't leach large amounts of chemicals, this is it. Temperature range of -40 to 125F Working pressure of 88 psi 3/16" is the best size for most beer lines under 9' in length. Ideally, 6' provides the correct restriction for serving beer in the 8-14 psi range. Technical Specifications: 3/16" line provides 2.2 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 3/16" line holds 1/6 of an ounce per foot. PVC Free. 7/16" OD

Read more less

This is our preferred tubing for use in Barrel Topping Systems. Because of its high elasticity this tubing is easy to attach to/detach from barbed fittings without having to cut the tubing to remove it or use hose clamps to install it (in low pressure applications). This feature allows the user to disassemble the tubing set used to deliver the top-up wine for both sanitation as well as cleaning after use. Cleans up easily and does not get stiff at low temperatures. OD is approximately 3/8" Specs: Working Pressure - 20 psi Burst Pressure - 60 psi Platinum Cured

Read more less

A highly flexible, environmentally friendly, beverage tubing that is BPA and PVC Free. Ultra-Barrier™ Beverage tubing from EJ Beverage is an excellent alternative to PVC. It is constructed of a unique compound that is PVC Free and BPA Free; it contains no DEHP phthalates or other plasticizers. It does not emit dioxins and has extremely low extractables/leachables. This amazing tubing remains flexible at lower temps, has ultra-low permeability, and superior barrier properties. If you want a tubing that won't leach large amounts of chemicals, this is it. Temperature range of -40 to 125F 1/4" is used in beer lines that are 10-25' in length. It is also used as gas line when you want a really tight fit, particularly with homebrew quick disconnects. Soak 1/4" line in hot water before attaching to larger 5/16" fittings. Technical Specifications: 1/2" Outer Diameter. 1/4" line provides .65 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 1/4" line holds 1/3 of an ounce per foot. PVC Free. PVC Free and BPA Free - containes no DEHP phthalates or other plasticizers Environmentally friendly production - does not emit dioxins Proven to have no significant impact on taste or flavor Extremely low extractables/leachables High flexibility Remains flexible at lower temperatures Ultra-low permeability Superior Barrier properties Temperature range of -40 to 125° F Working pressure of 59 psi

Read more less

EJ Beverage Ultra Barrier™ tubing from EJ Beverage is constructed of a unique compound that provides for an excellent alternative to PVC.  Advantages to this unique tubing are: PVC Free and BPA Free - containes no DEHP phthalates or other plasticizers Environmentally friendly production - does not emit dioxins Proven to have no significant impact on taste or flavor Extremely low extractables/leachables High flexibility Remains flexible at lower temperatures Ultra-low permeability Superior Barrier properties Temperature range of -40 to 125° F Working pressure of 35 psi Use for long draw systems and as an entry line to a draft box. Technical Specifications: 3/8" line provides .20 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 3/8" line holds 3/4 of an ounce per foot. PVC Free.

Read more less

PVC tubing for gas and beer lines in kegging systems. 5/16 in inside diameter tubing with thick walls.

Read more less

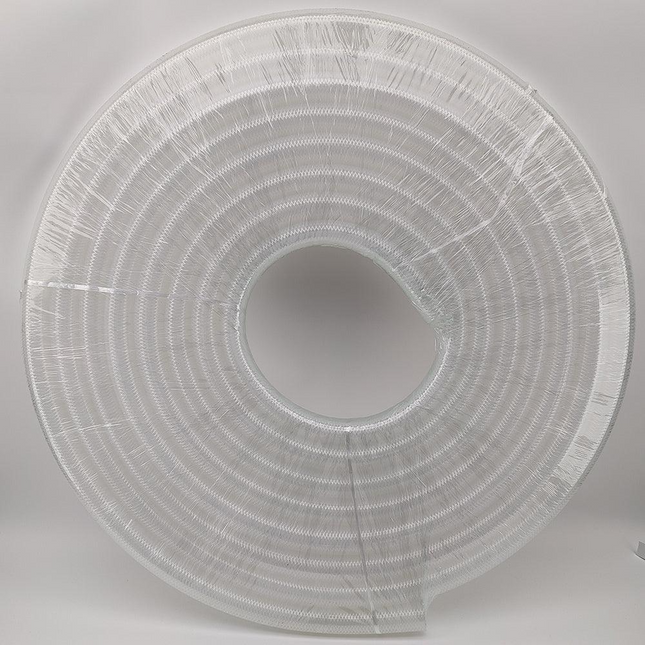

Due to high demand, the 10 ft is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in late July. The construction of this reinforced silicone tubing enables silicone tubing to handle increased pressure applications. Braided silicone offers outstanding resistance to temperature extremes and is made from FDA-sanctioned ingredients. The flexible design and construction of this tubing allows excellent bend radii and permits installation in restricted spaces without impeding flow. 1/2" inner diameter, 3/4" outer diameter Open mesh polyester braiding incorporated within the wall of silicone tubing Made from FDA-sanctioned ingredients Translucent natural color for visual contact with the flow Able to resist extreme temperature variation: -40°F to 392°F (-40°C to 200°C) Odorless, tasteless, and inert Working Pressure: 72 psi Burst Pressure: 217 psi Platinum cured Conforms to FDA CFR 177.2600, NSF

Read more less

A highly flexible, environmentally friendly, beverage tubing that is BPA and PVC Free. Ultra Barrier™ Beverage tubing from EJ Beverage is an excellent alternative to PVC. It is constructed of a unique compound that is PVC Free and BPA Free; it contains no DEHP phthalates or other plasticizers. It does not emit dioxins and has extremely low extractables/leachables. This amazing tubing remains flexible at lower temps, has ultra-low permeability, and superior barrier properties. If you want a tubing that won't leach large amounts of chemicals, this is it. Temperature range of -40 to 125F Use this size for gas line applications. Also used for long draw beer lines over 25'. Technical Specifications: 5/16" line provides .40 lbs of restriction per foot. Ideally pounds of resistance should equal pounds of applied pressure. 5/16" line holds 1/2 of an ounce per foot. PVC Free. PVC Free and BPA Free - containes no DEHP phthalates or other plasticizers Environmentally friendly production - does not emit dioxins Proven to have no significant impact on taste or flavor Extremely low extractables/leachables High flexibility Remains flexible at lower temperatures Ultra-low permeability Superior Barrier properties Temperature range of -40 to 125° F Working pressure of 52 psi

Read more less

PVC tubing for gas and beer lines in kegging systems. 3/16 in inside diameter tubing with thick walls.

Read more less

PVC tubing for gas and beer lines in kegging systems. 3/8 in inside diameter tubing with thick walls.

Read more less

EJ Beverage High Temp tubing is perfect for use on the hot side of your brewing system.  When compared with traditional Silicone this tubing is less likely to kink at higher temperatures. It is constructed of TPE (Thermoplastic Elastomer) which is an excellent alternative to high temperature PVC and Silicone.  The advantages to this high temperature tubing are: PVC & BPA Free. Contains no DEHP phthalates or other plasticizers High temperature up to 135° C (275° F) Extremely low extractables Extremely low leachables High flexibility Remains flexible at high temperatures Ultra-low permeability Barrier properties 1/2” ID x 3/4” OD Environmentally friendly production - does not emit dioxins Burst Pressure = 63 psi Working pressure of 21 psi

Read more less

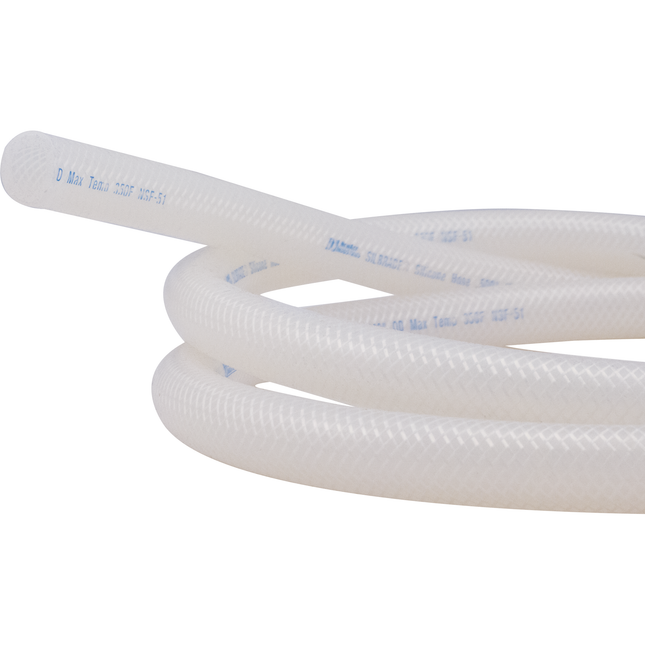

Reinforced silicone tubing offers higher temperature tolerances and chemical resistance while remaining flexible and easy to handle. Ideal for both cold side and hot side processes and high-pressure applications. Although braided, the tubing remains transparent to allow you to visually inspect the flow of liquids. 1/2" inner diameter 3/4" outer diameter Odorless, tasteless and inert Polyester heat resistant fiber reinforcing braid Good electrical and weatherability properties Resists UV, Ozone, gases, and moisture Working Temperature: -76°F–500°F Working Pressure: 0-150 psi KegLand Part Number: KL25300

Read more less

EJ Beverage High Temp tubing is perfect for use on the hot side of your brewing system.  When compared with traditional Silicone this tubing is less likely to kink at higher temperatures. It is constructed of TPE (Thermoplastic Elastomer), which is an excellent alternative to high temperature PVC and Silicone.  The advantages to this high temperature tubing are: PVC & BPA Free. Contains no DEHP phthalates or other plasticizers High temperature up to 135° C (275° F) Extremely low extractables Extremely low leachables High flexibility Remains flexible at high temperatures Ultra-low permeability Barrier properties 3/8” ID x 5/8” OD Environmentally friendly production - does not emit dioxins Burst Pressure = 54 psi Working pressure of 18 psi

Read more less

The construction of braided silicone enables the tubing to handle increased pressure applications. Reinforced silicone offers outstanding resistance to temperature extremes and is made from FDA-sanctioned ingredients. The flexible design and construction of this tubing allows excellent bend radii and permits installation in restricted spaces without impeding flow. 3/8" inner diameter, 5/8" outer diameter Open mesh polyester braiding incorporated within the wall of silicone tubing Made from FDA-sanctioned ingredients Translucent natural color for visual contact with the flow Able to resist extreme temperature variation: -40°F to 392°F (-40°C to 200°C) Odorless, tasteless, and inert Working Pressure: 94 psi Burst Pressure: 275 psi Platinum cured Conforms to FDA CFR 177.2600, NSF

Read more less

Reinforced silicone tubing offers higher temperature tolerances and chemical resistance while remaining flexible and easy to handle. Ideal for both cold side and hot side processes and high-pressure applications. Although braided, the tubing remains transparent to allow you to visually inspect the flow of liquids. The tubing inner diameter is slightly undersized at 22mm or 0.86". 0.86" (22mm) inner diameter 1.25" (32mm) outer diameter Odorless, tasteless and inert Polyester heat resistant fiber reinforcing braid Good electrical and weatherability properties Resists UV, Ozone, gases, and moisture Working Temperature: -76°F–500°F Working Pressure: 0-150 psi KegLand Part Number: KL25294
