Custom Order Wine Tanks

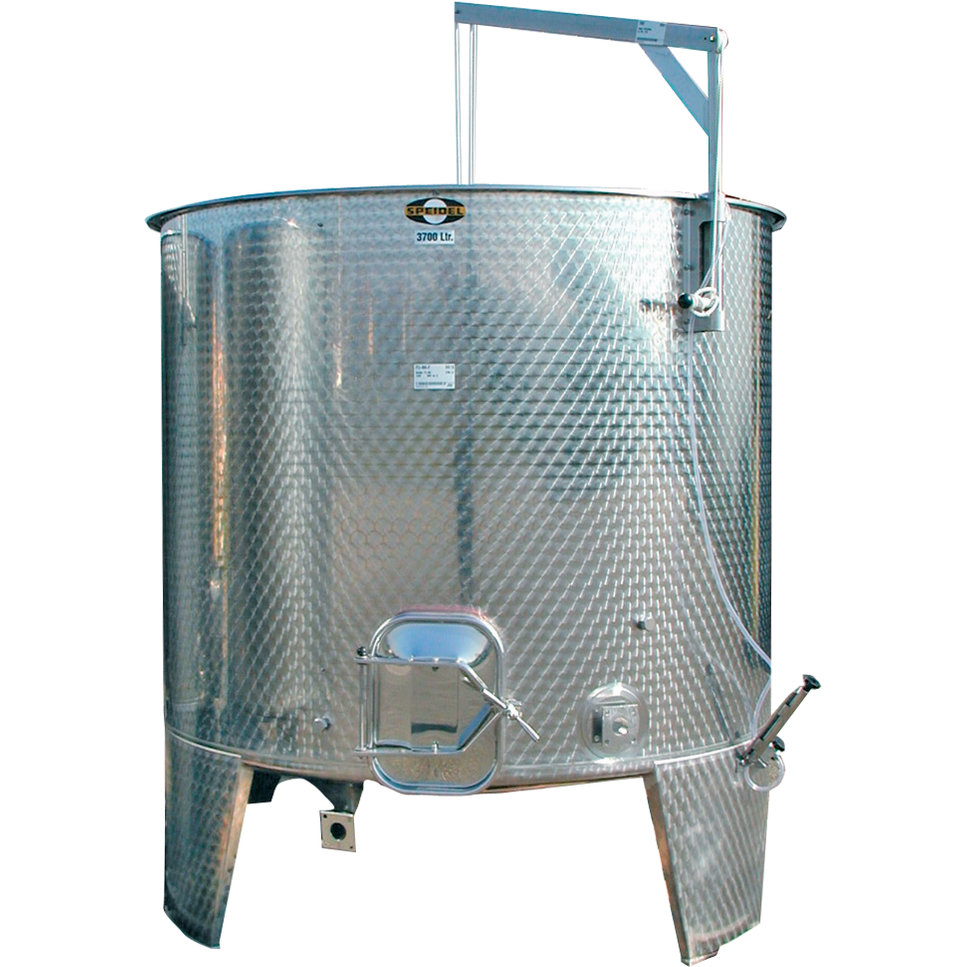

3700L Variable Volume/Conical Bottom Red Fermentation Tank w/ Manway

    Description

    The FO-M tank from Speidel is very similar to the the standard FO style variable volume storage tank. The FO-M tank, however, has been specially altered to make it more useful as a fermentation tank, and comes pre-fitted with the most standard features equipped on tanks used for red fermentations. And they have the same degree of flexibility and customization available as the standard FO style tank, but offer an easy starting point and cost savings for tanks destined for red fermentation. And don't miss out on Spediel's Mobile Must Plunger, which makes punch downs fast, easy and automatic!

    Key Features

    • Available in 28 sizes covering 6 different tank diameters from 1,100L to 15,200L
    • Tank is equipped with rectangular manway for must discharge.
    • Legs elevated to 52cm height for easier must discharge. Can be extended up to 80cm to accommodate a macro bin under the manway.
    • Bottom drain is rotated to just in front of the left tank leg so it's out of the way of must receptacle.
    • 1,100L & 1,600L Tanks equipped with 1.5" TC racking and drainage ports. All other tanks equipped with 2" TC. Larger fittings available by request
    • Reinforced racking ports prevent tank wall flex and can support the weight of a tank mixer.
    • All tanks include a lifting arm.
    • Mobile, forkliftable Pneumatic Must Plunger available to go with these tanks!

    View the resource for more information on the key features of all Speidel Tanks.

    Note: Over tightening the airlock / orange bulk head can cause it to crack. Only thread the airlock down until it feels snug. Do not over tighten.

    3700L Variable Volume/Conical Bottom Red Fermentation Tank w/ Manway

      Product form

      SKU: FO-M-180-V0052

      $7,659.99

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        WARNING : This product can expose you to chemicals including Di-n-butyl phthalate (DBP), which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        The FO-M tank from Speidel is very similar to the the standard FO style variable volume storage tank. The FO-M tank, however, has been specially altered to make it more useful as a fermentation tank, and comes pre-fitted with the most standard features equipped on tanks used for red fermentations. And they have the same degree of flexibility and customization available as the standard FO style tank, but offer an easy starting point and cost savings for tanks destined for red fermentation. And don't miss out on Spediel's Mobile Must Plunger, which makes punch downs fast, easy and automatic!

        Key Features

        • Available in 28 sizes covering 6 different tank diameters from 1,100L to 15,200L
        • Tank is equipped with rectangular manway for must discharge.
        • Legs elevated to 52cm height for easier must discharge. Can be extended up to 80cm to accommodate a macro bin under the manway.
        • Bottom drain is rotated to just in front of the left tank leg so it's out of the way of must receptacle.
        • 1,100L & 1,600L Tanks equipped with 1.5" TC racking and drainage ports. All other tanks equipped with 2" TC. Larger fittings available by request
        • Reinforced racking ports prevent tank wall flex and can support the weight of a tank mixer.
        • All tanks include a lifting arm.
        • Mobile, forkliftable Pneumatic Must Plunger available to go with these tanks!

        View the resource for more information on the key features of all Speidel Tanks.

        Note: Over tightening the airlock / orange bulk head can cause it to crack. Only thread the airlock down until it feels snug. Do not over tighten.
