Easily determine the alcohol content of a beverage as low as 0.1% ABV
-
Touchscreen interface with simple plug and play operation with dedicated support from ABV Technology
-
Store data from up to 30 samples at a time and email measurements directly from the device to the operator for safe keeping
-
WiFi connectivity allows for easy and efficient software updates pushed to the Analyzer
-
TTB approved readings to comply with legal regulations and labeling requirements

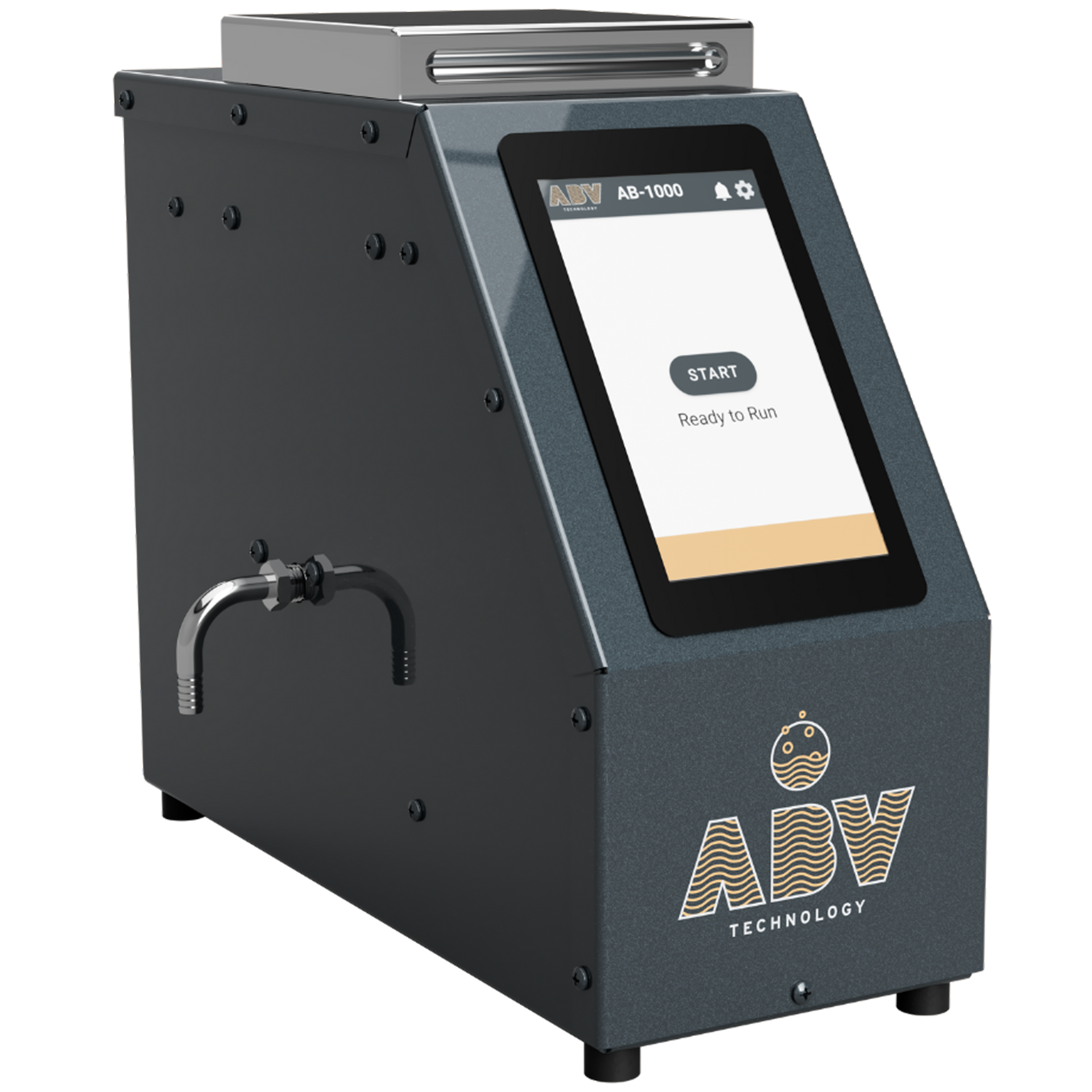

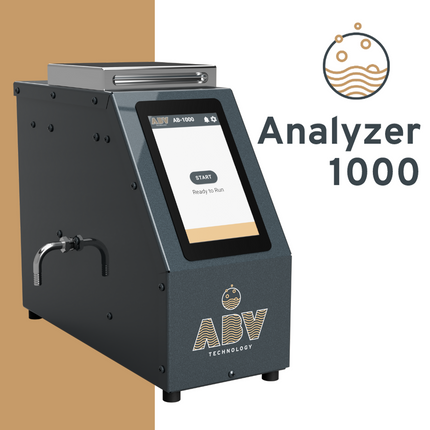

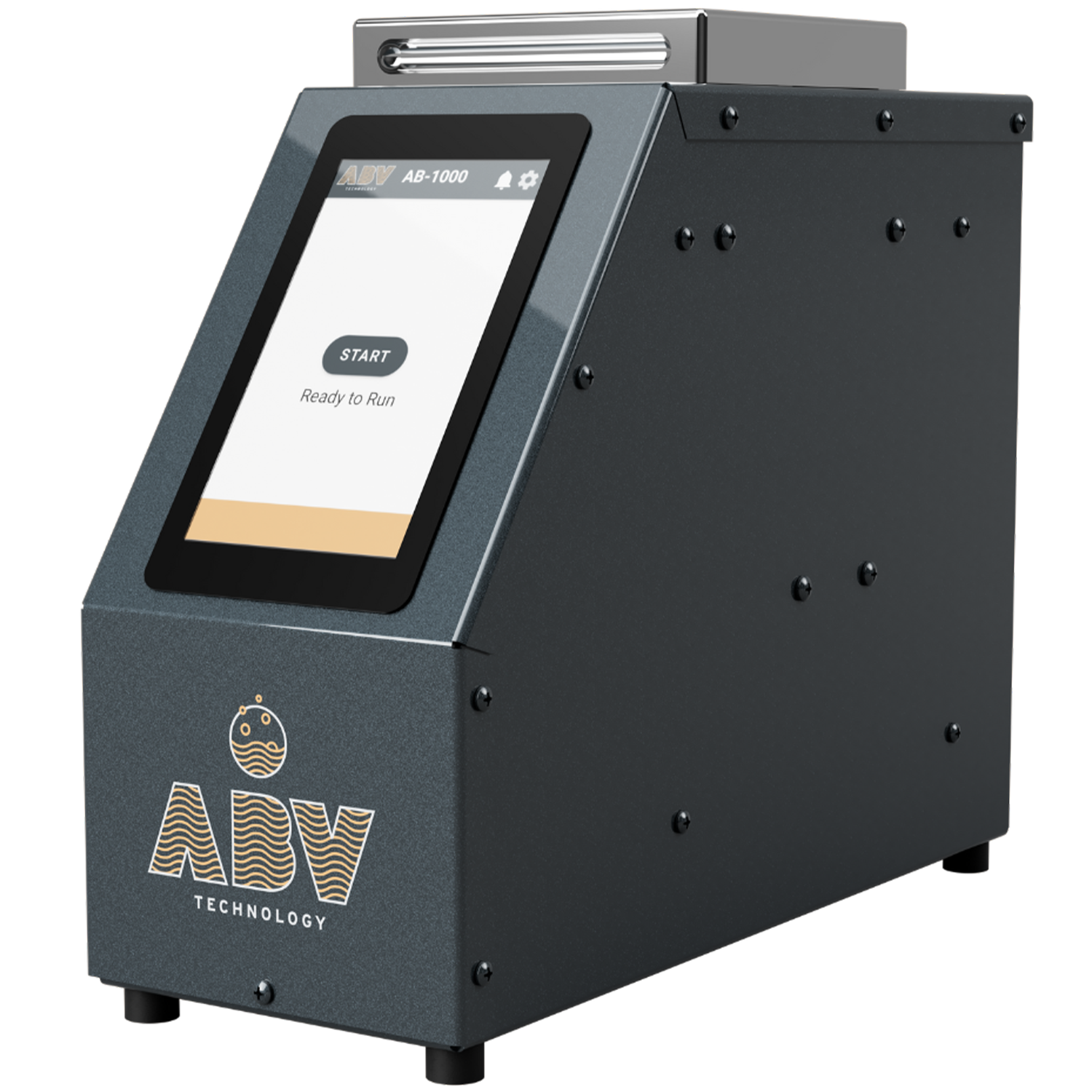

Analyzer 1000
The Analyzer uses a patented process specially tuned to measure ABV as low as 0.1%. Users can easily determine the alcohol content of a beverage and the Analyzer will enable its operator to perform such measurements at a much reduced cost. The device can perform ABV measurement over a vast range of beverages and alcohol content.
In House Measurement
-
The Analyzer is a compact bench top device made of industrial grade steel and belongs in any brewery, cidery, winery or kombuchery. The device fits well in any lab environment or beverage manufacturing facility.
-

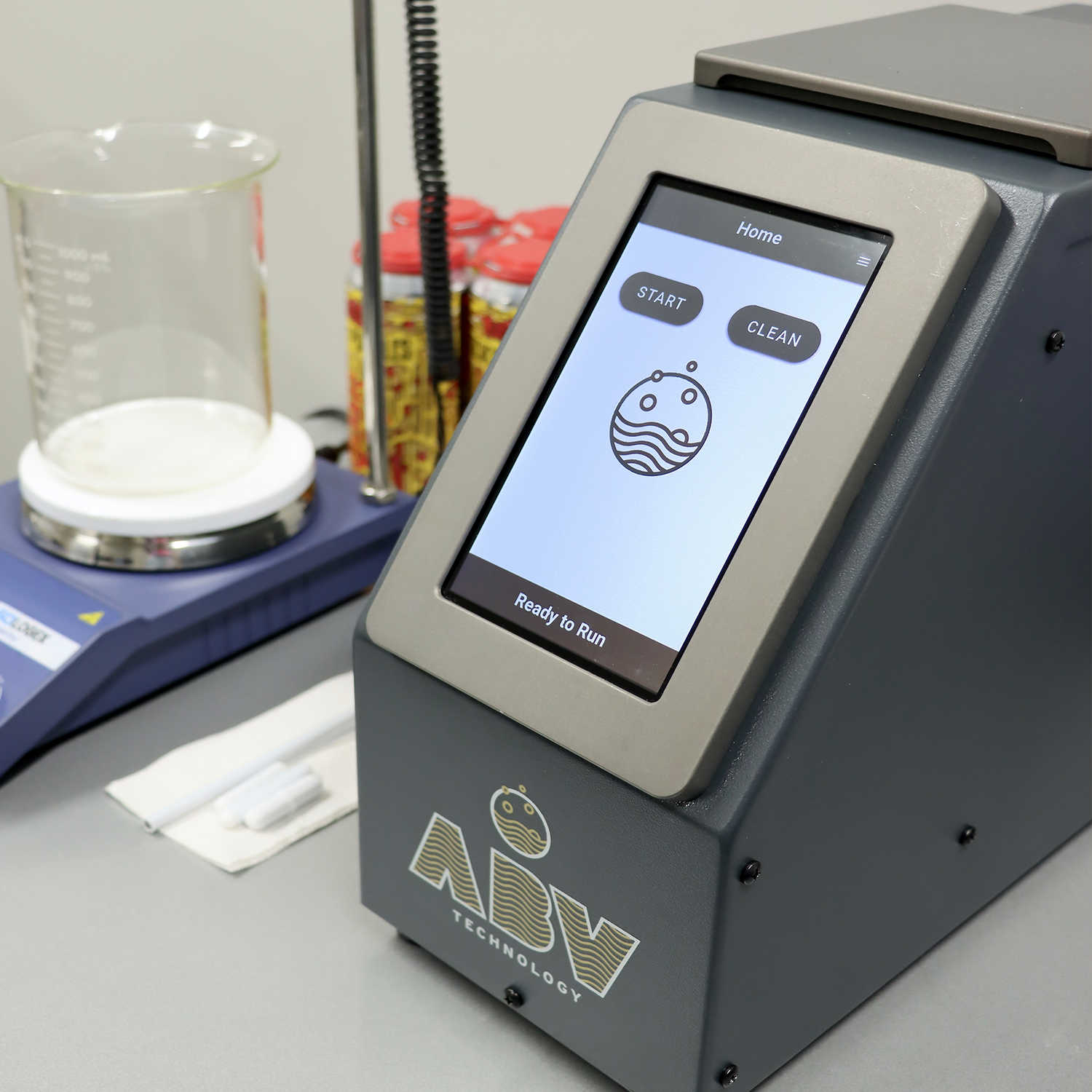

The device includes a touch screen interface with simple plug and play operation with dedicated support from ABV Technology.
-
Easy to operate, clean and maintain.
ABV Measurement Made Easy
-
ABV Technology has dedicated Quality Engineers available for Analyzer support M-F 9am to 5pm CST.
-

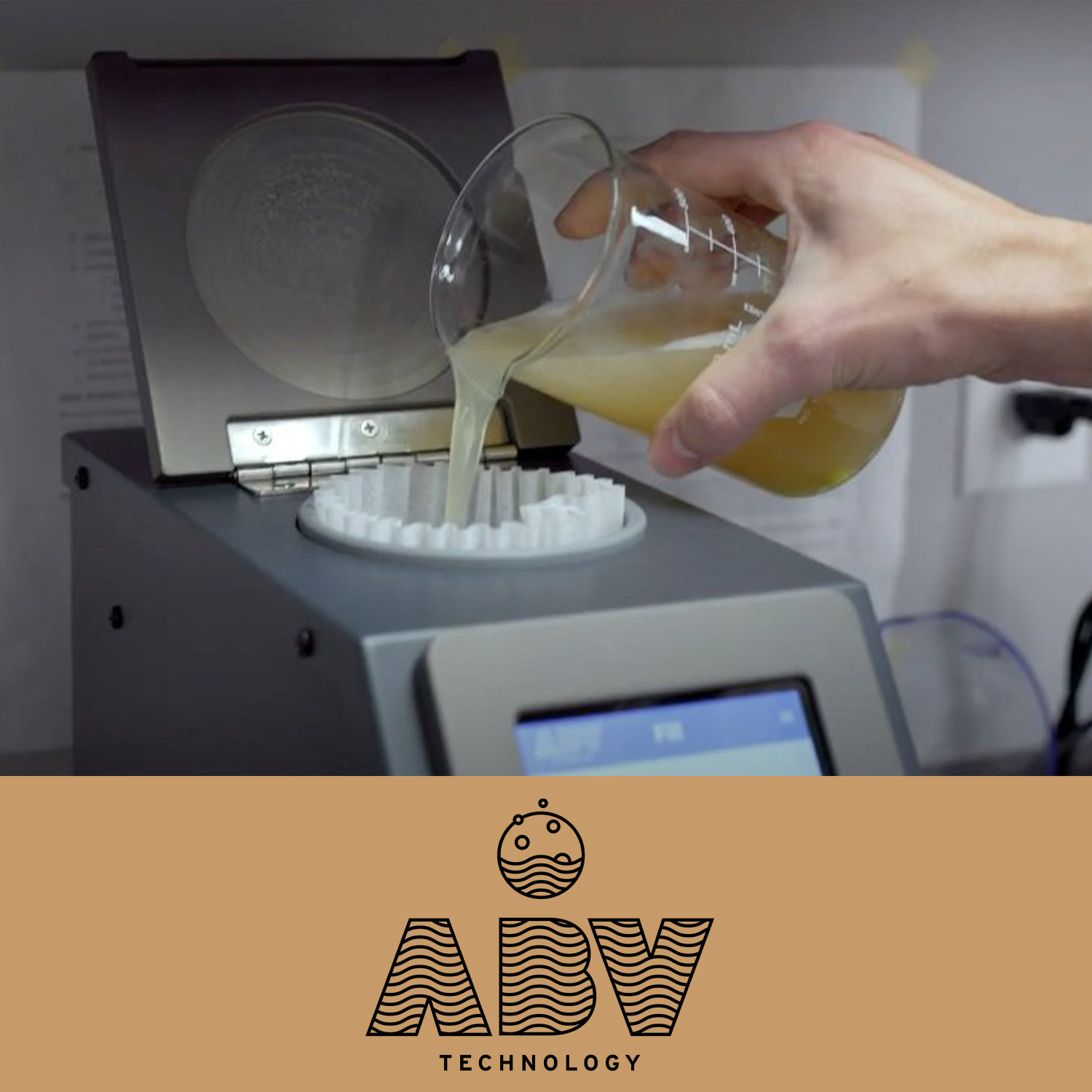

Once the sample is prepared, simply pour the beverage into the top through a coffee filter, close the lid and press the start button. Users can store data from up to 30 samples at a time.
-
An automated cleaning cycle is recommended between measurements using standard lab cleaning supplies.
-
The Analyzer is connected to the network via WiFi and measurements can be emailed to the operator for safe keeping. This also allows for easy and efficient software updates to be pushed to the Analyzer.
Why Measure ABV?
Measuring alcohol by volume (ABV) is of utmost importance for beverage manufacturers as it holds several key benefits for their operations. Firstly, ABV provides an accurate representation of the alcohol content in a particular beverage, ensuring product consistency and quality control. This information is vital for beverage manufacturers to comply with legal regulations and labeling requirements, as different jurisdictions often impose specific limits on the ABV of alcoholic beverages. Additionally, precise ABV measurements allow manufacturers to calculate the correct amount of taxes and excise duties owed on their products. By ensuring ABV accuracy, beverage manufacturers can maintain customer trust and satisfaction by delivering beverages that meet the expected potency and flavor profiles. Overall, measuring ABV is a crucial step in the manufacturing process, assisting beverage companies in maintaining regulatory compliance, product consistency, and customer confidence.
Features:
-
0% to 20% ABV measurements
-
0.1% sample repeatability
-
0.1% sample accuracy
-
NO sample preparation
-
Results in as little as 9 minutes
-
Multiple cycles for high accuracy
-
WiFi enabled for remote support
-
Results displayed and emailed
-
Easy calibration (Distilled water)
-
Easy cleaning procedures
Specs:
-
Measuring Range, Alcohol: 0.1 - 20 %ABV
-
Accuracy: 0.1 %ABV
-
Repeatability: 0.1 %ABV
-
Sample Size: 150 mL
-
Dimensions (LxWxH): 14.2" x 7.5" x 12.8" (362mm x 191mm x 326mm)
-
Weight: 28.2 lb (12.8 kg)
-
Power Supply: 110V
-
Operating Temperature: 59 - 88 °F (15 - 31 °C)
-
Storage Temperature (control chamber drained): 15 - 22 °F (-10 - 50 °C)
-
Operating Pressure: Sea Level - 3,000m
-
Fuse Rating: 3AG, 440V, 6.3A
-
Pollution Rating: Pollution Degree 2
-
Overvoltage: Overvoltage Category II
-
Max Relative Humidity: non-condensing ≤ 80% at 88 °F ( non-condensing ≤ 80% at 31)
