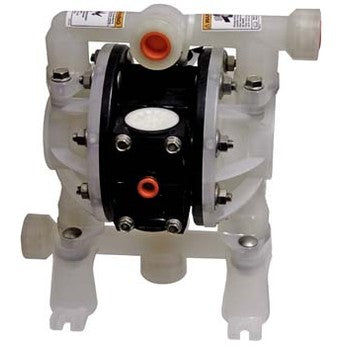

Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.
We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both models feature a Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.
Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.
Does not include air compressor or regulator
Specifications:
-
Maximum Air Inlet Pressure .............. 100 p.s.i.g. (6.9 bar)
-
Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
-
Maximum Outlet Pressure ................ 100 p.s.i.g. (6.9 bar)
-
Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
-
Maximum Flow Rate (flooded inlet) .... 14.4 g.p.m. (54.5 l.p.m.)
-
Displacement / Cycle @100 p.s.i. ......... 0.039 gallons (0.15 lit.)
-
Maximum Particle Size .................... 3/32" dia. (2.4 mm)
-
Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
-
Noise Level @ 70 p.s.i., 60 c.p.m. ...... 75.0 db(A)
-
Dimensions .................................... 10" W x 10 7/8" H x 6 23/32" D
