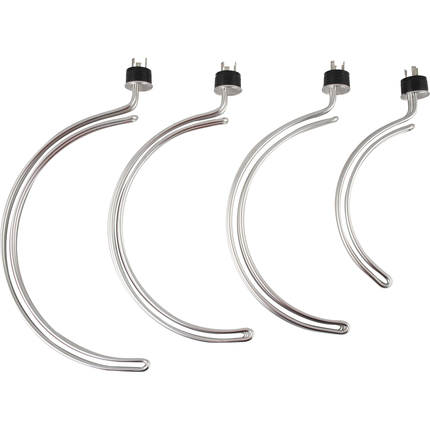

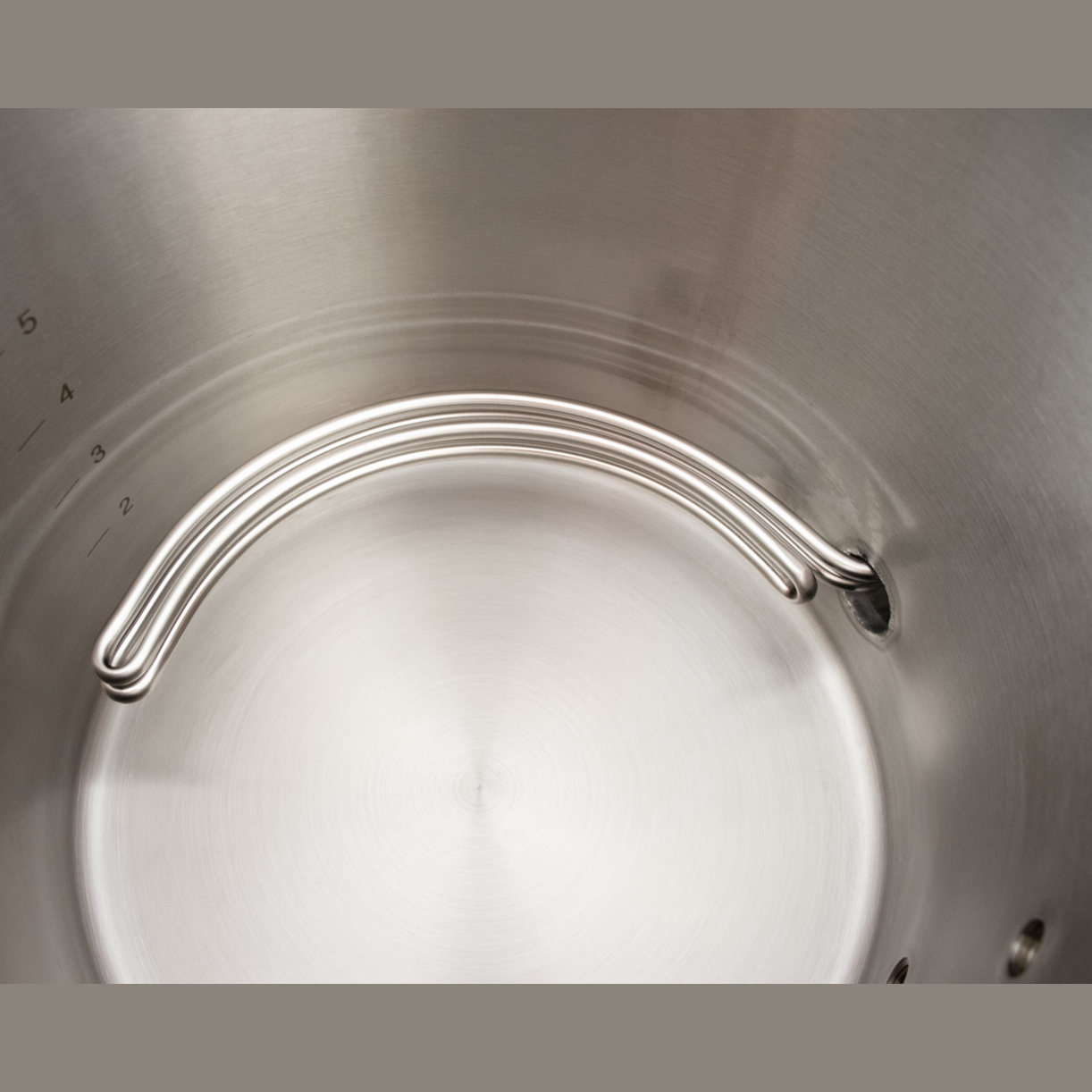

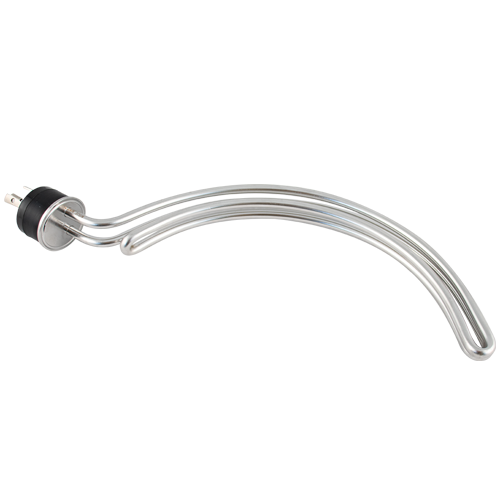

The BrewBuilt SlingBlade's unique crescent-shaped design promotes a rolling boil and even heat distribution. This electric heating element places all of the heating power on one side of the kettle, sending thermal energy upward to the surface that then cascades downward on the opposite side of the kettle. This movement creates a natural turbulence that evenly distributes heat while creating a vigorous boil. By being located on one side of the kettle, the other side is clear for immersion chillers, and the curved shape won't obstruct the flow of wort during whirlpool. Thanks to the non-circular design, the SlingBlade can easily be installed on any kettle with a 1.5" tri-clamp ferrule. This also makes removing the element for cleaning between uses a breeze.
The SlingBlade heating elements were designed to fit perfectly with BrewBuilt brewing kettles, but you may find them suitable for other kettles as well. They should be used with T.C. ferrules no longer than 1" in length. For dimensions and recommended minimum kettle diameter, please see the chart below.
Features:
-
Made from Incoloy alloy with proprietary coating for long life
-
1.5" Tri-Clamp connection
-
Unique offset design promotes rolling boil
-
Ultra-Low Watt Density eliminates scorching
-
UL Certified components
Specs:
-
240 Volt
-
L6-30 plug
-
Single Phase
-
20 Amp breaker required for 10 & 15 gal element
-
30 Amp breaker required for 22 & 31 gal element
-
50-gallon kettle requires 2 x BE538 and 2 x 30 amp circuits
|
SKU |
Kettle Vol. |
Wattage |
Length |
Radius |
Min. Kettle Ø |
|
BE535 |
10 gal |
3750 |
13.25" |
6.3" |
13.75" |
|
BE536 |
15 gal |
4500 |
16.75" |
7.3" |
15.75" |
|
BE537 |
22 gal |
5000 |
17.25" |
8.3" |
17.75" |
|
BE538 |
31 gal |
5750 |
19.5" |
9.3" |
19.75" |
Please note: Length is measured from the tip of the heating element to the T.C. connection. Radius is measured from the middle of the T.C. connection to the outermost edge of the element's curve.
***In order to avoid injury or death we strongly recommend using a GFCI in any circuit used near water. You can find one here.***
