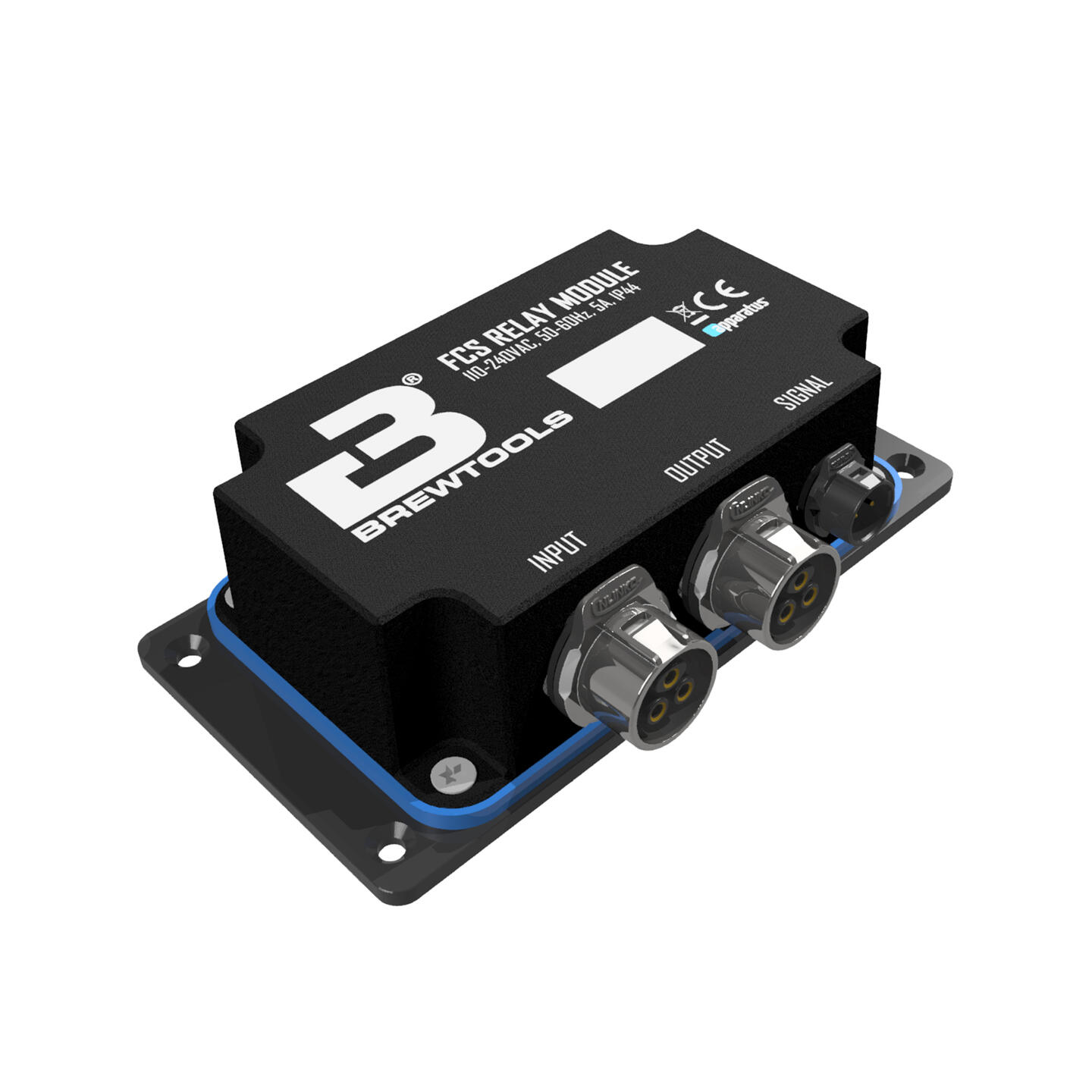

Brewtools | FCS Relay Module | 110-240V, 5A | 5V Control Signal

    Description

    The Brewtools FCS Relay Module is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.

    Relay Module for use with FCS. Specifically designed for small heating elements.

    Control signal is 5V and the devices measures current draw.

    The module has a 2-pole relay and several protective circuits for noise, over voltage etc.

    For maximum safety, the device also has one fuse per phase.

    Specifications:

    • 110-240V AC, Max 5A
    • Power in: LP20 3-pin male
    • Power out: LP20 3-pin female
    • Signal: LP12 7-pin
    • Fuse: 2x 5x20 6.3A Fast Blow

    Installation:

    4 screw holes with 5mm diameter. Designed for countersunk screws.

    Brewtools | FCS Relay Module | 110-240V, 5A | 5V Control Signal

      Product form

      SKU: BT1318

      $129.00

        Free Shipping on orders over $79

        WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        You're getting the best possible deal on this item, thanks to our Minimum Advertised Price (MAP) policy.

        This item is available for Pre-Order. Full payment is required to reserve stock.

        Description

        The Brewtools FCS Relay Module is available for pre-order. Place your order now and we will automatically ship it to you when it becomes available. The current estimated availability is early 2026.

        Relay Module for use with FCS. Specifically designed for small heating elements.

        Control signal is 5V and the devices measures current draw.

        The module has a 2-pole relay and several protective circuits for noise, over voltage etc.

        For maximum safety, the device also has one fuse per phase.

        Specifications:

        • 110-240V AC, Max 5A
        • Power in: LP20 3-pin male
        • Power out: LP20 3-pin female
        • Signal: LP12 7-pin
        • Fuse: 2x 5x20 6.3A Fast Blow

        Installation:

        4 screw holes with 5mm diameter. Designed for countersunk screws.
