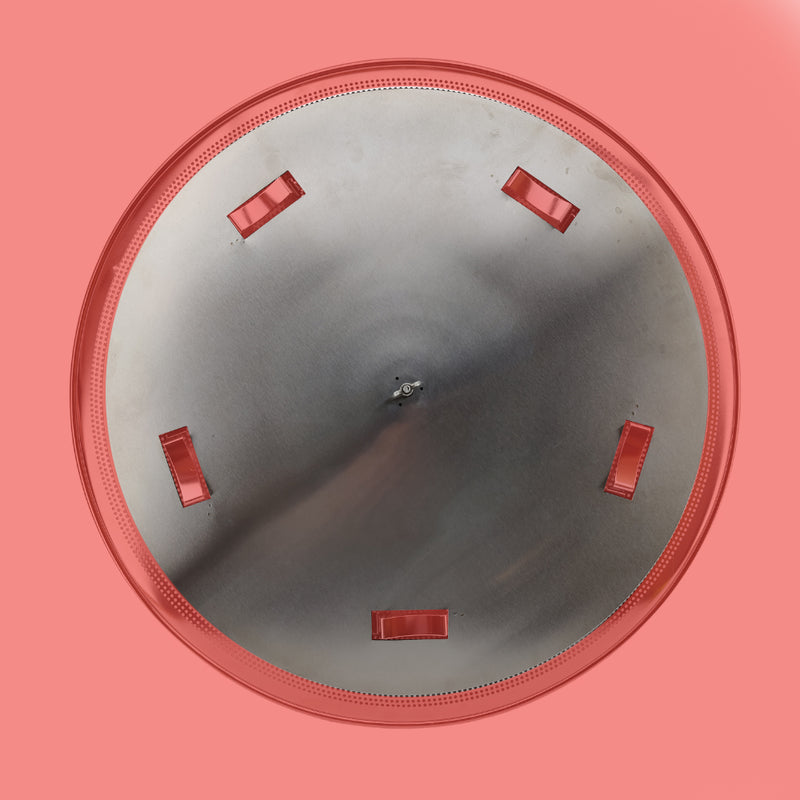

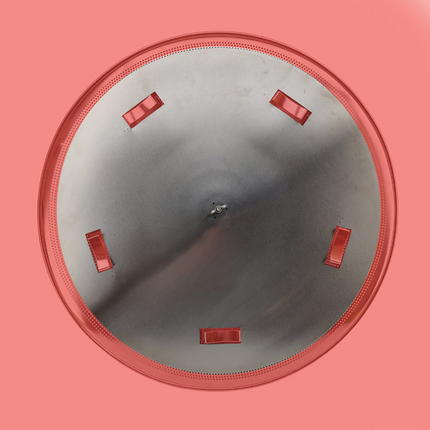

Speed up heating times with the Heat Exchanger Dish (HED) for Gen 4 BrewZillas. Due to the concave bottom and central draining hole, the wort being recirculated through the pump will pass through the malt pipe and then down through the boiler false bottom. The wort would normally then follow the path of least resistance, making a b-line for that drainage hole. What this Heat Exchanger Dish does is force that recirculating wort up to the edge of the BrewZilla base and pass over the elements for a longer period, this then aids in faster heating exchange with the wort, which can help you on a brew day reach those temperatures much quicker.
This piece comes standard with the 100L BrewZilla. It is offered as an optional accessory for the 35L and 65L sizes.

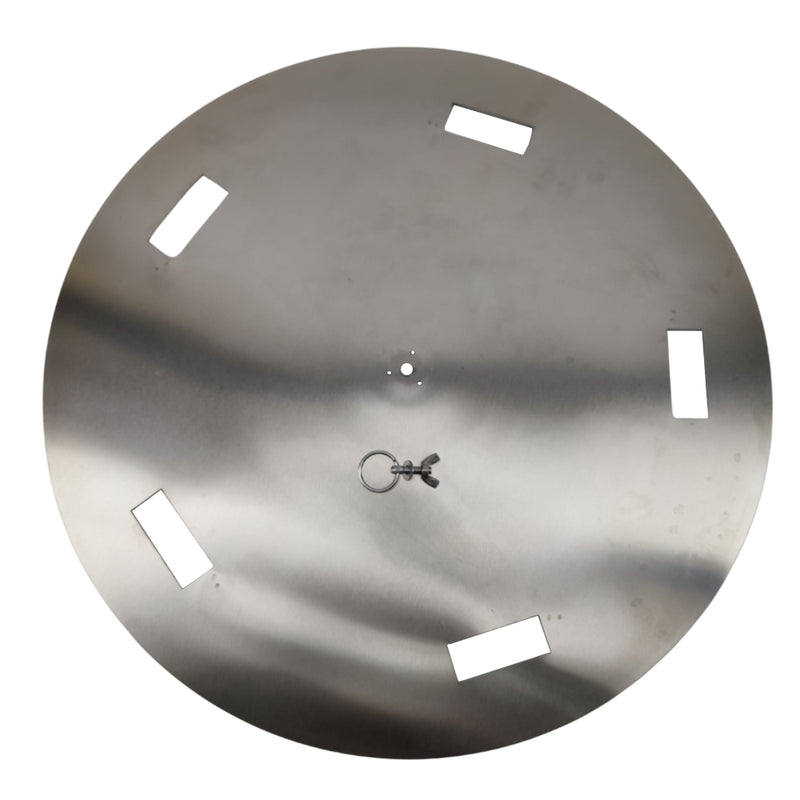

The HED has been pressed into a slight concave shape to match the curvature of the boiler false bottom. Includes a longer eye bolt assembly than the one included with the false bottom.
NOTE: The order of bolt to washer to nuts goes as follows. Eye bolt, washer, false bottom, washer, nut, HED, then wing nut. This is so that the eye bolt does not come completely removed when and if you clean underneath the Heat Exchanger Dish.
KegLand Part Number: KL29377
