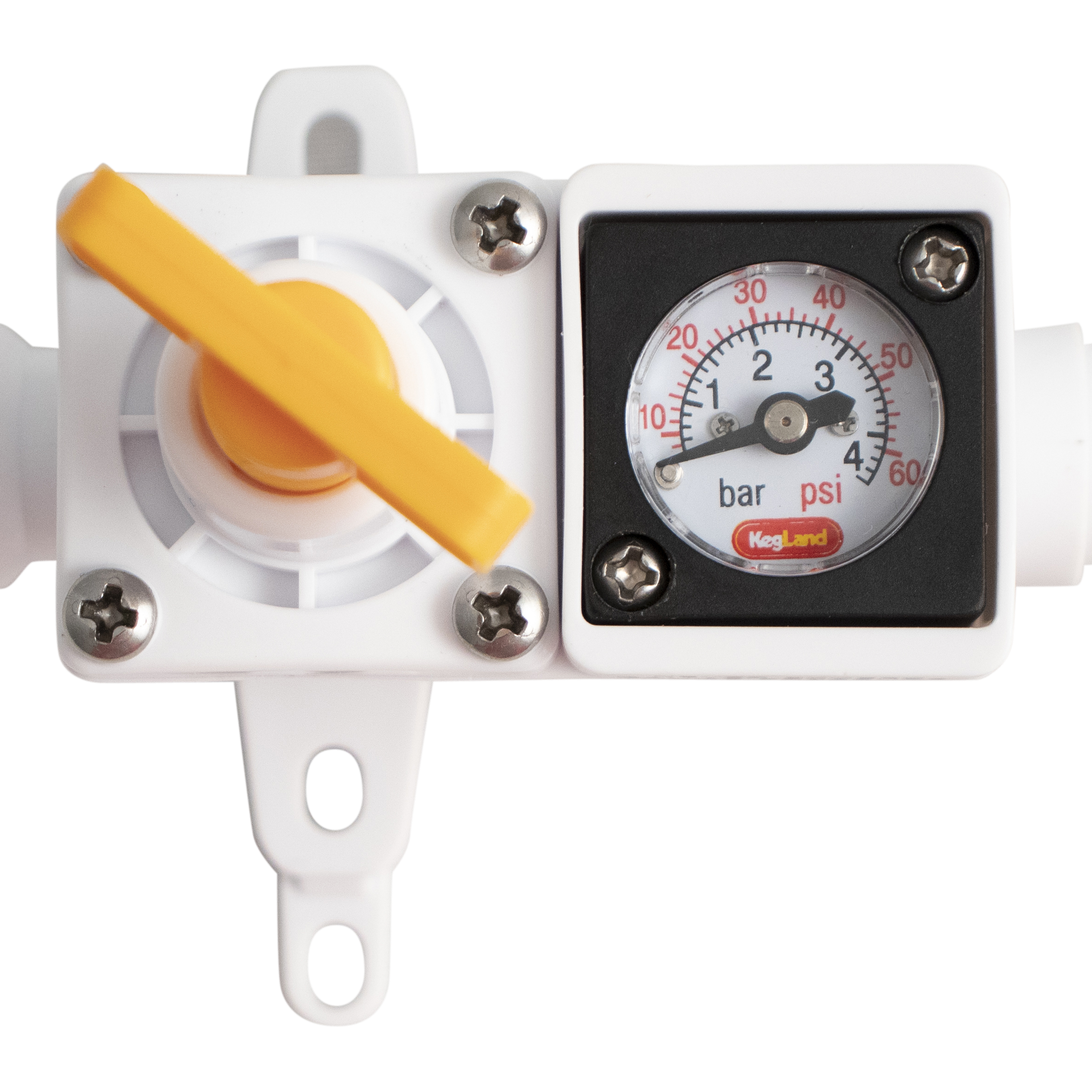

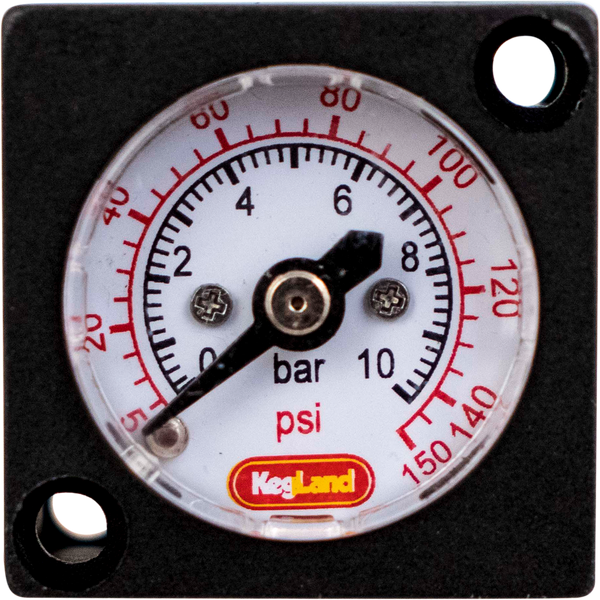

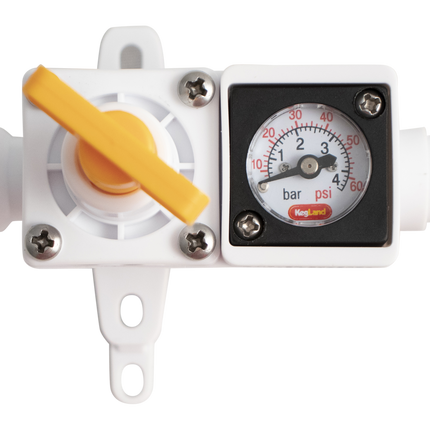

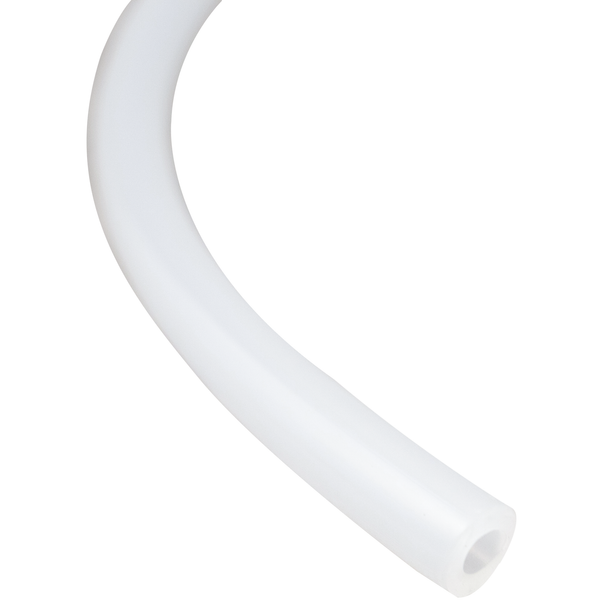

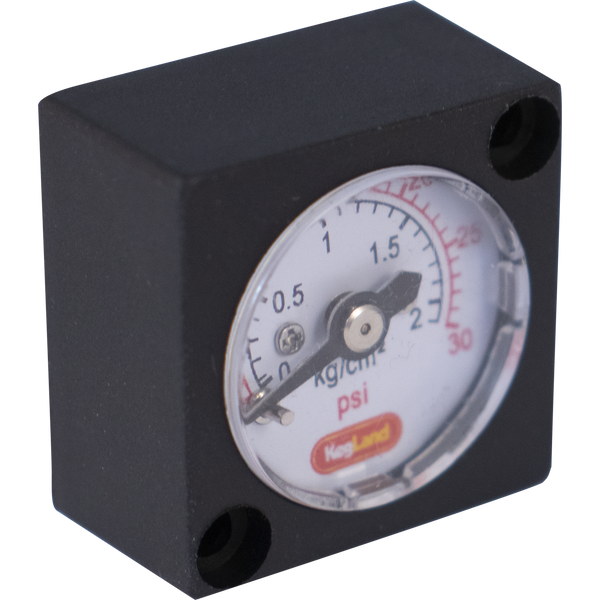

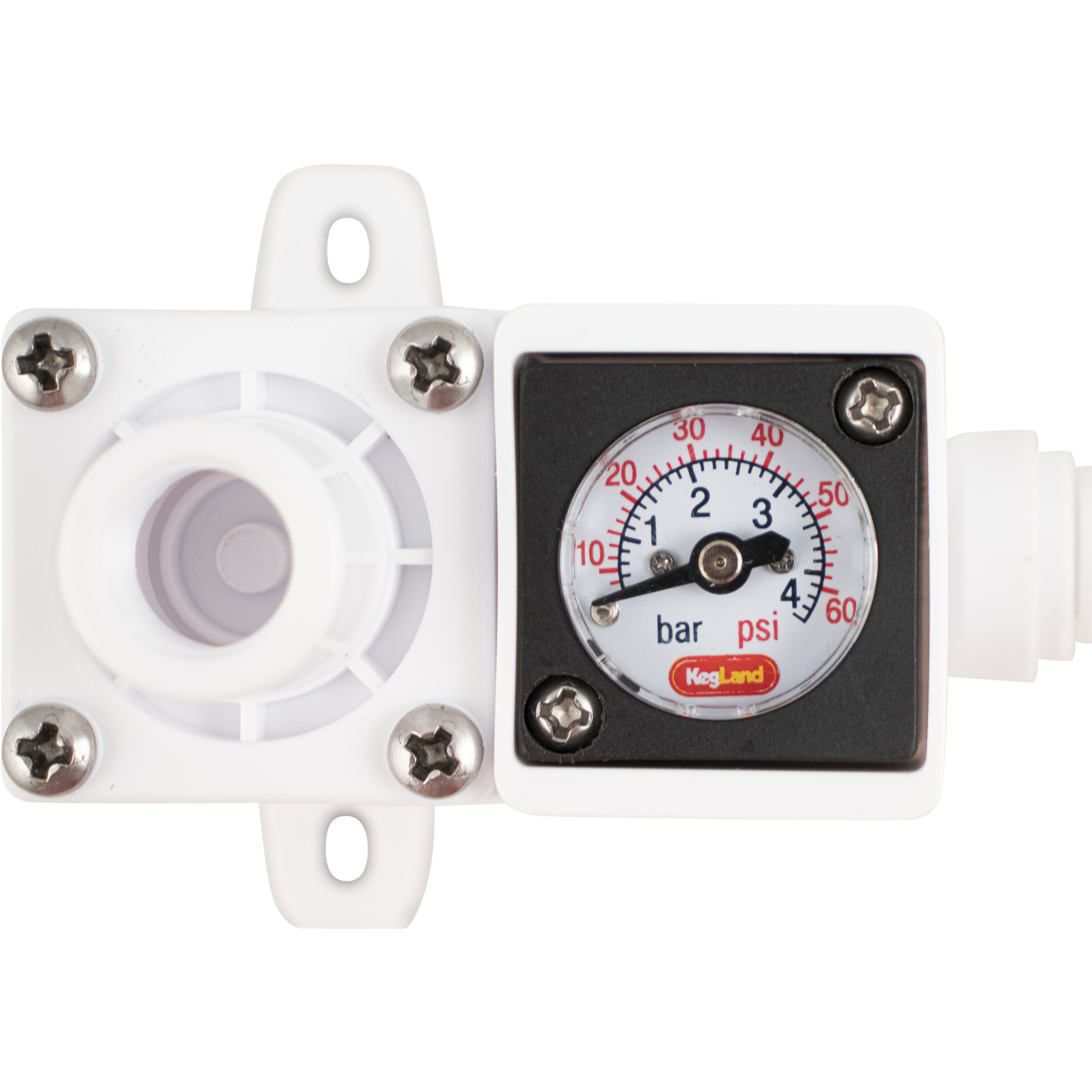

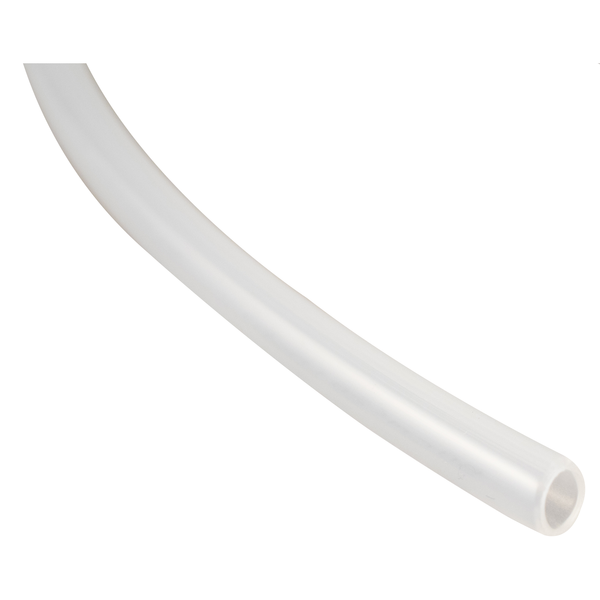

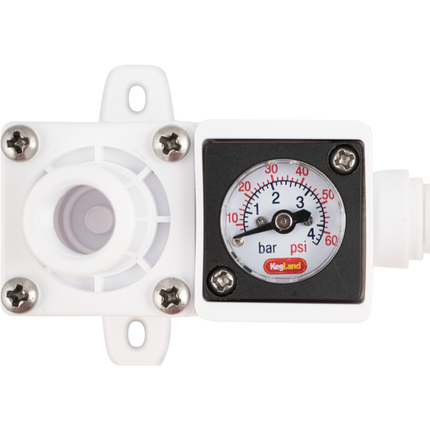

The Duotight In-Line Regulator works with both gas and liquid. Easily adjust the flow can be adjusted with the yellow adjustment knob. 8 mm Duotight fittings at both inlet and outlet make this unit perfect for use with EVABarrier 8 mm OD tubing (D1717 or D1718). Features an integrated pressure gauge so you can quickly and easily dial in your pressure setting. The analog gauge is removable and can be swapped out with a gauge of a different pressure range or it can be swapped out for the Digital Mini Pressure Gauge.
Stepping Down Pressure
The ideal regulation scenario occurs when the inline regulator steps down the output pressure to at least 10 PSI less than the inlet pressure. For example, if the inlet pressure is 30 PSI, the regulator effectively manages a range from 0–20 PSI on the output side ensuring optimal performance and stability.
-
Ideal regulation scenario (10 PSI less than inlet pressure)
-
Example of 30 PSI inlet translating to 0–20 PSI output
Specifications:
-
Made from food grade acetal
-
Stainless screws
-

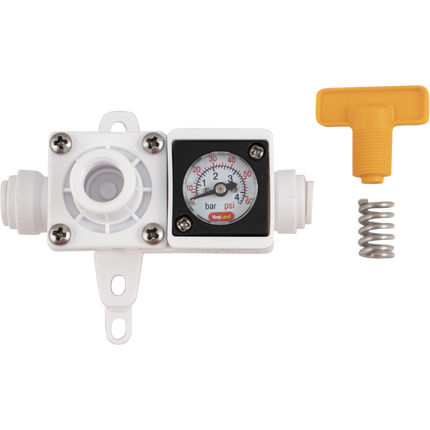

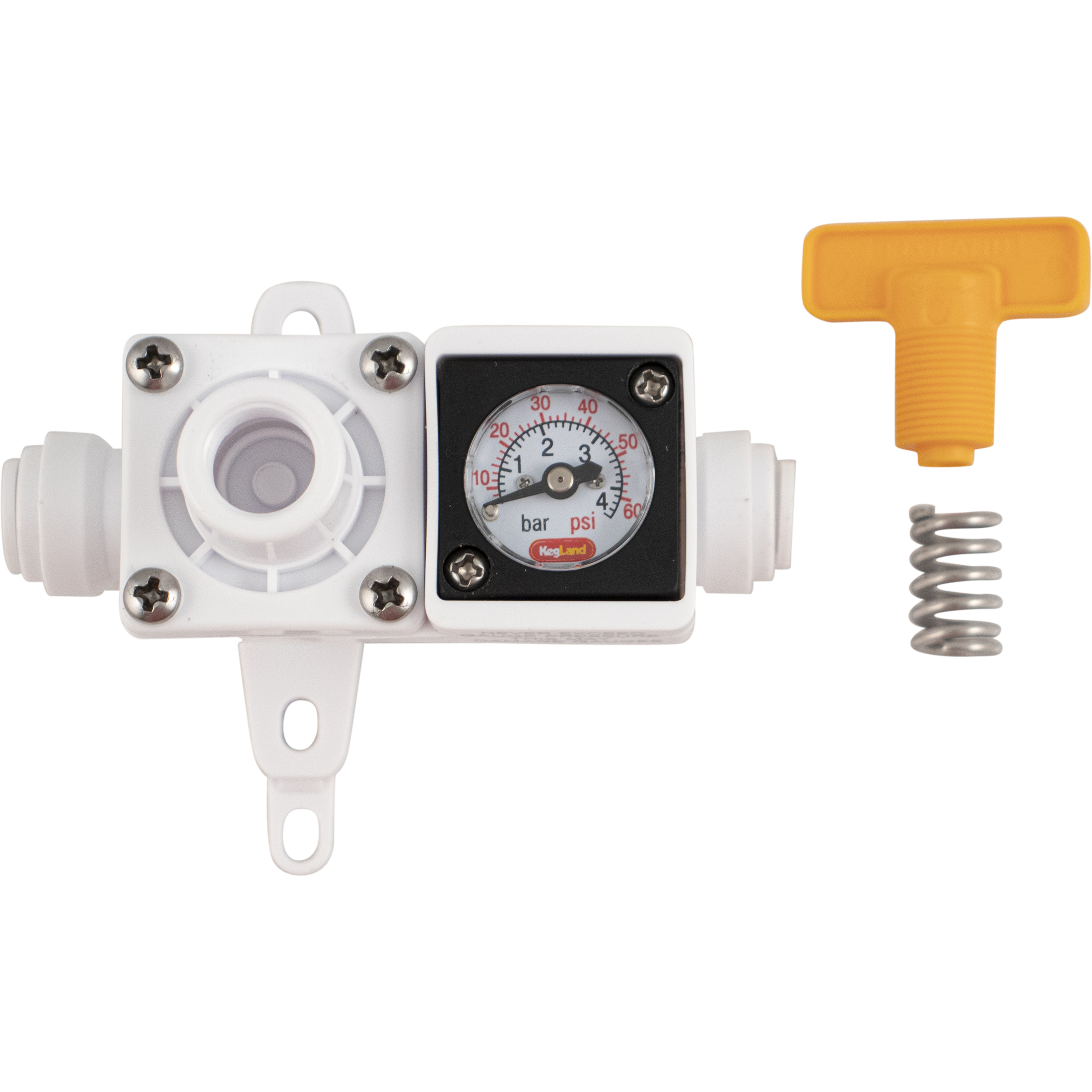

Easily disassembles for cleaning
-

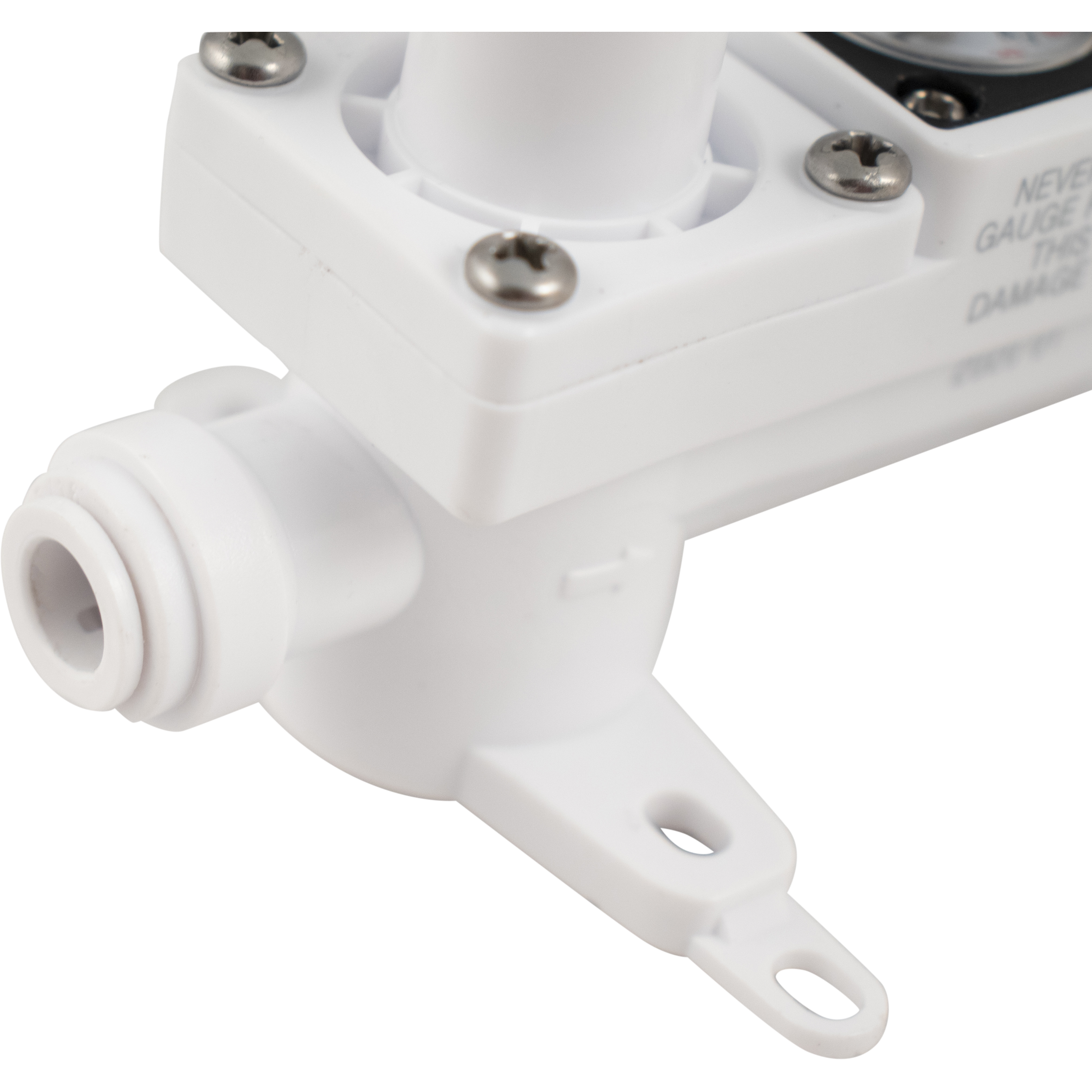

8mm (5/16") Duotight fittings at both ends
-

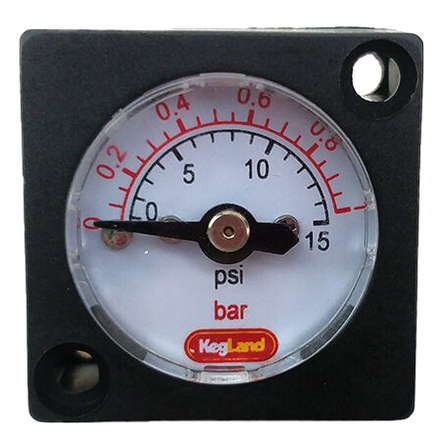

Interchangeable pressure gauge
-

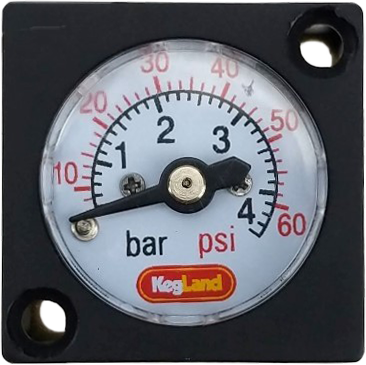

Gauge reads from 0-60 psi
-
Made with quality EPDM seals
-

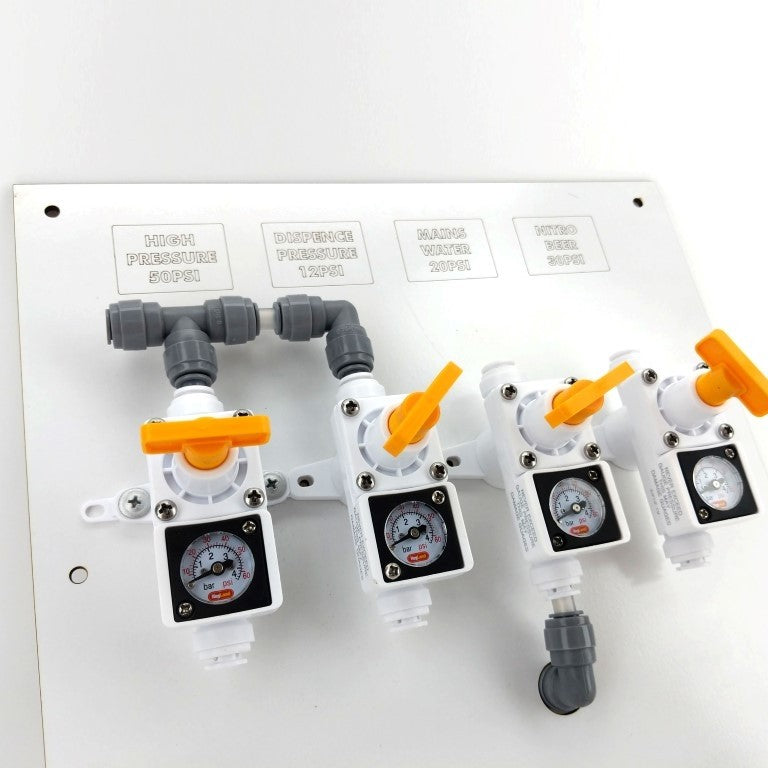

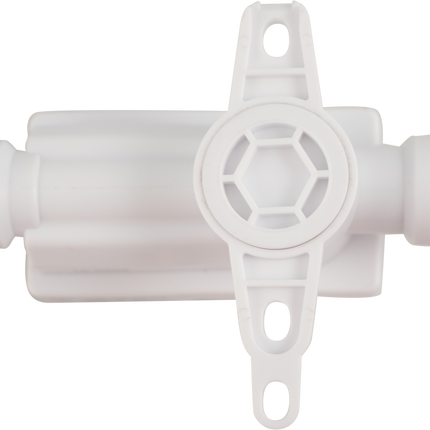

Wall mountable
WARNING: Do not exceed gauge pressure. Exceeding the pressure range will damage the gauge.

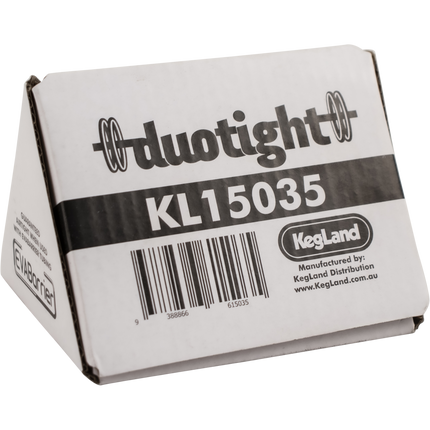

Kegland Part number: KL15035
