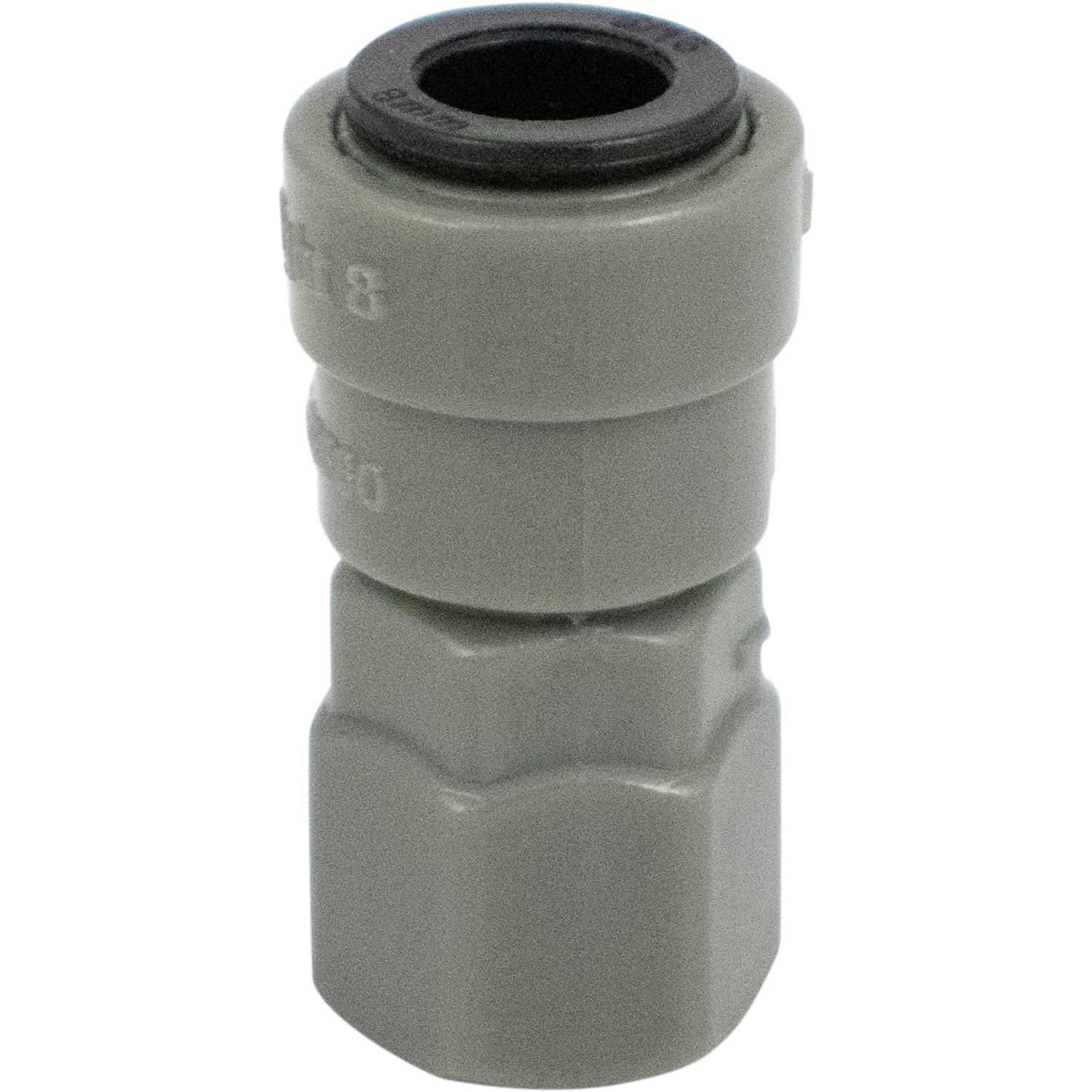

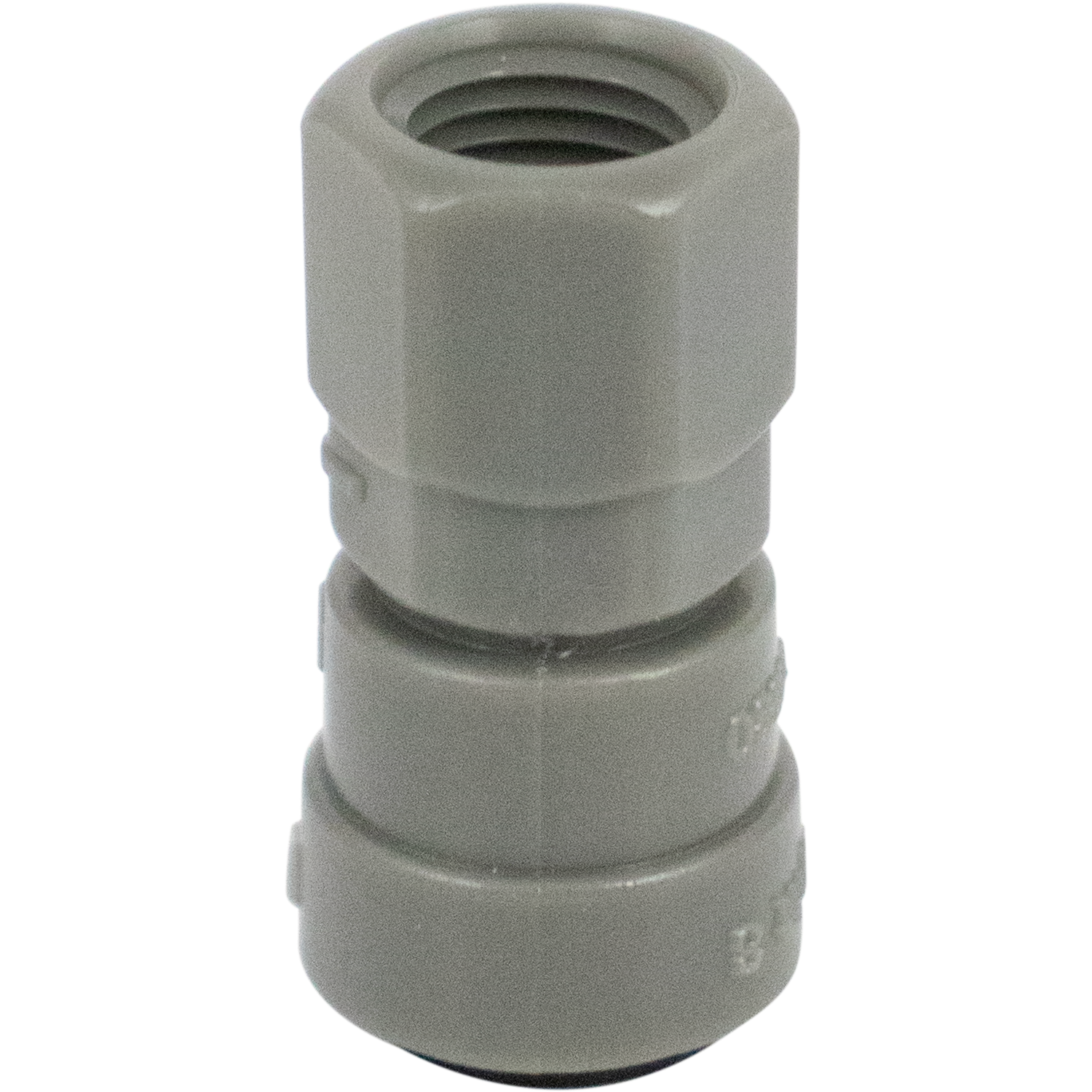

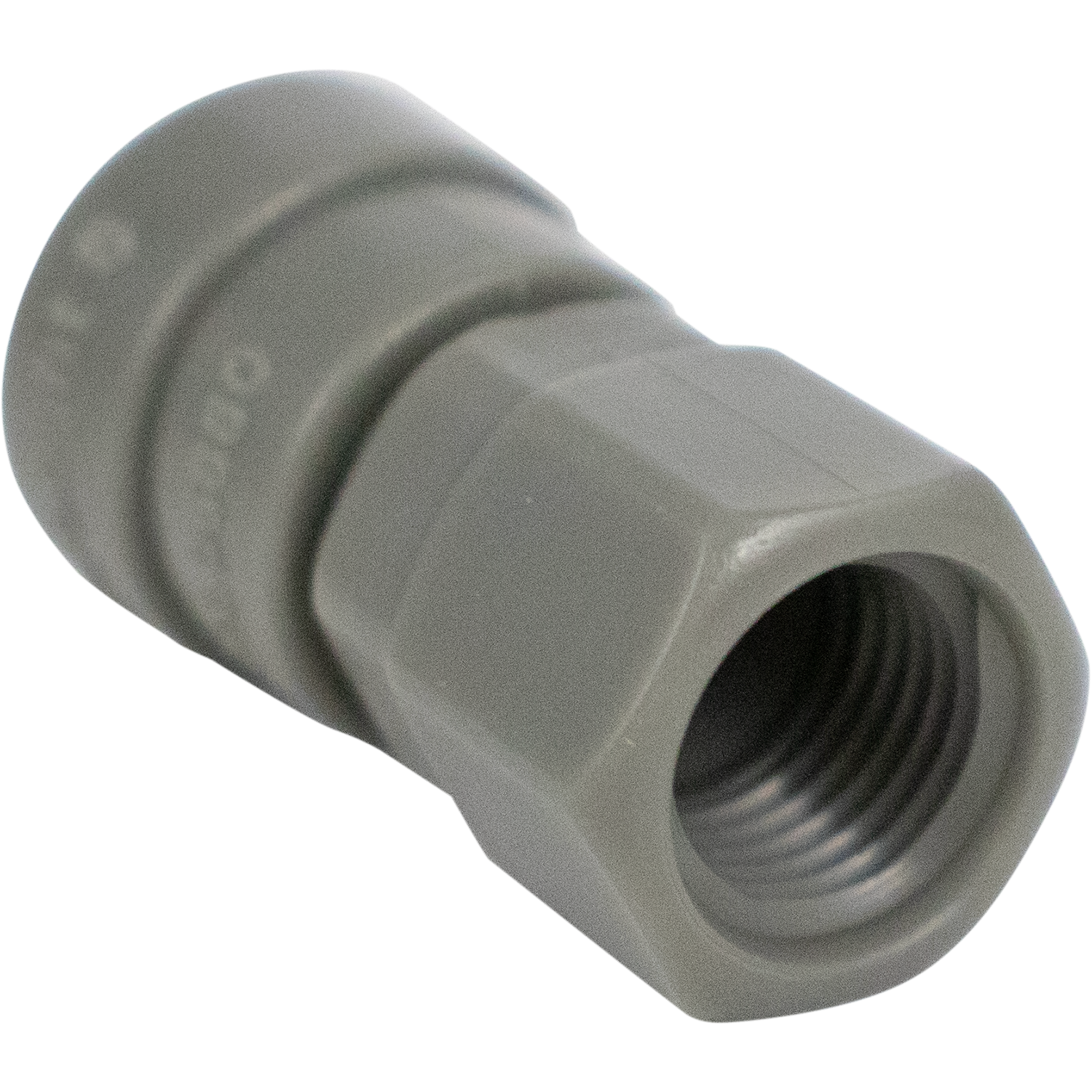

Duotight Push-In Fitting - 8 mm (5/16 in.) x 1/4 in. Flare

    Description

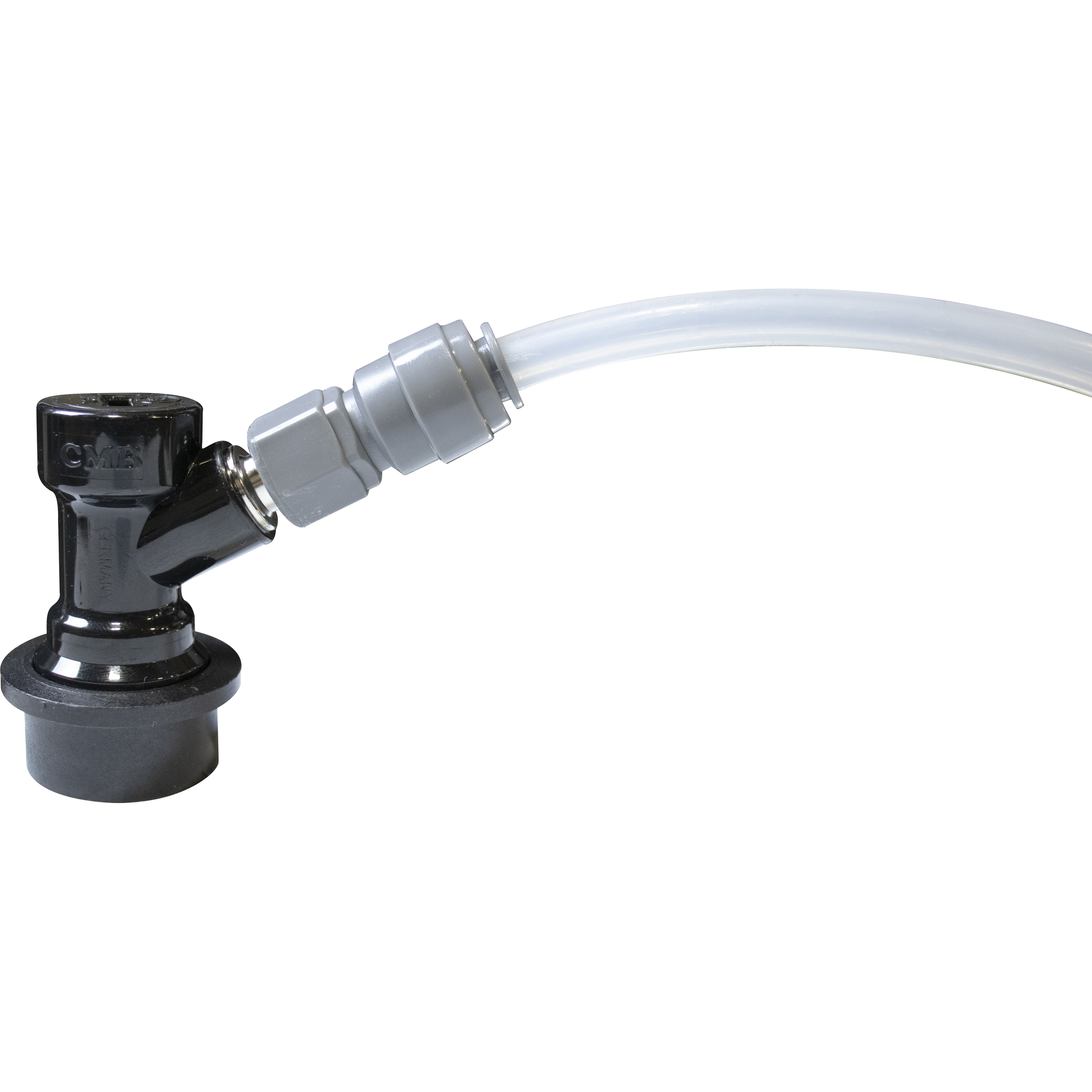

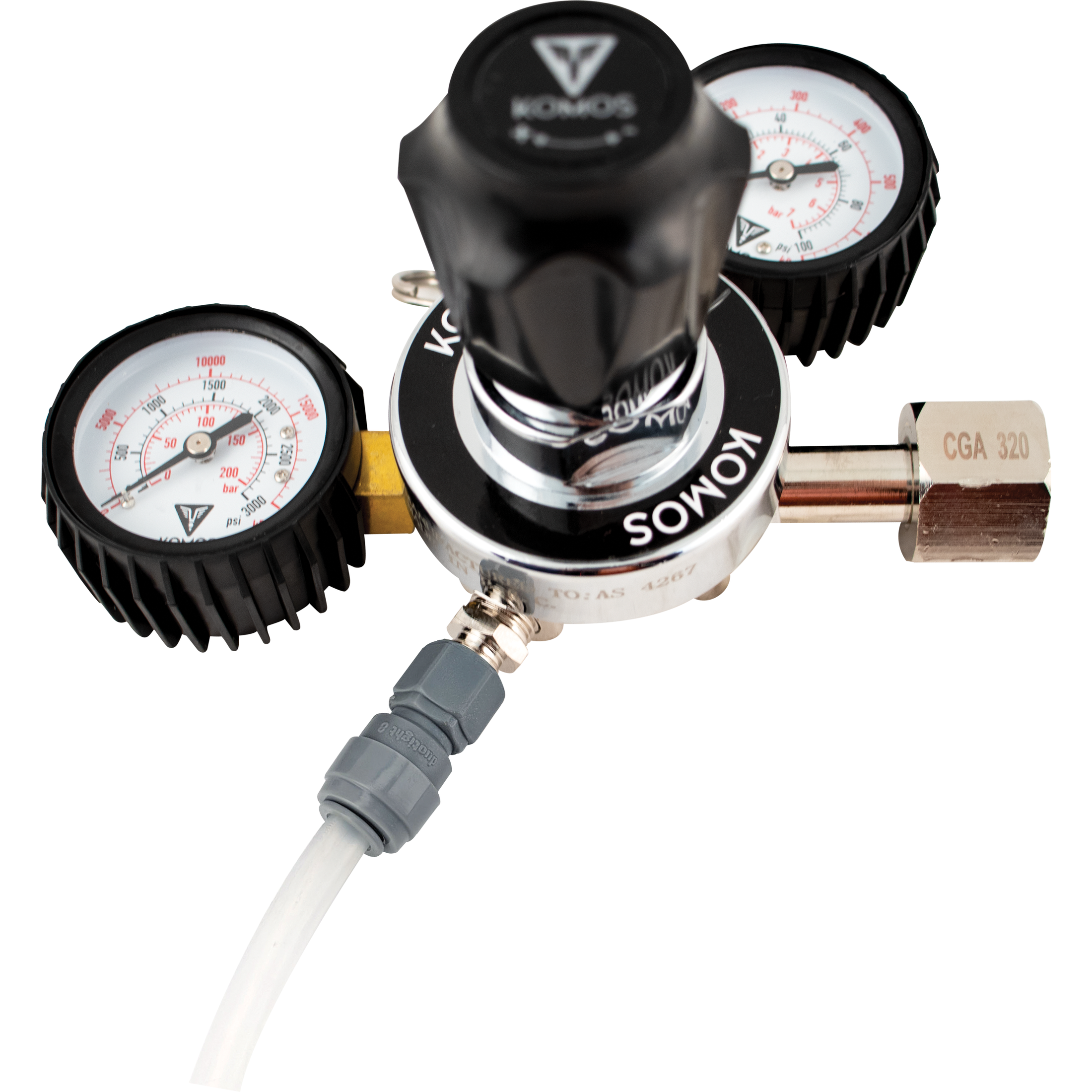

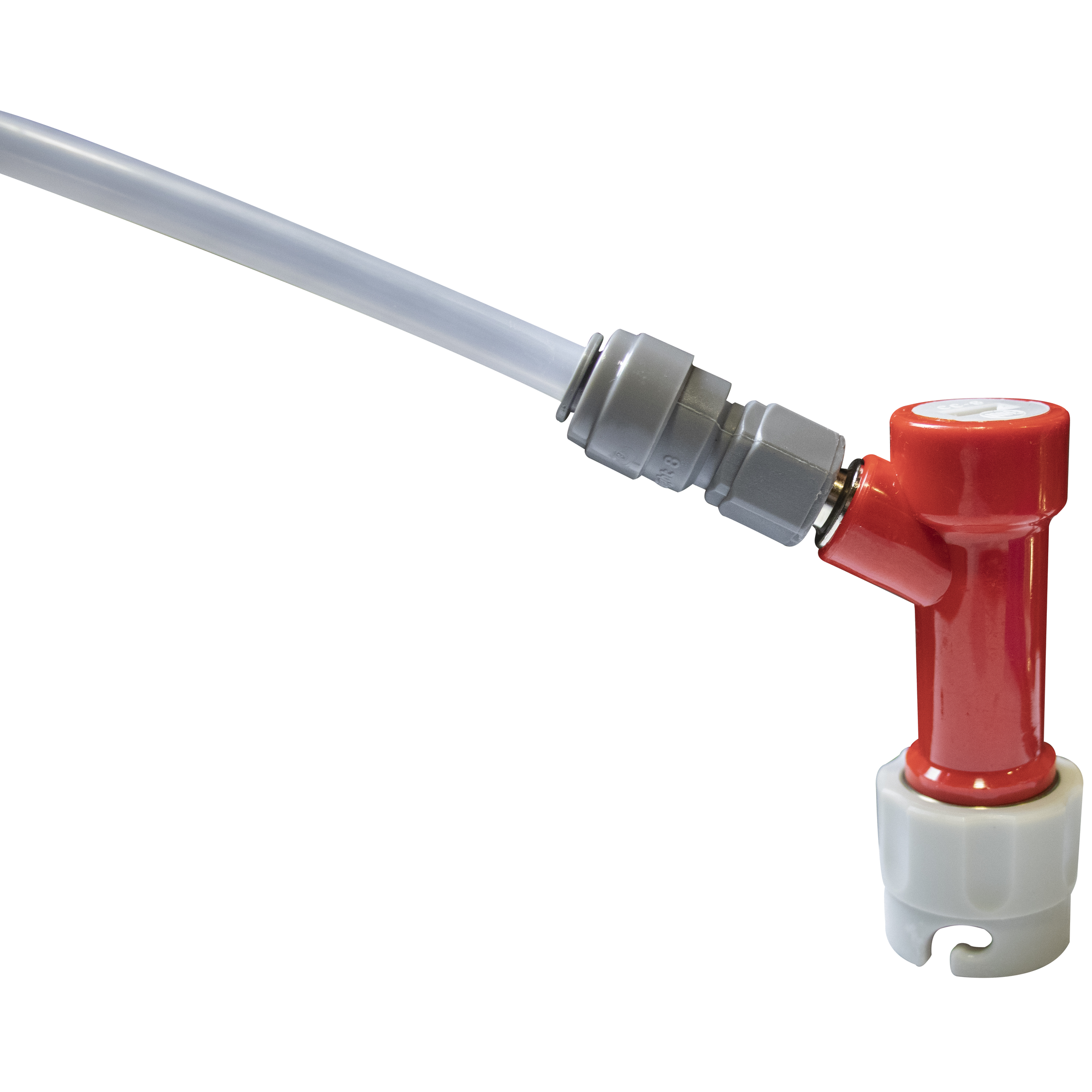

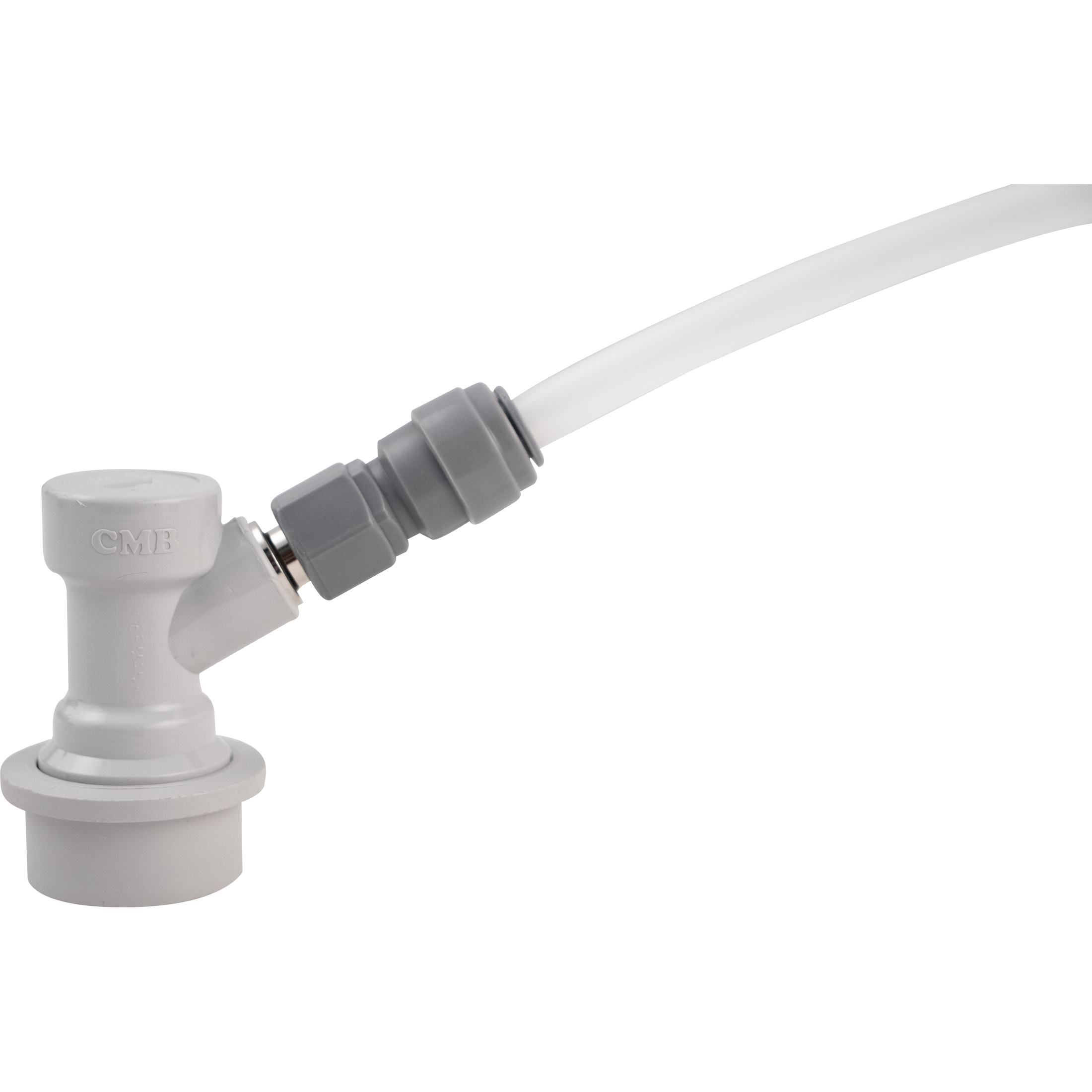

    This Duotight fitting with 1/4" Flare is perfect for flared gas and beverage ball lock and pin lock disconnects. It can also be used to connect gas line to the flare fitting found on the KOMOS® CO2 Regulator. Compatible with EVABarrier 8 mm OD Tubing (D1717 & D1718).

    The Duotight fitting does not require a flare washer. See the instructions below for how to ensure a leak-free connection when attaching to flare fittings.

    Duotight fittings are high-quality push-in fittings that seal tight and offer superior sealing capacity due to the double O-ring sealing design.

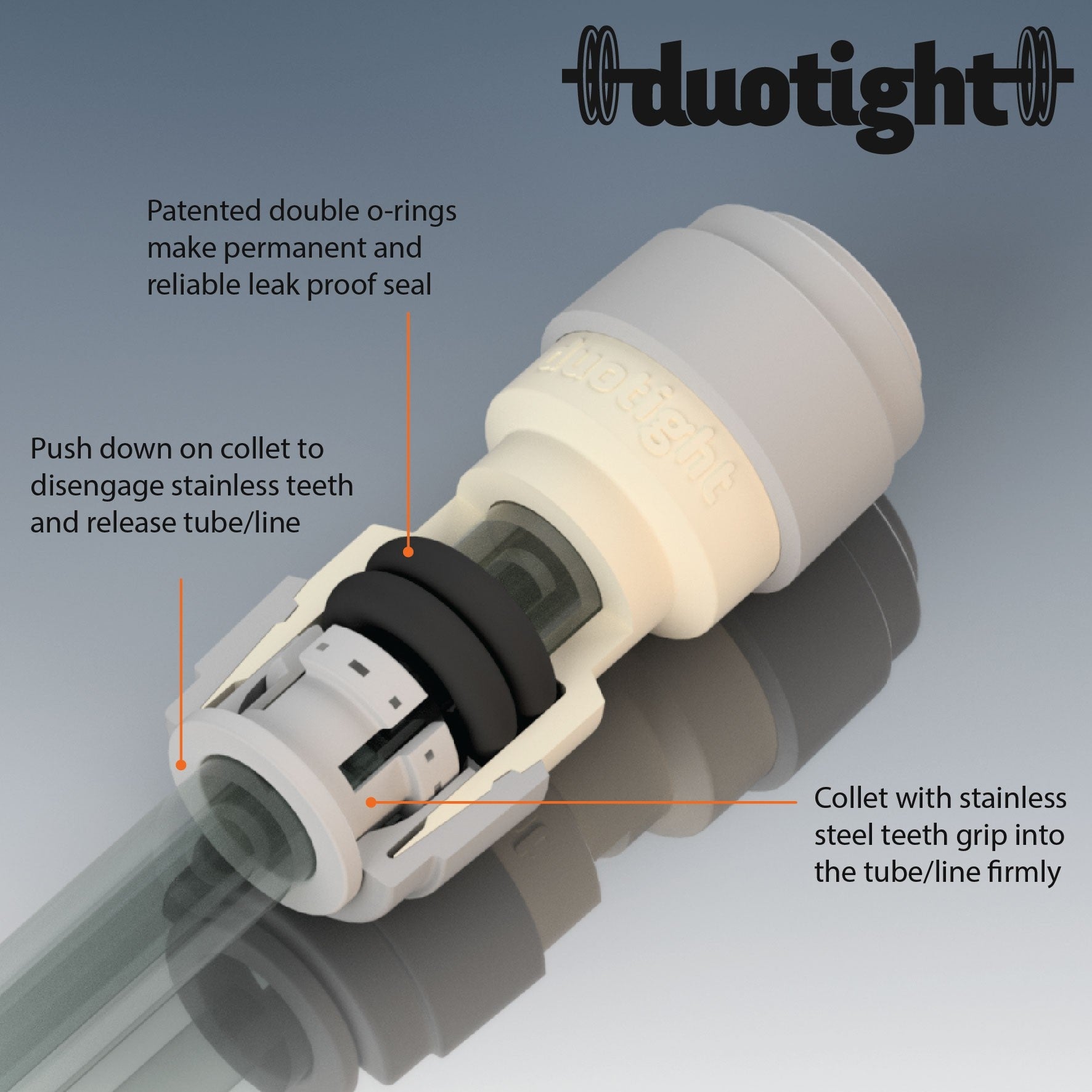

    High Performance Double O-Ring Design:
    The secret to Duotight’s superior sealing performance comes from the fact that they use not one, but two high-quality EPDM O-rings. The double O-ring means they have literally twice the sealing surface when compared with other push-in fittings. This makes them more reliable and significantly reduces the chance of leakage.

    The double O-ring system also means that tubing can be bent at a much tighter radius without causing leaking issues, which can be an issue with other fittings. This combination of factors makes Duotight the most reliable push-in fittings on the market.

    EPDM offers excellent chemical resistance for a longer life span. When compared with silicone and vinyl, EPDM has much better gas transmission rates, better wear resistance, and is BPA-free.

    No Clamps Necessary!
    We recommend cutting your tubing straight, not on an angle, to ensure the line forms a complete seal. To remove the fitting simply push in the collet and the hose can be removed.


    Features:
    • Insert tubing and firmly push to connect
    • Easily release tubing by pushing in the collet
    • Suitable for both gas & beverage applications
    • Made from food-grade acetal plastic
    • Double O-rings made from highly chemical resistant EPDM
    • Locking teeth made from stainless steel
    • Pressure rated to 150 psi
    • Temperature rated to 212°F (100°C)

    Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.

    Ball lock fitting and regulator not included.

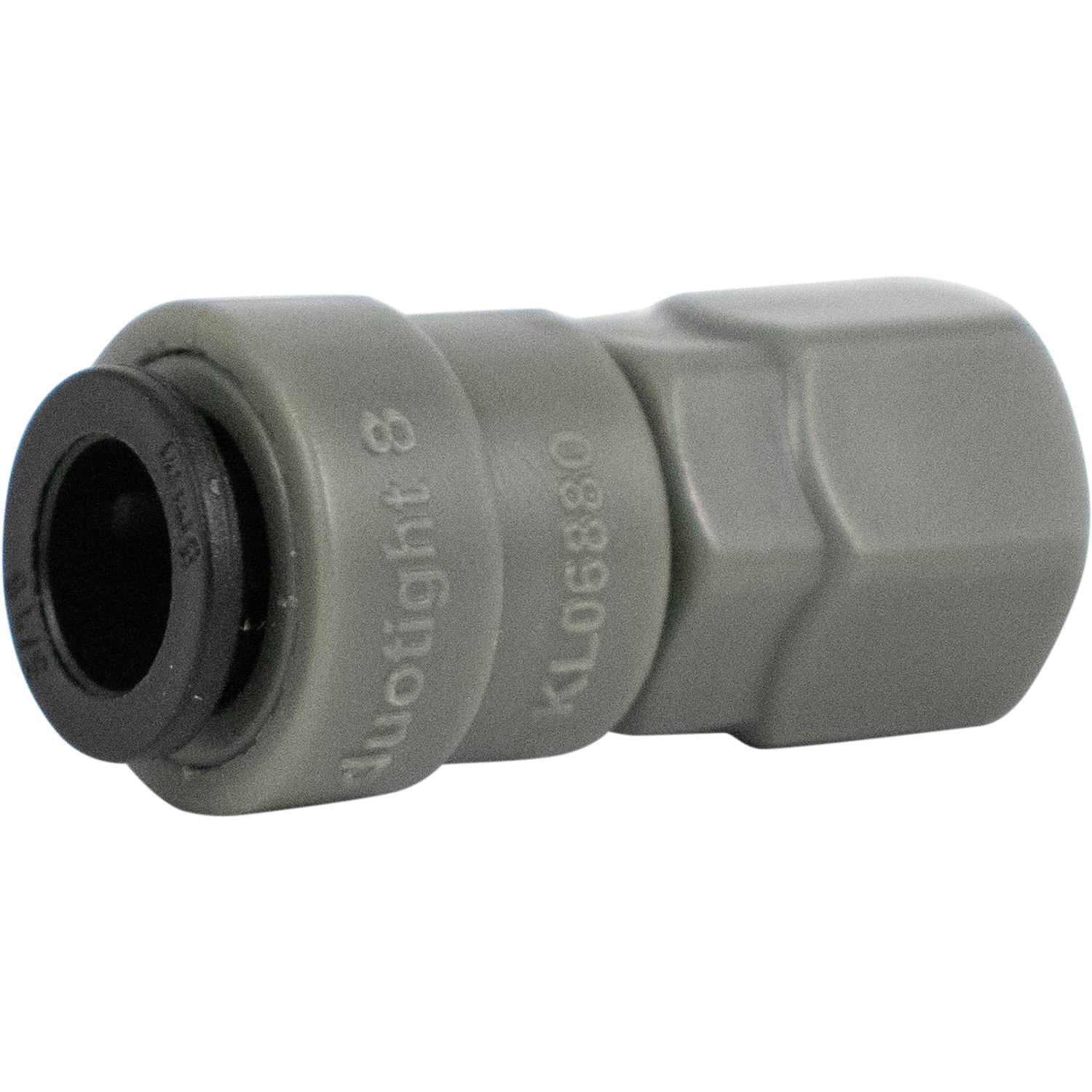

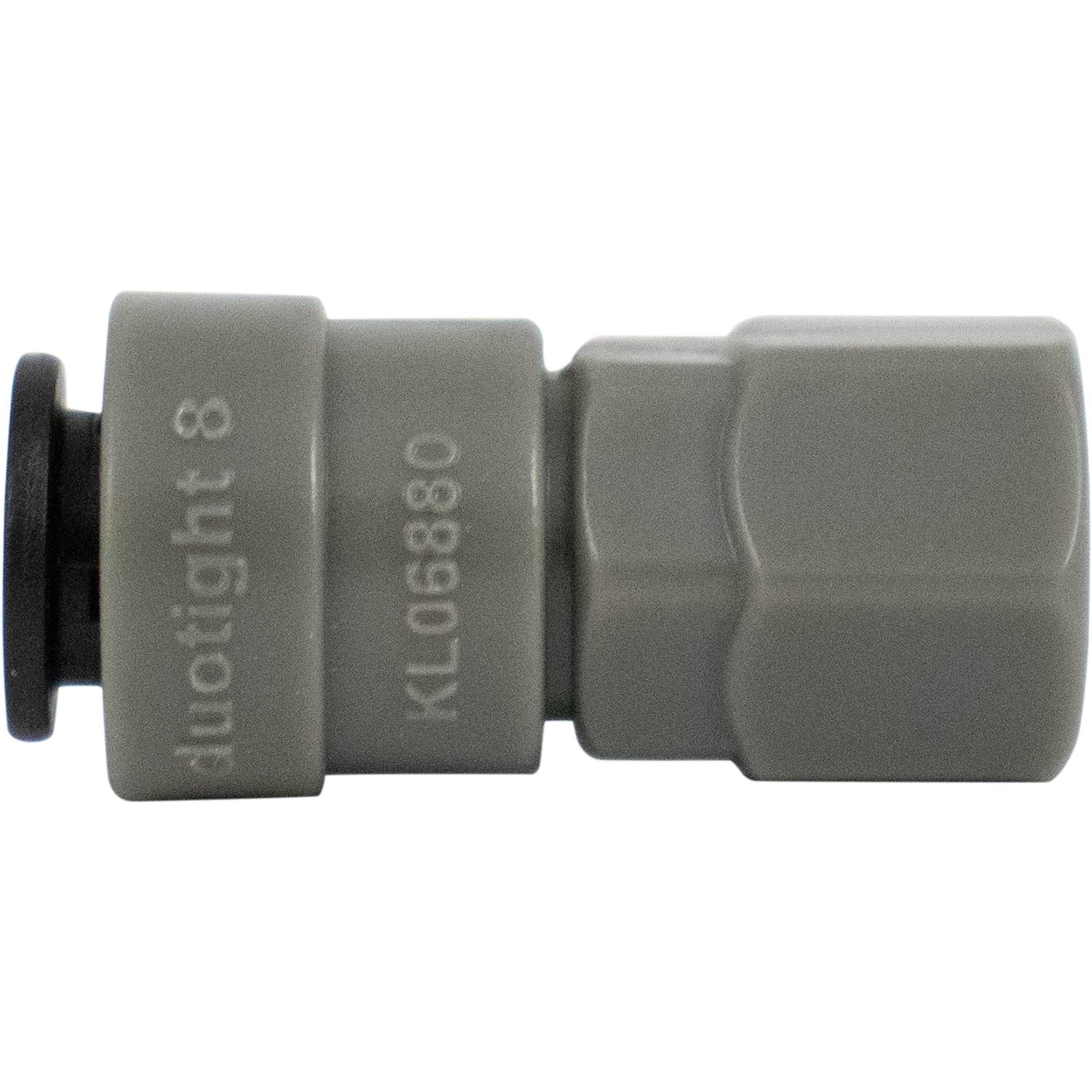

    Kegland Part number: KL06880



    Duotight Female Flare Fittings

    Duotight Push-In Fitting - 8 mm (5/16 in.) x 1/4 in. Flare

      Product form

      SKU: DUO106

      $4.79

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Description

        This Duotight fitting with 1/4" Flare is perfect for flared gas and beverage ball lock and pin lock disconnects. It can also be used to connect gas line to the flare fitting found on the KOMOS® CO2 Regulator. Compatible with EVABarrier 8 mm OD Tubing (D1717 & D1718).

        The Duotight fitting does not require a flare washer. See the instructions below for how to ensure a leak-free connection when attaching to flare fittings.

        Duotight fittings are high-quality push-in fittings that seal tight and offer superior sealing capacity due to the double O-ring sealing design.

        High Performance Double O-Ring Design:
        The secret to Duotight’s superior sealing performance comes from the fact that they use not one, but two high-quality EPDM O-rings. The double O-ring means they have literally twice the sealing surface when compared with other push-in fittings. This makes them more reliable and significantly reduces the chance of leakage.

        The double O-ring system also means that tubing can be bent at a much tighter radius without causing leaking issues, which can be an issue with other fittings. This combination of factors makes Duotight the most reliable push-in fittings on the market.

        EPDM offers excellent chemical resistance for a longer life span. When compared with silicone and vinyl, EPDM has much better gas transmission rates, better wear resistance, and is BPA-free.

        No Clamps Necessary!
        We recommend cutting your tubing straight, not on an angle, to ensure the line forms a complete seal. To remove the fitting simply push in the collet and the hose can be removed.


        Features:
        • Insert tubing and firmly push to connect
        • Easily release tubing by pushing in the collet
        • Suitable for both gas & beverage applications
        • Made from food-grade acetal plastic
        • Double O-rings made from highly chemical resistant EPDM
        • Locking teeth made from stainless steel
        • Pressure rated to 150 psi
        • Temperature rated to 212°F (100°C)

        Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.

        Ball lock fitting and regulator not included.

        Kegland Part number: KL06880



        Duotight Female Flare Fittings

        Documents
        duotight Female Flare Fittings
        Important Warnings & Shipping Info +
        Shipping Icon
        Free Shipping: Fast & Free Shipping over $79
        Shipping Icon
        Shipping Rates Apply: Bulk items like grain, bottles, and malt are excluded from our free shipping promotion due to their weight, and often dropship items. Standard shipping rates apply and are calculated at checkout based on your location and order size.
        Drop Ship Icon
        Drop Ship: This product will ship directly from the supplier. Delivery may take 1-4 weeks depending on the vendor.
        Discount Exclusion Icon
        Discount Exclusion: This item is not eligible for sitewide price reductions or percentage discounts.
        Freight Icon
        Freight Shipping: This item ships freight only.
        Pre-book Icon
        Pre Order: This item is available for Pre-Order. Full payment is required to reserve stock.
        Shipping Weight: 0.1 lb

        Recently viewed products

        • 5 stars: 38 (83%)
        • 4 stars: 5 (11%)
        • 3 stars: 3 (7%)
        • 2 stars: 0 (0%)
        • 1 star: 0 (0%)
        J
        John Jackson
        If you keg and use flares you will likely need this.

        In expensive works well with the correct tubing. No leaks and not exactly easy to remove but can be removed. This was a no brainer. I did make a CO2 distro system with this into an inexpensive kitchen refrigerator with the tank and distro system in the fridge. Doing this takes planning organization and space in the fridge or you will find yourself unhappy with the results. it works but probably not like you though it would unless you plan it out carefully. The same for a multi keg kegerator..

        R
        Ray Barboni from Miami
        Weak Threads and Gas Leaks

        The guidelines say to tighten with your fingers and then go another 90 degrees. This is flat-out wrong. Gas will escape. You have to tighten these things way past finger-tight plus 90 degrees and because the plastic is soft it's very easy to strip the threads. You have to know exactly how far to tighten then and you learn that by destroying one or two.

        E
        Emil
        Great adapters

        I'm reworking my Keezer and this is part of the redo and these work great. I haven't had a single leak

        K
        Kevin
        Used to connect to H853>Taprite regulator

        Had to tighten more than directions said to. Finger tight then used wrench until resistance felt then another 1/2 turn. Used soapy water test to verify seal. Duotight system held pressure for more than a week before I discontinued test.

        c
        chad
        Works fantastic

        This Duotight system works great. Like building Legos but for beer

        J
        James
        Duotight

        Not a good use on regulator with brass fitting. you need the insert and it's hard to get in. will change to Duo with 1/4 NPT to go into regulator next time. Love Duoptight completely change on all my gas and fluid line to Duotight PS now come up with a Duotight Cap

        D
        Daryl

        I have both pin locks and ball lock kegs so it easy just to change the 1/4" fitting with the 8 mm tube so I put them on the connectors and just change the to a different connector by plugging or plugging the tubing

        S
        Steven Johnson
        Duotight Push-In Fitting - 8 mm (5/16 in.) x 1/4 in. Flare

        Goes together easily

        R
        Randy C.
        They are the best!

        I really like the versatility of the quick connect. Tighten them down on your regulator and never have to remove them.

        J
        Jesse
        Duotight fittings

        These fittings are awesome. Easy Peasy.... I changed-out all my plumbing to this and it now the kegerator pours beautifully. I changed everything to duotight with a 10ft hose on each valve. I say 10' hose and 10psi for pressurizing the kegs. It worked beautifully for both lagers and IPAs.

        J
        Jeffrey
        Super simple

        I replaced the tower on my kegerator and decided to try the Duotight fittings. Super simple to put it together and ended up buying all of the parts to do the CO2 side as well.

        R
        Rob
        So far so good!

        No leaks! Easy to install and replace. Changed overt all my liuid lines using these evabarrier tubing and Pluto Beer guns! Love it!

        G
        Geoff

        Bought to adapt mfl ball valve to push-connect gas line

        D
        Donald

        Simple and quick attachment makes intial setup easy with not having to have deal with attempting to stretch tubing over Male fixture.

        N
        Nancy

        Very efficient and easy to use always Double check

        C
        Caleb
        work but break easily

        these work great IF you have them on correctly. It is very easy to over tighten and snap the fitting in half just using your fingers. I finger tightened three of them to cracking point before I realized it was the design of the unit and not a faulty set I'd gotten. Again they work just be careful tightening.

        C
        Chris

        Makes moving things around so easy.

        M
        Matt

        Super easy to use I have these on all my kegging products

        J
        Jason

        Awesomely convenient

        C
        Charlie
        So Far

        Just tested it out the other day I really like this so far hoping it holds up simple connecting that hasn't leaked and holds.

        J
        Jim Collum
        Duotight Push-In Fitting - 8 mm (5/16 in.) x 1/4 in. Flare

        No complaints..does what its supposed to do

        G
        Greg

        Really easy to use. I use a set of these for co2. Works well.

        T
        Tom
        Use these all over the place

        Must use nylon flared waher with metal flare (i.e. when not on keg adapter) or you will have a leak. They can fail when over tightened. Now that I know the pitfalls I still use them everywhere for gas fittings.

        J
        John
        Basically fool proof

        Super easy to install allows me to swap my CO2 tank between gas to liquid disconnects in seconds. Ruined the threads on one by cross-threading - if you feel resistance while screwing them on before they're fully seated remove it and rethread.

        D
        Douglas
        Simple versatile no leaks.

        Simple versatile no leaks.

        W
        Weston

        Super easy can’t believe I haven’t used it before

        P
        Pete
        Work great

        Easy to use and absolutely no leaks !

        M
        Mark
        Easy to use

        I love duotight fittings. They are extremely easy to use and provide a leak free seal.

        L
        Lou Gamache
        Finger Tight Plus 1/4 Turn Any More Will Wreck The Fitting

        Disappointed with the installation instructions... that say finger tight plus 180º (1/2 turn) more. I did exactly that with a quality CM Becker ball lock but found it distorted the Duotight and pulled the plastic threads. I ruined one fitting by exactly following those instructions... Subsequently I found the ideal torque is finger tight plus 90º (1/4 turn) more. That seals properly keeps the fitting intact and it doesn't back off the threads... Five stars for the part - Zero stars for the installation instructions.

        A
        Adrian
        A system-wide upgrade worth making

        This small cheap easy device is simple and quick to install works flawlessly and makes life a lot easier than hose barbs which seem like caveman tech now that I'm living that ~duotight life~. Grab this and never look back

        J
        John
        Ease to use fittings

        Easy to make leak-proof connections but after using them once one of the teeth that holds tubing broke off on all of them. I used one for holding about 25 psi on fermentation and another one for pressure testing at 5 psi. I think the spec for these are rated higher than the pressure I used at. Didn't really stress them or yank of the tubes. Seems like manufacturing defect.

        M
        Michael
        Brilliant engineering

        This and all Duotight fittings are good upgrades from standard swivel nut attachments along with Evabarrier tubing. No more forcing thick tubing onto the QD and clamping down. Takes the drudgery out of the routine disassembling and cleaning of draft lines.
