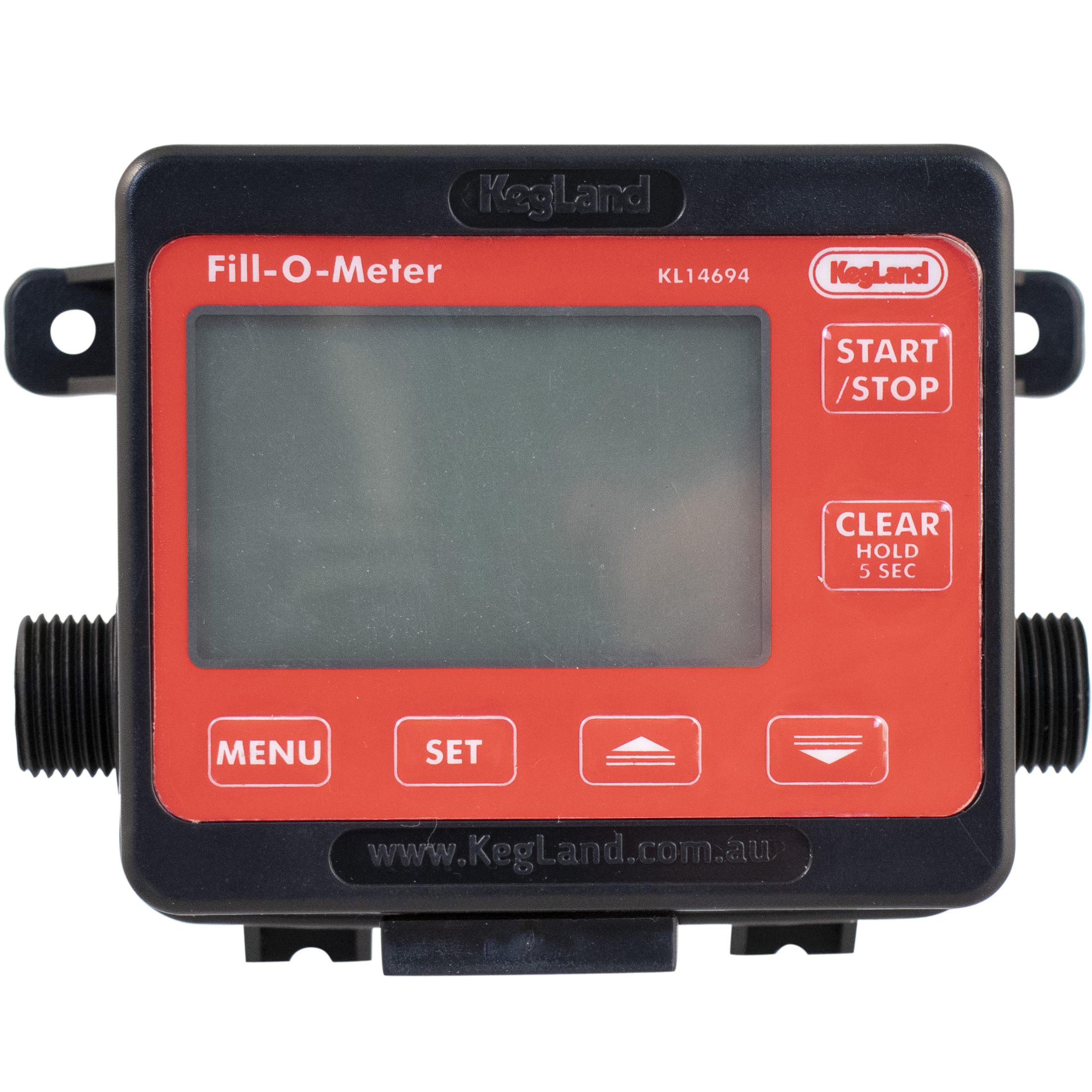

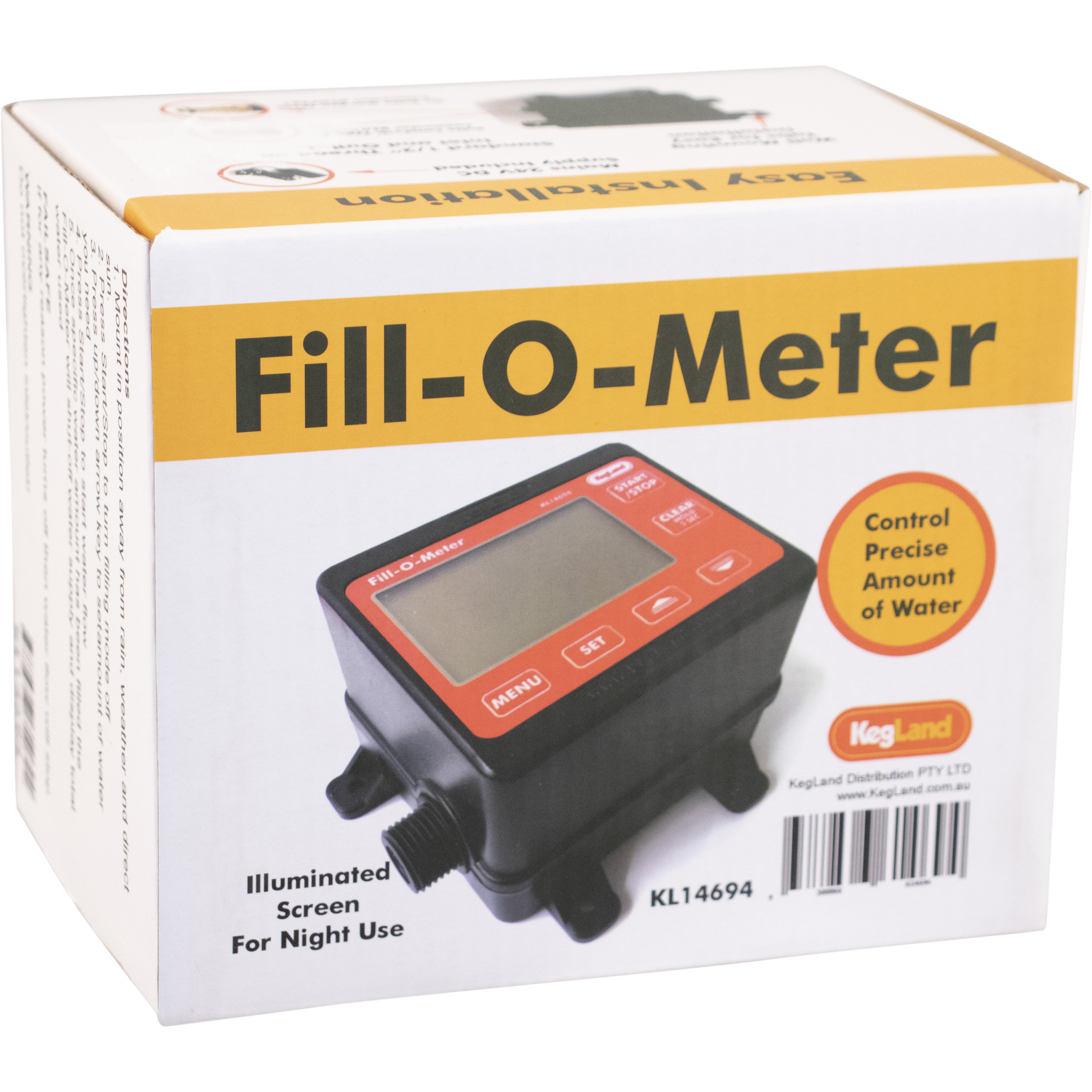

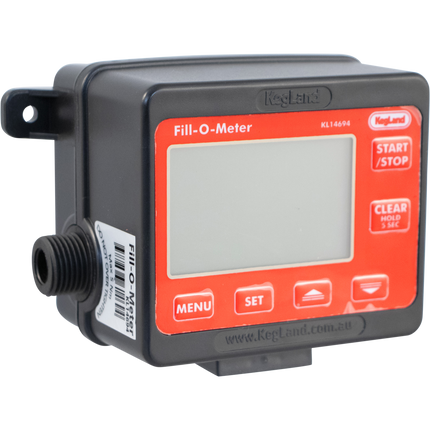

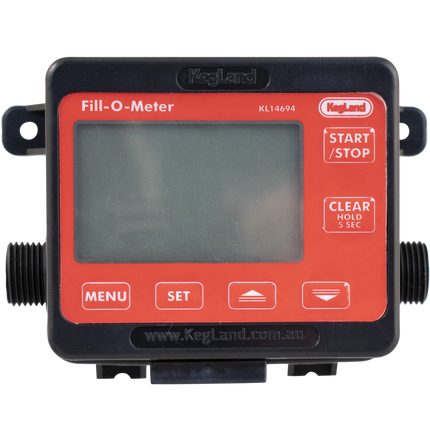

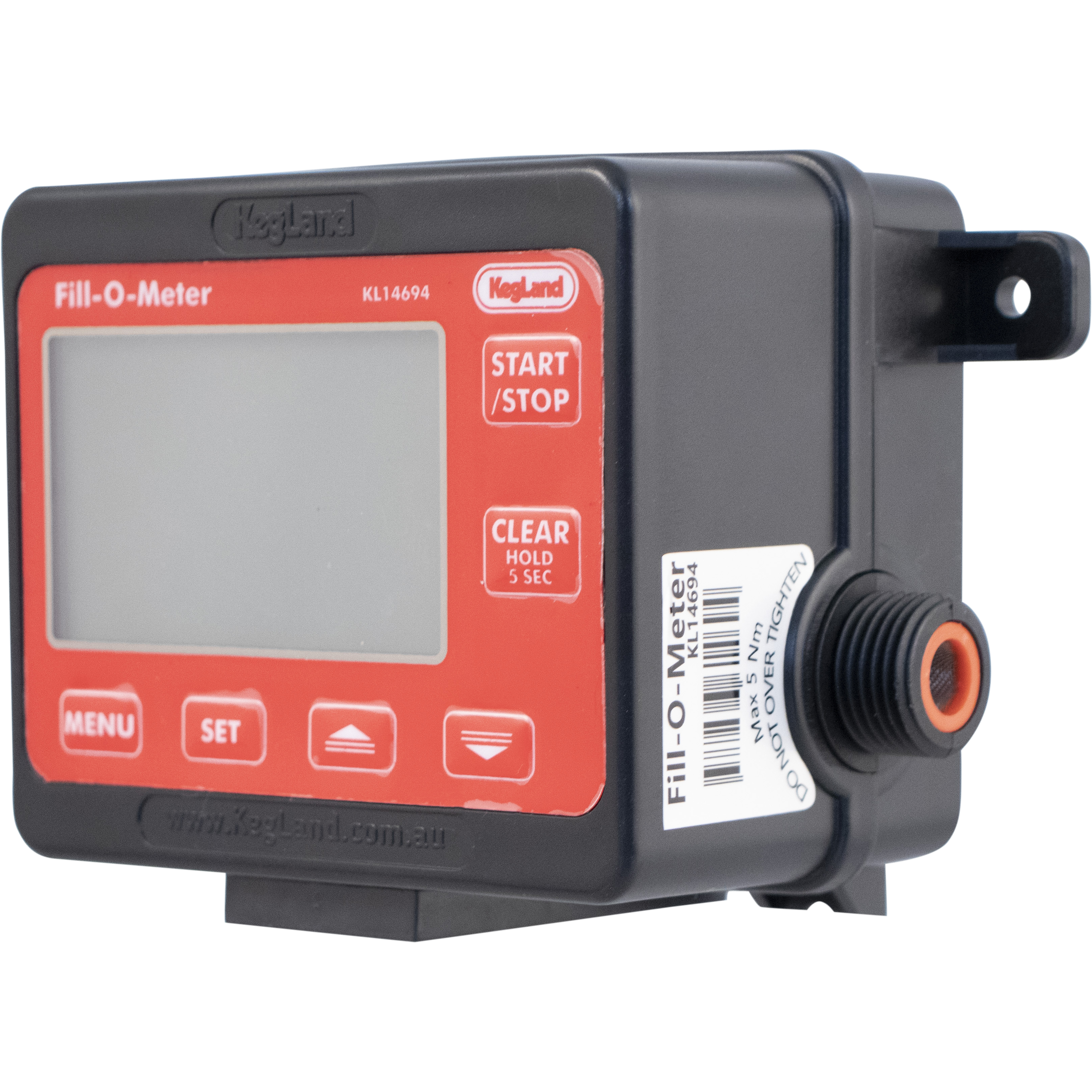

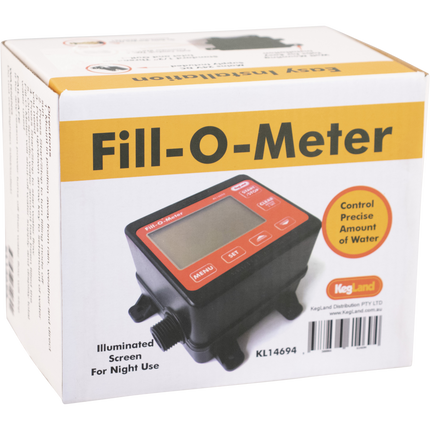

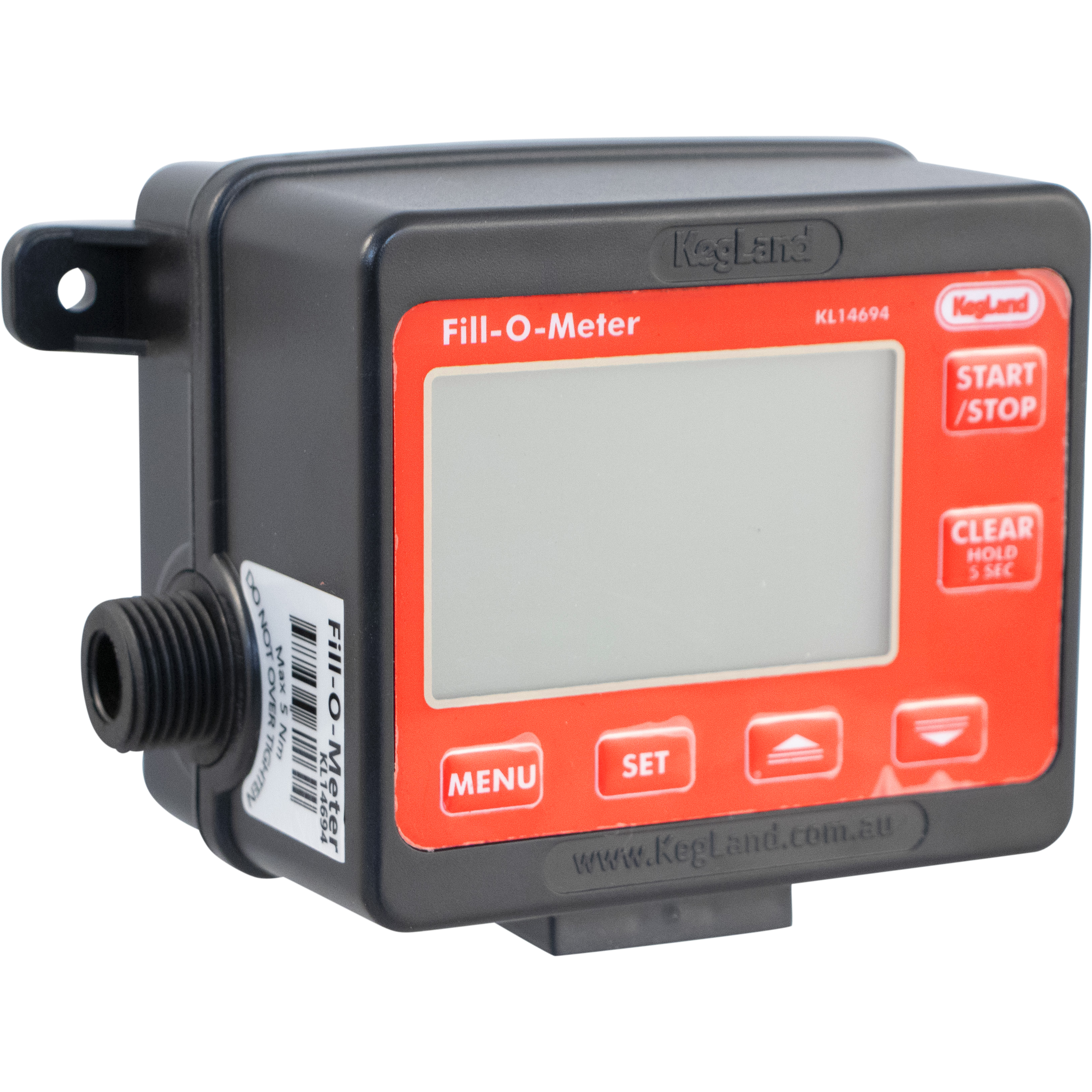

Fill-O-Meter - Water Measuring Flow Meter Device

    Description

    No More Spillovers! Unlike other tap timers that simply measure time, this Fill-O-Meter measures volume of water and will automatically turn off when the specific volume of water is dispensed.

    We recommend setting up the Fill-O-Meter with either Duotight fittings or Type A Camlocks. Thread tape will be required for the Camlock. Use sparingly as too much plumber's tape can damage the plastic thread. And it is very important to never overtighten!

    • Displays real time flow rate and volume (Liters/Min or Gallons/Min)
    • Accurately measures and controls volumes at flow rates from 1-30L/Min (0.26-7.9Gal/Min)
    • Never overfill or spillover again
    • Splash resistant housing
    • Great for filling pools, tanks, brewery hardware, distilling gear, mixing liquid and many other applications
    • Integrated flow meter and solenoid valve
    • Illuminated display for usage in the evening
    • Integrated sound alarm
    • Easy 1/2" BSP Inlet and Outlet
    • Automatic failsafe - flow is stopped if the unit loses power

    Important Notes:
    DO NOT flow liquid the wrong direction, it will break the unit.

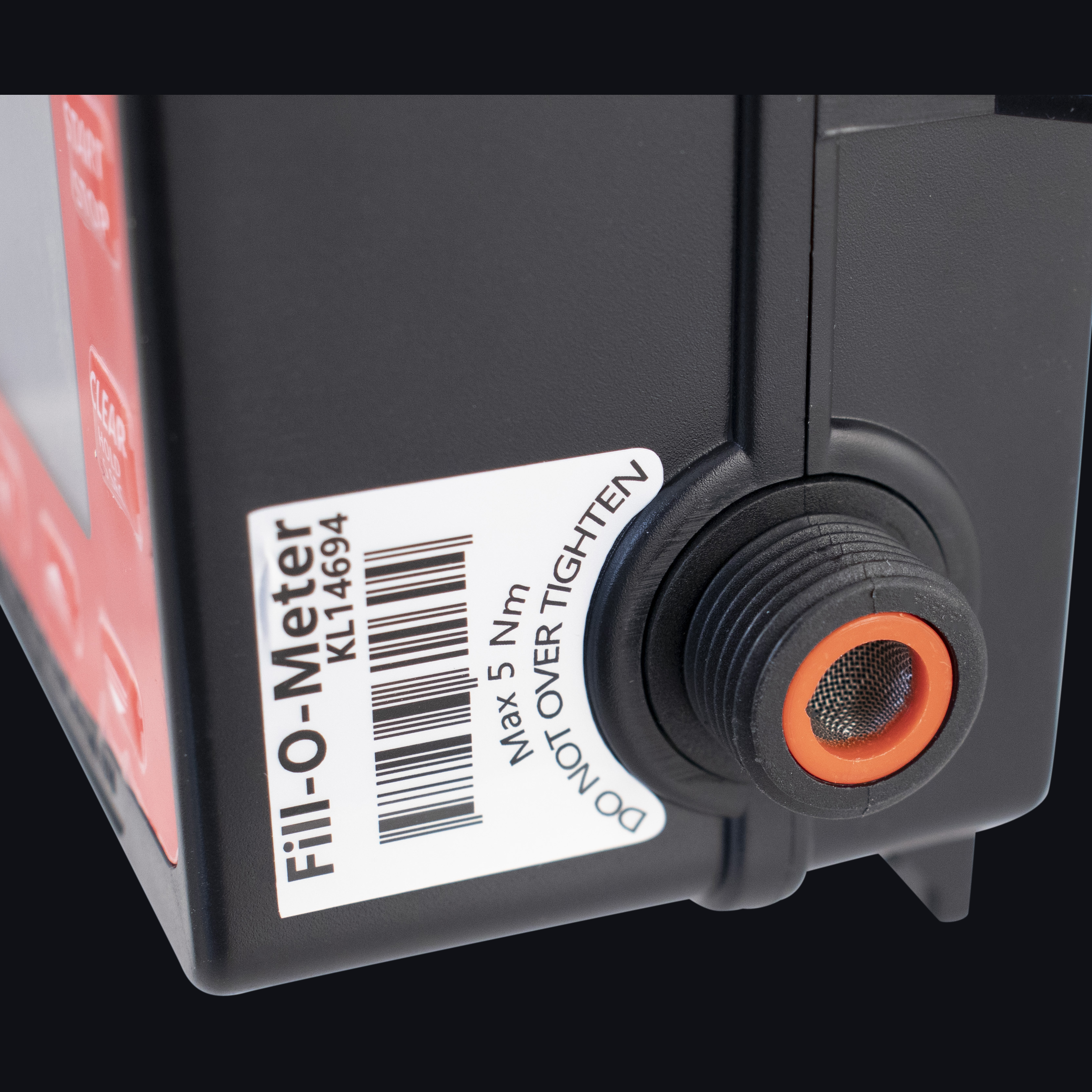

    DO NOT overtighten fittings onto the 1/2" ports.
    DO NOT exceed temperatures greater than 40°C through the unit.

    Specifications:
    • Flow Range: 1-30L per minute
    • Temperature Range 0°C to 40°C
    • LCD: 3 inch back lit display
    • Housing Material: ABS
    • Input/Output threads: BSP 1/2"
    • Pressure Rating: 0-12bar (0-180psi)
    • Accuracy: +/- 5%

    Please Note: Accuracy can be improved with stable flow. Repeated start/stop or variation in water supply can have negative effect on accuracy. If you are noticing innaccurate fill levels, see the instruction manual for calibration instructions.

    KegLand Part Number: KL14694

    Fill-O-Meter - Water Measuring Flow Meter Device

      Product form

      SKU: BE671

      $164.99

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        No More Spillovers! Unlike other tap timers that simply measure time, this Fill-O-Meter measures volume of water and will automatically turn off when the specific volume of water is dispensed.

        We recommend setting up the Fill-O-Meter with either Duotight fittings or Type A Camlocks. Thread tape will be required for the Camlock. Use sparingly as too much plumber's tape can damage the plastic thread. And it is very important to never overtighten!

        • Displays real time flow rate and volume (Liters/Min or Gallons/Min)
        • Accurately measures and controls volumes at flow rates from 1-30L/Min (0.26-7.9Gal/Min)
        • Never overfill or spillover again
        • Splash resistant housing
        • Great for filling pools, tanks, brewery hardware, distilling gear, mixing liquid and many other applications
        • Integrated flow meter and solenoid valve
        • Illuminated display for usage in the evening
        • Integrated sound alarm
        • Easy 1/2" BSP Inlet and Outlet
        • Automatic failsafe - flow is stopped if the unit loses power

        Important Notes:
        DO NOT flow liquid the wrong direction, it will break the unit.
        DO NOT overtighten fittings onto the 1/2" ports.
        DO NOT exceed temperatures greater than 40°C through the unit.

        Specifications:
        • Flow Range: 1-30L per minute
        • Temperature Range 0°C to 40°C
        • LCD: 3 inch back lit display
        • Housing Material: ABS
        • Input/Output threads: BSP 1/2"
        • Pressure Rating: 0-12bar (0-180psi)
        • Accuracy: +/- 5%

        Please Note: Accuracy can be improved with stable flow. Repeated start/stop or variation in water supply can have negative effect on accuracy. If you are noticing innaccurate fill levels, see the instruction manual for calibration instructions.

        KegLand Part Number: KL14694

        Documents
        KL14694 - Fill-O-Meter Instruction Manual
        Important Warnings & Shipping Info +
        Shipping Icon
        Free Shipping: Fast & Free Shipping over $79
        Shipping Icon
        Shipping Rates Apply: Bulk items like grain, bottles, and malt are excluded from our free shipping promotion due to their weight, and often dropship items. Standard shipping rates apply and are calculated at checkout based on your location and order size.
        Drop Ship Icon
        Drop Ship: This product will ship directly from the supplier. Delivery may take 1-4 weeks depending on the vendor.
        Discount Exclusion Icon
        Discount Exclusion: This item is not eligible for sitewide price reductions or percentage discounts.
        Freight Icon
        Freight Shipping: This item ships freight only.
        Pre-book Icon
        Pre Order: This item is available for Pre-Order. Full payment is required to reserve stock.
        Shipping Weight: 1.6 lb
