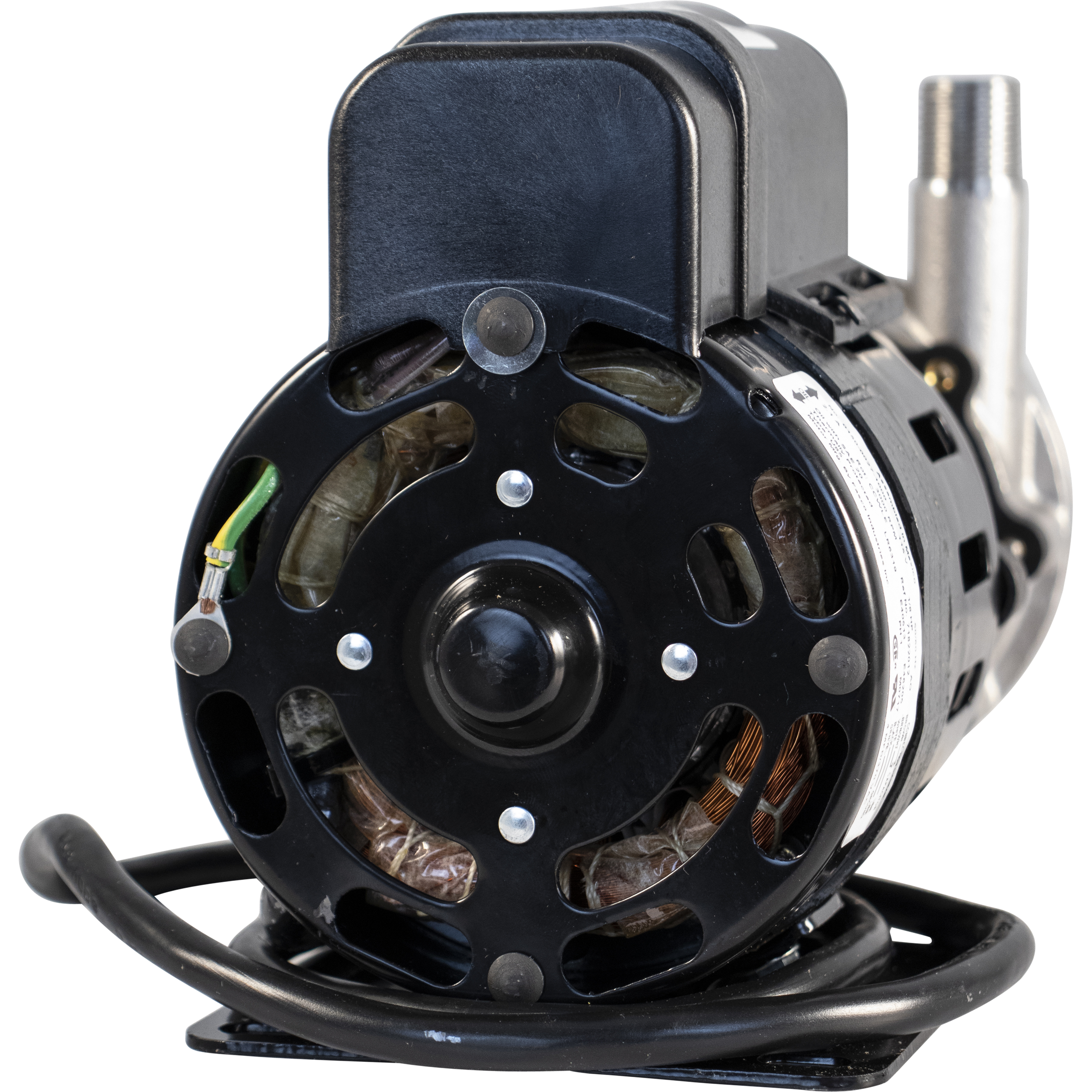

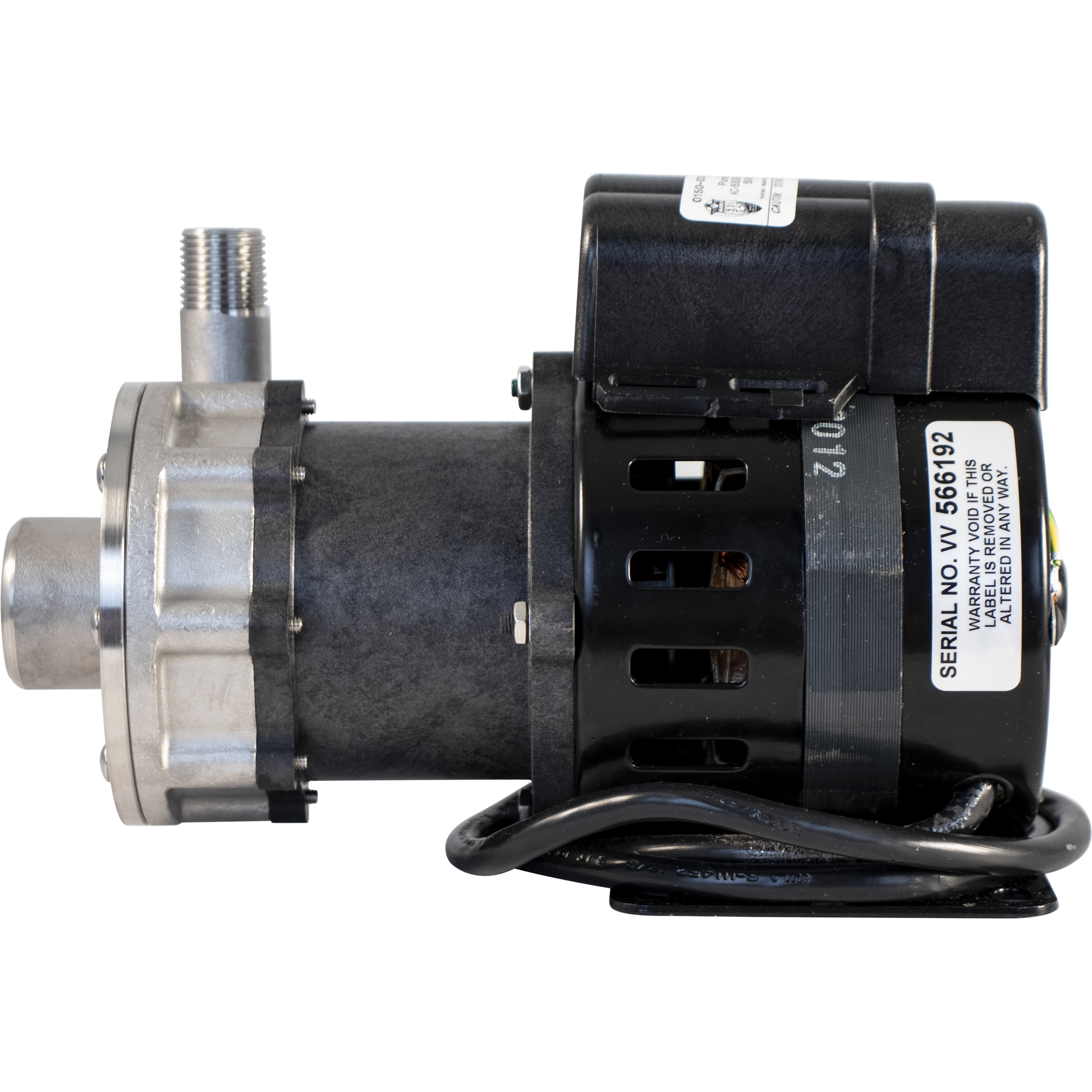

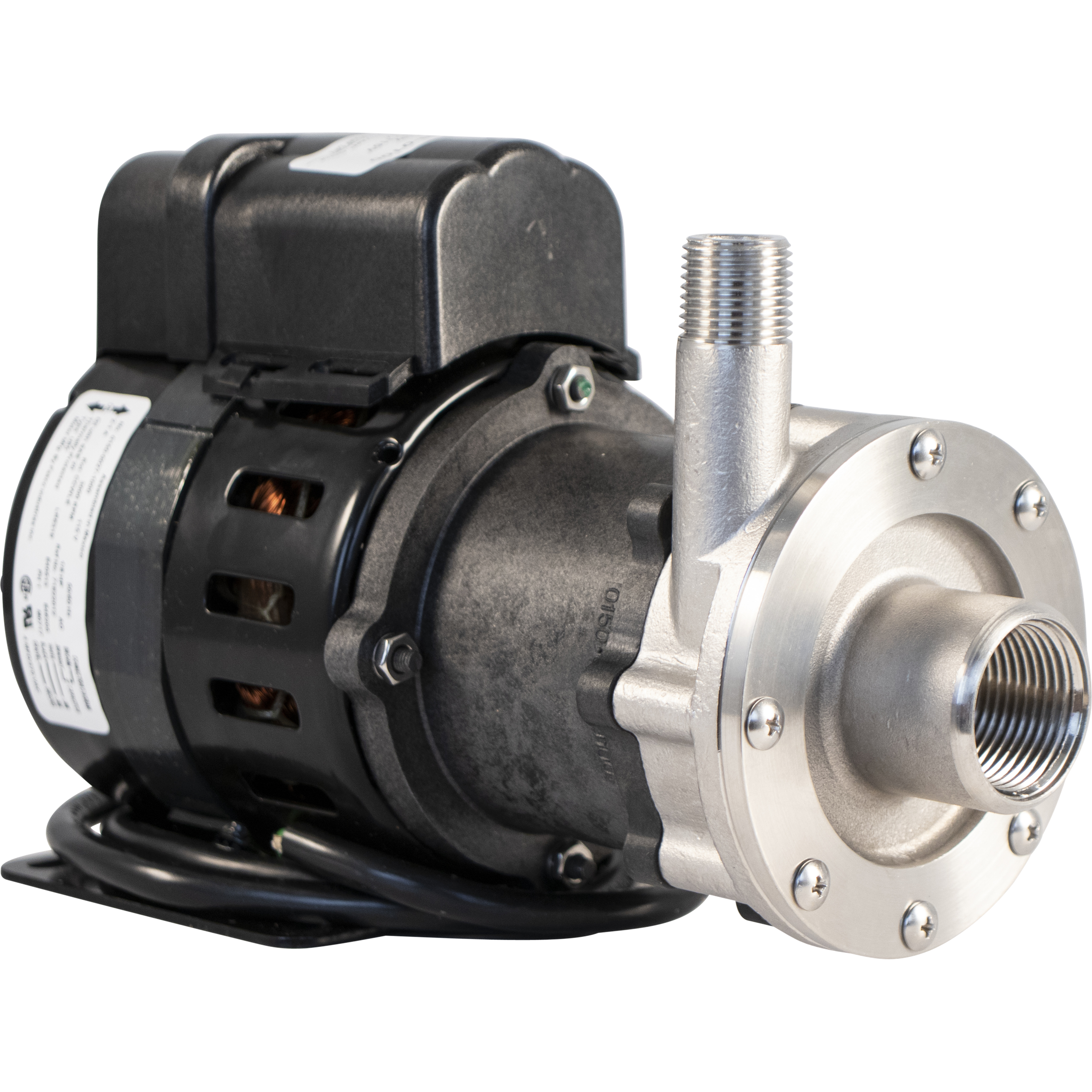

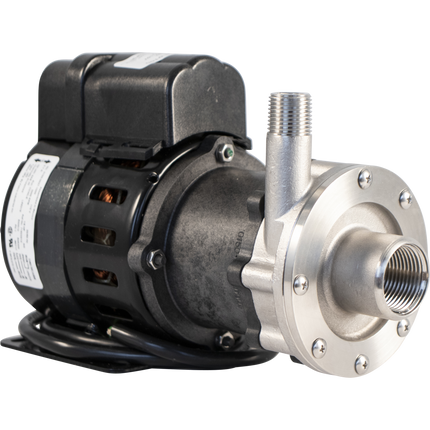

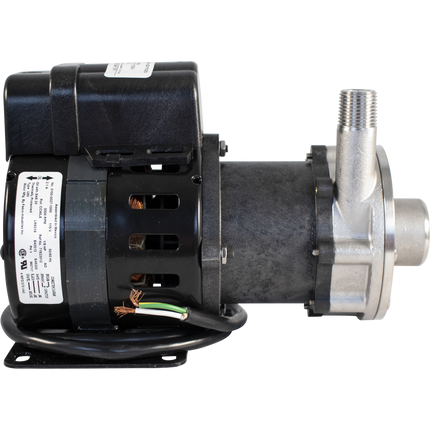

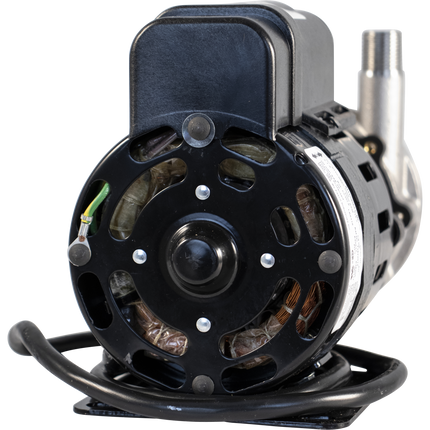

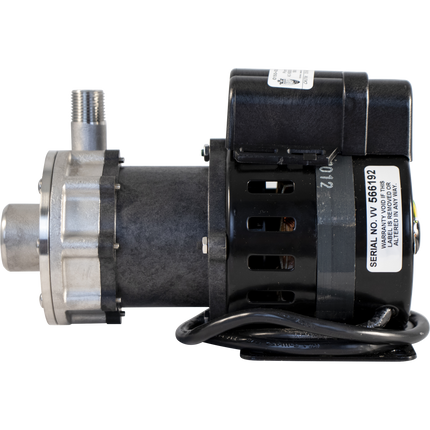

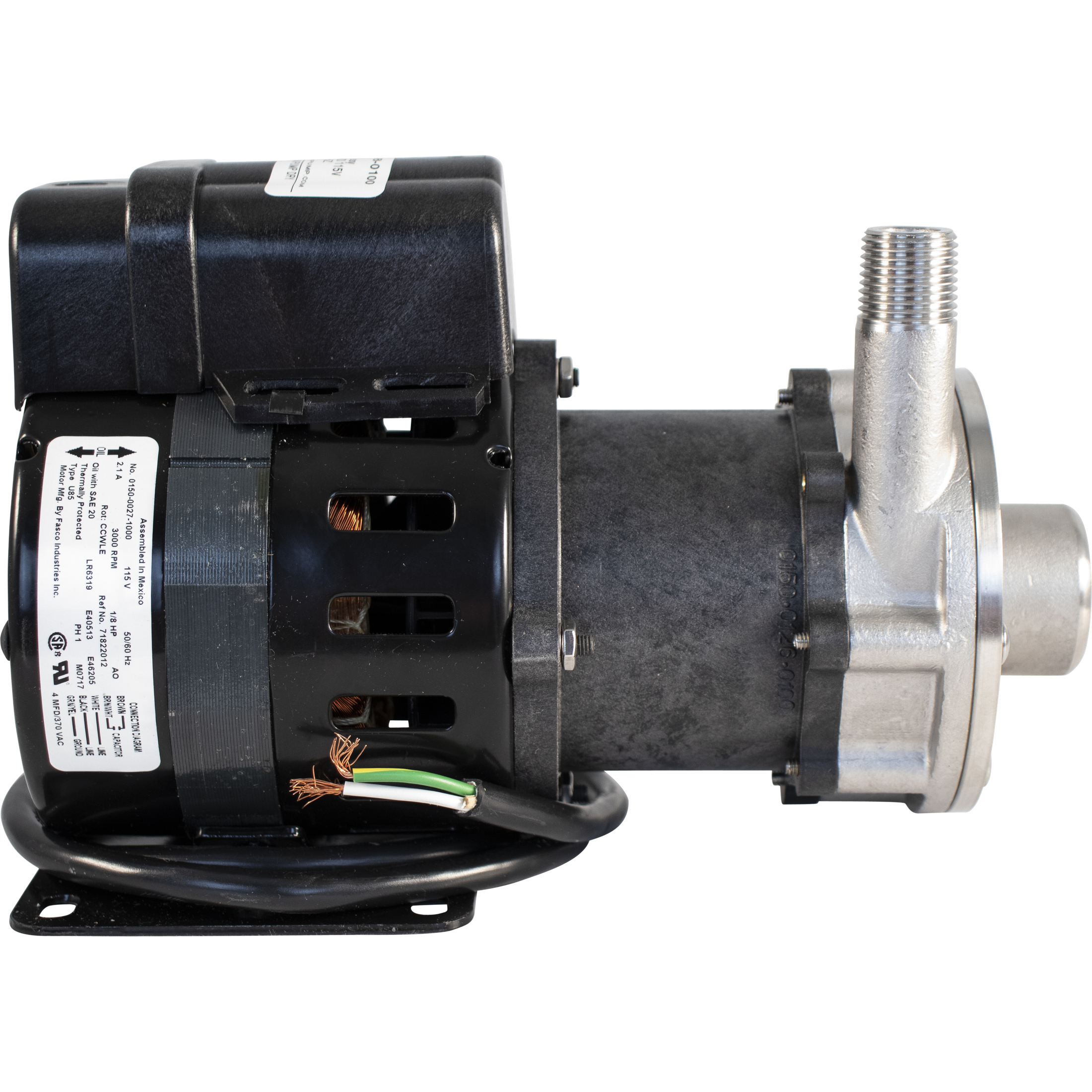

Designed for the small 'Nano' commercial brewery where the H315 series is too small but you don't yet need a full on expensive professional brewery pump. The March Nano Brewery Pump –Stainless features a robust flow rate of 17 GPM with all the benefits brewers have come to expect from March magnetic drive pumps. Those features include the ability to throttle back flow and the use of food-grade materials where the beer is in contact with the pump.
*Please Note* - This pump must be taken apart and cleaned after every use to prevent the impeller from seizing. To do so, take the bolts out of the pump head, remove the pump head from the pump, then take the impeller shaft and actual impeller apart. Clean well, and reassemble.

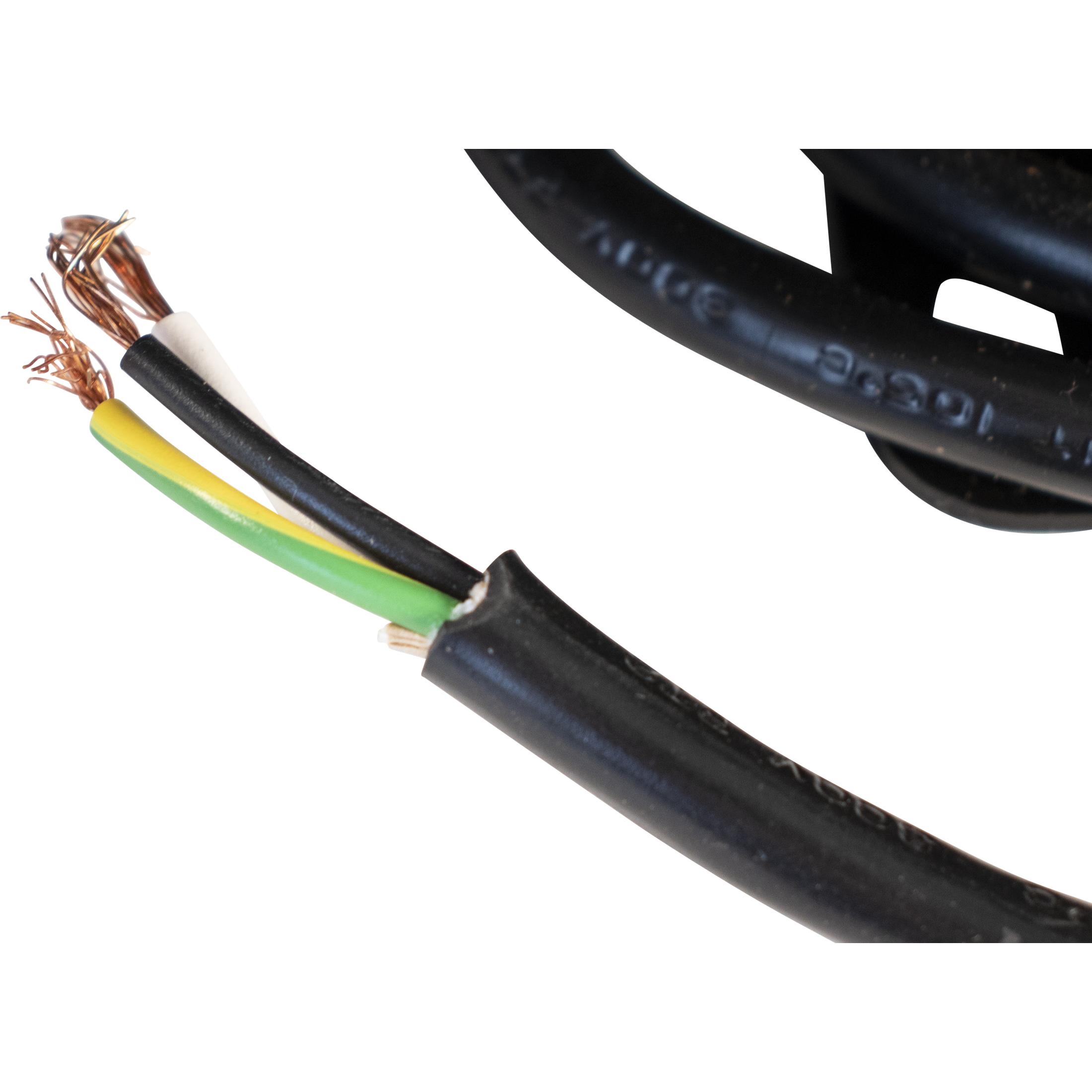

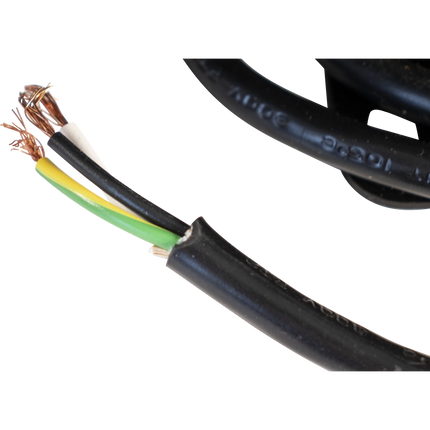

Please note that the pump comes with a three foot cord WITHOUT a plug attached.
Statistics: Motor: 1/8HP 115v/60Hz
Max Flow: 17 G.P.M at zero head
Max Head: 27 ft. at 1 GPM

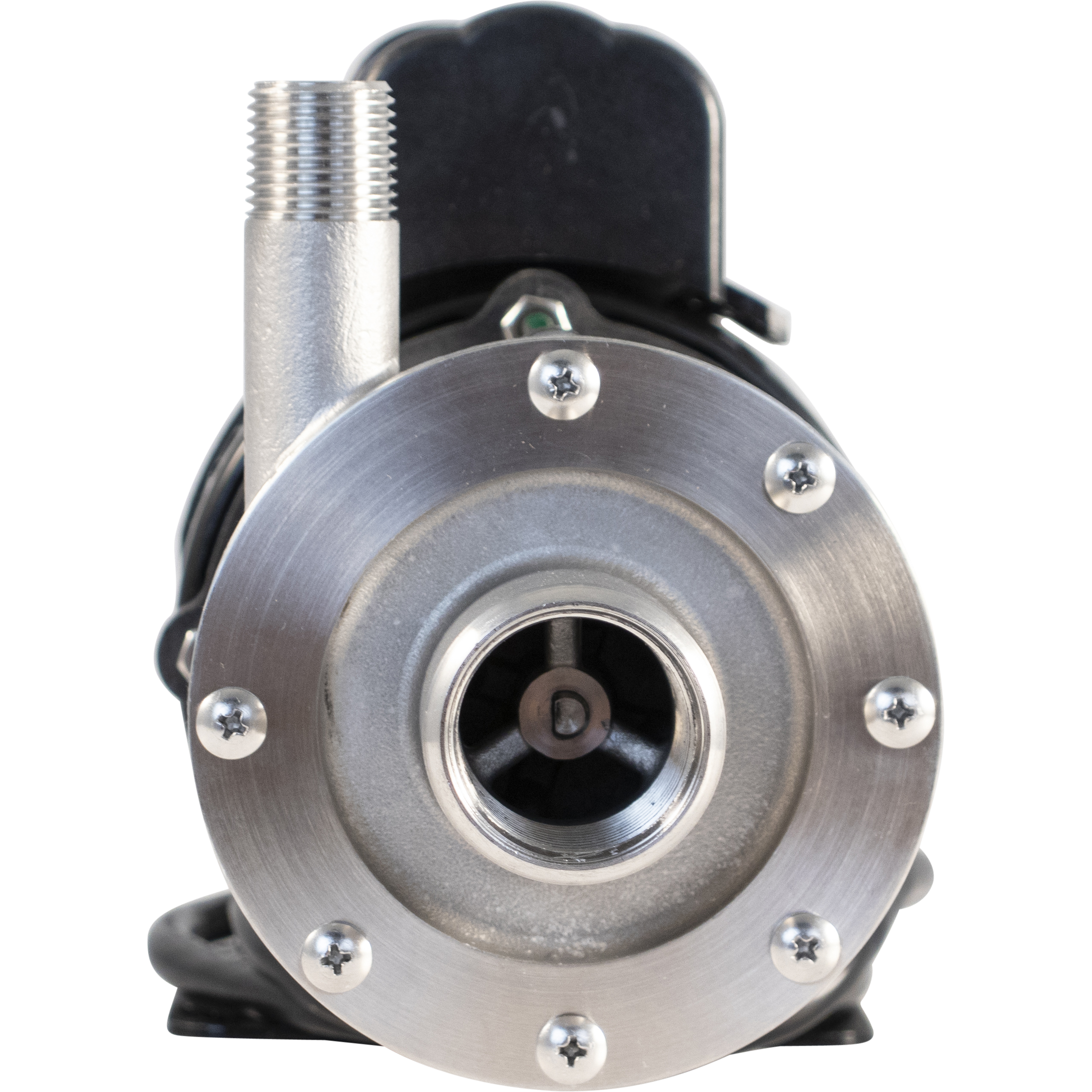

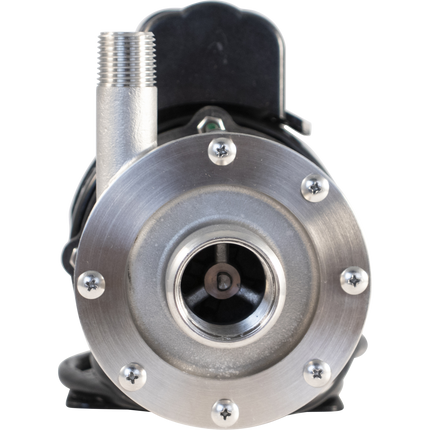

Inlet: 1" FPT
Outlet: 1/2" MPT
Pressure: Max. internal pressure is 200 psi
Temperature Range: 250F or 121.1C
Electrical: 115V 50/60HZ
HP: 0.125
KW: .093
Materials in Contact with Beer:
Polysulfone (Impeller)
Stainless Steel (Front and Rear Housing)
Buna N (O-Ring)
Ceramic (Thrust Washers)
Non-Submersible
Max. liquid temperature is 250F degrees
Max. internal pressure is 200 psi
