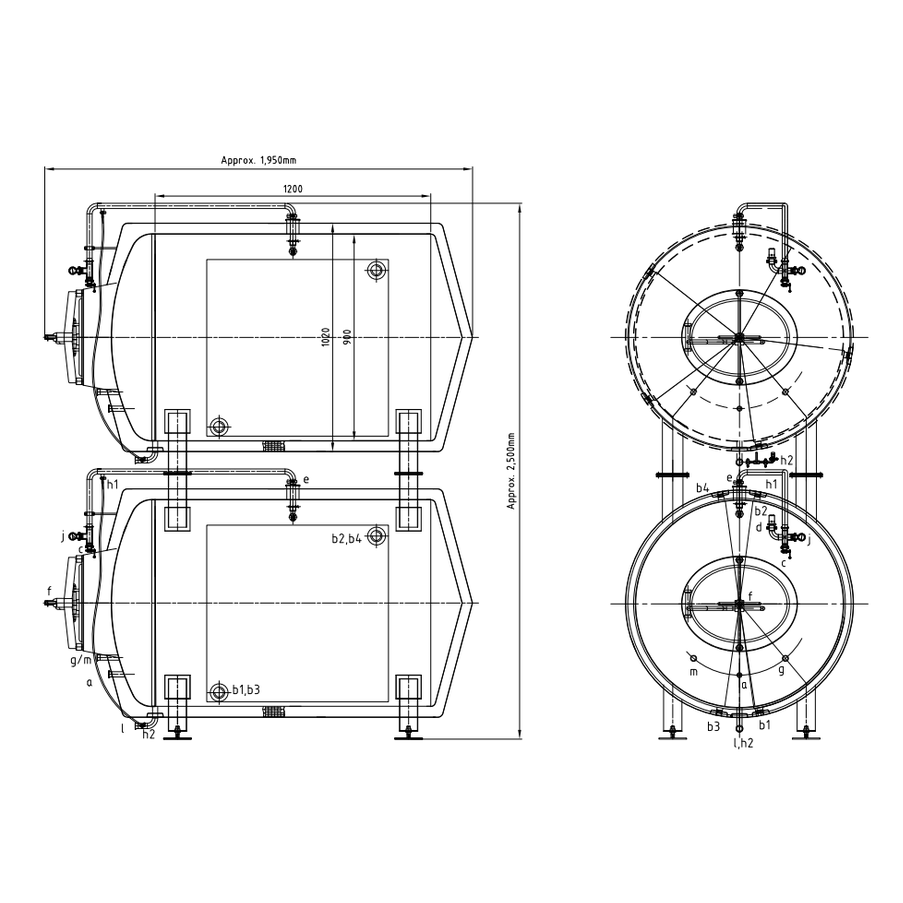

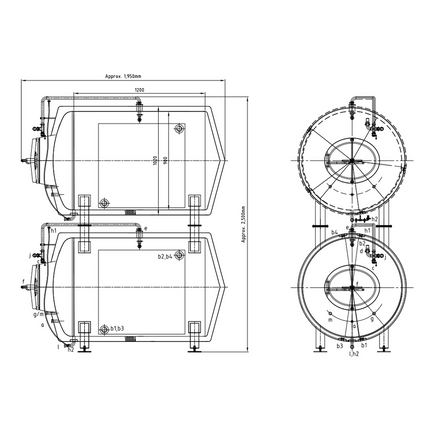

Stacking 7 bbl horizontal lagering tanks. Comes as a set of (2) 7 bbl brite tanks, top and bottom. See technical drawing below for more details.
MB jacketed brite tanks are made from 304 stainless steel and built to high quality standards. All of our brite tanks are pressured tested at the factory, feature 100% sanitary welds, and are backed by the MoreBeer! Pro one year warranty. Every brite tank features an average 15% headspace not stated in the volume, so for example, a 10 bbl brite really has 11.5 bbl of volume.
Features Include:
-
15 PSI (1 bar) working pressure
-
Side manway door for cleaning
-
1.5" Tri-clamp carbonation stone
-
1.5" Tri-clamp pressure gauge
-
1.5" Tri-clamp Perlick-style sample valve
-
1.5" Tri-clamp pressure/vacuum relief
-
1.5" bottom tri-clamp drain
-
Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning
-
3/4" NPT glycol ports
Construction
-
304 stainless steel construction
-
Double walled with 80 mm thick polyurethane insulation
-
External Shell: 2 mm thick with brushed finish
-
Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated
-
Glycol Jacket: dual cooling zone, 1.5mm thick
Specifications:
-
Stacked Tank Height: 99"
-
Stacked Tank Depth: 77"
-
Stacked Tank Width: 40"
-
Stacked Empty Weight: 1,410 lbs
-
Working Volume per Tank: 7 bbl
-
Total Volume per Tank: 7.9 bbl
-
Jacket Surface Area per Tank: 3,177 in² (2.05 m²)
Please Contact our Customer Service department at 1-800-600-0033 to assess shipment costs and place an order.

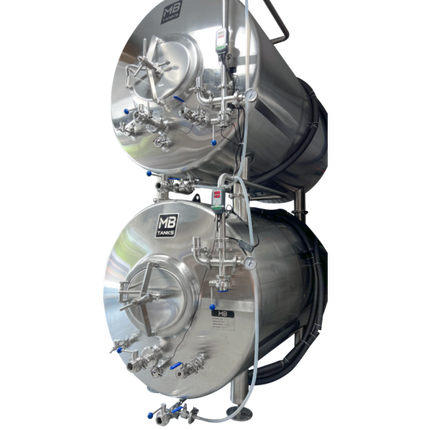

NOTE: Example photo shows 10 bbl stacking tanks.
This item does not qualify for free shipping.
