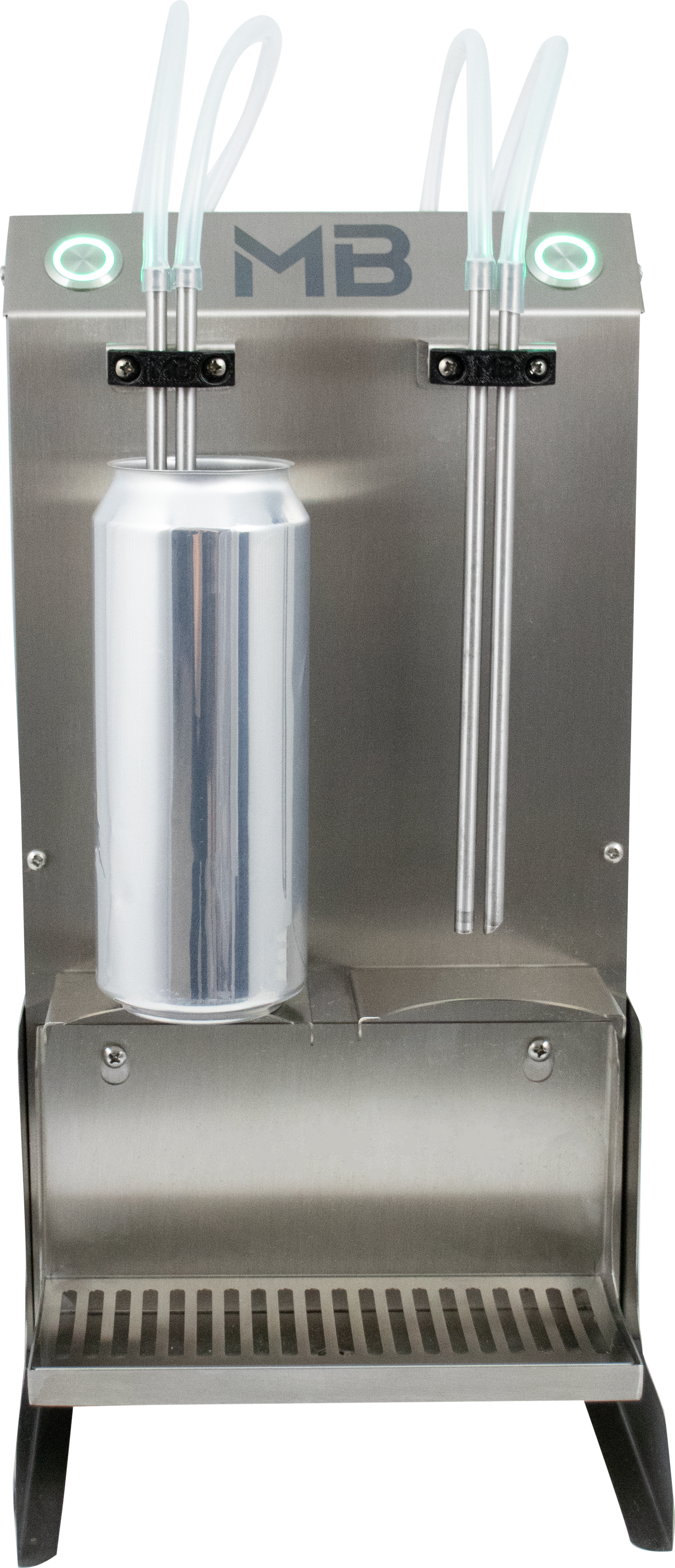

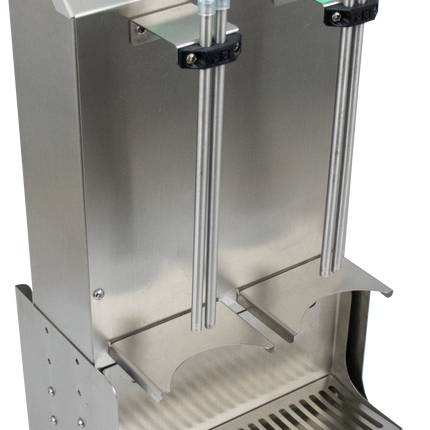

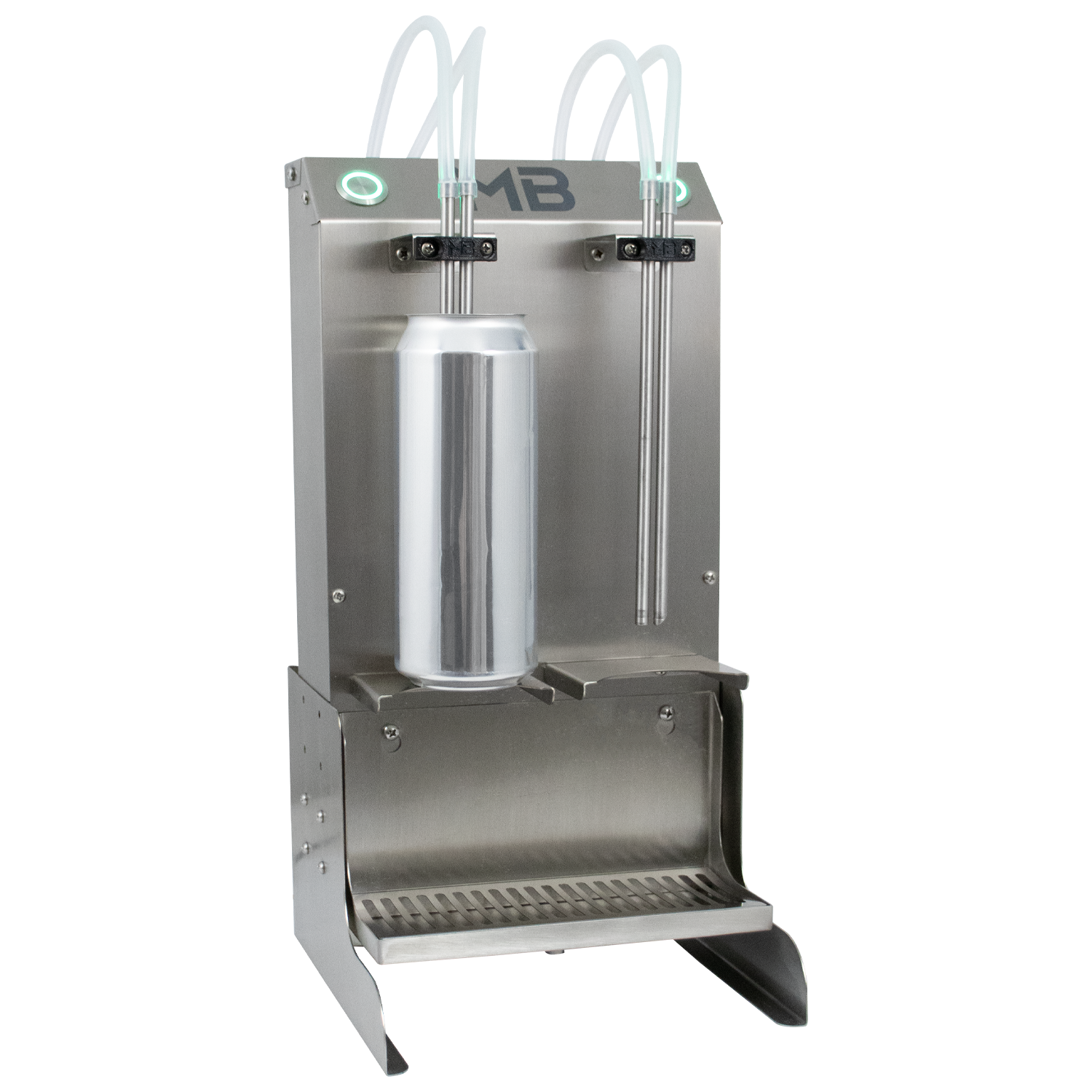

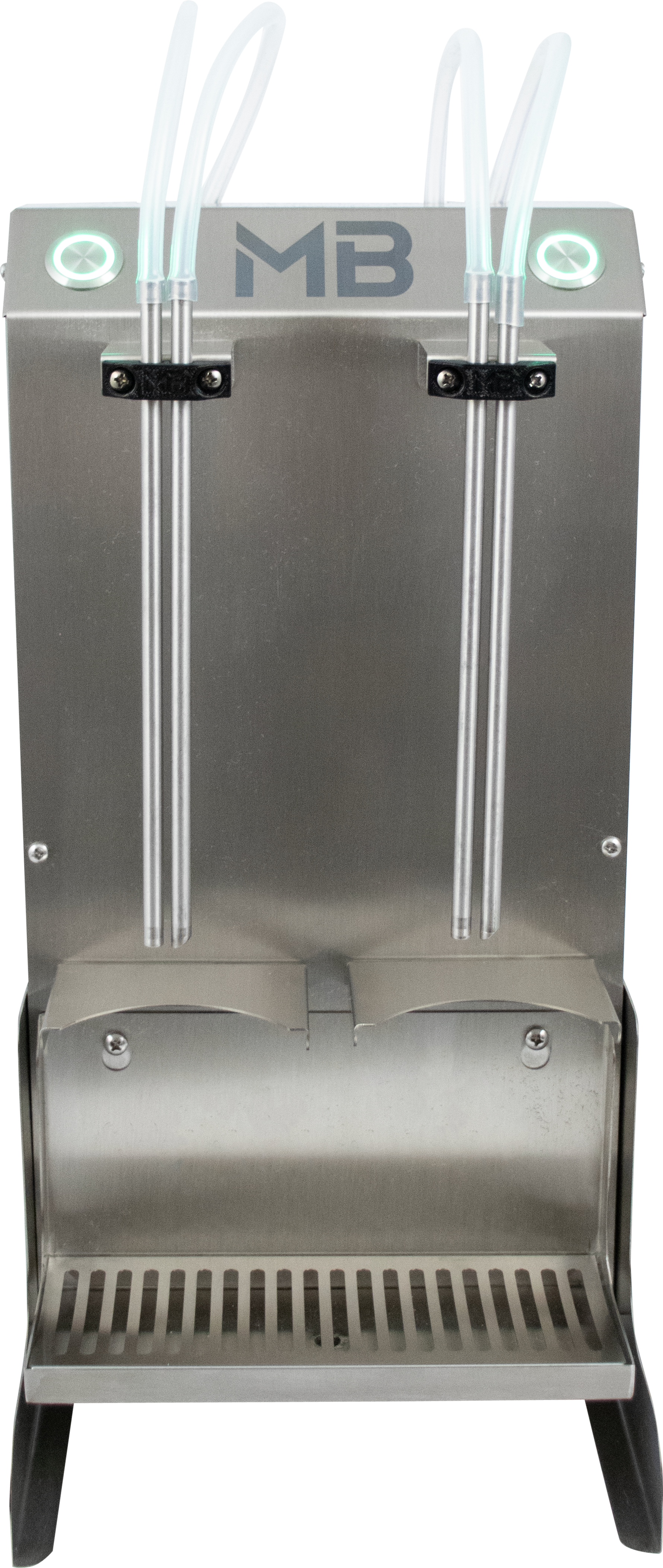

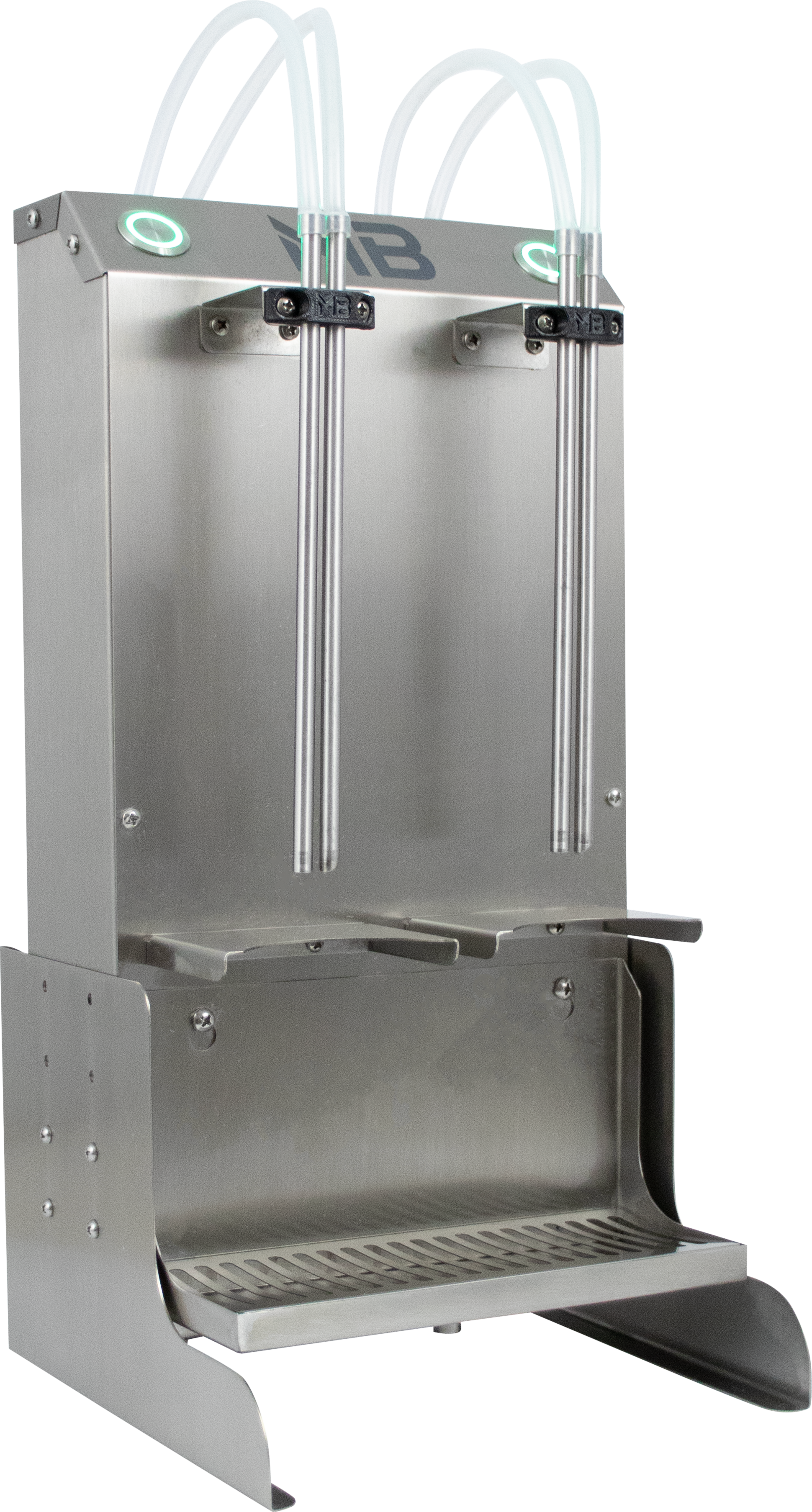

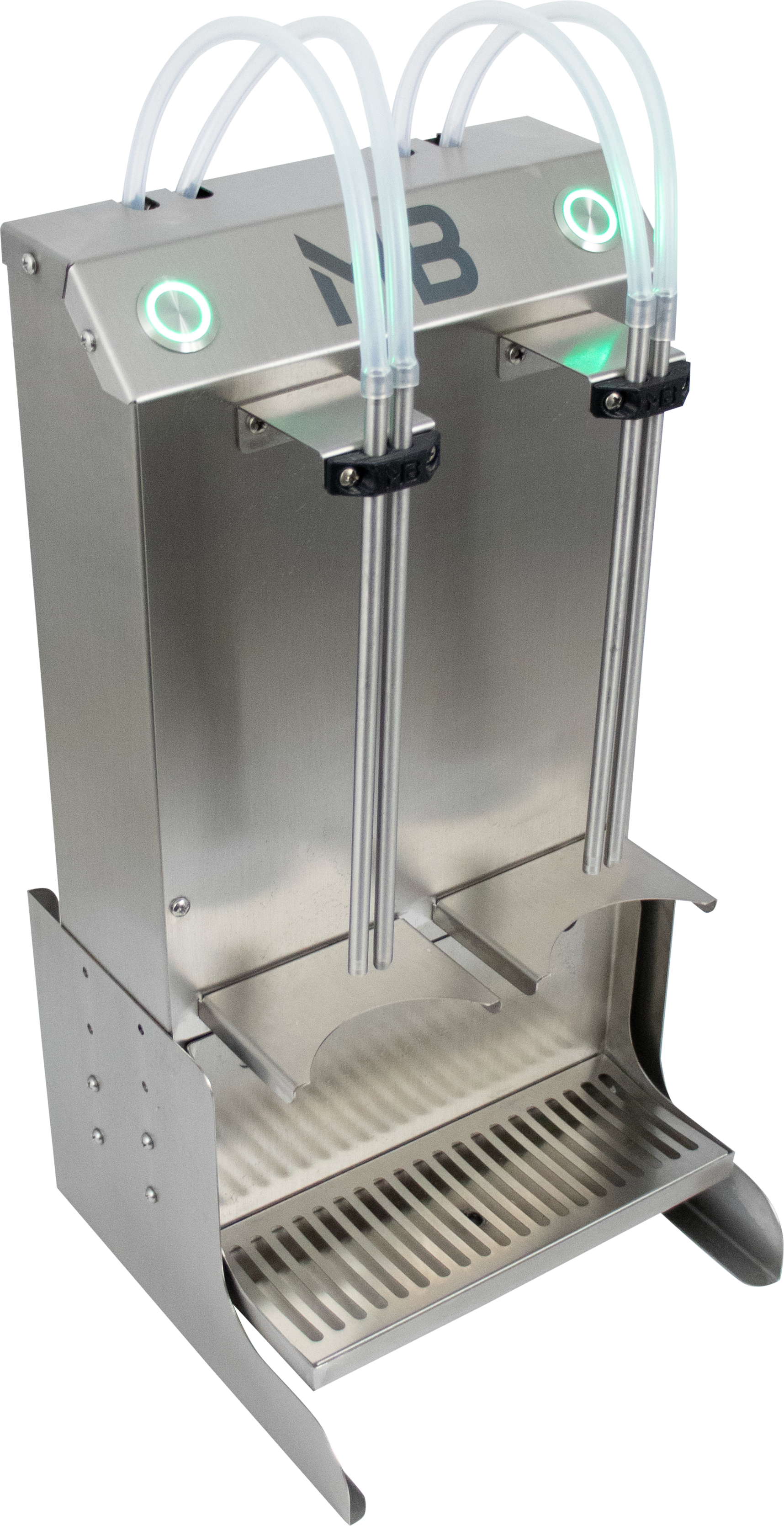

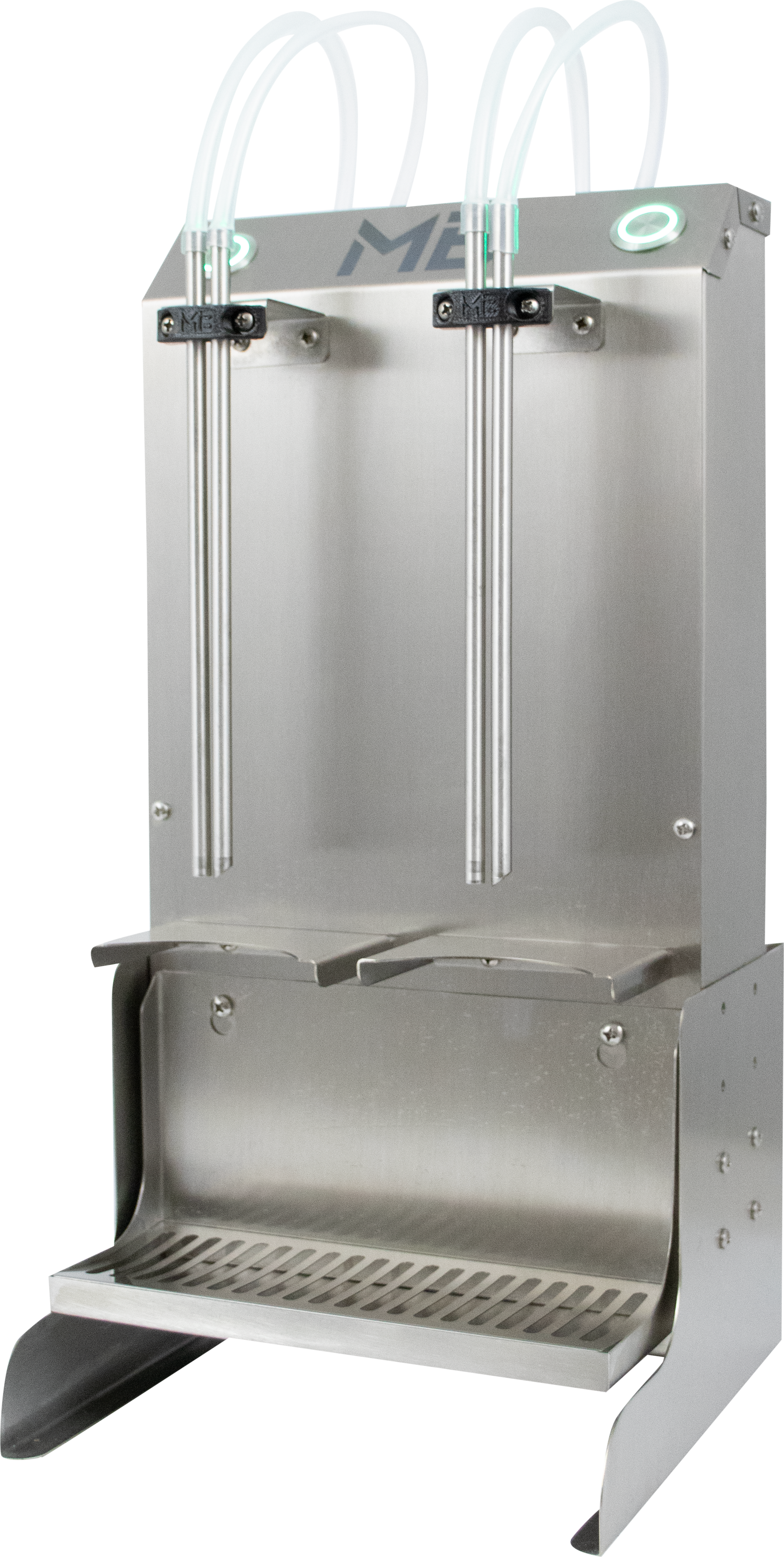

MB® Orthos Dual Head Can Filler | Programmable Fill Height | Automatic CO2 Purge | Crowler Compatible

    Description

    • Dual headed can filler compatible with carbonated and still beverages
    • Programmable fill height accurate to +/- 1mm for consistent fills with every operation
    • Timed CO2 purging takes place automatically to remove oxygen before each fill
    • The only filler model in this price range that can be set on a table and includes a drip tray
    • Hardware included to mount the filler to your wall if preferred
    • Set up takes only a few minutes with a simple push-button programming interface

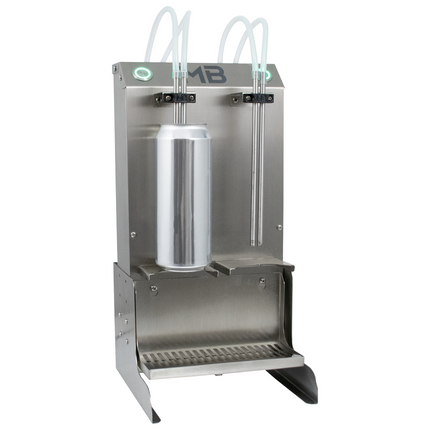

    • Adjustable height—designed to fill cans of any size up to 32 oz Crowlers
    • Stainless steel construction throughout with self-draining drip tray

    Just like the two-headed dog of Greek mythology, Orthos, this dual-headed can filler will perform like a beast in your canning line, doubling your fill rate and taking the stress out of canning day.

    Operation

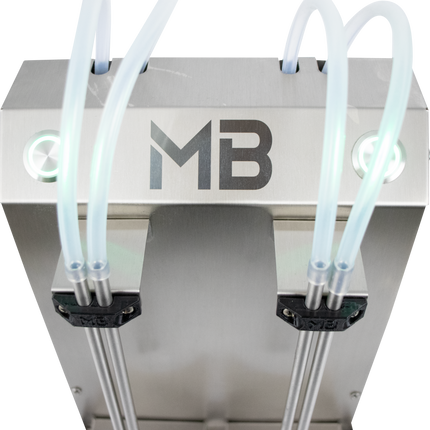

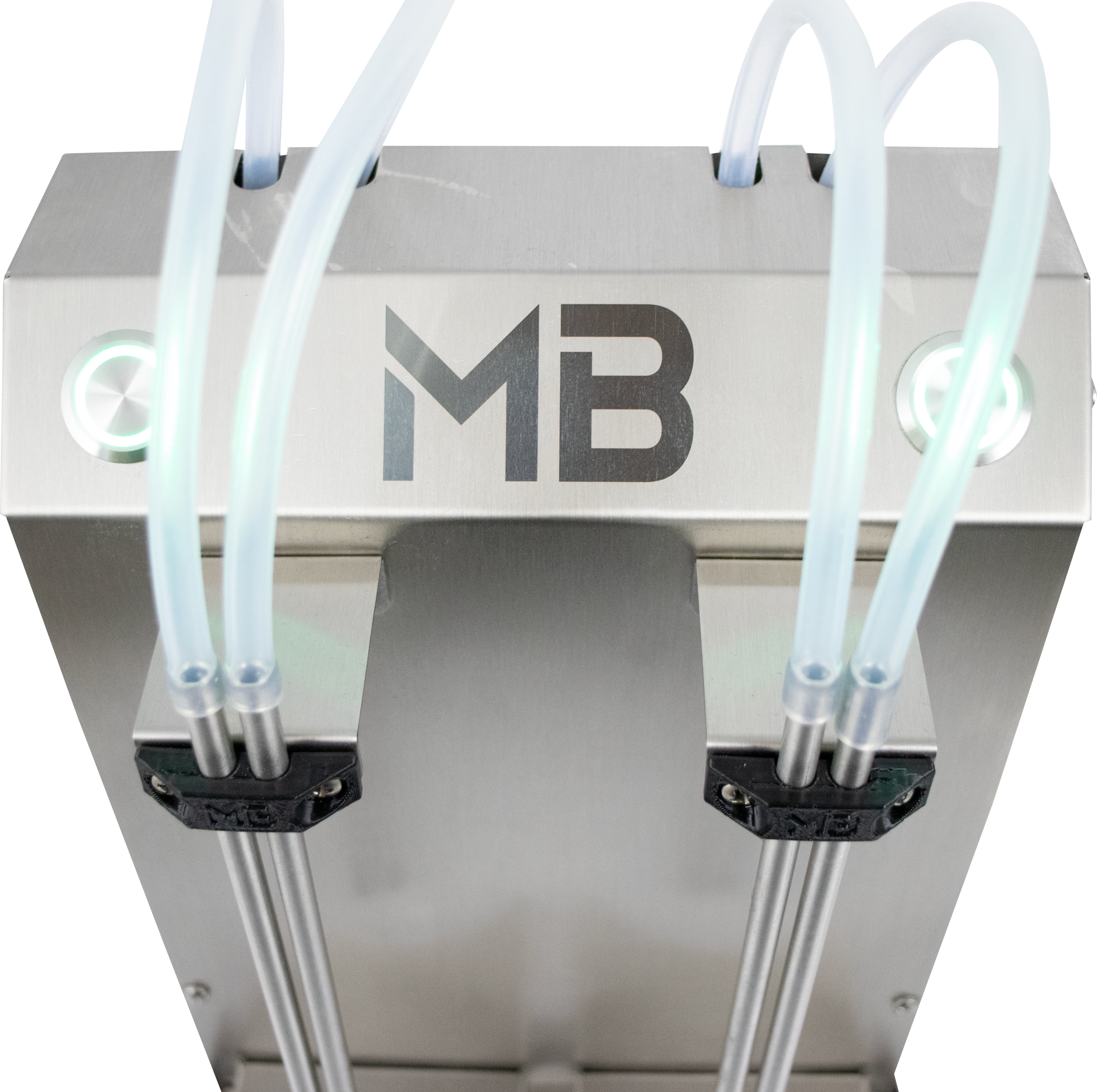

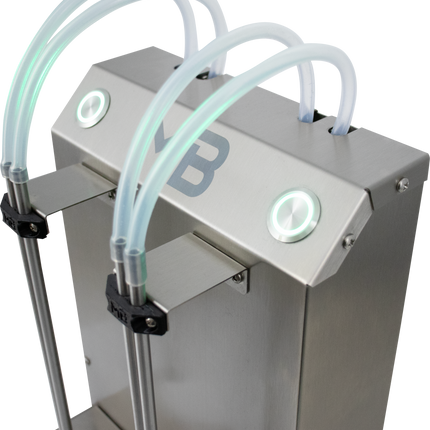

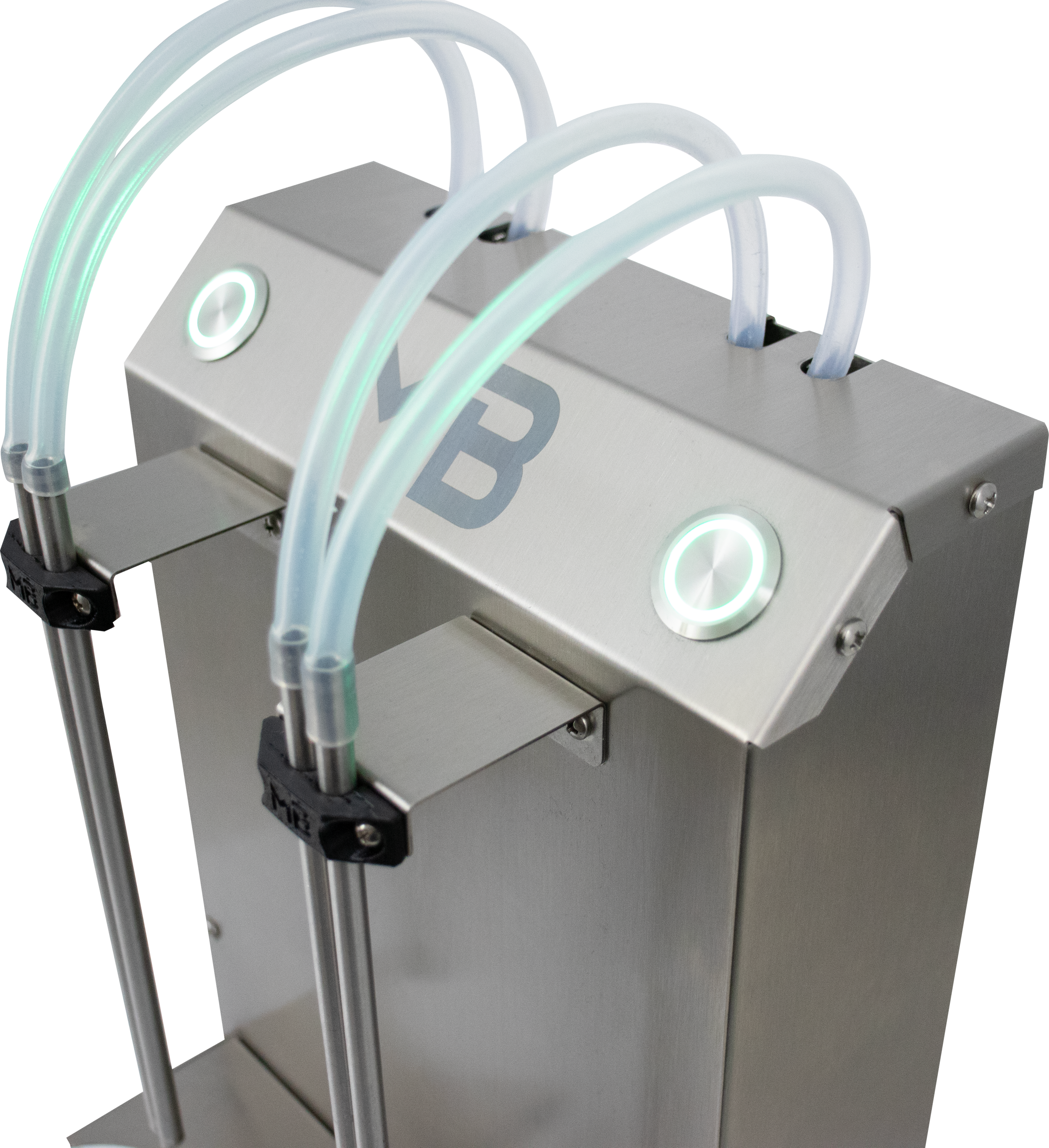

    Programming the fill height and CO2 purge time is quick & easy and only requires pushing a single button to program your settings on either fill head. Once your settings are locked in, the LED ring will give you the green light to procced and filling and purging will execute automatically with a single push of the button. The Orthos Dual Head Can Filler utilizes an aero-grade pressure sensor to measure the height of the fill and is accurate to +/- 1mm for remarkably consistent fills each and every time.

    Construction

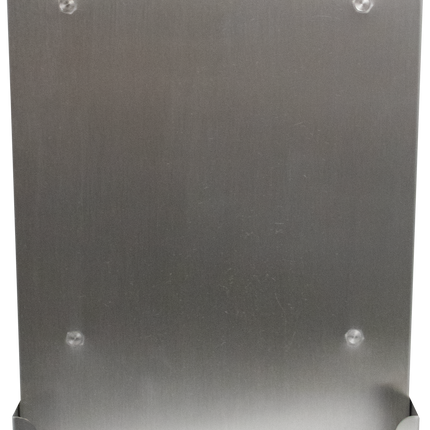

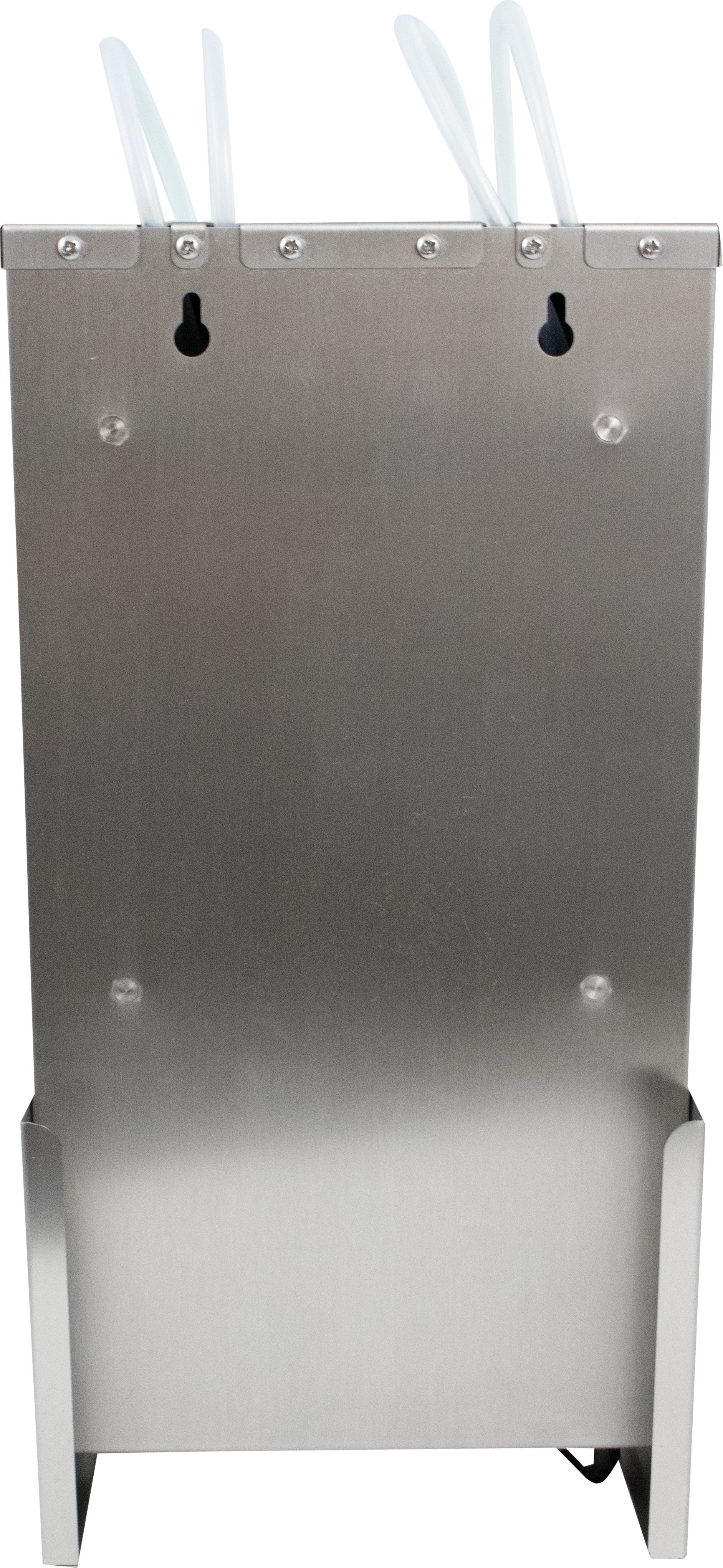

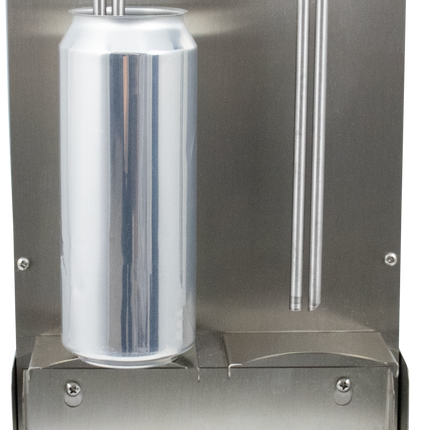

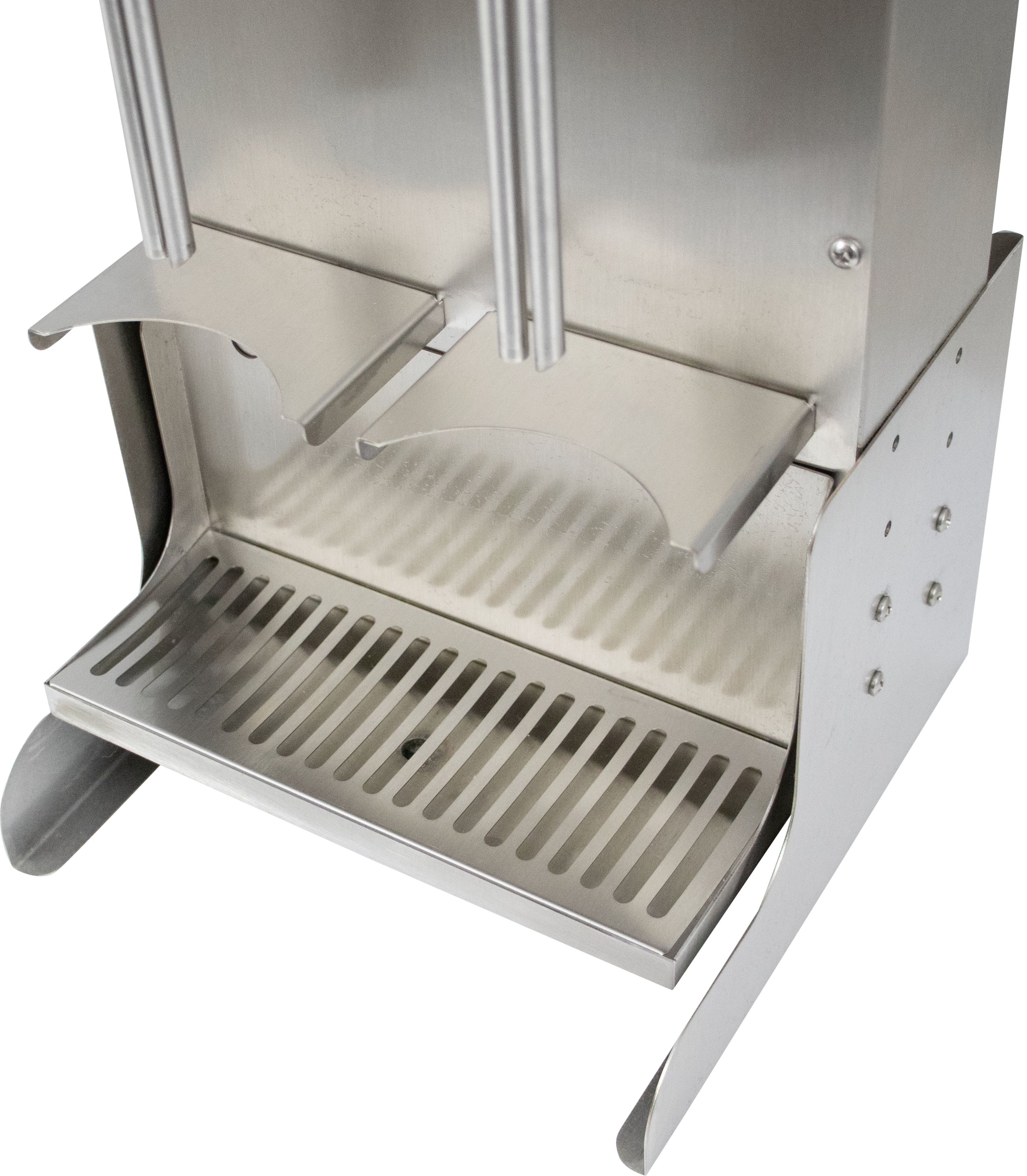

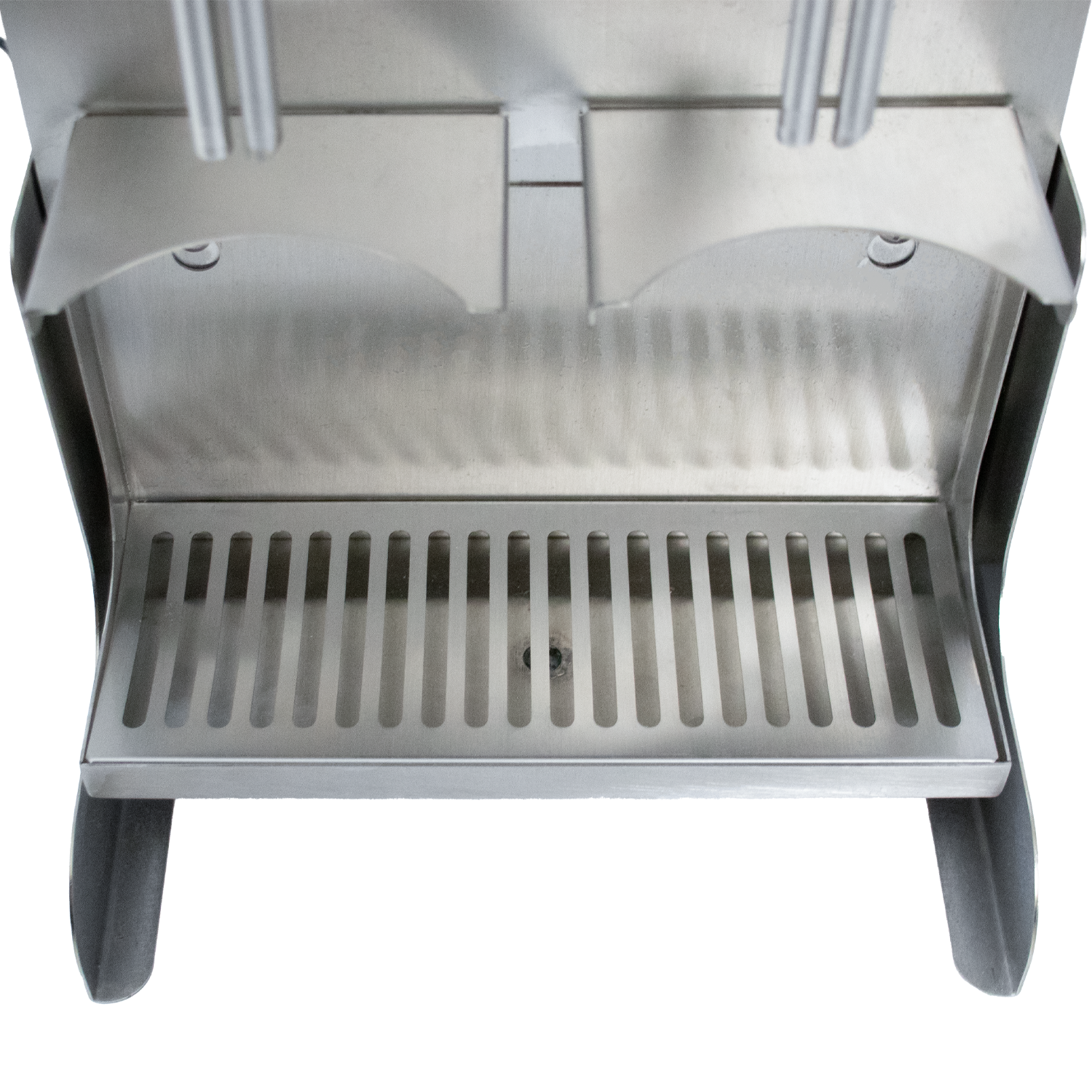

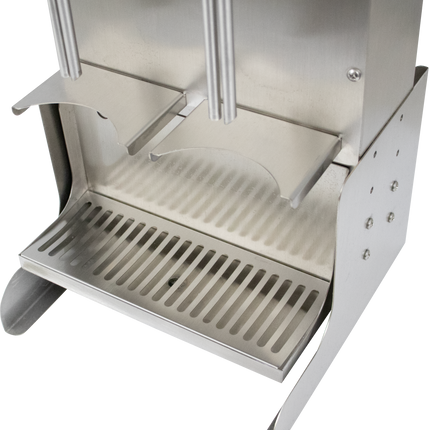

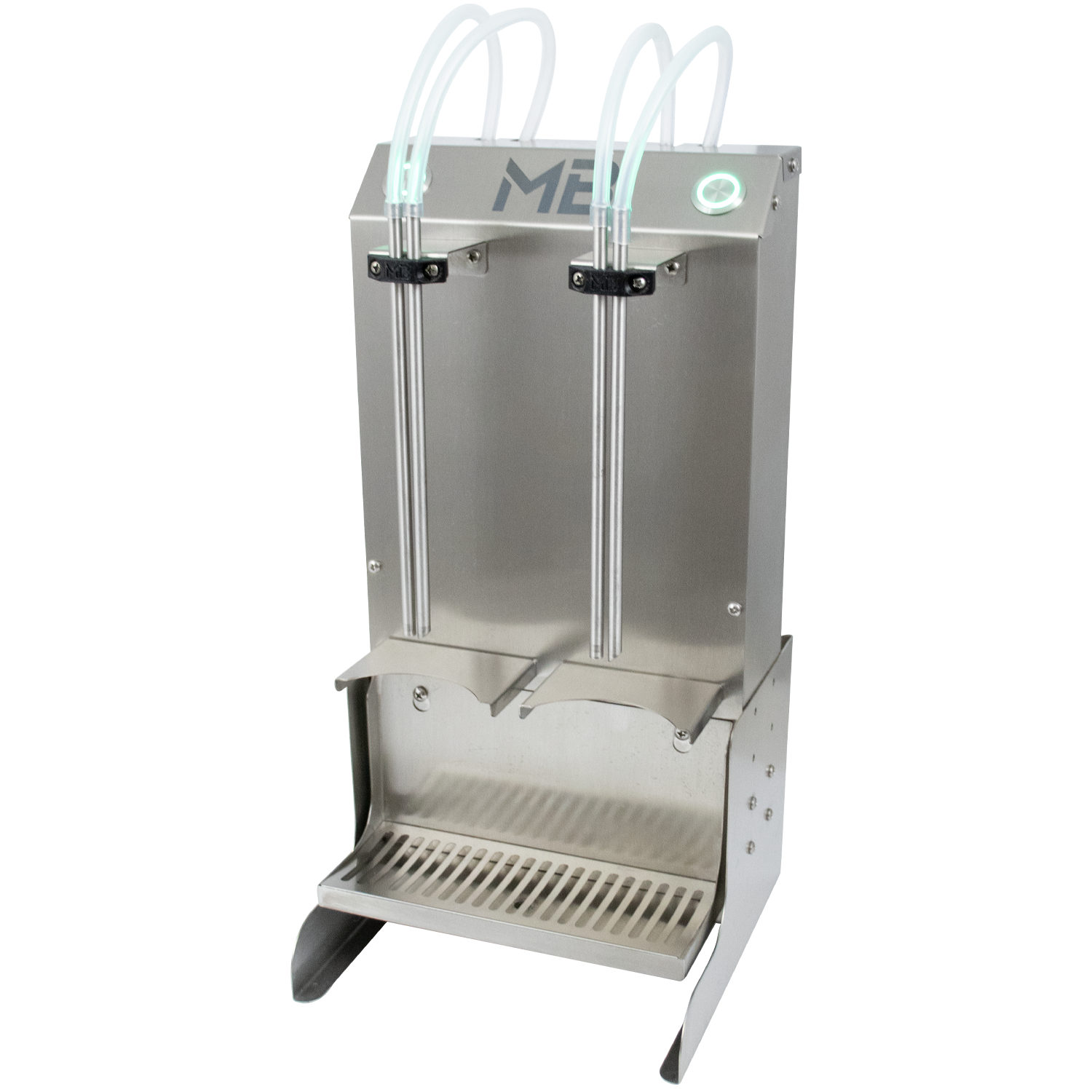

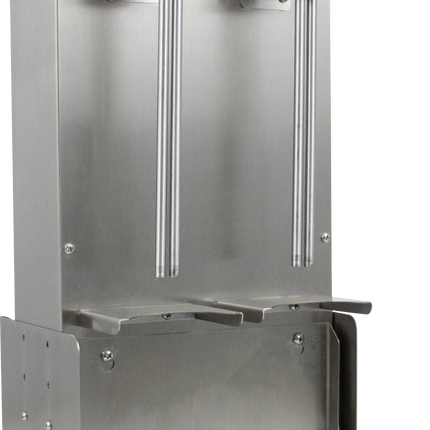

    We have designed the Orthos Filler to be a showcase for your taproom or home brewery, featuring a heavy stainless steel case and the necessary hardware for wall mounting or table use. The Orthos can be easily adjusted to fill any size can up to 32 oz Crowlers, and if need be, you can have two different style cans filling at the same time. The drip tray will help catch any potential spills throughout the filling process and features a drain that can be routed to a collection bucket or floor drain.

    Cleaning
    The cleaning process is just as easy as the filling process! Just attach a keg of water or beer line cleaner and run a fill cycle to clean out the product from the machine. The beer flows seamlessly through pinch valves, eliminating any internal cavities that need to be cleaned. The drip tray is conveniently removable for a quick wash after each use. When it's time for maintenance, simply swap out the beer tubing!

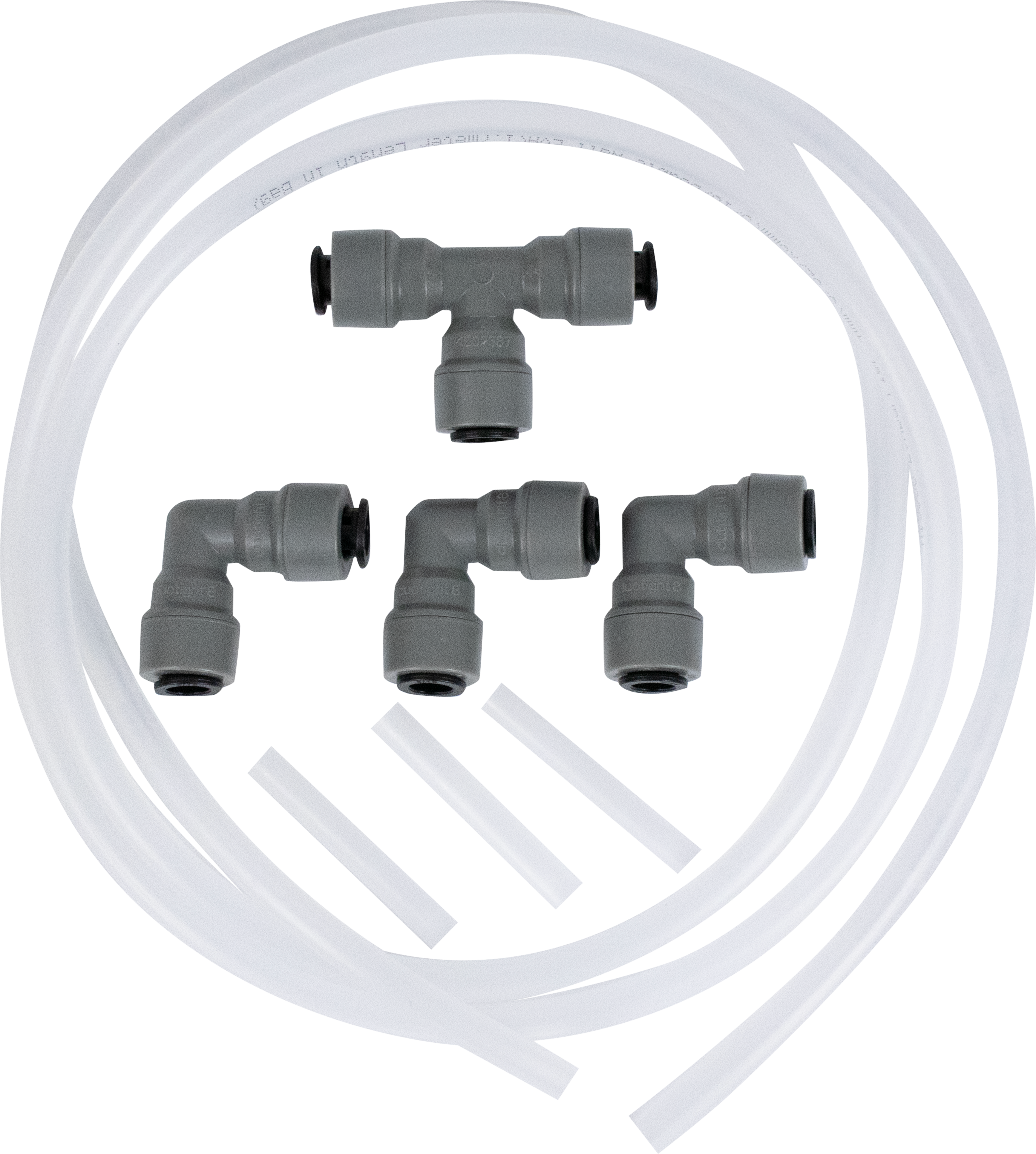

    Includes:

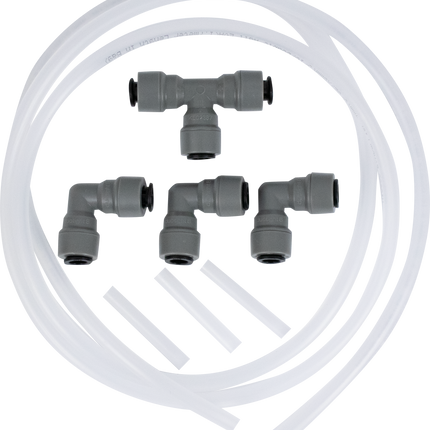

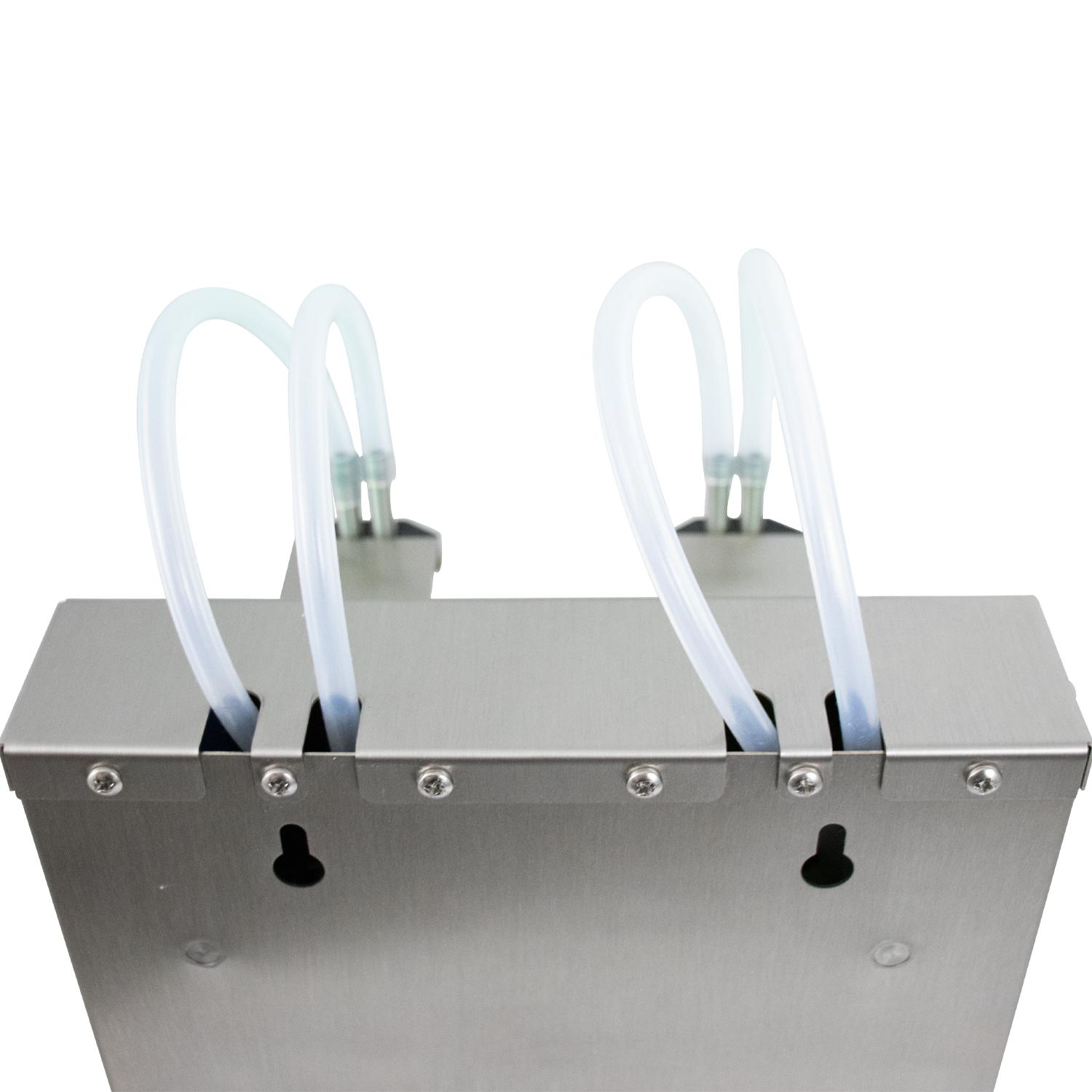

    • Fittings / tubing to connect to 8mm Duotight inputs
      • (1) 8mm Duotight Tee Fitting (DUO1090)
      • (3) 8mm Duotight Elbow Fitting (DUO128)
      • (3) 5.5 ft. Length of 8mm OD EVABarrier Tubing (D1717A)
    • Duotight In-line Regulator (D1047)
    • Wall Mount & Feet
    • Drip tray

    You May Also Need:

    • A keg of beer and connections for sanke or ball lock
      • Sanke: (2) 8mm Duotight Beer Thread Adapters (DUO104)
      • Ball Lock: 8mm Gas In & Bev Out Duotight Ball Lock QDs (DUO150 / DUO151)
    • 8mm OD EVABarrier Tubing (D1717)
    • Dual Body CO2 Regulator (D1083)
      • OR
    • (2) Single Body CO2 Regulators (D1077)
      • Two pressure settings are needed. One to set the fill speed and the other to set the purge speed
      • Exceeding 3 PSI makes the purge turbulent and will mix air back into your can
      • We recommend KOMOS Regulators which include 8mm Duotight adapters for the output

    Features:

    • Dual heads to fill two cans simultaneously
    • Stainless steel case
    • Consistent Fills
    • Drip tray, wall mount, & feet included
    • High fill accuracy
    • Easy programming
    • Fills still or carbonated products
    • Timed purging
    • Beer and CO2 inputs are 8mm Duotight

    Specs:

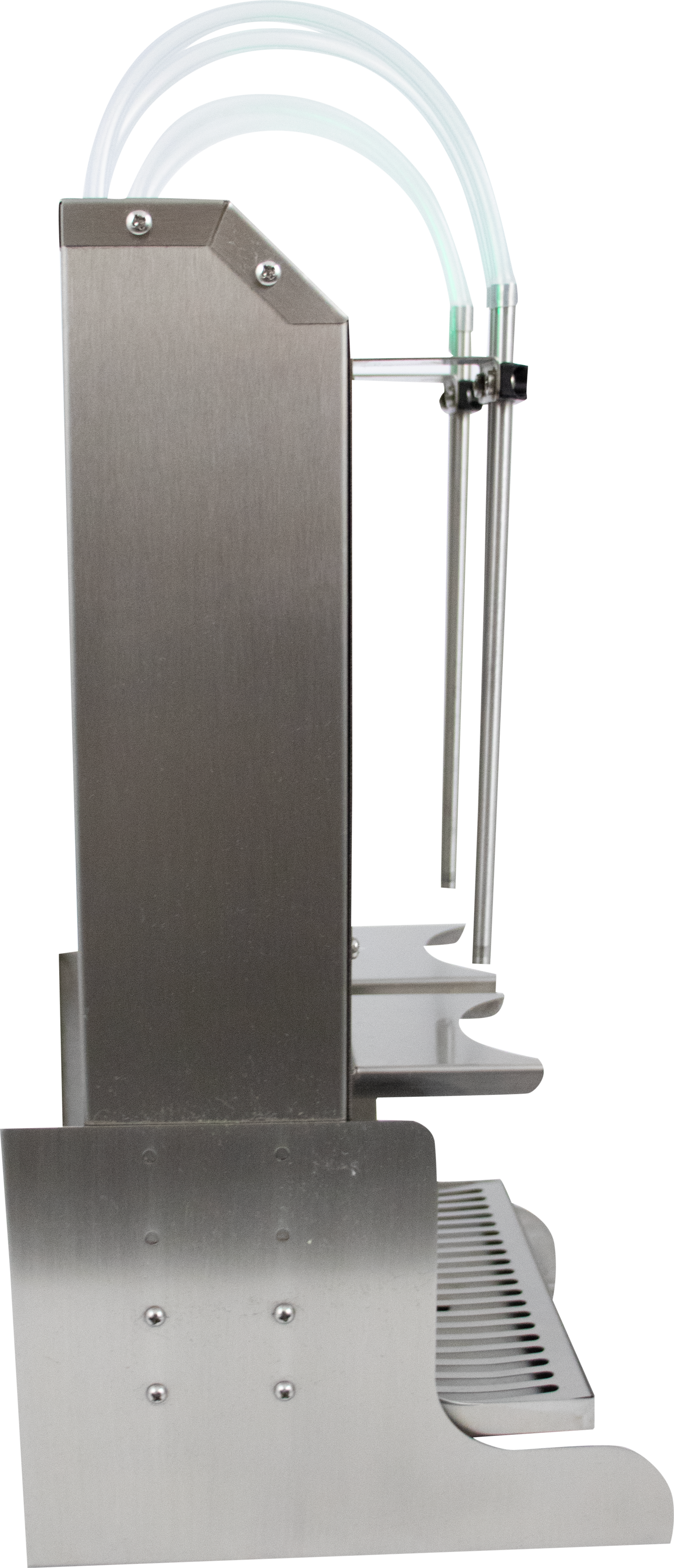

    • Wall Mounted: 14-3/4" H x 7-7/8" W x 3" D
    • Table Mounted:
      • 12 oz can: 15-3/4" H
      • 32 oz Crowler: 17-3/4" H
      • 7-7/8" W x 8" D

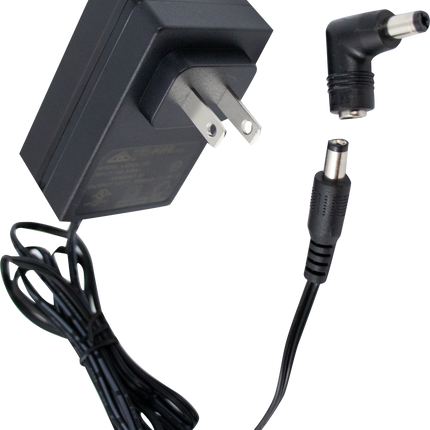

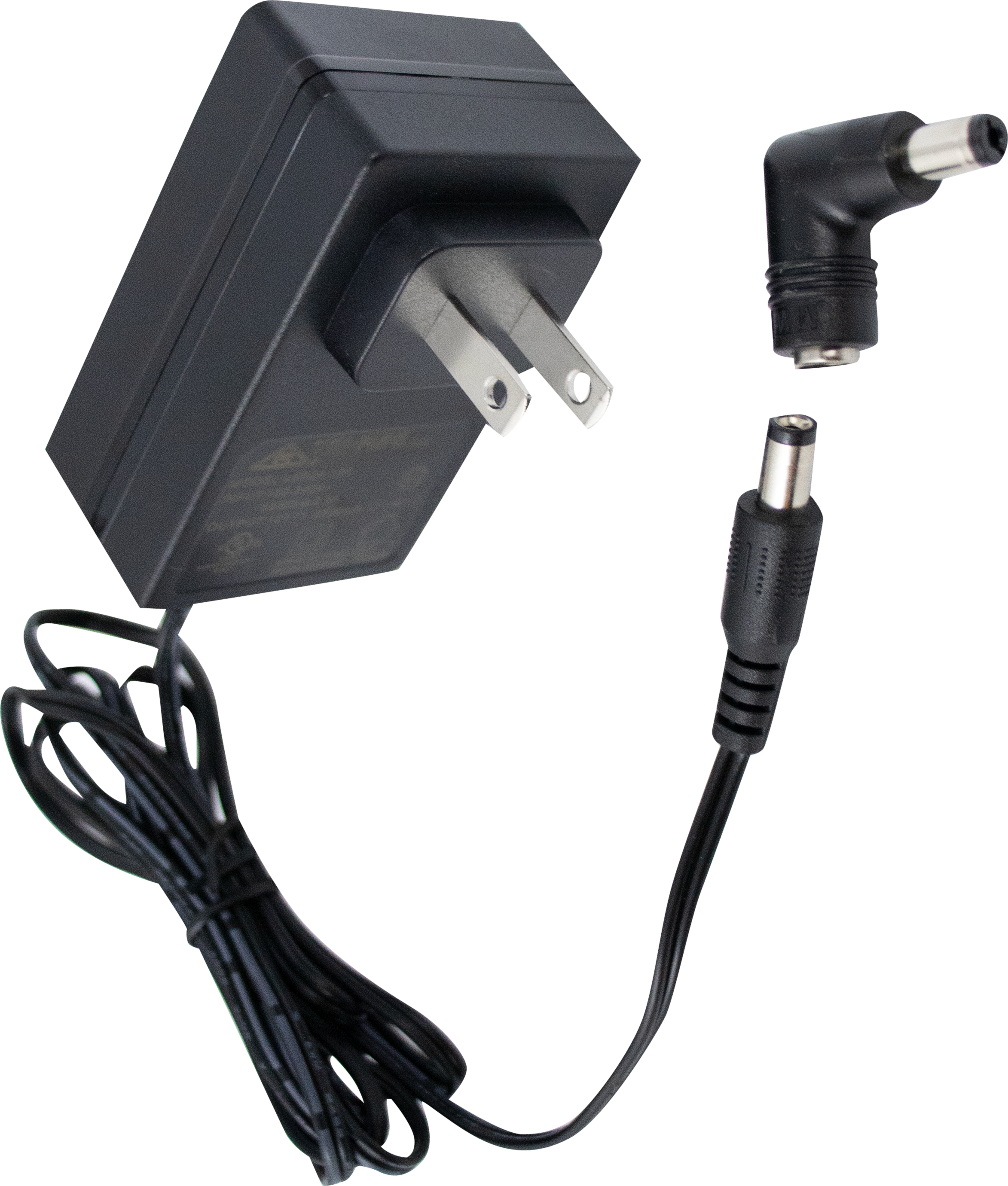

    • 18V Power Supply

    Read more
