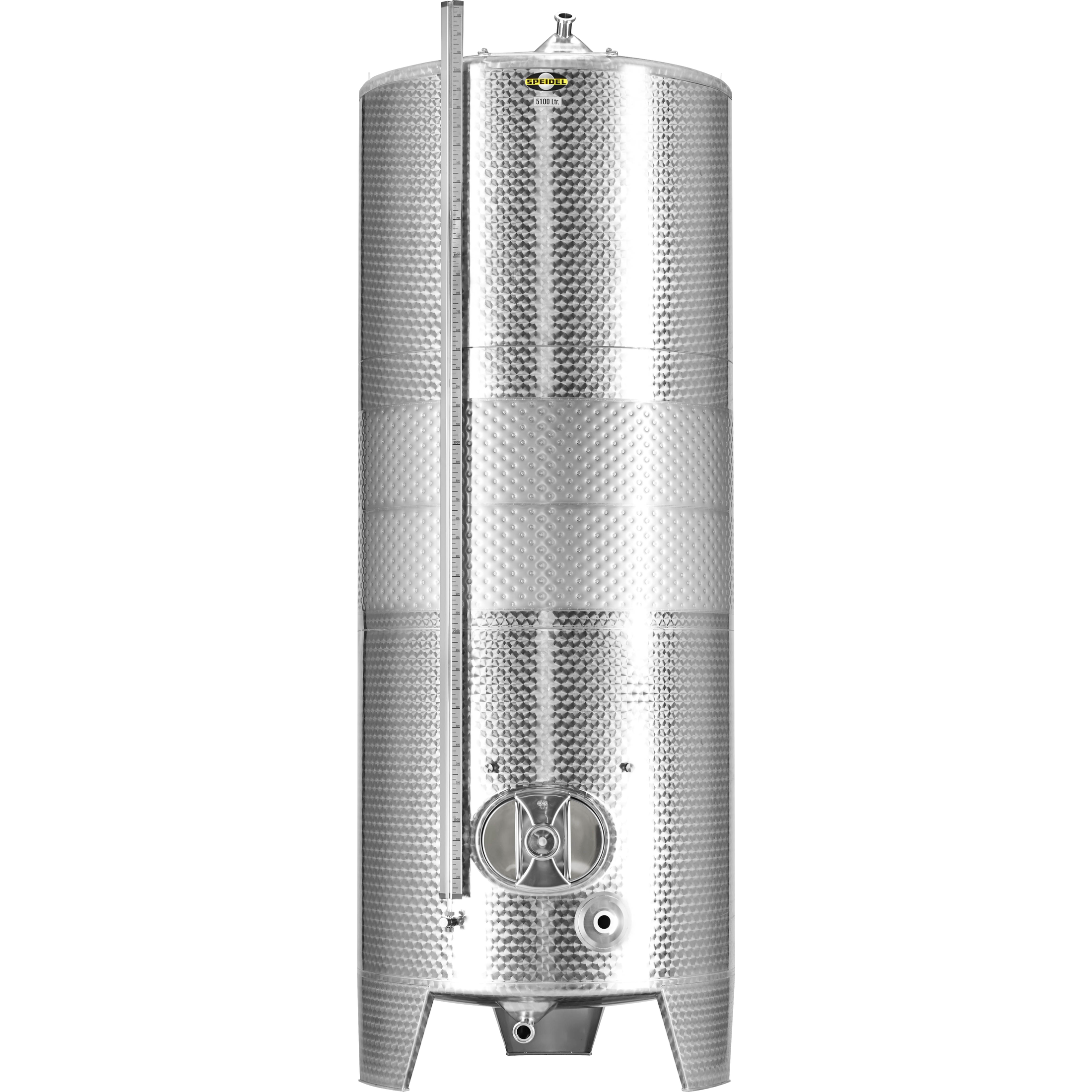

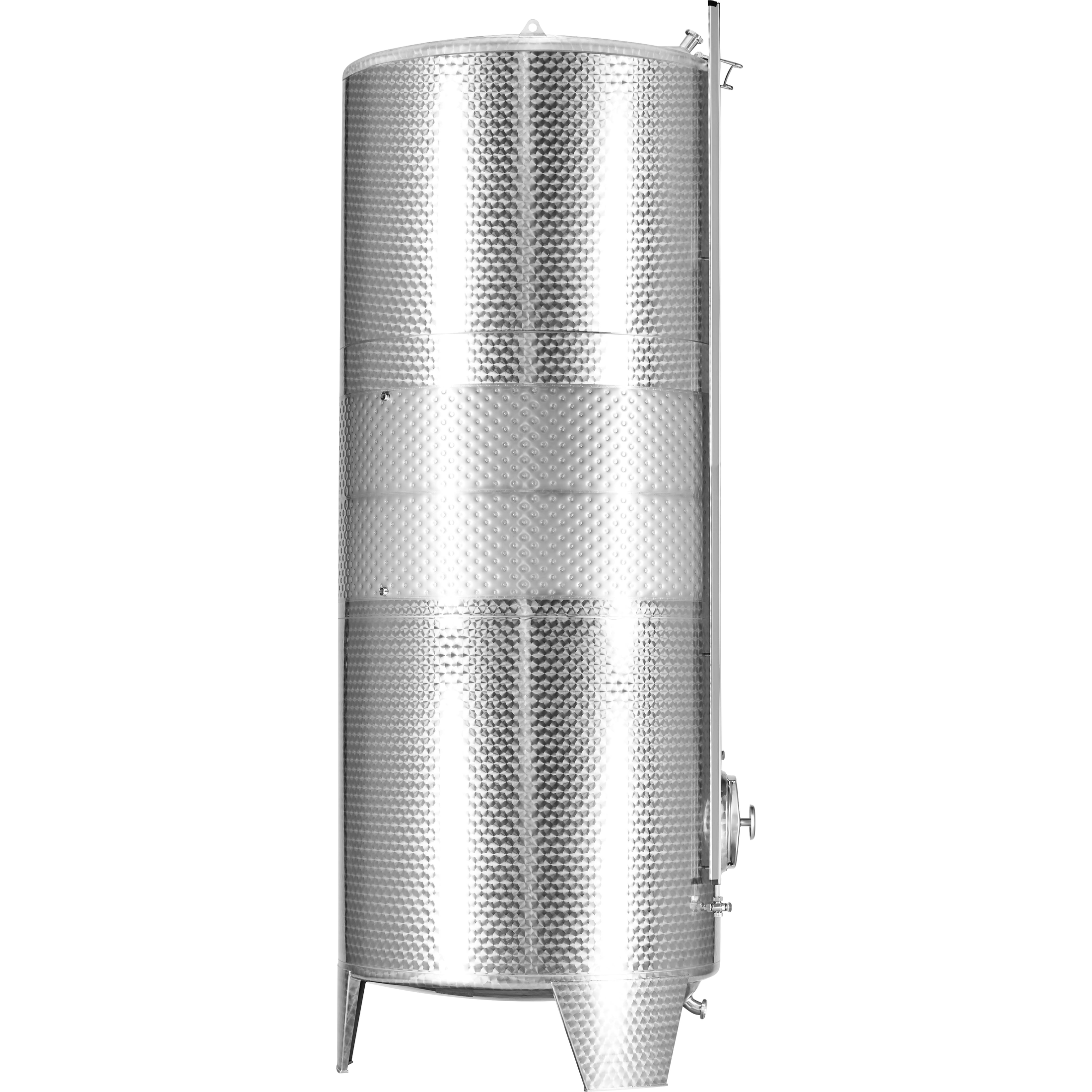

Speidel's FS-MO and AS-MO tanks are their flagship storage and fermentation tanks. Featuring a huge range of tank capacities, these tanks can be stacked to take advantage of vertical space in your facility. The FS-MO tank is the tank used for the base, and up to two AS-MO tanks stack on. Please note that with each diameter range there is a maximum total volume for all tanks in a stack shown below, due to the weight of the tanks when full. This preconfigured tank comes with:
-
Double jacket with NPT connections
-
Liquid level indicator with a liter scale
-
Welded gland NW10 for sampling
-
Welded gland for thermometer NW10 with cap
-
Venting welded gland with a 2 in. TC connection
-
Racking outlet with a 2 in TC connection
-
Bottom outlet with a 2 in. TC connection
Key Features
-
Tank walls and base in AISI304 stainless, tank top is AISI316 stainless for additional SO2 gas resistance
-
Base tanks from 200cm and up in height, and all stacking tanks, include a ladder support bow
-
TC Ferrule on tank top for affixing a valve, bung or blowoff tube.
-
TC racking port is strong enough to support a tank mixer.
-
TC pocketed tank base drains completely
-
1.5" TC Fittings on tanks up through 1,600L. 2" Fittings on tanks 1,601L and up. Larger fittings available by request
-
All tanks outfitted with DN10 threaded port to accommodate a sample valve (Valve part number H587)
-
All tanks feature a weld-free, molded oval racking door/manway
-
All tanks are pre-equipped with a DN10 threaded port and mounting points to affix a sight gauge at any time.
|
Tank Diameter
|
Maximum Total Volume of Tank Stack
|
|
82 cm |
1265 Liters |
|
100 cm |
2500 Liters |
|
120 cm |
4600 Liters |
|
140 cm |
6700 Liters |
|
160 cm |
10000 Liters |
|
180 cm |
12500 Liters |
|
200 cm |
16300 Liters |
Click Here for more information on the key features of all Speidel Tanks.
