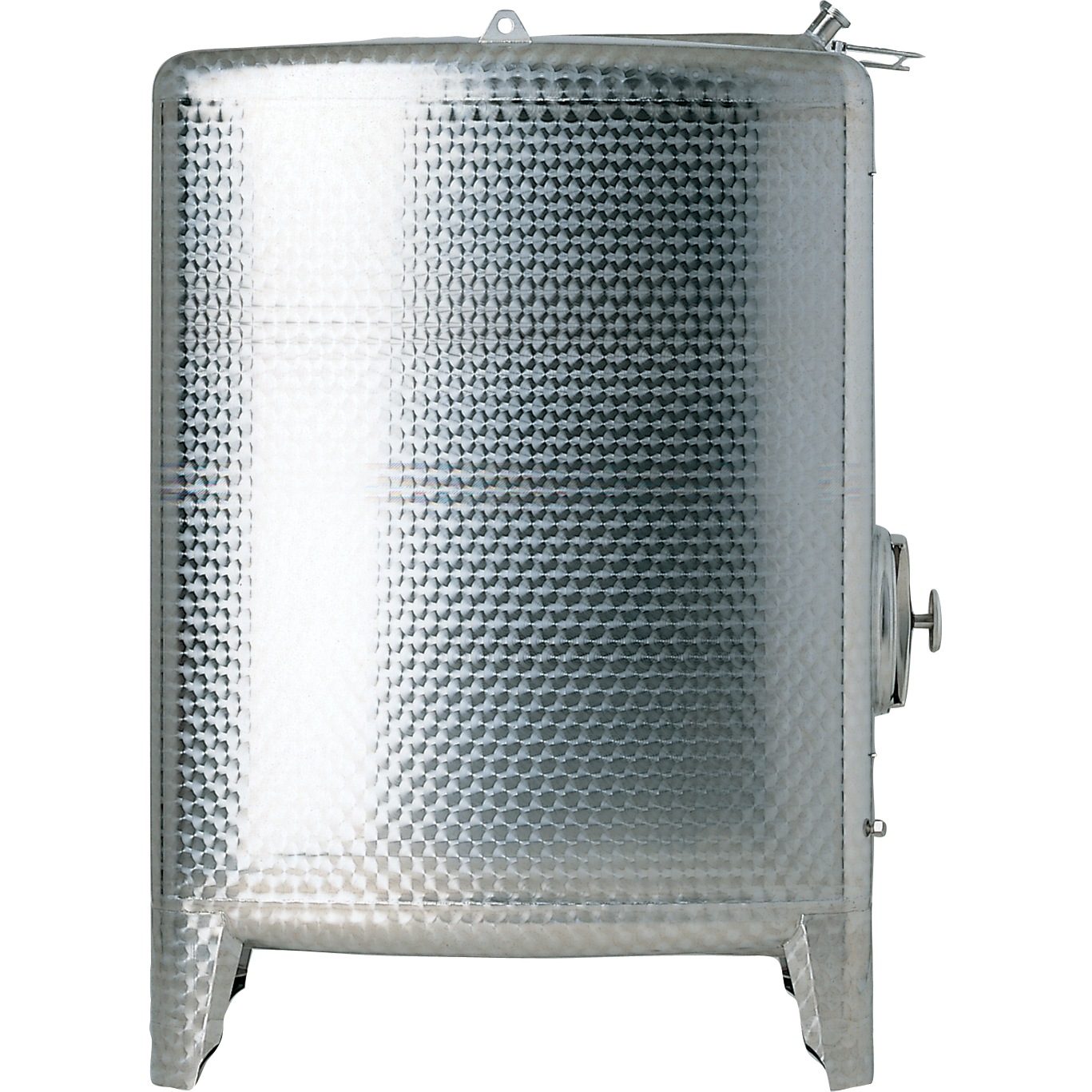

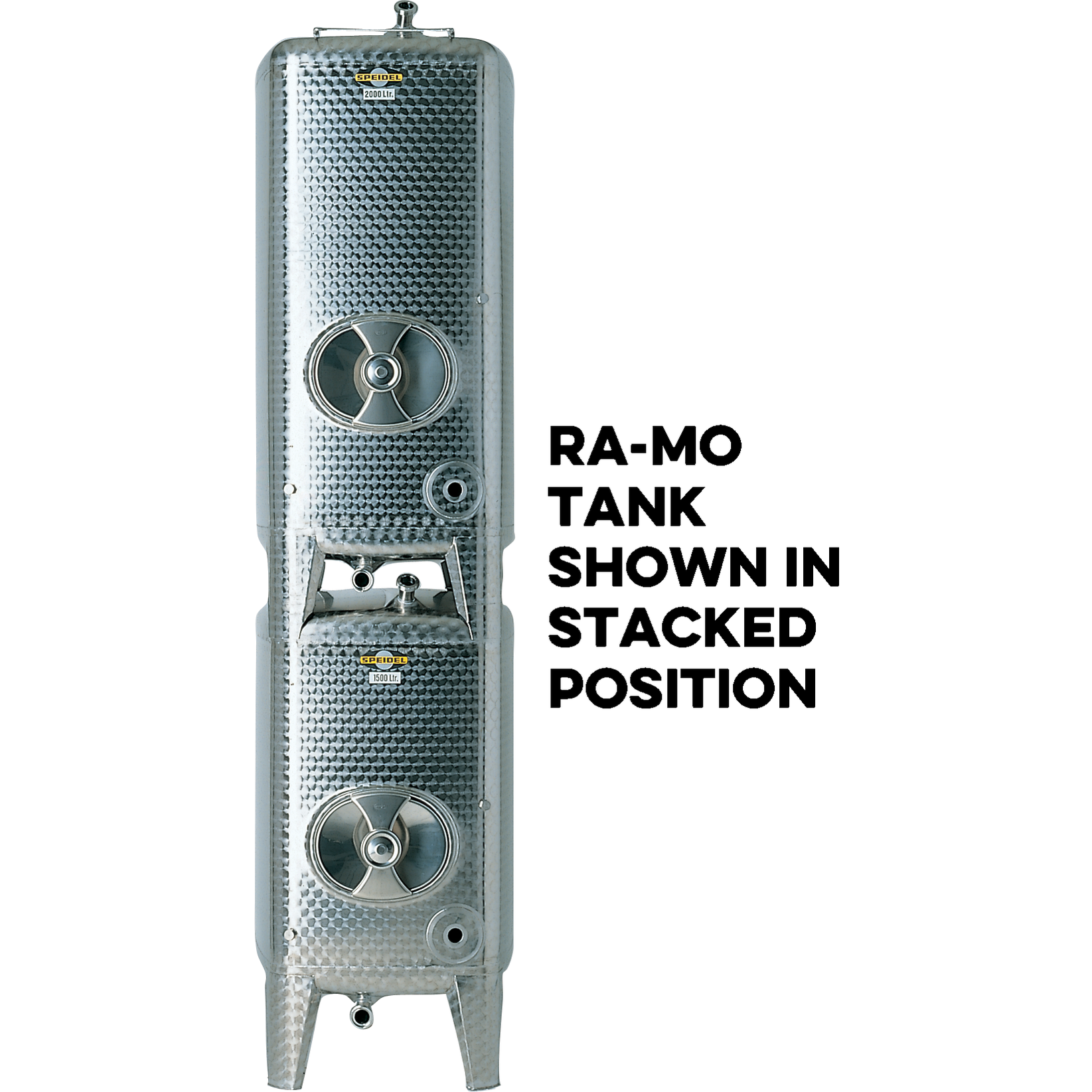

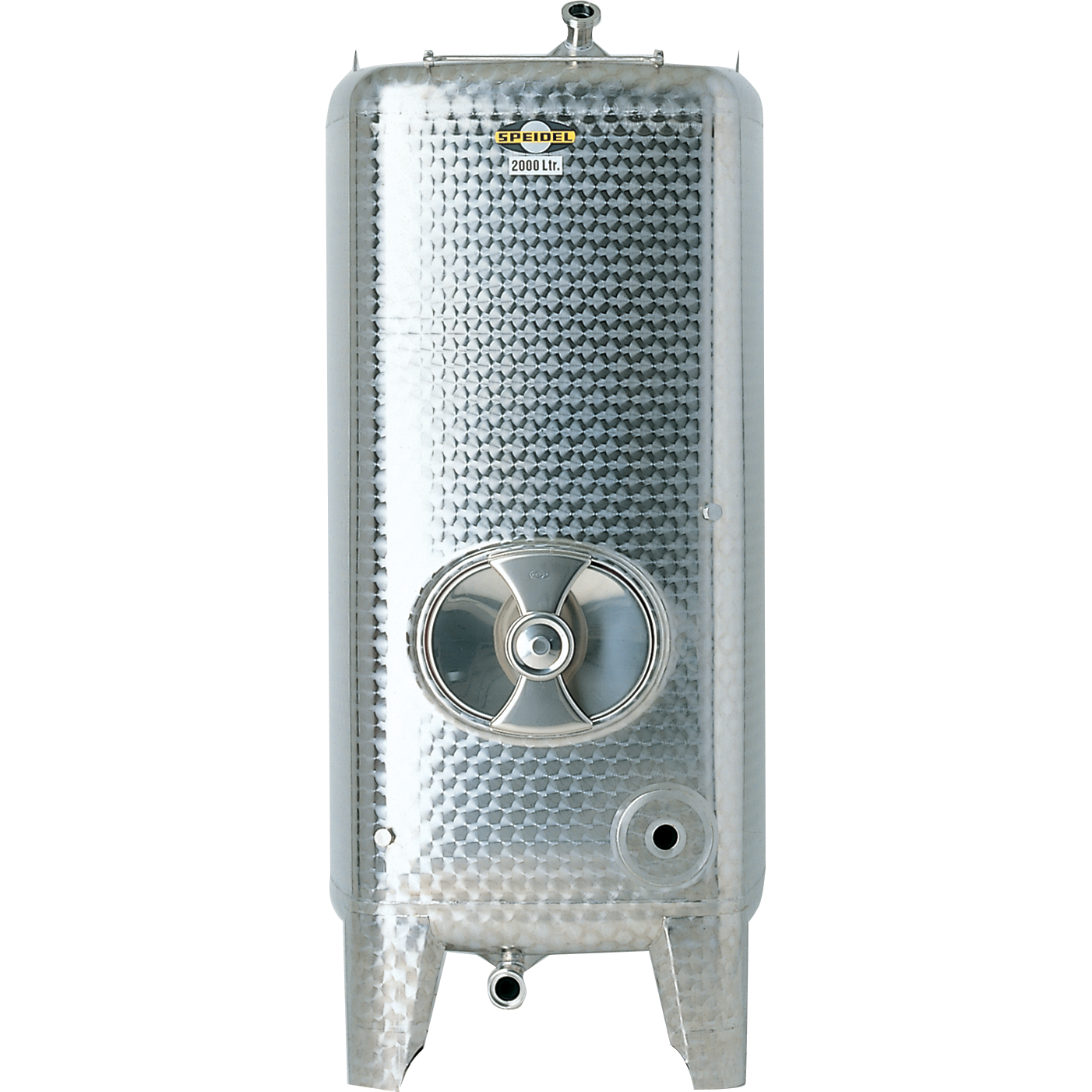

Speidel's RS-MO and RA-MO Rectangular Tanks are a sister line to their FS-MO & AS-MO flagship storage and fermentation tanks, and can be arranged more closely together to get the most our of your limited floor space. Featuring a huge range of tank capacities, these tanks can be customized with a wide array of add-on features, and can be stacked to take advantage of vertical space in your facility. The RS-MO tank is the tank used for the base, and up to two RA-MO tanks stack on. Please note that with each width range there is a maximum total volume for all tanks in a stack shown below, due to the weight of the tanks when full.
Key Features
-
Tank walls and base in AISI304 stainless, tank top is AISI316 stainless for additional SO2 gas resistance
-
All coners and junctions are gently rounded to facilitate draining and prevent wine build-up
-
Base tanks from 200cm and up in height, and all stacking tanks, include a ladder support bow.
-
TC Ferrule on tank top for affixing a valve, bung or blowoff tube.
-
TC racking port is strong enough to support a tank mixer.
-
TC pocketed tank base drains completely
-
1.5" TC Fittings on tanks up through 1,600L. 2" Fittings on tanks 1,601L and up. Larger fittings available by request
-
All tanks outfitted with DN10 threaded port to accommodate a sample valve (Valve part number H587)
-
All tanks feature a weld-free, molded oval racking door/manway
-
All tanks are pre-equipped with a DN10 threaded port and mounting points to affix a sight gauge at any time.
|
Tank Width
|
Maximum Volume of Tank Stack
|
|
90 cm |
4000 Liters |
|
110 cm |
5000 Liters |
|
130 cm |
7000 Liters |
|
140 cm |
6000 Liters |
|
150 cm |
10200 Liters |
Click Here for more information on the key features of all Speidel Tanks.
This item does not qualify for free shipping.
