Pre-Configured Custom Order Wine Tanks

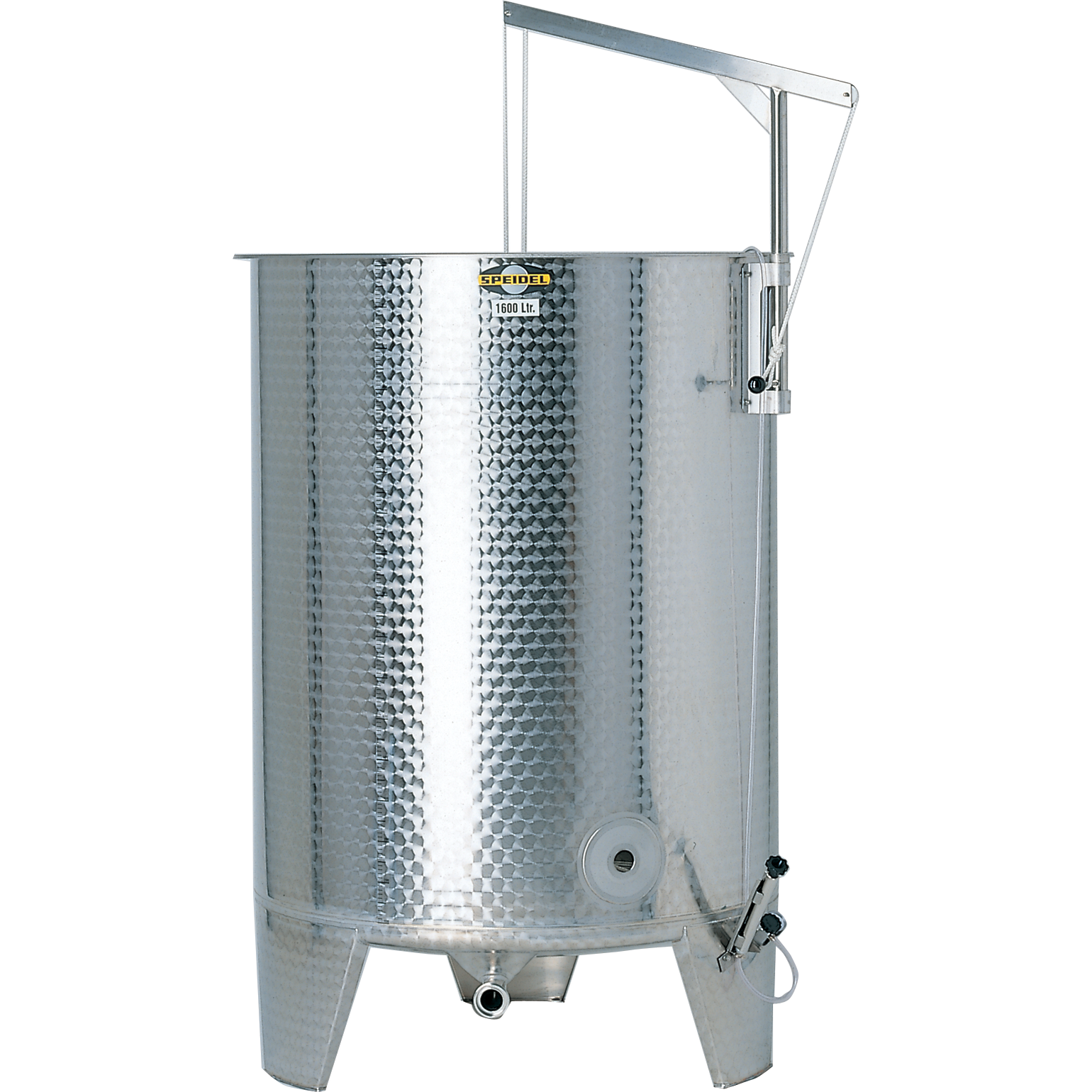

Speidel 4900L, 1800mm Diameter FO Dish Bottom Variable Volume Tank w/ Lid

    Description

    The FO Variable Volume tank is Speidel's flagship Variable Volume tank for storage. This preconfigured tank comes with:

    • Liquid level indicator with a liter scale
    • Sampling port NW 10 DIN 11851 and welded gland for thermometer NW 10
    • Mash door - 15.75 in (400 mm) x 20.86 in (530 mm) with a discharge height of 31.5 in (800 mm)
    • Racking outlet with a 2 in. TC connection
    • Juice Extraction port with a 2 in. TC connection

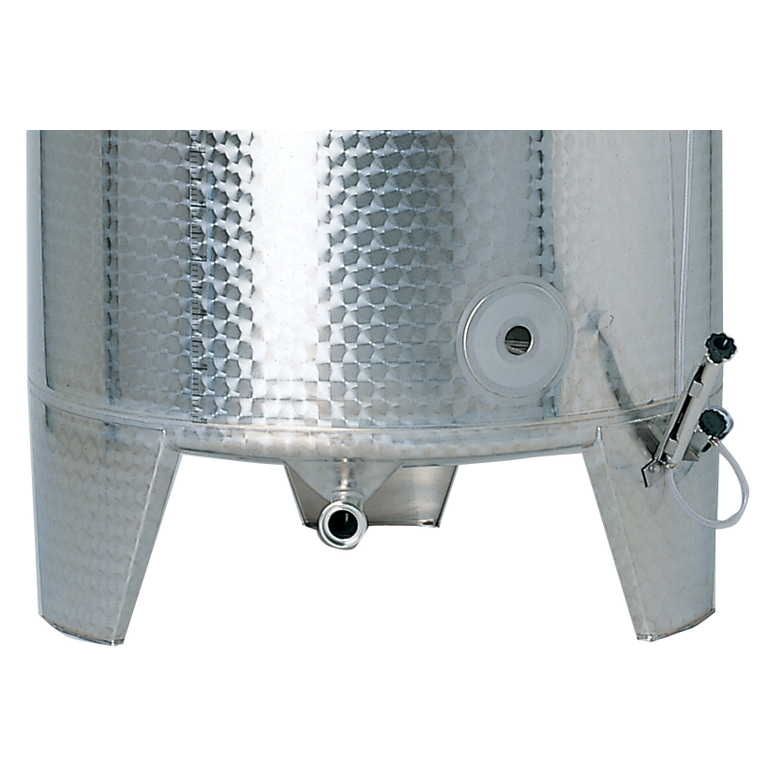

    • Bottom outlet with a 2 in. TC connection
    • Laser welded double jacket with G1" connections

    Key Features

    • Available in 28 sizes covering 6 different tank diameters from 1,100L to 15,200L (larger tanks available with special shipping arrangements)
    • 1,100L & 1,650L Tanks equipped with 1.5" TC racking and drainage ports. All other tanks equipped with 2" TC. Larger fittings available by request
    • Reinforced racking ports prevent tank wall flex and can support the weight of a tank mixer.
    • All tanks have welded-on mounting points for lid lifting arms.

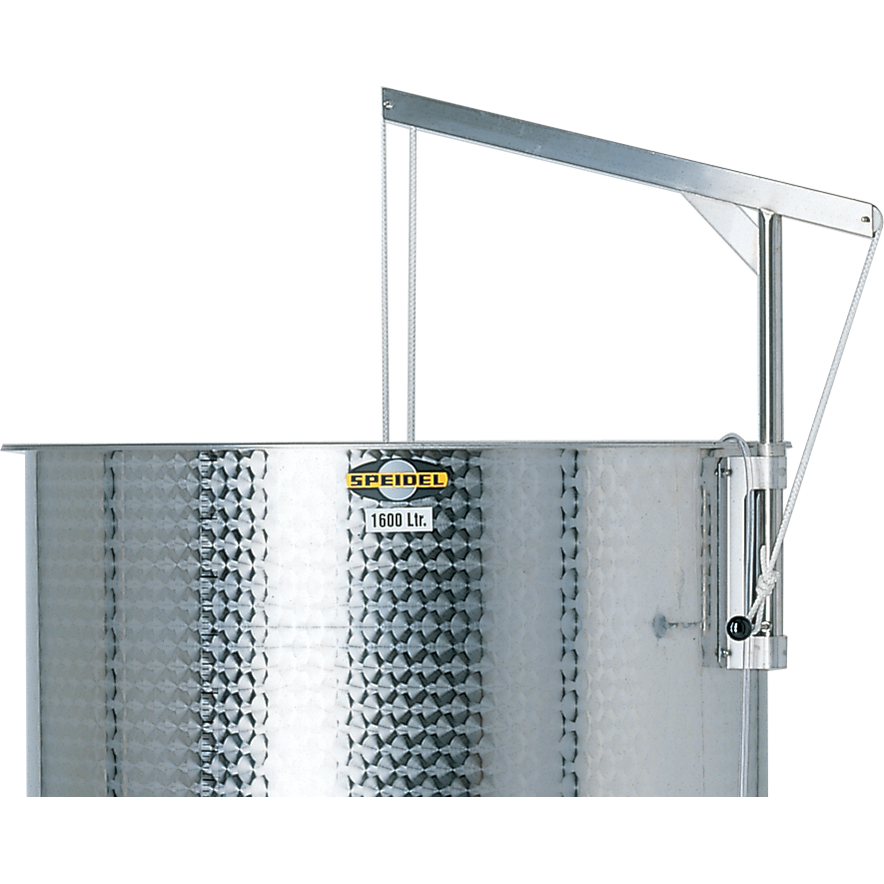

    • Tanks from 1,650L include a lifting arm; from 2,200L up the arm is winch-operated

    Click Here for more information on the key features of all Speidel Tanks.

    Speidel 4900L, 1800mm Diameter FO Dish Bottom Variable Volume Tank w/ Lid

      Product form

      SKU: FO-180-S V0216

      $12,999.99

        This item does not qualify for free shipping.

        This item ships freight only.

        WARNING : This product can expose you to chemicals including Di-n-butyl phthalate (DBP), which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        The FO Variable Volume tank is Speidel's flagship Variable Volume tank for storage. This preconfigured tank comes with:

        • Liquid level indicator with a liter scale
        • Sampling port NW 10 DIN 11851 and welded gland for thermometer NW 10
        • Mash door - 15.75 in (400 mm) x 20.86 in (530 mm) with a discharge height of 31.5 in (800 mm)
        • Racking outlet with a 2 in. TC connection
        • Juice Extraction port with a 2 in. TC connection
        • Bottom outlet with a 2 in. TC connection
        • Laser welded double jacket with G1" connections

        Key Features

        • Available in 28 sizes covering 6 different tank diameters from 1,100L to 15,200L (larger tanks available with special shipping arrangements)
        • 1,100L & 1,650L Tanks equipped with 1.5" TC racking and drainage ports. All other tanks equipped with 2" TC. Larger fittings available by request
        • Reinforced racking ports prevent tank wall flex and can support the weight of a tank mixer.
        • All tanks have welded-on mounting points for lid lifting arms.
        • Tanks from 1,650L include a lifting arm; from 2,200L up the arm is winch-operated

        Click Here for more information on the key features of all Speidel Tanks.
