Custom Order Wine Tanks

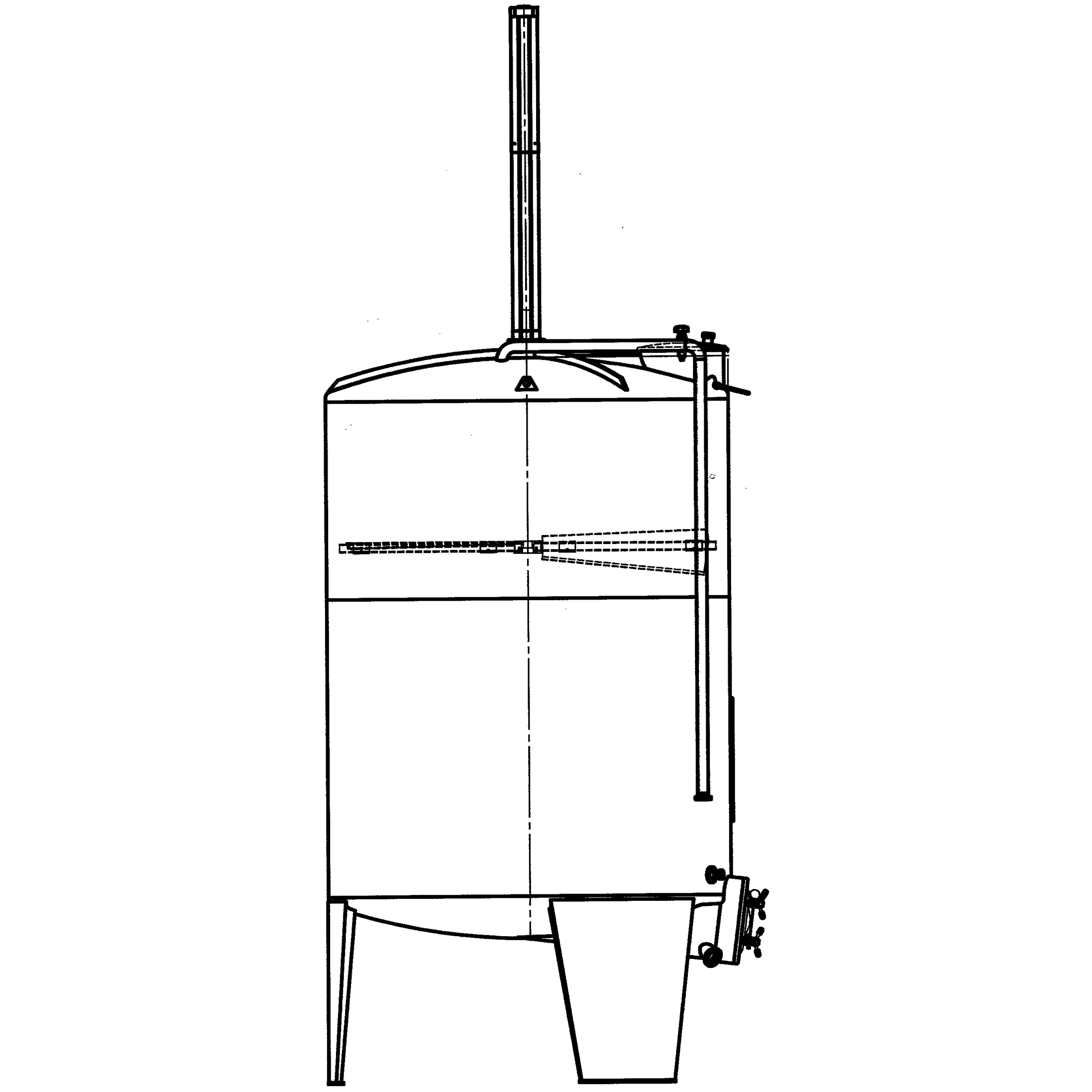

Speidel 6000L/2000 mm Diameter FD-MTTK Sealed Red Wine Fermentaion Tank w/ Must Plunging System and Standard Manway

    Description

    The age-old, and still practiced, process of manual punch down is now modernized, automated and brought to a larger scale thanks to Speidel!

    This simple but effective system features an external  pneumatic cylinder which drives the punching assembly. During the downward stroke the folding stainless punching wings lay flat against the top of the pommace cap and push the solids back into the fermenting wine. On the upward stroke of the cycle the wings set at angle which induces the wings to rotate about 30 degrees, position themselves over a fresh segment of the cap, and the cycle then repeats itself. The whole cap can be punched in as little as 5-6 punch cycles—about 15 minutes!

    The duration of time that the tank performs punch downs, and the interval of time between them, are adjustable depending on your individual vineyard, vintage and winemaking style.

    Must Discharge:

    Forward sloped Fermentation Manway with hinged door opening

    Key Features:

    • Tank ceiling in AISI316 Stainless, tank walls and base in AISI304. Tank ceiling is reinforced to withstand the punchdown forces.
    • Forward set, vertical 40 cm (16”) top hatch with 2” Tri-Clamp ferrule
    • Ladder support bow
    • NW 10 DIN stainless thermowell with thermometer insert
    • NW 20 DIN stainless sample valve
    • Standard 2” Tri-Clamp racking and total drain outlets.
    • Stainless steel electronic control box

    System Electrical and Pneumatic Requirements:

    • 220V, 1-phase, 60Hz power for the control system.
    • Compressor should be able to provide 500L/min at 6 bar pressure with a minimum of 90L tank capacity (17.7 CFM at 87 psi with a 24 gallon tank).
    • Speidel recommends that the compressed air be conditioned before entering the pneumatic cylinder and recommends either the FESTO FRC-1/2-D MIDI-A (Part No. 159591) or the SMC AC40A-F04DE or equivalent.

    Air Consumption per punch cycle:

    Immersion Depth Air Consumption
    1000 mm 12.3 liters
    1250 mm 15.3 liters
    1500 mm 18.3 liters
    1750 mm 21.4 liters



    Speidel 6000L/2000 mm Diameter FD-MTTK Sealed Red Wine Fermentaion Tank w/ Must Plunging System and Standard Manway

      Product form

      SKU: FD-MTTK-200-6000

      $22,899.99

      Shipping
      Free Shipping
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Description

        The age-old, and still practiced, process of manual punch down is now modernized, automated and brought to a larger scale thanks to Speidel!

        This simple but effective system features an external  pneumatic cylinder which drives the punching assembly. During the downward stroke the folding stainless punching wings lay flat against the top of the pommace cap and push the solids back into the fermenting wine. On the upward stroke of the cycle the wings set at angle which induces the wings to rotate about 30 degrees, position themselves over a fresh segment of the cap, and the cycle then repeats itself. The whole cap can be punched in as little as 5-6 punch cycles—about 15 minutes!

        The duration of time that the tank performs punch downs, and the interval of time between them, are adjustable depending on your individual vineyard, vintage and winemaking style.

        Must Discharge:

        Forward sloped Fermentation Manway with hinged door opening

        Key Features:

        • Tank ceiling in AISI316 Stainless, tank walls and base in AISI304. Tank ceiling is reinforced to withstand the punchdown forces.
        • Forward set, vertical 40 cm (16”) top hatch with 2” Tri-Clamp ferrule
        • Ladder support bow
        • NW 10 DIN stainless thermowell with thermometer insert
        • NW 20 DIN stainless sample valve
        • Standard 2” Tri-Clamp racking and total drain outlets.
        • Stainless steel electronic control box

        System Electrical and Pneumatic Requirements:

        • 220V, 1-phase, 60Hz power for the control system.
        • Compressor should be able to provide 500L/min at 6 bar pressure with a minimum of 90L tank capacity (17.7 CFM at 87 psi with a 24 gallon tank).
        • Speidel recommends that the compressed air be conditioned before entering the pneumatic cylinder and recommends either the FESTO FRC-1/2-D MIDI-A (Part No. 159591) or the SMC AC40A-F04DE or equivalent.

        Air Consumption per punch cycle:

        Immersion Depth Air Consumption
        1000 mm 12.3 liters
        1250 mm 15.3 liters
        1500 mm 18.3 liters
        1750 mm 21.4 liters
