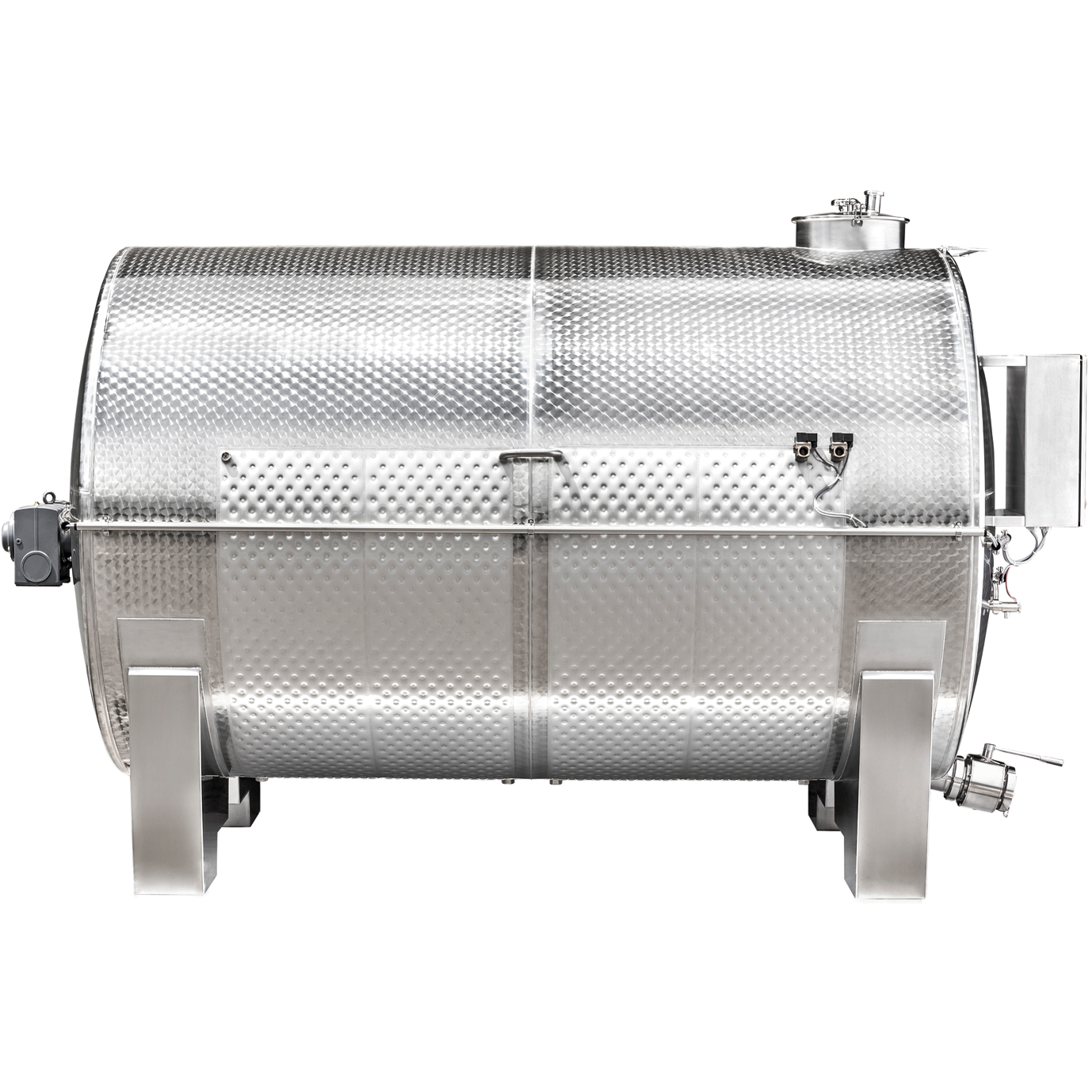

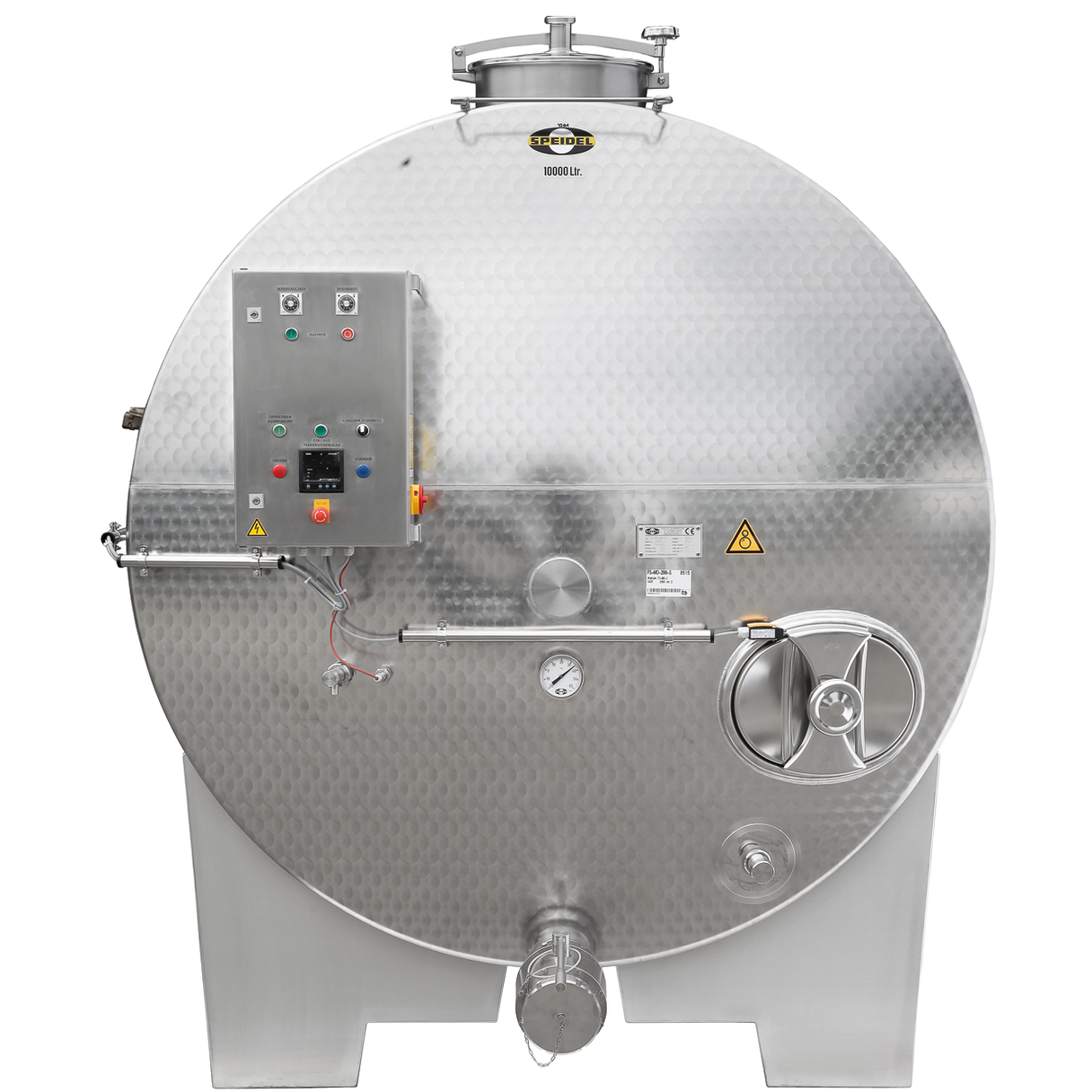

Speidel 8400L SG-MGRL Sealed Horizontal Must Reception and Storage Tank w/ Mixing Bars

    Description

    Speidel's SD-MGRL Tanks bring high tech fermentation solutions to wineries with restricted ceiling heights.

    The horizontal red wine fermenter is equipped with a slow-moving center shaft with mixing arms attached to it, which effectively break up and re-submerge the cap after just a few rotations. The duration of and interval between immersion operations is programmable to suit the needs of your different vineyards and vintages as well as your individual winemaking style.

    The mixing arms are slanted forward which pushes must forward and promotes complete emptying of the tank once fermentation is complete through the 125,mm (5") drain valve.



    Key Features:

    • Tank entirely in AISI304 stainless steel.
    • Forward set, vertical 40 cm (16”) top hatch with 2” Tri-Clamp ferrule
    • Ladder support bow
    • 42x32 cm (16.5x12.5 in) Oval Racking Door
    • Included NW 10 DIN stainless thermowell with analog bi-metal thermometer insert
    • Included NW 20 DIN stainless sample valve
    • 125 mm (5") threaded drain port, 2” Tri-Clamp racking outlet.
    • Stainless steel electronic control box
    • 380V 3-phase gear-reduced mixing motor turns at 3 rpm for cap management and at 6 rpm for must evacuation.

    Speidel 8400L SG-MGRL Sealed Horizontal Must Reception and Storage Tank w/ Mixing Bars

      Product form

      SKU: SD-MGRL-200-8400

      $33,879.99

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Description

        Speidel's SD-MGRL Tanks bring high tech fermentation solutions to wineries with restricted ceiling heights.

        The horizontal red wine fermenter is equipped with a slow-moving center shaft with mixing arms attached to it, which effectively break up and re-submerge the cap after just a few rotations. The duration of and interval between immersion operations is programmable to suit the needs of your different vineyards and vintages as well as your individual winemaking style.

        The mixing arms are slanted forward which pushes must forward and promotes complete emptying of the tank once fermentation is complete through the 125,mm (5") drain valve.



        Key Features:

        • Tank entirely in AISI304 stainless steel.
        • Forward set, vertical 40 cm (16”) top hatch with 2” Tri-Clamp ferrule
        • Ladder support bow
        • 42x32 cm (16.5x12.5 in) Oval Racking Door
        • Included NW 10 DIN stainless thermowell with analog bi-metal thermometer insert
        • Included NW 20 DIN stainless sample valve
        • 125 mm (5") threaded drain port, 2” Tri-Clamp racking outlet.
        • Stainless steel electronic control box
        • 380V 3-phase gear-reduced mixing motor turns at 3 rpm for cap management and at 6 rpm for must evacuation.
