Description

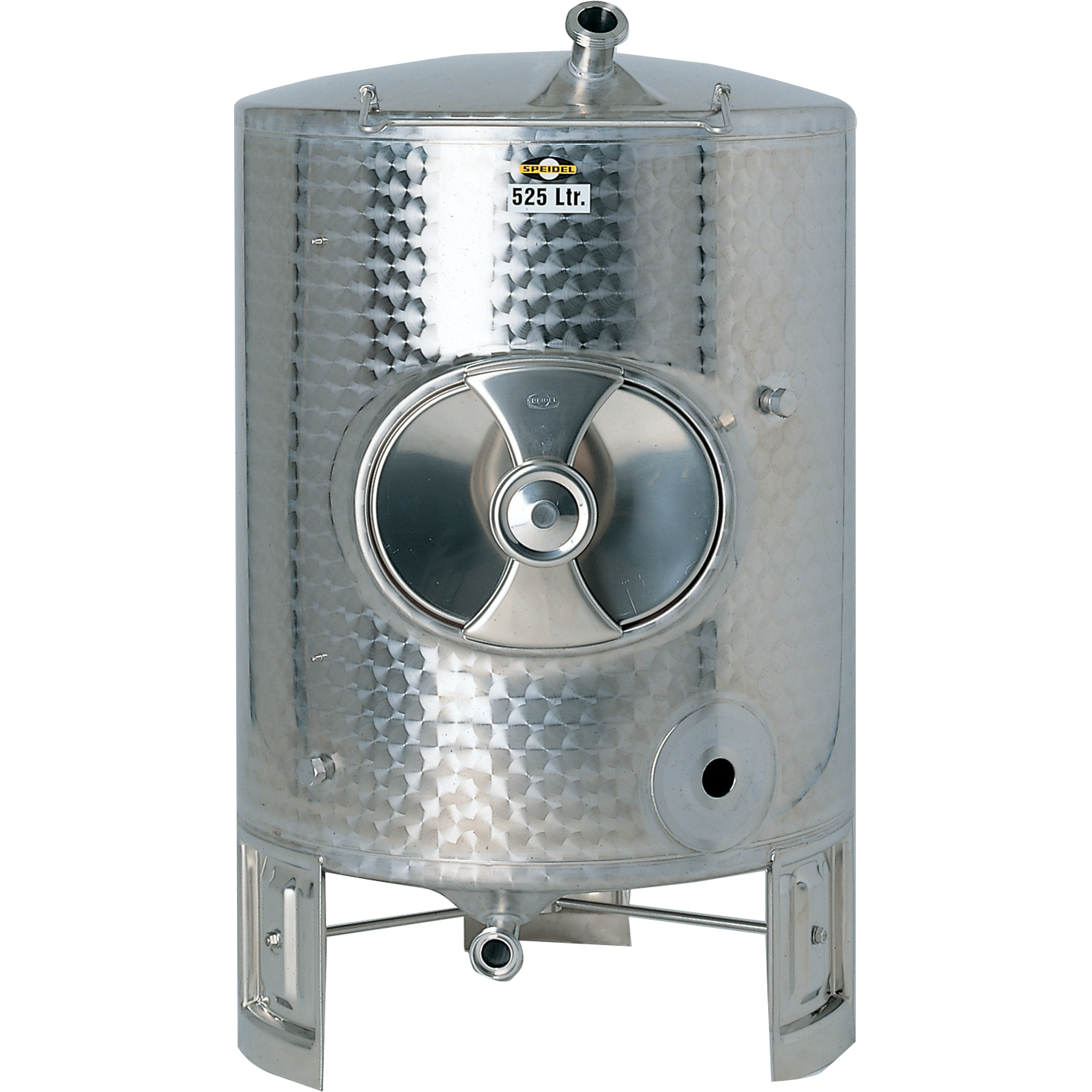

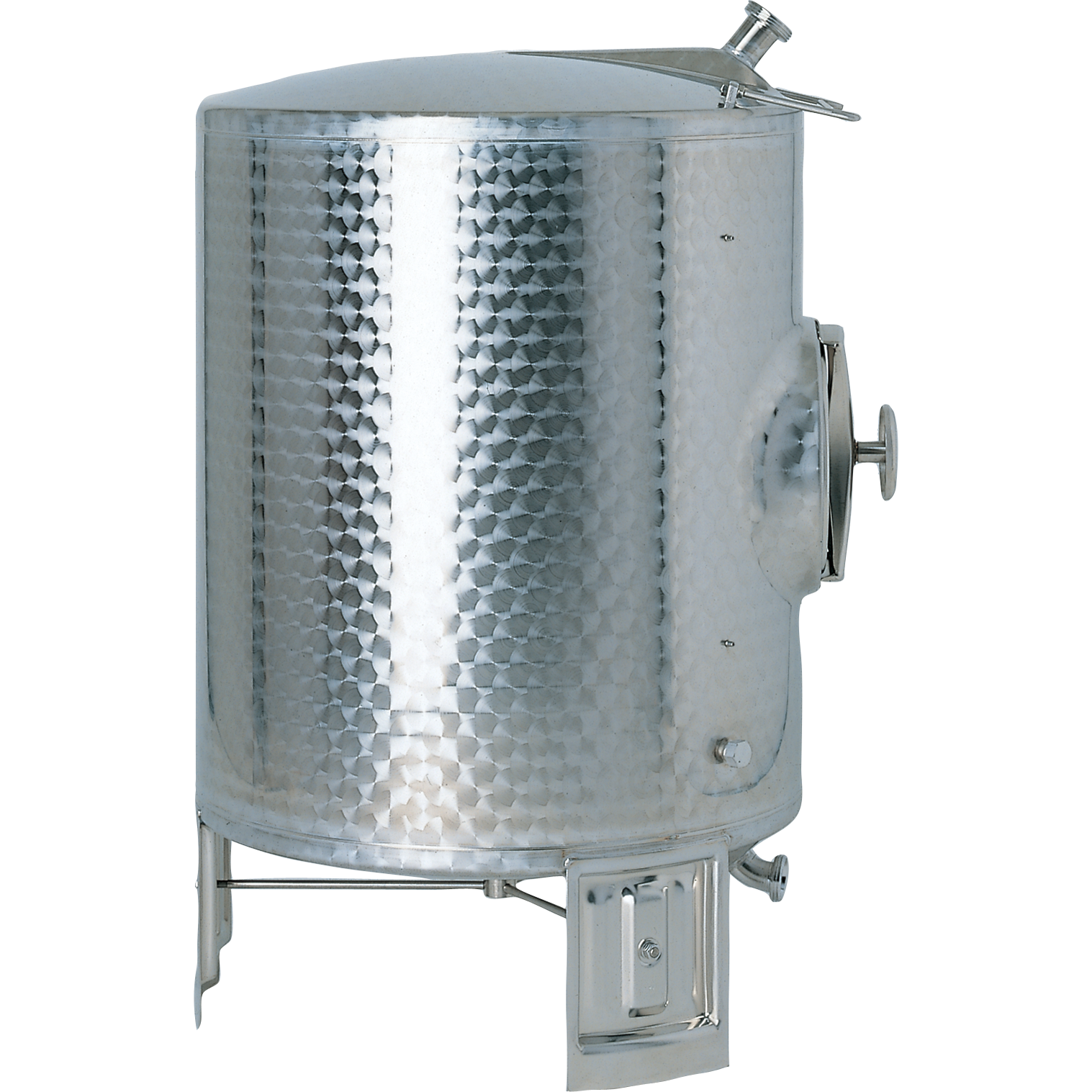

Speidel's FS-MO and AS-MO tanks are their flagship storage and fermentation tanks. Featuring a huge range of tank capacities, these tanks can be customized with a wide array of add-on features, and can be stacked to take advantage of vertical space in your facility. The FS-MO tank is the tank used for the base, and up to two AS-MO tanks stack on. Please note that with each diameter range there is a maximum total volume for all tanks in a stack shown below, due to the weight of the tanks when full.
Key Features
- Tank walls and base in AISI304 stainless, tank top is AISI316 stainless for additional SO2 gas resistance
- Base tanks from 200cm and up in height, and all stacking tanks, include a ladder support bow
- TC Ferrule on tank top for affixing a valve, bung or blowoff tube.
- TC racking port is strong enough to support a tank mixer.
- TC pocketed tank base drains completely
- 1.5" TC Fittings on tanks up through 1,600L. 2" Fittings on tanks 1,601L and up. Larger fittings available by request
- All tanks outfitted with DN10 threaded port to accommodate a sample valve (Valve part number H587)
- All tanks feature a weld-free, molded oval racking door/manway
- All tanks are pre-equipped with a DN10 threaded port and mounting points to affix a sight gauge at any time.
| Tank Diameter | Maximum Total Volume of Tank Stack |
| 82 cm | 1265 Liters |
| 100 cm | 2500 Liters |
| 120 cm | 4600 Liters |
| 140 cm | 6700 Liters |
| 160 cm | 10000 Liters |
| 180 cm | 12500 Liters |
| 200 cm | 16300 Liters |
View the resource for more information on the key features of all Speidel Tanks.
