Custom Order Wine Tanks

Speidel MS-MO Multi Chamber Surcharge for 1400mm Diameter, 1400-1600L FS-MO Round Tanks

    Description

    Speidel's RS-MO and RA-MO Rectangular Tanks are a sister line to their FS-MO & AS-MO flagship storage and fermentation tanks, and can be arranged more closely together to get the most our of your limited floor space. Featuring a huge range of tank capacities, these tanks can be customized with a wide array of add-on features, and can be stacked to take advantage of vertical space in your facility. The RS-MO tank is the tank used for the base, and up to two RA-MO tanks stack on. Please note that with each width range there is a maximum total volume for all tanks in a stack shown below, due to the weight of the tanks when full.

    Key Features

    • Tank walls and base in AISI304 stainless, tank top is AISI316 stainless for additional SO2 gas resistance
    • All coners and junctions are gently rounded to facilitate draining and prevent wine build-up
    • Base tanks from 200cm and up in height, and all stacking tanks, include a ladder support bow.
    • TC Ferrule on tank top for affixing a valve, bung or blowoff tube.
    • TC racking port is strong enough to support a tank mixer.
    • TC pocketed tank base drains completely

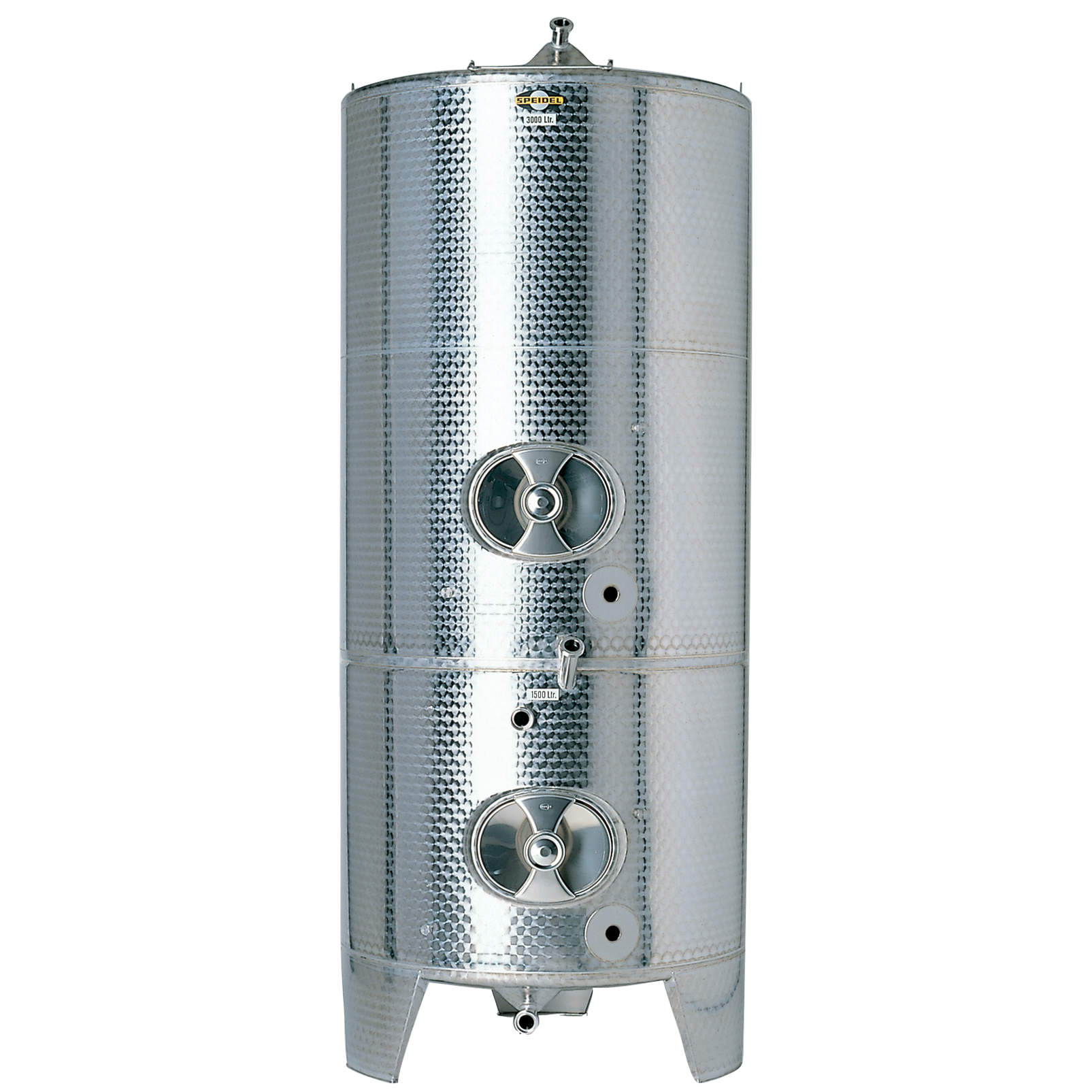

    • The MS-MO Multi-Chamber Tank from Speidel represents an unparallelled degree of freedom when it comes to wine storage. Starting with almost any FS-MO or RS-MO tank of your choosing, you can elect to have your tank divided into up to 3 discrete chambers, so long as each chamber is of at least the stated minimum volume for your tank diameter. Each "sub-tank" is equipped with a venting, racking, and drainage port, as well as an oval racking door. Highly versatile, allowing you to take advantage of high ceilings, and particularly well suited to California wineries which may be nervous about traditional stacking tanks in the face of earthquakes. To determine pricing, start with the cost of your base tank and add the cost of the intermediate floors. As each MS-MO tank is made to order please contact our sales staff for a personal quote or to place an order. MS-MO tanks cannot be ordered via our website.

      Key Features

      • DIvide one sealed storage tank into up to 3 individual tanks!
      • Tank walls and lowest base in AISI304 stainless steel, intermediate floors and tank top in AISI316
      • Each tank chamber is equipped with 1.5"TC racking (reinforced), and total drainage TC ports. 2" TC venting port.
      • Each chamber features a weld-free, molded oval racking door/manway
      • Each chamber is equipped with a DN10 threaded gland to accommodate a sample valve
      • Each chamber is equipped with a DN10 threaded gland and mounting points to affix a sight gauge at any point in the future
      • All tanks over 200cm in total height include a ladder support bow.

      To determine pricing: Select the tank you wish to divide from our listing of FS-MO or RS-MO tanks. Find the diameter of your starting tank in the table below. Take note of the minimum chamber size for your tank diameter/dimensions, and the cost per intermediate floor being installed. Dividing a tank into two chambers? The price is the cost of the starting tank, plus the cost of 1 intermediate floor.



      Tank Diameter/Width Minimum Chamber Volume
      100 cm D 650 Liters
      120 cm D 900 Liters
      140 cm D 1200 Liters
      160 cm D 1550 Liters
      180 cm D 1900 Liters
      200 cm D 2350 Liters
      90 cm W 850 Liters
      110 cm W 1250 Liters
      130 cm W 1650 Liters
      140 cm W 1450 Liters
      150 cm W 2200 Liters



      Click Here for more information on the key features of all Speidel Tanks.
