Speidel Variable Volume Tank | Cooling Jacket | Manway | Laser-Welded | Stainless Steel | 3850L

    Description

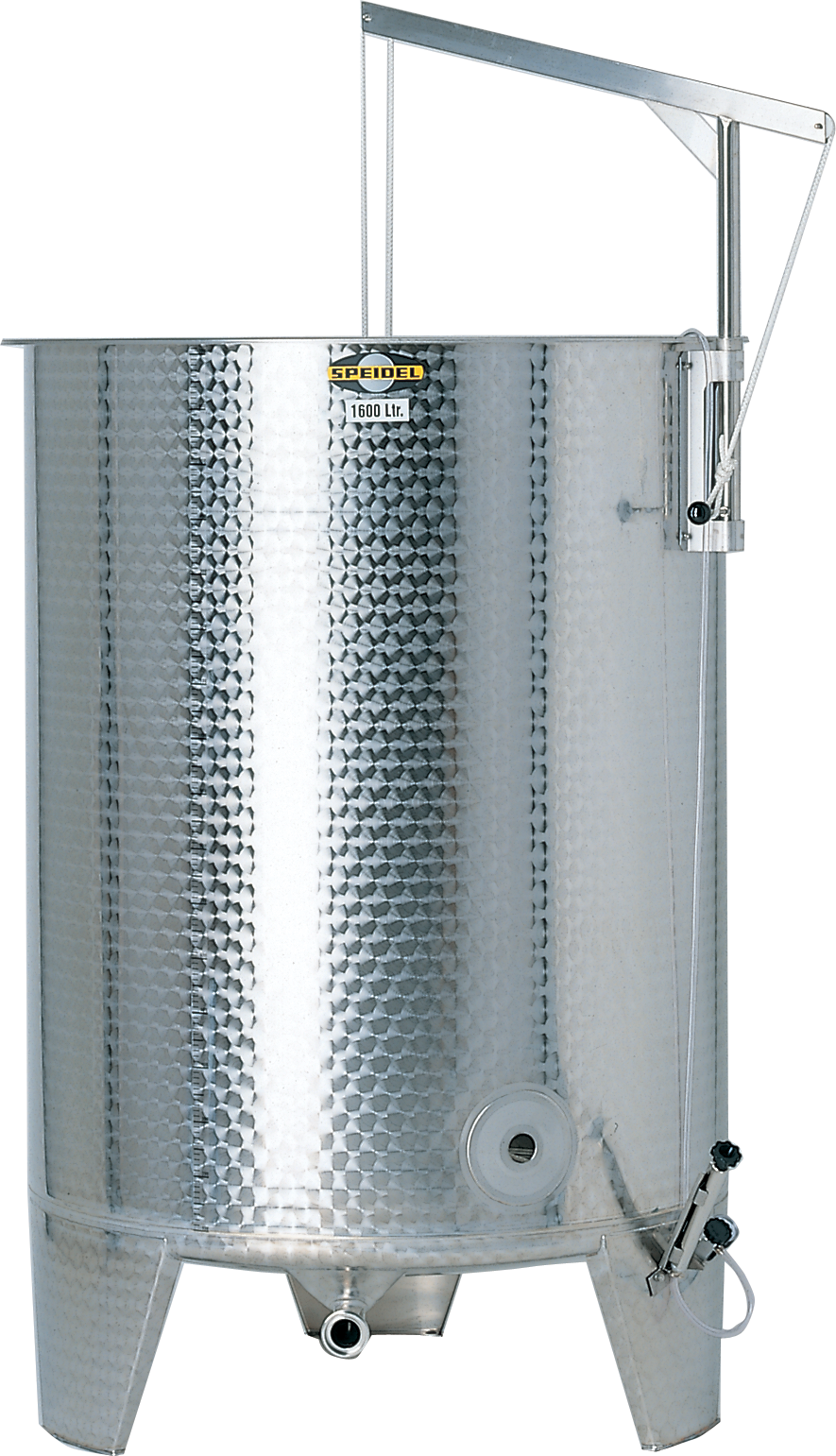

    Please​ note: the primary image is an example image and does not exactly match this tank. See below for features and specifications.

    • Variable capacity tank well-suited for fermentation, wine aging, kombucha, and other applications
    • Floating lid can be positioned as needed to match the volume of the liquid you're working with
    • Proprietary rubber lid gasket allows for a superior seal compared to traditional gaskets, providing better protection for your wine
    • Partial coverage cooling jacket for glycol cooling
    • Swinging manyway door for easy removal of grape skins

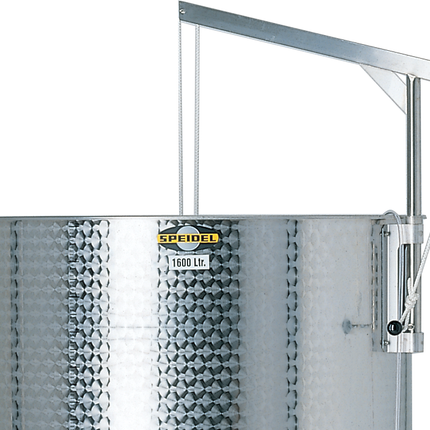

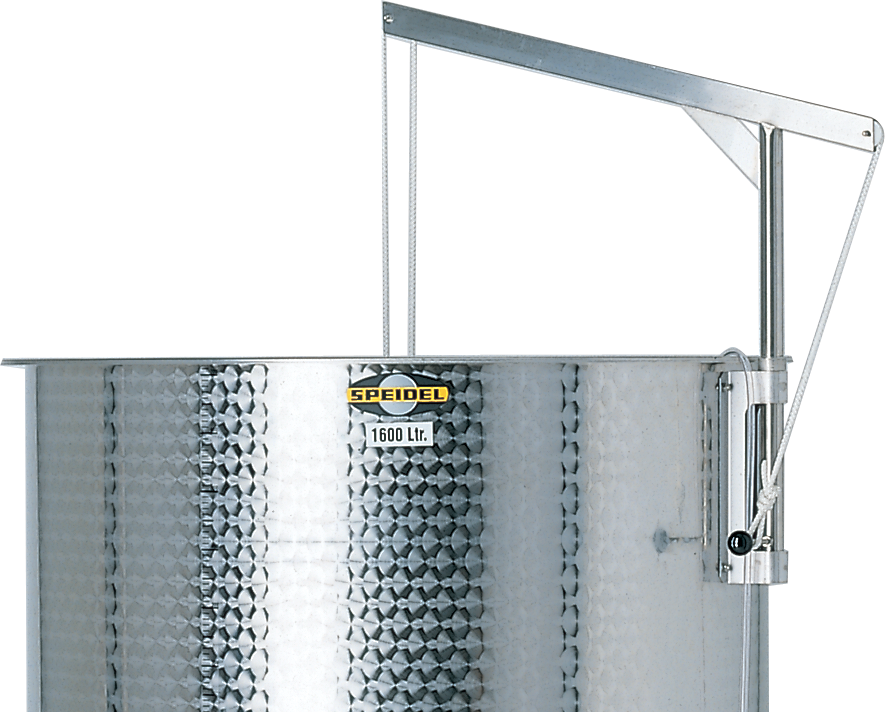

    • Hand crank lifting arm for lowering and lifting the floating lid
    • Made in Germany by Speidel

    We are proud to present our line of premium quality stainless steel tanks. Built in Germany by Speidel, the world-class traditions of German engineering and craftsmanship are reflected in these tanks. And, after examining tanks built by every major manufacturer worldwide, we can safely say that when it comes to features, quality and price, these tanks represent the very best value available in stainless steel wine storage.

    Speidel Quality Features:

    • Cooling Jacket - Fermenters are equipped with a partial jacket that is designed for an operating pressure of 2.5 to 6 bar. This will allow you to hook it into a glycol system (see our Kreyer Chilly45, GLY410) for complete temperature control!
    • Interior Finish - Speidel tanks feature an ultra-smooth 2R rated interior surface which effectively resists the build-up of tartrate residues. Clean your tanks with cold water after cold stabilization! Say goodbye to harsh cleaning chemicals and expensive CIP systems!
    • Weld Quality - Speidel's robotic-arm laser welders create flawless stainless to stainless junctions that look and feel more like a taped fabric seam than a traditional weld. Ultra high-quality welds leave no chance for residual product to harbor spoilage organisms.
    • Thickness - Speidel tanks are designed to be the correct thickness for the tank's total volume.
    • Manway - The "red wine" manway allows you to easily remove skins.
    • Complete Drainage Bottoms - All Speidel tanks are outfitted with conical, pocketed bottoms for total drainage, which maximizes product yield at rackings and makes cleaning a snap. *Please note that smaller, flat-bottomed tanks do not feature total drainage bottoms.
    • Tri-Clamp Valve Ferrules - All Speidel tanks come configured for use with Tri-Clamp (TC) style valves and fittings. Tanks up to 1600L capacity are outfitted with 1.5" TC racking outlet and bottom outlet. **Please Note: TC valves not included. Please inquire with your sales associate for pricing on TC valves and fittings.
    • Rubber Lid Gaskets - The white rubber gaskets used by Speidel are much thicker than the traditional clear vinyl gaskets, which along with their extruded manufacturing process provide a much better seal with the tanks wall. They're seamless and more oxygen resistant than the clear gaskets. That means better protection for your wines!
    • Warranty - Speidel-Behaelter, GMBH backs up each and every tank with an industry-leading 25 year warranty against defects in materials or workmanship. And, as a 5th generation manufacturer, you can be confident they'll be around to honor that warranty should the need arise.


    Tank Features:

    • Volume: Sealed, 3850 L
    • Variable Capacity Tank includes Floating lid and Heavy Duty White Rubber Gasket
    • Complete Drainage Dish Bottom
    • Lifting Arm
    • Reinforced Racking valve
    • 1.5" TC connections
    • NW10 fitting for use with Sample Valve or Thermometer and Thermowell Combo (Sample Valve or Thermometer and Thermowell not included)
    Note: Over tightening the airlock / orange bulk head can cause it to crack. Only thread the airlock down until it feels snug. Do not over tighten.
