Description
-
IP55 Water Resistant Rating: Ready to handle the messiest brew days and easy cleanup.
-
Magnetic Drive: Ensures smooth, efficient, and sanitary wort transfer.
-
360° Pro DIN Fitting: Allows for secure, sanitary, and easy connection with customizable outlet placement.
-
1.5" TC Center Inlet Head: Engineered for advanced brewing setups including mash recirculation and transfer.
Inspired by countless brew days in our garages and basements, as well as our experience in professional breweries, Ss Brew Pump is our take on a classic piece of brewing gear that is key to so many homebrew setups around the world.
Featuring an IP55 Water Resistance Rating, an easy-to-use DIN Head, Magnetic Drive, and 1.5” TC Center Inlet Head, Ss Brew Pump is engineered to tackle even the messiest of brew days!
IP55 | Water Resistant
Just like the high-quality pumps found throughout craft breweries, the Ss Brew Pump is IP55 certified and ready to handle the messiest of brew days.
From the Ground Up
Designing our own pump is something we have been eyeing for a while. Pumps are critical to any form of advanced brewing. From mash recirculation to transferring wort to cleanup, a quality pump is a key part of every brewday.
Years of working in professional craft brewing environments, where water-resistant pumps are the norm, made the foundation of our brew pump an easy decision. It had to be IP55 rated to handle the unavoidable messes that happen and the cleanups that follow them.
Once we unlocked the design for waterproofing, we turned to a laundry list of specs and features we wanted. That led to the creation of the Ss Brew Pump; one of our favorite products and now a staple in all of our team’s homebrew setups.
Magnetic Drive
It’s no secret that magnetic drive pumps are perfect for brewing applications. Instead of using a direct drive system where sealing off the wort from the drive shaft and motor is a major concern, Ss Brew Pump uses a high-end magnetic drive that allows for smooth, efficient, and sanitary operation.

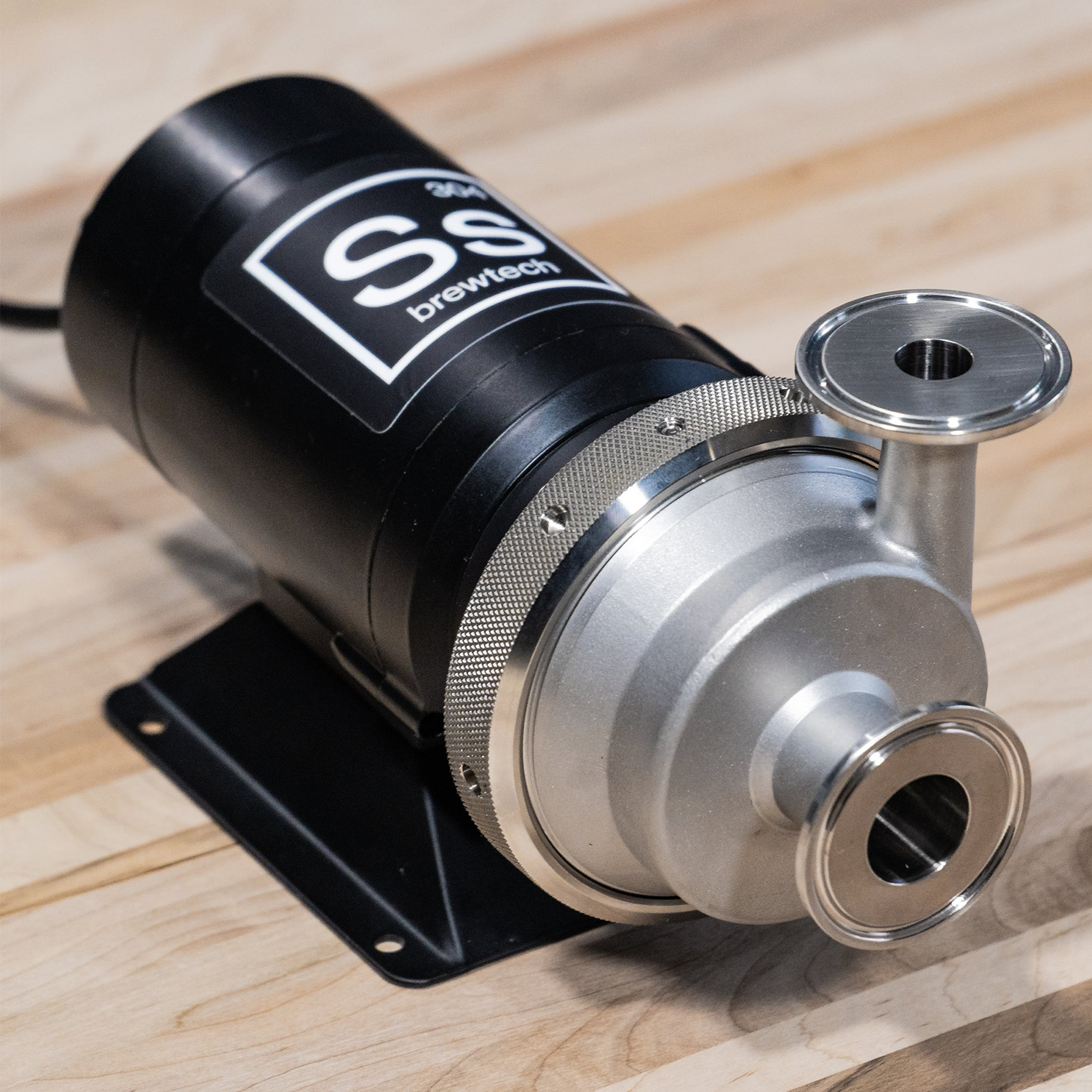

360° Pro DIN Fitting
Commonly found on Pro Brewing Tanks, DIN fittings allow for a secure and sanitary connection that is also super easy to use. Unlike a TC connection, the DIN Head on Ss Brew Pump allows for a secure connection that applies even pressure on every bit of the silicone seal and is easier to remove and reinstall without having to fumble with a large clamp.
The DIN Head can also be rotated and secured in a full 360 degrees so that you can place the Pump’s outlet exactly where you need it for your brewing setup.
Note: Ss Brew Pump is currently not compatible with Legacy versions of Brew Cube | Pump Mount Plate Kit, Brew Cube | Valve Tree Manifold, and Portable Valve Tree. Ss Brew Pump uses a larger mounting plate and the bolt holes to secure it are in a different pattern than the Chugger pumps these products were originally designed for. We are working to update these products and plan to have them available soon.

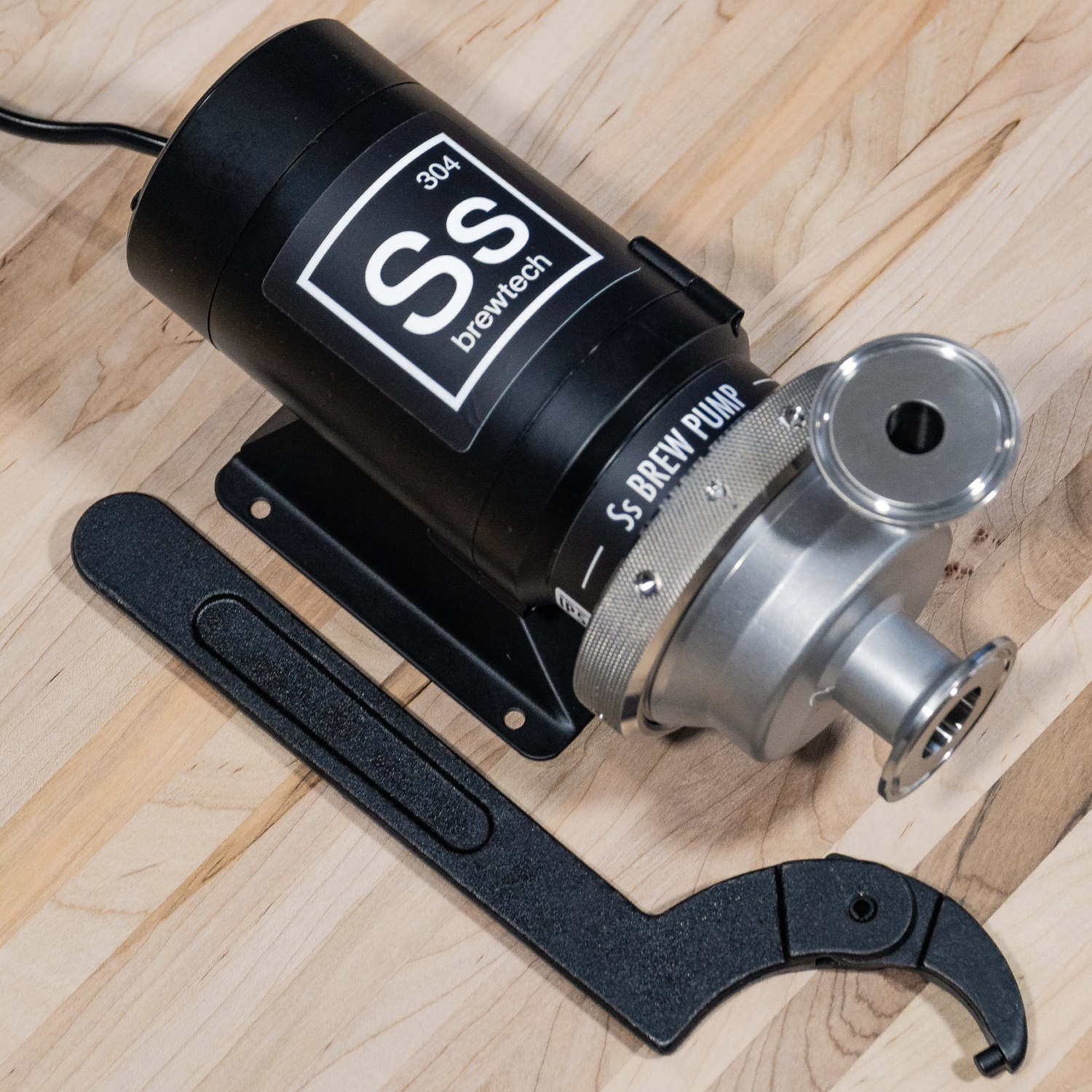

What's Included:
-
Ss Brew Pump
-
50-120 DIN Pin Wrench

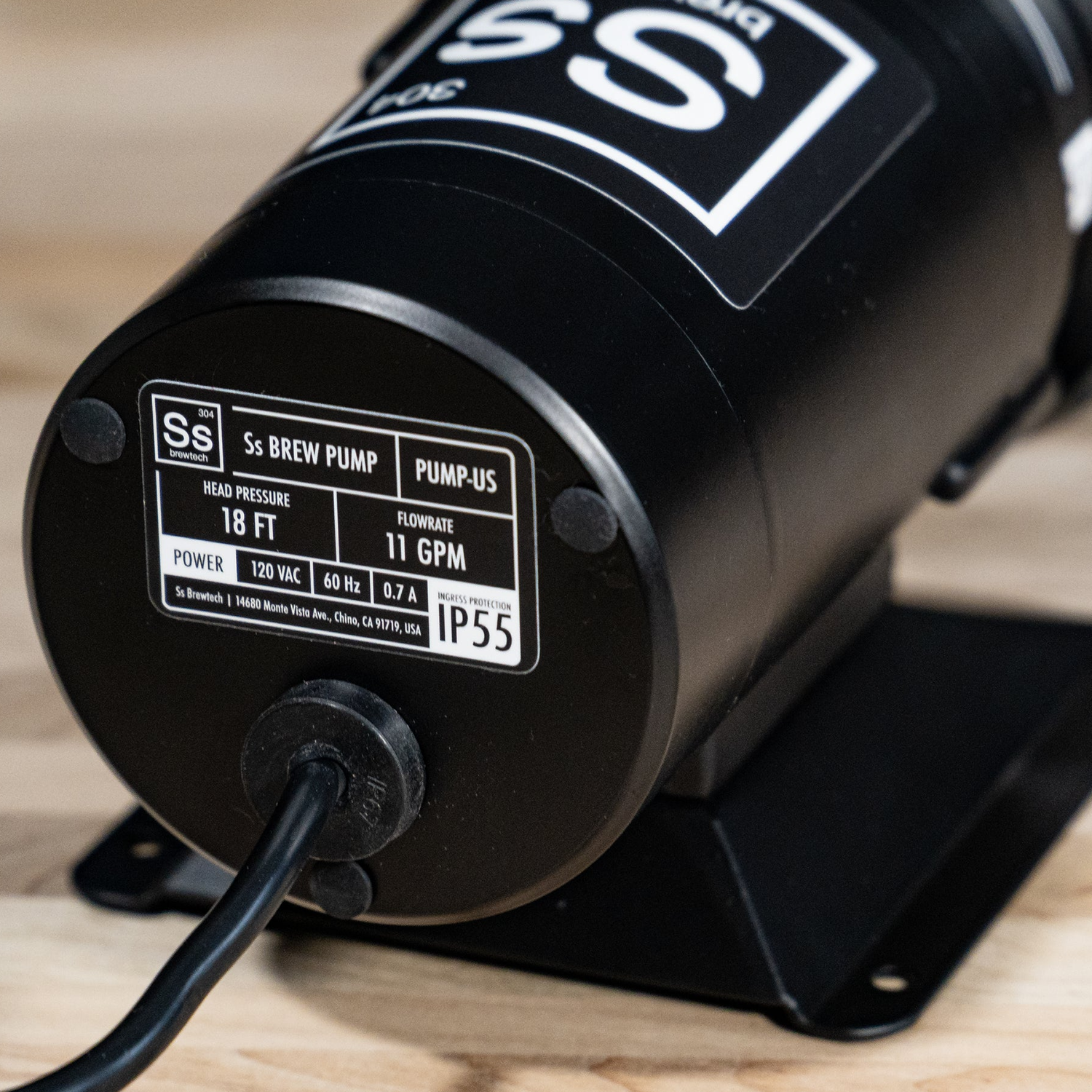

Specifications:
-
11 gallons per minute flow rate
-
18 ft Max Head
-
IP55 Water Resistant
-
Sanitary DIN Fitting Stainless Head with 1.5" TC Center Inlet
-
120 VAC 60hz 0.7 A
-
Assembled dimensions: 5.5” x 4.5” x 9.75”
-
Package dimensions: 7.25” x 7.25” x 12” - 11.75 lbs
This item does not qualify for free shipping.
