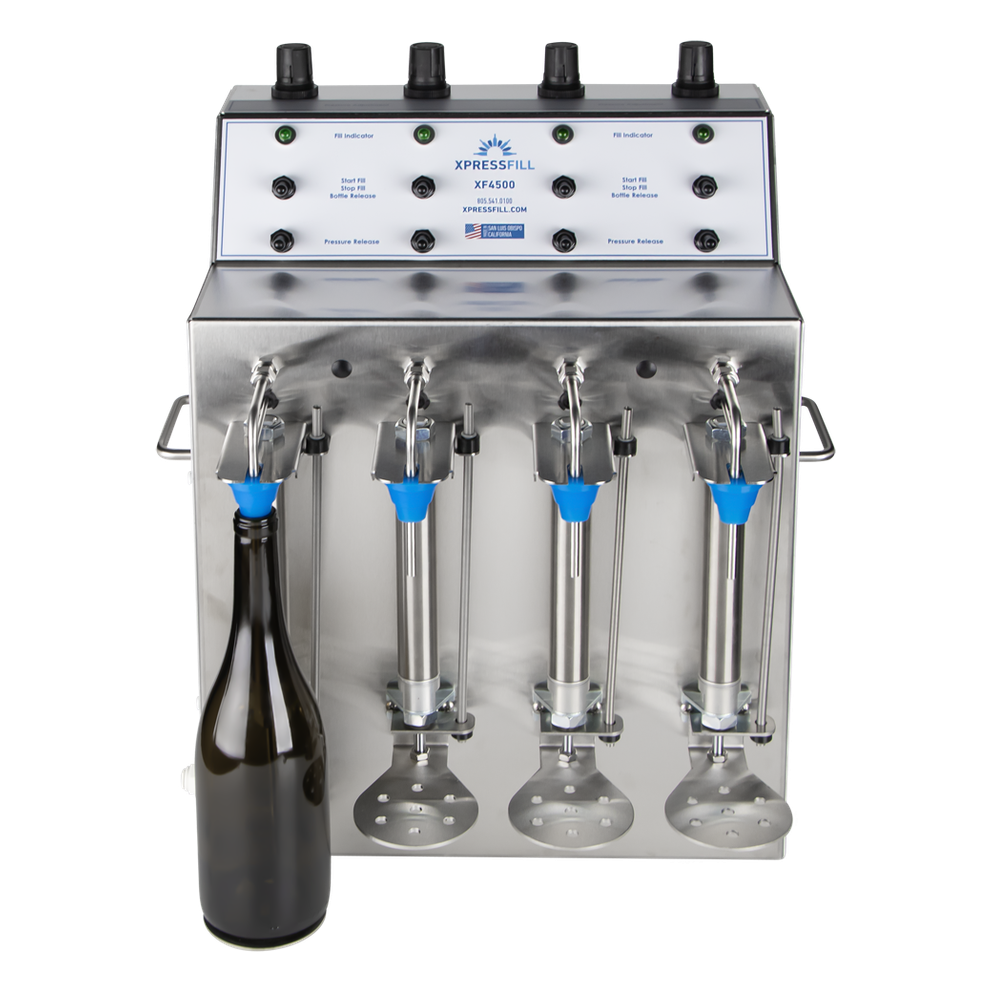

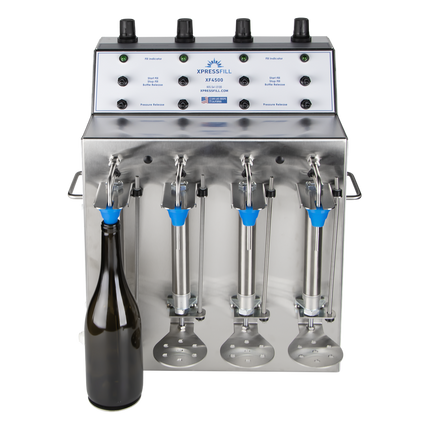

XpressFill XF4500 | Carbonated Beverage Bottle Filler | 4 Spout

    Description

    • Counter pressure bottle filler for carbonated beverages
    • Flow stops automatically at the perfect height in the bottle neck every time, regardless of bottle variations
    • Accommodate bottles up to 13.5" tall and up to 4" in diameter
    • Made to order in the United States

    The Carbonated Beverage Filler is a counter-pressure machine that fills bottles with pre-carbonated beverages without losing carbonation; The XpressFill Carbonated Beverage Filler uses a high-tech sensor probe that shuts off the fill at the perfect height in the bottle neck every time, regardless of bottle variations.

    Even though this machine is designed for carbonated beverages, it can also be used for still products as long as they are fed to the filler using a lightly pressurized keg or pump. That means that you can use this for your normal bottling as well as for those special bottle-conditioned beers too!

    The Carbonated Beverage Filler is also suitable for filling Charmat-style sparkling wines, at a maximum operating pressure of 60 psi. The XF4500 requires that you also have an air compressor, which is used to hold the bottle rest in place, a canister of CO2, to pressurize and carbonate your tank or keg, and a pressurized container, to allow your product to flow from high to low pressure, through the machine.

    The filler will accommodate bottles up to 4 inches in diameter and up to 13.5 inches tall. This covers most standard sized 12 oz, 22 oz and 750 mL bottles.

    Each bottle filler is hand built to order in the California factory. Lead times average about 3 weeks.

    Features & Specifications:

    • 400 Bottles per Hour capacity (12 oz)
    • All materials in the beverage flow path are FDA certified as food grade for contact with alcohol
    • Maximum Bottle Dimensions: 4" D x 13.5" H
    • Maximum Operating Pressure: 60 psi
    • Weight: 40 lbs
    • Dimensions: 16 inches wide x 21 inches high x 15.5 inches deep
    • Requires 1.5A of 115V 50/60Hz power

    XpressFill XF4500 | Carbonated Beverage Bottle Filler | 4 Spout

      Product form

      SKU: XF4500

      $6,495.00

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        WARNING : This product can expose you to chemicals including Di-n-butyl phthalate (DBP), which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        • Counter pressure bottle filler for carbonated beverages
        • Flow stops automatically at the perfect height in the bottle neck every time, regardless of bottle variations
        • Accommodate bottles up to 13.5" tall and up to 4" in diameter
        • Made to order in the United States

        The Carbonated Beverage Filler is a counter-pressure machine that fills bottles with pre-carbonated beverages without losing carbonation; The XpressFill Carbonated Beverage Filler uses a high-tech sensor probe that shuts off the fill at the perfect height in the bottle neck every time, regardless of bottle variations.

        Even though this machine is designed for carbonated beverages, it can also be used for still products as long as they are fed to the filler using a lightly pressurized keg or pump. That means that you can use this for your normal bottling as well as for those special bottle-conditioned beers too!

        The Carbonated Beverage Filler is also suitable for filling Charmat-style sparkling wines, at a maximum operating pressure of 60 psi. The XF4500 requires that you also have an air compressor, which is used to hold the bottle rest in place, a canister of CO2, to pressurize and carbonate your tank or keg, and a pressurized container, to allow your product to flow from high to low pressure, through the machine.

        The filler will accommodate bottles up to 4 inches in diameter and up to 13.5 inches tall. This covers most standard sized 12 oz, 22 oz and 750 mL bottles.

        Each bottle filler is hand built to order in the California factory. Lead times average about 3 weeks.

        Features & Specifications:

        • 400 Bottles per Hour capacity (12 oz)
        • All materials in the beverage flow path are FDA certified as food grade for contact with alcohol
        • Maximum Bottle Dimensions: 4" D x 13.5" H
        • Maximum Operating Pressure: 60 psi
        • Weight: 40 lbs
        • Dimensions: 16 inches wide x 21 inches high x 15.5 inches deep
        • Requires 1.5A of 115V 50/60Hz power
        Documents
        XF4500specsheet
        4500manual
