Filtering Wine

40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications 2 Micron rating are for general polishing of beverages that do not need to be sterile filtered Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 40cm x 40cm filter pads made for 40x40 plate filters. 2 micron pads are for general polishing of beverages that do not need to be sterile filtered. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 1.5 - 3.0 Micron Mid Point: 2 Versafix XE 64 Filter Sheets Wine Use: Clarifying filtration Max. Recommended Flow Rate: 26 gal/hr (96 L/hr) Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar) Spirits Use: Fine filtration of cognac and whiskey chill haze removal Max. Recommended Flow Rate: 21 gal/hr (80 L/hr) Max. Recommended Pressure Differential: 22 psi (1.5 Bar) Beer Use: Fine filtration, with fewer yeast cells Max. Recommended Flow Rate: 6.5 gal/hr (24 L/hr) Max. Recommended Pressure Differential: 22 psi (1.5 Bar) Seltzer Use: Fine filtration of seltzer base Max. Recommended Flow Rate: 30 gal/hr (112 L/hr) Max. Recommended Pressure Differential: 36 psi (2.5 Bar) Cold Brew Coffee Use: Fine filtration Max. Recommended Flow Rate: 21 gal/hr (80 L/hr) Max. Recommended Pressure Differential: 29 psi (2.0 Bar)

Read more less

20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers 11 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 20cm x 20cm filter pads made for 20x20 plate filters. 11 micron pads are considered to be a "rough" filtration and are typically used to prepare the wine to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on the winemaker's tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 5 - 18 Micron Mid Point: 11 Versafix XE 24 Filter Sheets

Read more less

Replacement female threaded brass piece which mounts into the fixed stainless plate (non-pump side) on an OMAC 20x20 plate and frame filter. This is the part of the filter that the spindle threads through in order to push the floating plate inward and close the filter once the pads have been installed. They occasionally strip out due to the force applied when sealing the filter for operation.

Read more less

Replacement foot for the Buon Vino Super Jet Filter (FIL10)

Read more less

The best way to filter wine at home! Push wine from one keg through a plate filter and into another keg. No pumping, no oxidation, and total control over flow rates. The system can be expanded as needed by adding kegs or additional filter housings. All materials that come in contact with the wine are either stainless steel or food-grade, FDA-approved plastic or rubber. Kegs can be used for wine storage, and the gas system can be used anywhere a blanket of inert gas is needed. Complete filtering system includes one Nitrogen tank, dual gauge Nitrogen regulator, gas line assembly, two 5.5 gallon kegs and our FIL45B Wine & Beer Plate Filtering Kit. The kit includes a set of FIL46 Rough Filter Sheets. Additional sheets and sheets in other micron ratings can be selected from the You Might Also Need section below. Please Note:The Nitrogen tank is shipped empty and will need to be filled at your local welding supply shop. This kit will come with refurbished or converted Ball Lock Kegs

Read more less

A great accessory for the FIL45 Plate Filter. Use pressure to push beer/wine through the plate filter rather than gravity alone. Comes with a funnel top and stable base maintaining an excellent balance. Please refer to the manual below for complete instructions. BPA Free Made from high density polyethylene Max Temp Rating: 167°F (75°C) Includes 35" length of 5/16" ID x 7/16" OD tubing. Plate filter not included.

Read more less

Replacement metal plate for Buon Vino Super Jet filter.

Read more less

Diaphragm Pump, self priming. 3/4" barbed fittings. Pump is not wired, it requires a plug and/or switch with cord to operate. 4.5 gpm. 140° F max temperature.

Read more less

20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers 0.7 Micron for ultra-fine polishing of wine or for preparing hard to filter wines to go through a sterile cartridge filter Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 20cm x 20cm filter pads made for 20x20 plate filters. 0.7 micron pads are for ultra-fine polishing of the wine, or for preparing hard to filter wines to go through a sterile cartridge filter. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 0.5 - 0.8 Micron Mid Point: 0.7 Versafix XE 104 Filter Sheets

Read more less

Replacement Pressure Gauge for Marchisio Wine Plate Filter with Noryl Plates -- WE903, WE908N, WE906N.

Read more less

Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory. 16" filter module for use with 16" stainless steel lenticular filter housings 0.45 Micron pads remove 99.999% of bacteria to promote sterility in the bottle Manufactured by Filtrox, the world's leading producer of high-quality filtration media Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more. Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.  Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications. Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 0.4 - 0.6 Micron Mid Point: 0.5 Filtration Area: 38.7 ft² (3.6 m²) Number of Lenses: 16 Fibradisc AF 130 Filter Module Wine Use: General sterile filtration Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr) Max. Recommended Pressure Differential: 17 psi (1.2 Bar) Fruit Wine or Fruit Juice Use: Cold sterile filtration Max. Recommended Flow Rate: 334  gal/hr (1,260 L/hr) Max. Recommended Pressure Differential: 17 psi (1.2 Bar) Beer Use: Yeast and bacteria removal Max. Recommended Flow Rate: 114 gal/hr (432 L/hr) Max. Recommended Pressure Differential: 15 psi (1.0 Bar) Please Note: The filter module, lacking a PES layer, is for clarification purposes only and does not provide sterile filtration for 100% bacteria removal.

Read more less

40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications 0.5 Micron pads remove 99.999% of bacteria to promote sterility in the bottle Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 40cm x 40cm filter pads made for 40x40 plate filters. Pads rated 0.5 micron remove 99.999% of bacteria. This pad is the right choice when you want to promote sterility in the bottle, although do please note that the pad does not remove 100% of bacteria - only a cartridge filter can do so. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 0.4 - 0.6 Micron Mid Point: 0.5 Fibrafix AF 130 Filter Sheets Wine Use: General sterile filtration Max. Recommended Flow Rate: 15 gal/hr (56 L/hr) Max. Recommended Pressure Differential: 17 psi (1.2 Bar) Fruit Wine or Fruit Juice Use: Cold sterile filtration of fruit juice Max. Recommended Flow Rate: 15 gal/hr (56 L/hr) Max. Recommended Pressure Differential: 17 psi (1.2 Bar) Beer Use: Yeast and bacteria removal Max. Recommended Flow Rate: 5 gal/hr (19 L/hr) Max. Recommended Pressure Differential: 15 psi (1.0 Bar)

Read more less

Quick disconnect barb set (2 pieces) for 4.9 GPM Flojet pump.

Read more less

16" filter module for use with 16" stainless steel lenticular filter housings 2 Micron rating are for general clarifying of wine and fine filtration of beer, seltzer and cold brew Manufactured by Filtrox, the world's leading producer of high-quality filtration media Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more. Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.  Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications. Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 1.5 - 3 Micron Mid Point: 2 Filtration Area: 38.7 ft² (3.6 m²) Number of Lenses: 16 Versadisc XE 64 Filter Module Wine Use: Clarifying filtration Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr) Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar) Spirits Use: Fine filtration of cognac and whiskey chill haze removal Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr) Max. Recommended Pressure Differential: 22 psi (1.5 Bar) Beer Use: Fine filtration, with fewer yeast cells Max. Recommended Flow Rate: 142 gal/hr (540 L/hr) Max. Recommended Pressure Differential: 22 psi (1.5 Bar) Seltzer Use: Fine filtration of seltzer base Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr) Max. Recommended Pressure Differential: 36 psi (2.5 Bar) Cold Brew Coffee Use: Fine filtration Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr) Max. Recommended Pressure Differential: 29 psi (2.0 Bar)

Read more less

40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications 6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration Rough filtration is necessary on beverages with heavy sedimentation as the finer pads will clog without prefiltering Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 40cm x 40cm filter pads made for 40x40 plate filters. 6 micron pads are considered to be a "rough" filtration and are typically used to prepare the beverage to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 4 - 9 Micron Mid Point: 6 Versafix XE 34 Filter Sheets Wine Use: Clarifying filtration Max. Recommended Flow Rate: 26 gal/hr (96 L/hr) Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar) Fruit Wine or Fruit Juice Use: Clarifying filtration Max. Recommended Flow Rate: 21 gal/hr (80 L/hr) Max. Recommended Pressure Differential: 22-36 psi (1.5-2.5 Bar) Beer Use: Clarifying filtration of beer, visually clear Max. Recommended Flow Rate: 13-15 gal/hr (48-56 L/hr) Max. Recommended Pressure Differential: 22 psi (1.5 Bar) Cold Brew Coffee Use: Clarifying filtration Max. Recommended Flow Rate: 21 gal/hr (80 L/hr) Max. Recommended Pressure Differential: 29 psi (2.0 Bar)

Read more less

Reversing Plate kit for EnoItalia 20x20 Wine Plate Filters.

Read more less

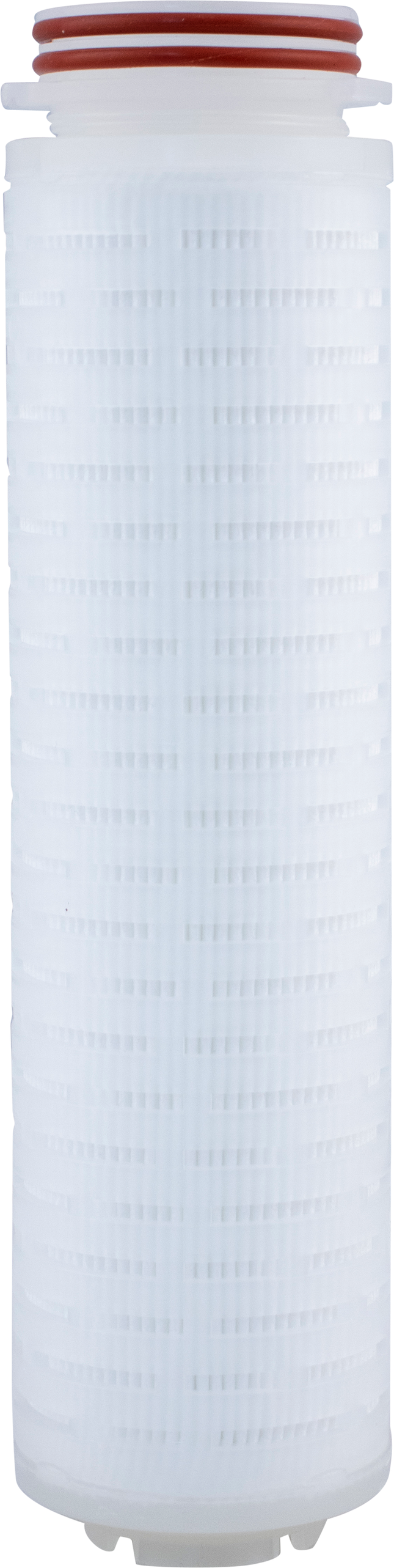

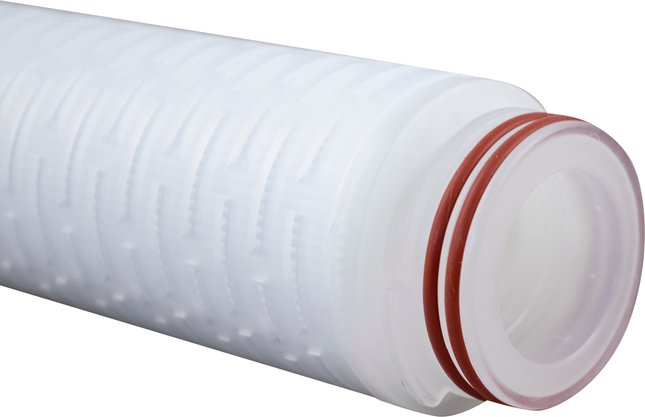

Use with the Enolmatic filter. These filter cartridges can be cleaned and re-sanitized for future useage. Wash by running PBW (CL25) followed by a hot then a cold rinse. Re-sanitize immediately after washing and then again just prior to the next use with SaniClean (CL27). Absolute Rated

Read more less

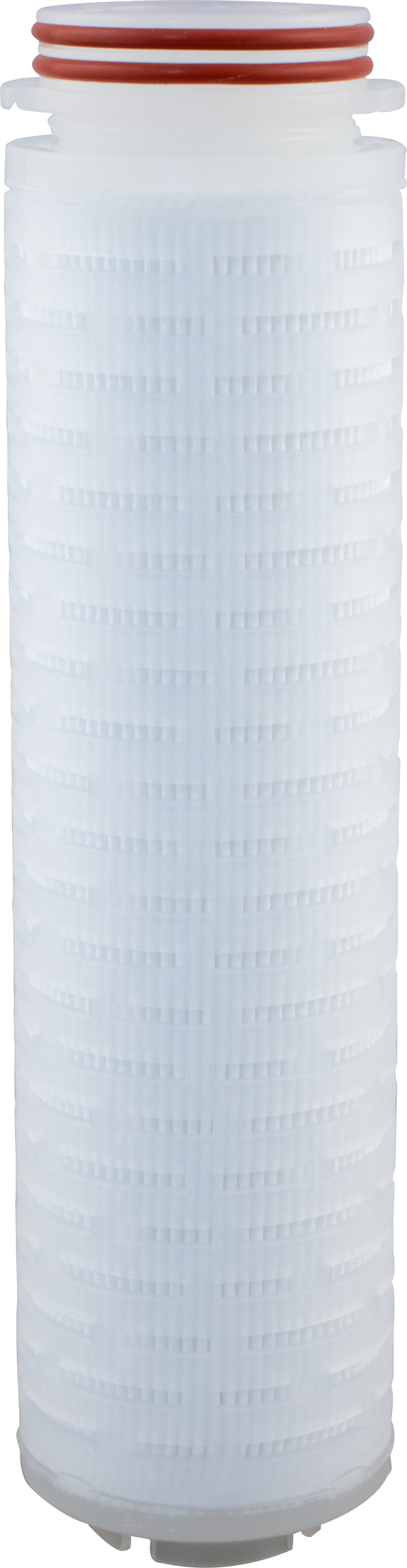

0.5 Micron Absolute Rated Washable and Reusable High Quality PE Filter Compatible with both the Enolmatic and Enolmaster filters Use with the Enolmatic or Enolmaster filter. These filter cartridges can be cleaned and re-sanitized for future useage. Wash by running PBW (CL25) followed by a hot then a cold rinse. Re-sanitize immediately after washing and then again just prior to the next use with SaniClean (CL27). Can be used to Filter approximately 15 gallons at a time assuming the wine is previously filtered by rougher filtration like 1 or 2 micron filters

Read more less

Replacement End Plate for your 40x40cm Plate & Frame filter.

Read more less

Replacement check valve and installation instructions for 4.9 GPM Flojet pump.

Read more less

12" filter module for use with 12" stainless steel lenticular filter housings 2 Micron rating are for general clarifying of wine and fine filtration of beer, seltzer and cold brew Manufactured by Filtrox, the world's leading producer of high-quality filtration media Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more. Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.  Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications. Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 1.5 - 3 Micron Mid Point: 2 Filtration Area: 19.3 ft² (1.8 m²) Number of Lenses: 16 Versadisc XE 64 Filter Module Wine Use: Clarifying filtration Max. Recommended Flow Rate: 286 gal/hr (1,080 L/hr) Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar) Spirits Use: Fine filtration of cognac and whiskey chill haze removal Max. Recommended Flow Rate: 239 gal/hr (900 L/hr) Max. Recommended Pressure Differential: 22 psi (1.5 Bar) Beer Use: Fine filtration, with fewer yeast cells Max. Recommended Flow Rate: 71 gal/hr (270 L/hr) Max. Recommended Pressure Differential: 22 psi (1.5 Bar) Seltzer Use: Fine filtration of seltzer base Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr) Max. Recommended Pressure Differential: 36 psi (2.5 Bar) Cold Brew Coffee Use: Fine filtration Max. Recommended Flow Rate: 239 gal/hr (900 L/hr) Max. Recommended Pressure Differential: 29 psi (2.0 Bar)

Read more less

40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications 0.7 Micron for ultra-fine polishing of beverages or for preparing hard to filter beverages to go through a sterile cartridge filter Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 40cm x 40cm filter pads made for 40x40 plate filters. 0.7 micron pads are for ultra-fine polishing of the beverage, or for preparing hard to filter beverages to go through a sterile cartridge filter. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 0.5 - 0.8 Micron Mid Point: 0.7 Versafix XE 104 Filter Sheets Wine Use: Ultra-fine polishing Max. Recommended Flow Rate: 15 gal/hr (56 L/hr) Max. Recommended Pressure Differential: 17 psi (1.2 Bar) Cold Brew Coffee Use: Very fine filtration Max. Recommended Flow Rate: 15 gal/hr (56 L/hr) Max. Recommended Pressure Differential: 36 psi (2.5 Bar)

Read more less

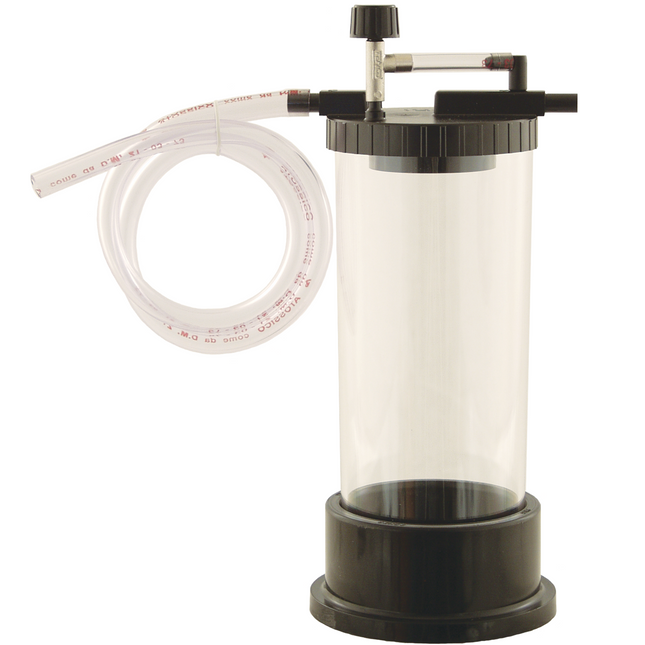

Use in conjunction with an Enolmatic or Enolmaster filler to filter wine inline as you are bottling. Saves time by eliminating a separate step and allows you to filter without using a pump or exposing your wine to oxygen. This filter unit is placed inline between the product and the filler itself. Filters are available in 5, 1 and .5 micron ratings. The filter cartridges used with this housing can be cleaned and re-sanitized for future useage. Wash by running PBW (CL25) followed by a hot then a cold rinse. Re-sanitize immediately after washing and then again just prior to the next use with SaniClean (CL27).

Read more less
