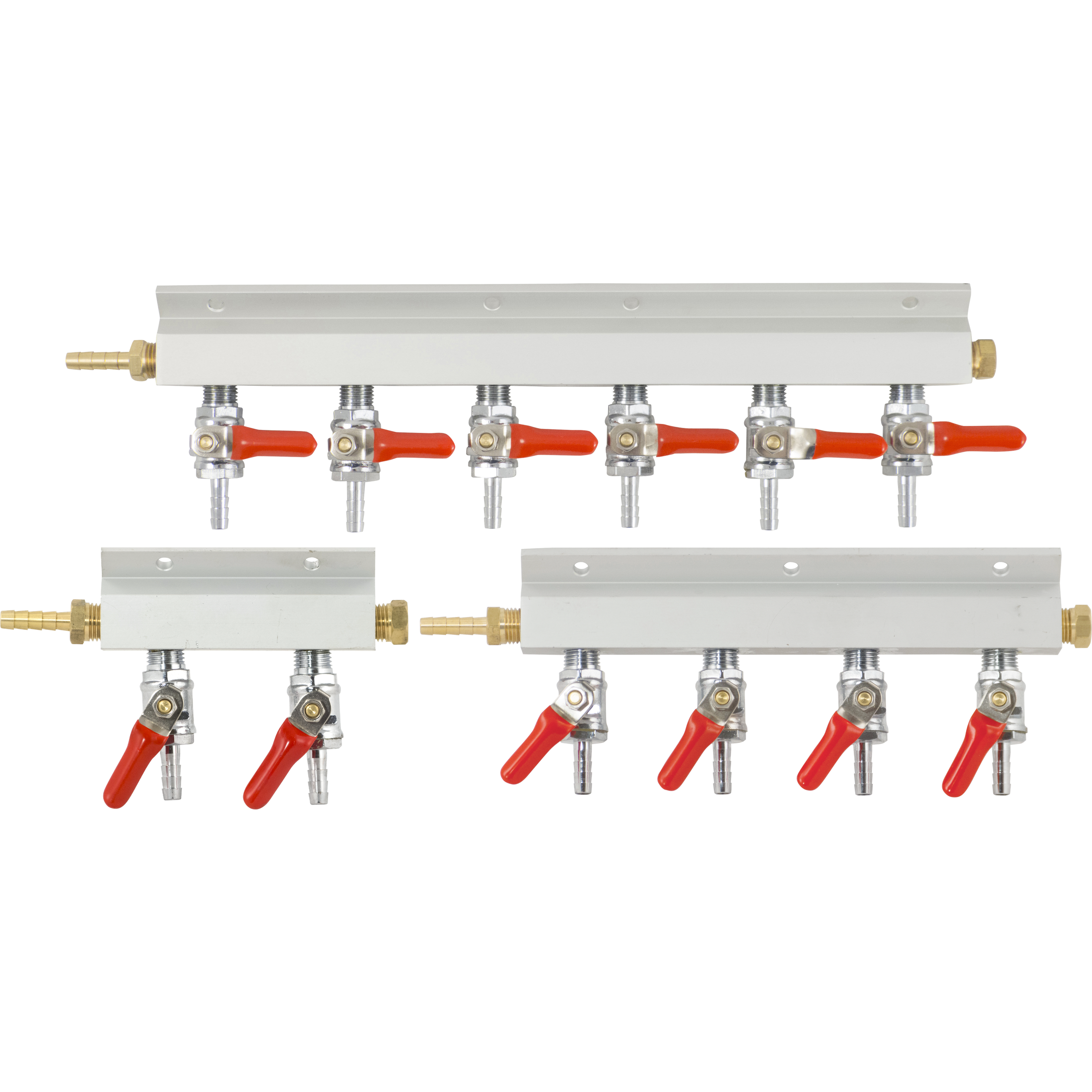

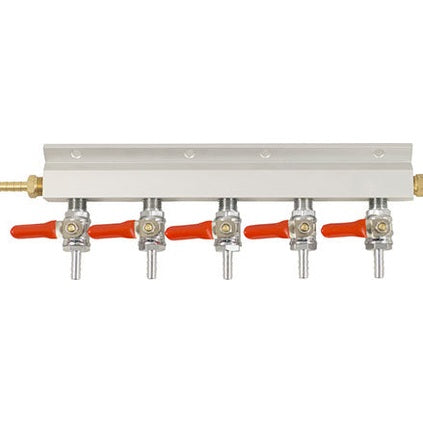

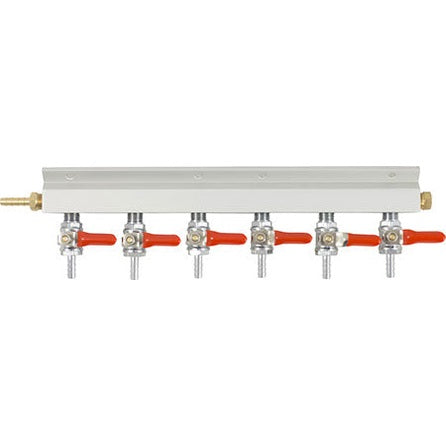

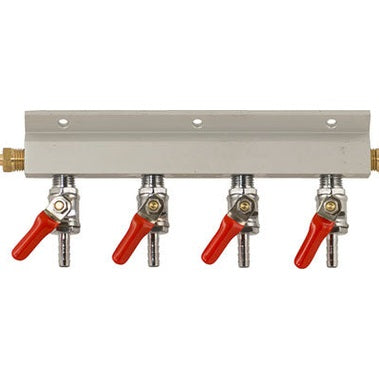

Manifolds are a great way to have one CO2 tank supply multiple kegs. This manifold is made from aluminum, brass, and stainless. It also works up to 100 psi and includes 1/4 in ball valves with built in check valves. Another ball valve can be added to the end of the manifold for an additional gas line.
Multiple manifolds can be linked up with a 1/4" nipple (D1820B).
Features:
-
1/4" BSP ball valves
-
1/4" barbs
-
Rated up to 100 psi
-
Screw holes for easy mounting
-
Optional additional port on the end
|
SKU |
Overall Length |
|
D1802 |
5-1/2 in. |
|
D1807 |
7-3/8 in. |
|
D1811 |
9-5/8 in. |
|
D1813 |
11-1/2 in. |
|
D1816 |
13-1/2 in. |
The above measurements are from the tip of the brass barb to the plug on the opposite end. Each manifold measures approximately 3.5" from the mounting holes to the tip of the valve.
Kegland Part number: KL02554
