Air Driven Wine Pump

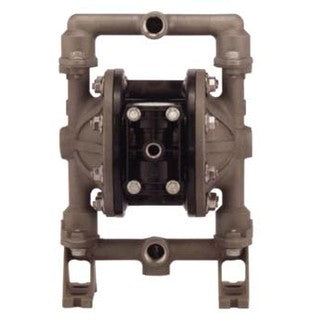

Air Driven Diaphragm Pump (1") Stainless Steel

    Description

    Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.

    We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both styles feature a food grade Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.

    Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.

    Does not include air compressor or regulator



    Construction Of H367E:


    Specifications:

    • Stainless Steel outer Body
    • Black Polypropylene Center
    • Stainless Steel Hardware
    • Stainless Steel Seats
    • Santoprene Ball & Diaphragm
      • Maximum Air Inlet Pressure .............. 120 p.s.i.g. (8.3 bar)
      • Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
      • Maximum Outlet Pressure ................ 120 p.s.i.g. (8.3 bar)
      • Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
      • Maximum Flow Rate (flooded inlet) .... 52.2 g.p.m. (197.6 L.p.m.)
      • Displacement / Cycle @100 p.s.i. ......... 0.232 gal (0.88 lit)
      • Maximum Particle Size .................... 1/8" dia. (3.2 mm)
      • Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
      • Noise Level @ 70 p.s.i., 60 c.p.m. ...... 80.6 db(A)
      • Dimensions .................................... 12 11/32" W x 12 7/16" H x 11 3/32" D

    Read more

    Air Driven Diaphragm Pump (1") Stainless Steel

      Product form

      SKU: PMP440

      $3,249.99

        This item does not qualify for free shipping.

        WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Drop Ship: This product will ship directly from the supplier.

        Description

        Connect these pumps up to an air compressor and you get a gentle transfer solution at a very reasonable price. Flow rates are variable by regulating the inlet air pressure at the compressor and/or by applying back pressure with a ball valve.

        We offer two styles of this pump, with either a polypropylene body or stainless steel body. Both styles feature a food grade Santoprene diaphragm. The Polypropylene pumps are available in 3/8", 1/2" and 1" Female Pipe Thread inlet / outlet; the Stainless Steel pumps are available in 1/2" and 1". Stainless Steel adapters to common barb sizes and to Tri-Clover style fittings are available. 1" models offer a Max Flow Rate of 53gpm and a Max Inlet Pressure of 120psi (8.3bar). Please see the specs below for information on this particular model.

        Manufactured by ARO. Smaller and larger sizes are available, please call 1-800-600-0033 or e-mail support@moreflavor.com for more information.

        Does not include air compressor or regulator



        Construction Of H367E:


        Specifications:

        • Stainless Steel outer Body
        • Black Polypropylene Center
        • Stainless Steel Hardware
        • Stainless Steel Seats
        • Santoprene Ball & Diaphragm
          • Maximum Air Inlet Pressure .............. 120 p.s.i.g. (8.3 bar)
          • Maximum Material Inlet Pressure ....... 10 p.s.i.g. (0.69 bar)
          • Maximum Outlet Pressure ................ 120 p.s.i.g. (8.3 bar)
          • Air Consumption @ 40 p.s.i. .............. 1 c.f.m. / gallon (approx.)
          • Maximum Flow Rate (flooded inlet) .... 52.2 g.p.m. (197.6 L.p.m.)
          • Displacement / Cycle @100 p.s.i. ......... 0.232 gal (0.88 lit)
          • Maximum Particle Size .................... 1/8" dia. (3.2 mm)
          • Maximum Temperature Limits ........... 35 to 150 F (2 to 66 C)
          • Noise Level @ 70 p.s.i., 60 c.p.m. ...... 80.6 db(A)
          • Dimensions .................................... 12 11/32" W x 12 7/16" H x 11 3/32" D

        Read more
