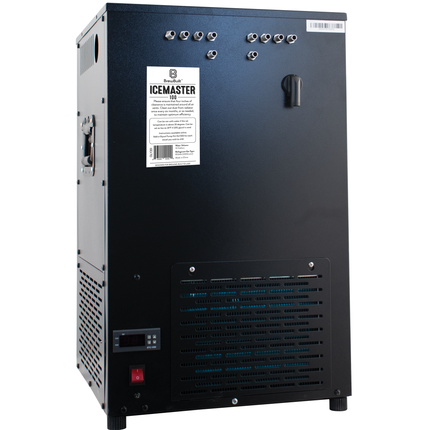

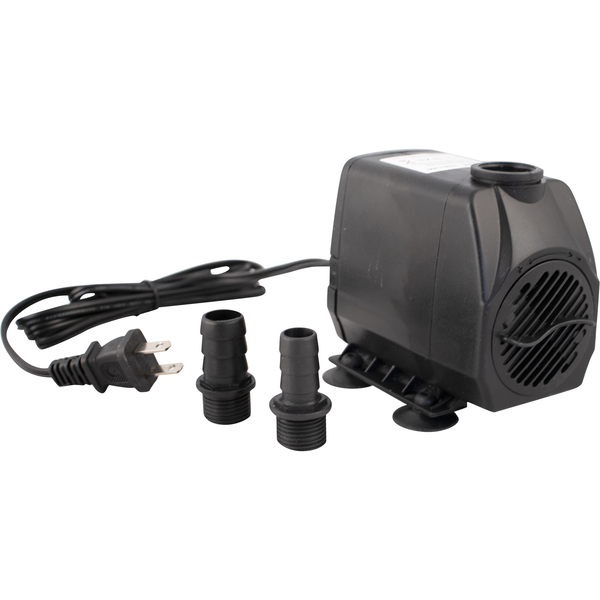

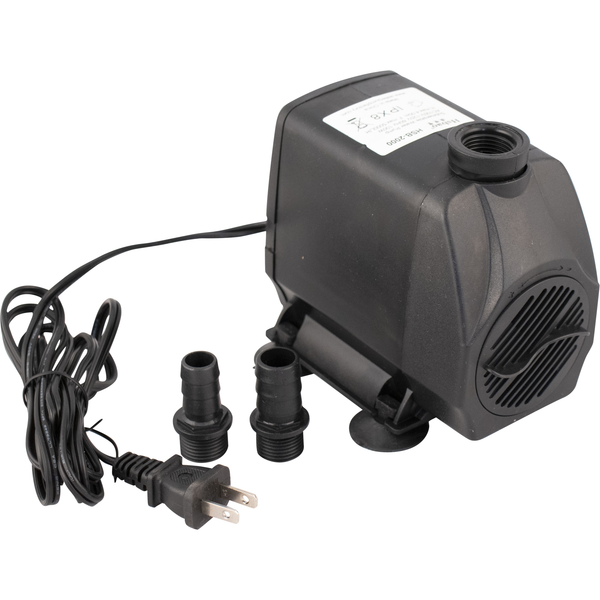

The IceMaster is designed to cool fermentations in small vessels or barrels. It can be used with any vessel/fermenter/tank/barrel that has a glycol jacket or submersed cooling snake/coil/rod. For each vessel you want to cool you will need to buy one of our BrewBuilt Chilling Pump Kit (GLY355 ). Each Chilling Pump Kit includes a submersible pump that is placed in the cool bath of the IceMaster chiller along with a digital controller. The digital controller includes a thermal probe that should be inserted into a thermal well in your vessel or can be taped to the outside of the vessel if you don't have a thermal well. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool the liquid in your vessel to the desired set temperature.
Compatibility
Speidel - Speidel tanks with optional cooling jackets. You will need one Glycol Pump Kit for each tank.
Barrels - If you use our barrel snake. This can be particularly attractive for a white wine ferment in a barrel. You will need one Glycol Pump Kit for each fermenter.
Coolstix - Any glass or PET carboy, Fermonster, or other small vessel that is using a Coolstix to maintain temperatures.
Capacity
1 - 60 Gallon Tank or Barrel
Set Up
Length 1: Submersible pump outlet to inner barb of 1st bulkhead
Length 2: Outer barb of 1st bulkhead to cooling system inlet
Length 3: Cooling system outlet to outer barb of 2nd bulkhead
Length 4: Inner barb of 2nd bulkhead to IceMaster reservoir (should drain freely, no connection necessary)
Specifications:
Tank Capacity: 30L/8 Gal. Water Capacity
Compressor: 3/8 HP
Cooling Capacity: 780 Watt/2600btu/0.26 ton
Refrigerant: r134a
Voltage: 110V (3.6 amps)
Dimensions: 410mm x 410mm x 660mm

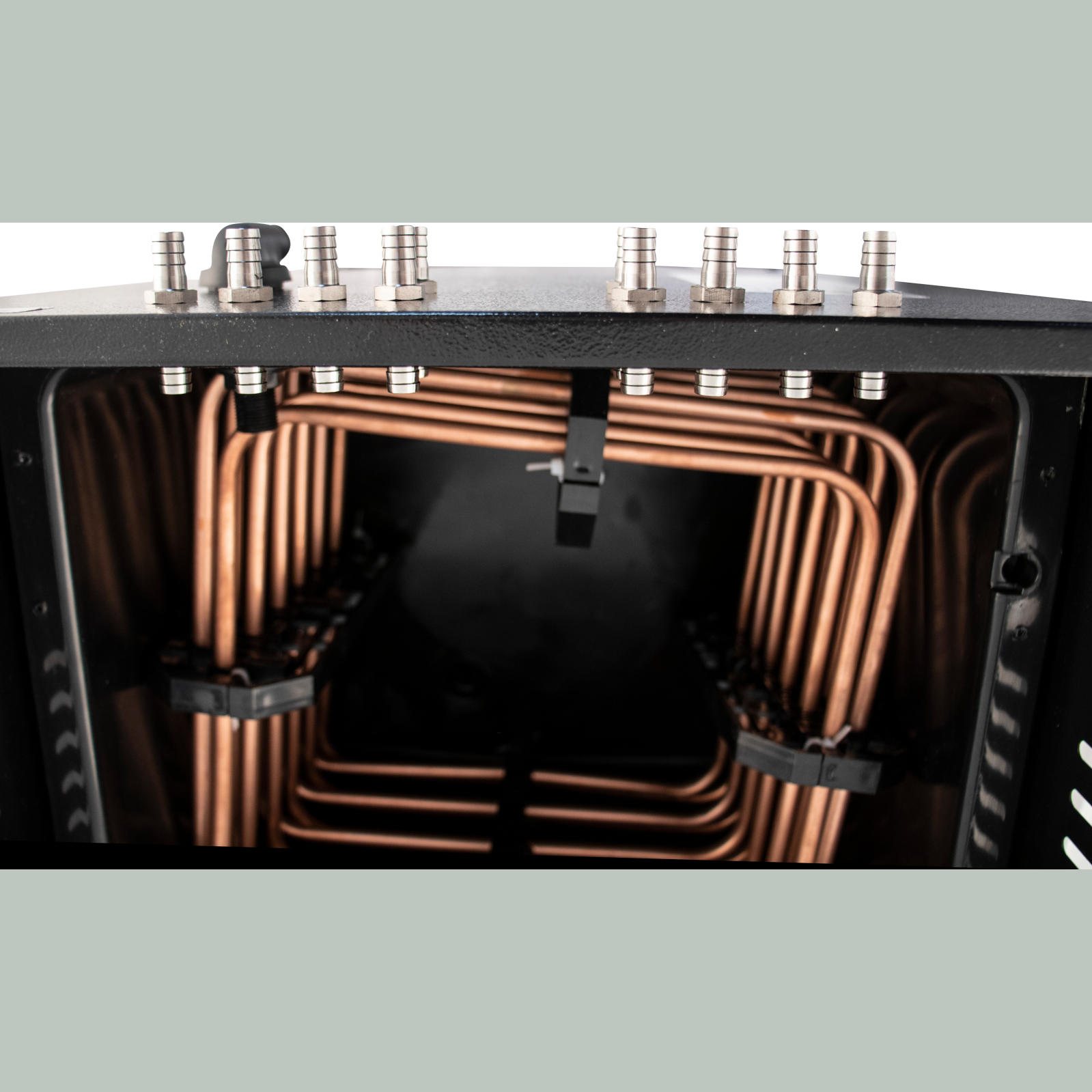

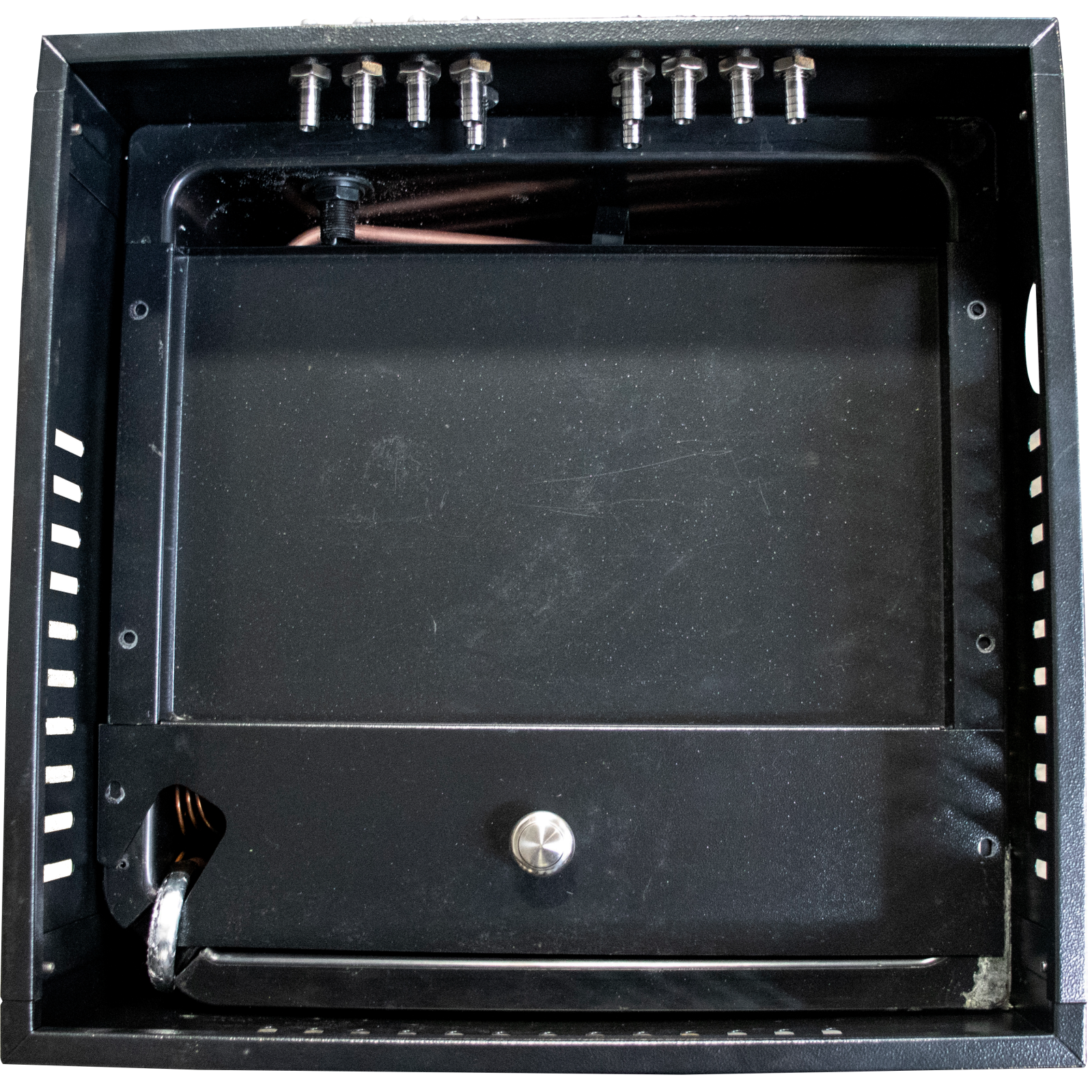

Includes 10 stainless bulkheads with 3/8" OD Barbs

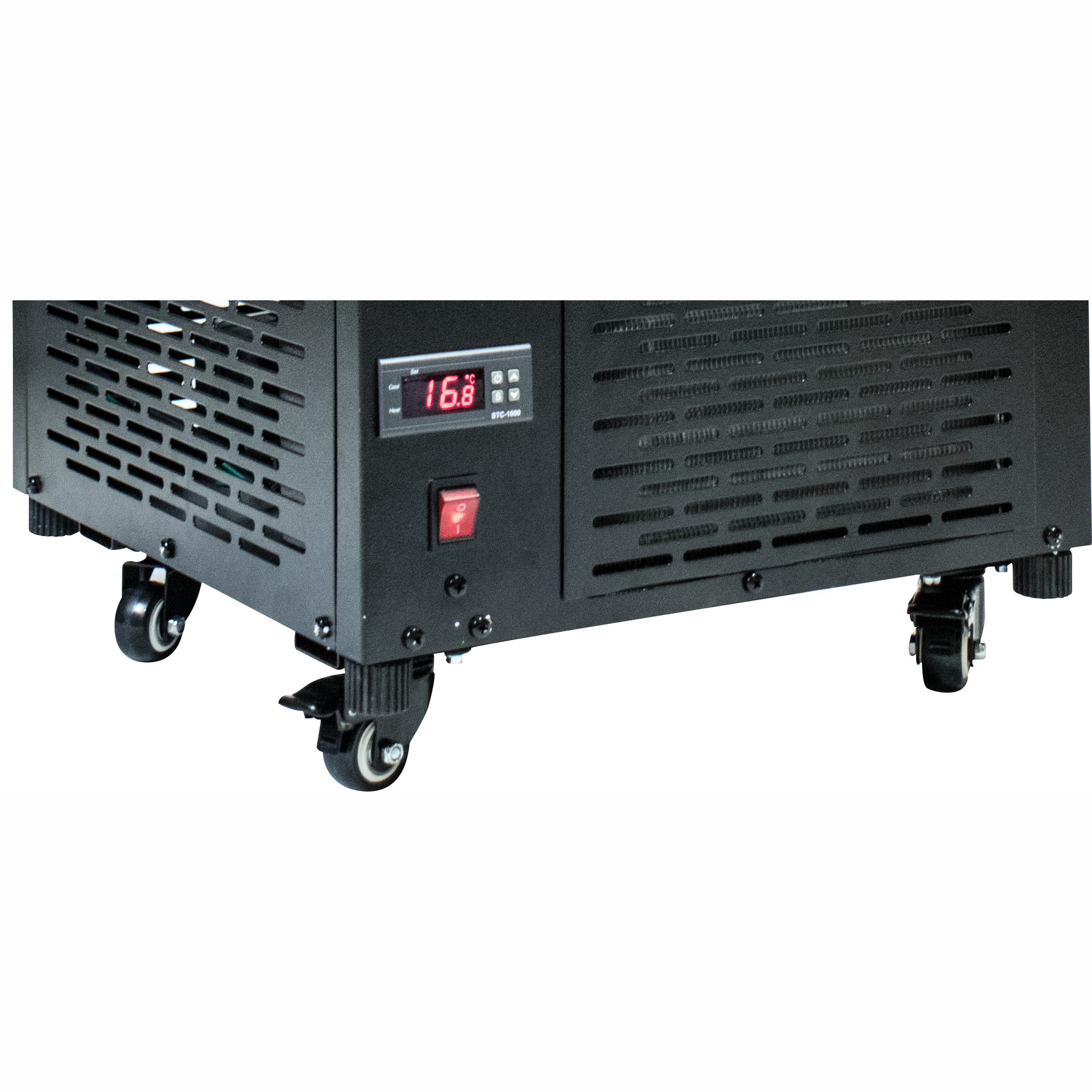

Wheels included
CE Certified

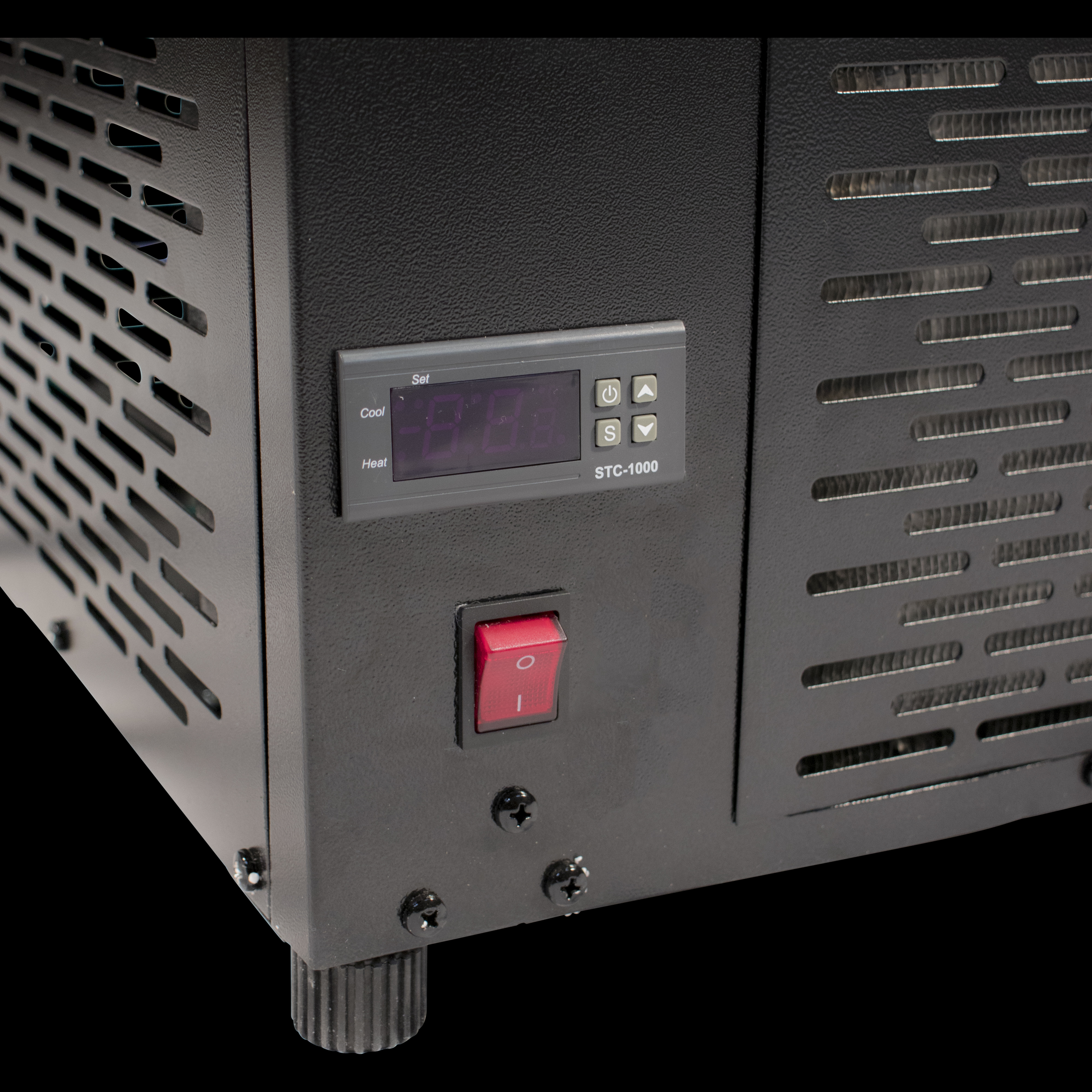

Warning : Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.
