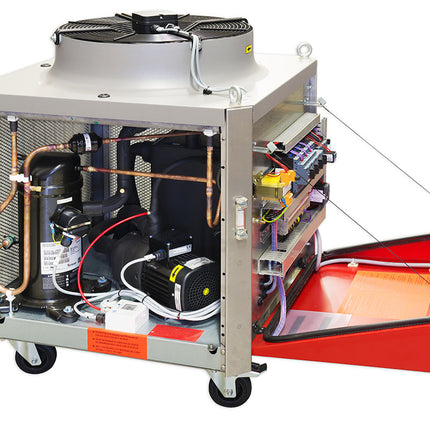

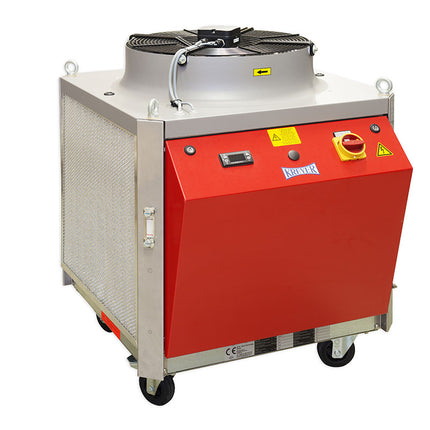

Kreyer Chilly Max 50 | Glycol Chiller/Heater | 1.8 Ton | 21,840 BTU Cooling Capacity | 230V 3 Phase

    Description

    • Cooling & heating in one premium quality unit
    • Control fermentation temperatures, cold-stabilize insulated tanks, or heat tanks during cold weather
    • Fill from the exterior without the need to remove covers or panels
    • Program and monitor temperatures via the digital controller
    • Non-Return Kit installed as standard to prevent backflow when positioned below your tank jacket, heat exchanger, or piping system
    • Four locking casters offer ease-of-mobility when moving the unit around the winery
    • 1.8 Ton / 21,840 Btu cooling capacity
    • 230V, 3 Phase power
    • Made in Germany by Kreyer

    Cooling and Heating in one unit!

    Every Winemaker can appreciate the benefits of precise temperature control during all stages of production. This mobile unit allows you to easily control your ferment temperatures, heat your tanks during winter to expedite Malo-Lactic fermentation, or cold-stabilize your white wines. This unit can be used as portable unit in a larger winery or as a fixed system supplying a glycol loop in a smaller winery. Unit is used for heating or cooling but cannot supply both at the same time.

    Manufactured by Kreyer, the World's leading producers of wine-cooling equipment.

    Note: This unit runs off 230V 3 phase power. It will not run off 208V.

    Uses:

    • Cooling of must for cold soaks, slow starting ferments
    • Heating up must after a cold soak period
    • Cold Stabilization of tartaric crystals
    • Controlling fermenting temperatures through cooling or heating
    • Maintaining storage temperatures in tanks/barrels

    Check out these features:

    • Cools or Heats
    • 1.8 Tons (21,840btu) of cooling power
    • .85 Tons of heating power
    • Can cool glycol/water bath down to -10C/14F or up to 42C/107F
    • 230V 60Hz 3 phase supply voltage drawing 13.1 amps
    • Rolls on four locking casters
    • Sheet metal housing, electrolytic galvanized high surface quality, powder-coated and abrasion-resistant casing
    • 7 Gallon Insulated Plastic glycol/water reservoir
    • Easy to fill from outside
    • Evaporator coil made of stainless steel
    • High-quality Grundfos recirculation pump
    • Built in pressure switch shuts down recirculation pump when not needed
    • Digital Thermostat
    • Lifting/Crane Hooks for transport
    • All panels remove for easy access
    • All units pass multiple tests prior to shipment
    • German Engineering
    • Controlled by compact PC boards with a temperature accuracy up to 0.1 degree Celsius.
    • 33"L x 25"W x 31.5"T
    • Unit has 1" Male BSP w/ 3/4" Female BSP inlet / outlet
    • 6 Month Electrical Warranty
    • 1 Year Mechanical Warranty
    • CE Certified

    Please Note: This unit REQUIRES 230 v Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.

    Available in larger sizes. For additional product options View the resource.

    Kreyer Chilly Max 50 | Glycol Chiller/Heater | 1.8 Ton | 21,840 BTU Cooling Capacity | 230V 3 Phase

      Product form

      SKU: GLY450

      $13,649.99

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        • Cooling & heating in one premium quality unit
        • Control fermentation temperatures, cold-stabilize insulated tanks, or heat tanks during cold weather
        • Fill from the exterior without the need to remove covers or panels
        • Program and monitor temperatures via the digital controller
        • Non-Return Kit installed as standard to prevent backflow when positioned below your tank jacket, heat exchanger, or piping system
        • Four locking casters offer ease-of-mobility when moving the unit around the winery
        • 1.8 Ton / 21,840 Btu cooling capacity
        • 230V, 3 Phase power
        • Made in Germany by Kreyer

        Cooling and Heating in one unit!

        Every Winemaker can appreciate the benefits of precise temperature control during all stages of production. This mobile unit allows you to easily control your ferment temperatures, heat your tanks during winter to expedite Malo-Lactic fermentation, or cold-stabilize your white wines. This unit can be used as portable unit in a larger winery or as a fixed system supplying a glycol loop in a smaller winery. Unit is used for heating or cooling but cannot supply both at the same time.

        Manufactured by Kreyer, the World's leading producers of wine-cooling equipment.

        Note: This unit runs off 230V 3 phase power. It will not run off 208V.

        Uses:

        • Cooling of must for cold soaks, slow starting ferments
        • Heating up must after a cold soak period
        • Cold Stabilization of tartaric crystals
        • Controlling fermenting temperatures through cooling or heating
        • Maintaining storage temperatures in tanks/barrels

        Check out these features:

        • Cools or Heats
        • 1.8 Tons (21,840btu) of cooling power
        • .85 Tons of heating power
        • Can cool glycol/water bath down to -10C/14F or up to 42C/107F
        • 230V 60Hz 3 phase supply voltage drawing 13.1 amps
        • Rolls on four locking casters
        • Sheet metal housing, electrolytic galvanized high surface quality, powder-coated and abrasion-resistant casing
        • 7 Gallon Insulated Plastic glycol/water reservoir
        • Easy to fill from outside
        • Evaporator coil made of stainless steel
        • High-quality Grundfos recirculation pump
        • Built in pressure switch shuts down recirculation pump when not needed
        • Digital Thermostat
        • Lifting/Crane Hooks for transport
        • All panels remove for easy access
        • All units pass multiple tests prior to shipment
        • German Engineering
        • Controlled by compact PC boards with a temperature accuracy up to 0.1 degree Celsius.
        • 33"L x 25"W x 31.5"T
        • Unit has 1" Male BSP w/ 3/4" Female BSP inlet / outlet
        • 6 Month Electrical Warranty
        • 1 Year Mechanical Warranty
        • CE Certified

        Please Note: This unit REQUIRES 230 v Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.

        Available in larger sizes. For additional product options View the resource.

        Documents
        Adjusting the pressure switch
        Chilly MAX 2010
        Picture guide_start-up MCK + Chilly Max GB 11-2015 (incl. regulators) (1)
        European Equipment Wiring Colors
        16050164-16050165 Betriebsanleitung Chilly MAX-50-M_USA eng
