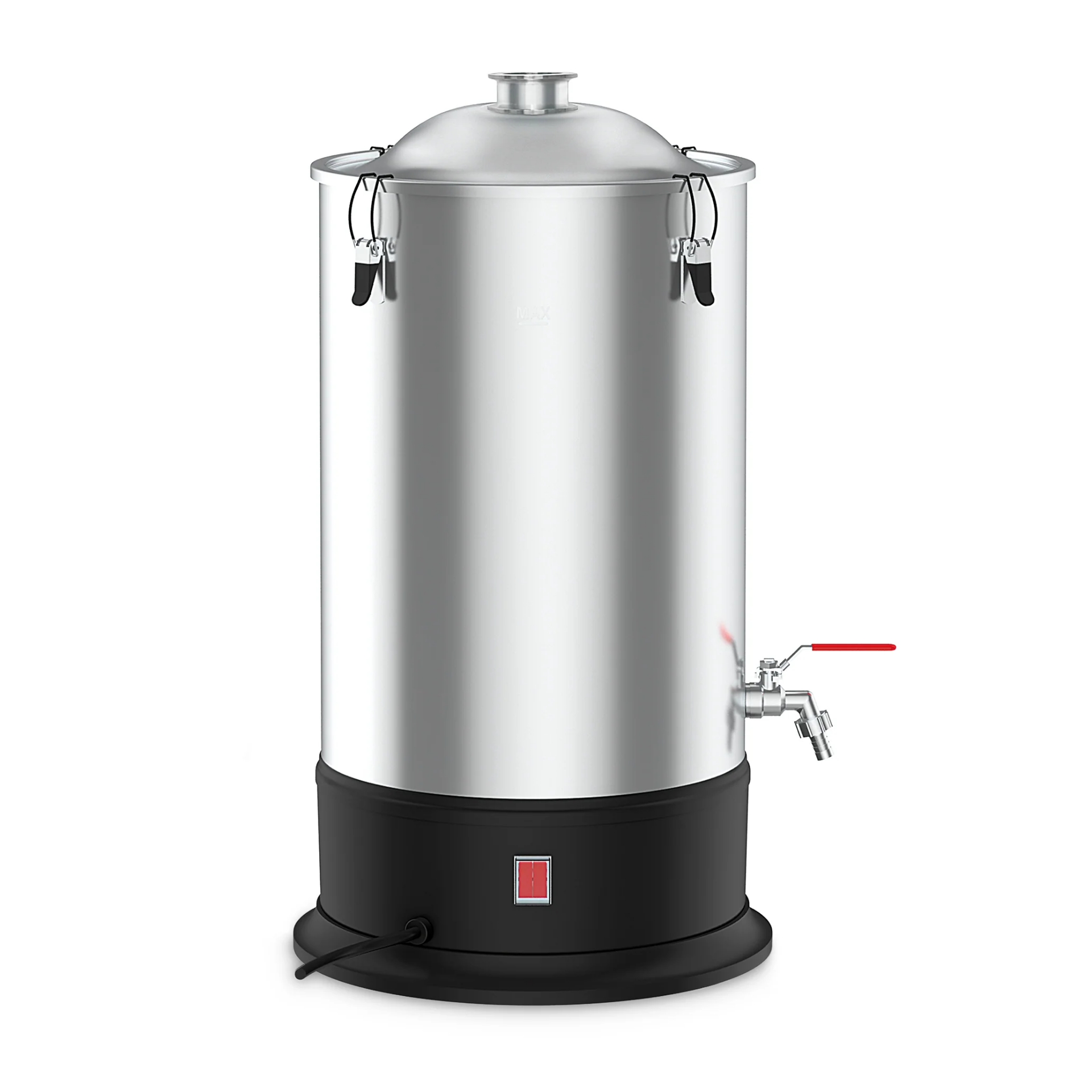

The Create+ Boiler 25 L is the recommended boiler base for use with the Create+ T500 Column & Condenser and the Create+ Alembic Copper Dome & Condenser. With a maximum capacity of 25 liters, the Create+ Boiler is designed for distillers seeking precise control and versatile functionality.
When paired with the Create+ T500, it can produce high-quality and high ABV neutral alcohol (vodka) or distilled water. When paired with the Create+ Alembic Copper Dome & Condenser it can create flavorsome spirits (gin, whiskey, rum and bourbon) and aromatic hydrosols, retaining delicate flavors and aroma from your wash or botanicals. The Create+ Boiler 25 L includes a 2" Tri-Clamp to DN40 Threaded Adapter allowing for connection to 2" tri-clamp accessories, so you can experiment with different setups and attachments.
It features two power switches. When both switches are on, the element will be supplied full power (1600W for 120V units). You can lower this to 1100W by switching off the 500W switch (120V unit). This is ideal for maintaining a gentler boil during distillation, especially for dark spirits like whiskey, rum, and bourbon.
For safety during operation the boiler features an automatic reset switch. The stainless-steel ball valve tap provides durability and ease of use when discarding your contents after distillation.
Elevate your distillation experience with the Create+ Boiler 25 L, designed for flexibility, precision, and superior results across a range of applications. Whether you’re crafting spirits, distilling water, or producing hydrosols, the T500 Boiler offers the control and performance you need.
DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities. Please review our Sales of Distilling Equipment Terms & Conditions.
Key Features
Dual element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W (1600 if using a US/CA unit). When one switch is in the OFF position, it will only consume 1100W (or 1100W/500W if using a US/CA unit) of power.
-
Designed in New Zealand
-
Boil dry reset
-
Thermal cut out fuse
-
Waste discharge tap with a stainless-steel ball valve
-
Boiler lid with 48 mm opening
-
25 L Boiler capacity
-
Connects to 2" tri-clamp distilling accessories
-
304 grade stainless steel construction
-
High temperature resistant food grade silicone
Specifications
-
Capacity: 25 L (6.6 Gallons)
-
Dimensions: H 64 cm x W 36 cm x D 37 cm
-
H 25.1" x W 14.1" x D 14.5"
-
Weight: 5.42 kg (11.9 lbs)
-
Power: 2200W (1600W for US/CA Units)
NOTE: The Boiler is designed primarily for small to medium-sized distilling setups that do not have heavy, off-center attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
-
A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
-
A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-center weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
Included in Box
-
Create+ Boiler 25 L
-
Create+ Boiler Lid
-
2" Tri-clamp to DN40 Threaded Adapter (includes: Silicon gasket and DN40 Nut)
-
Instructions
