Description
PLEASE NOTE: The supplier of this product has temporarily halted shipments to addresses within the state of California. If you are a CA resident, please note your order will not be fulfilled and will ultimately be canceled. We hope to have this issue resolved with the supplier as soon as possible.
-
Easily connect your existing Still Spirits Alembic or T500 distilling equipment to 2" tri-clamp accessories.
-
Converts a DN40 (1 ½" BSPP) threaded connection to a 2" tri-clamp connection.
-
A simple way to expand your distilling setup without needing to replace existing equipment.

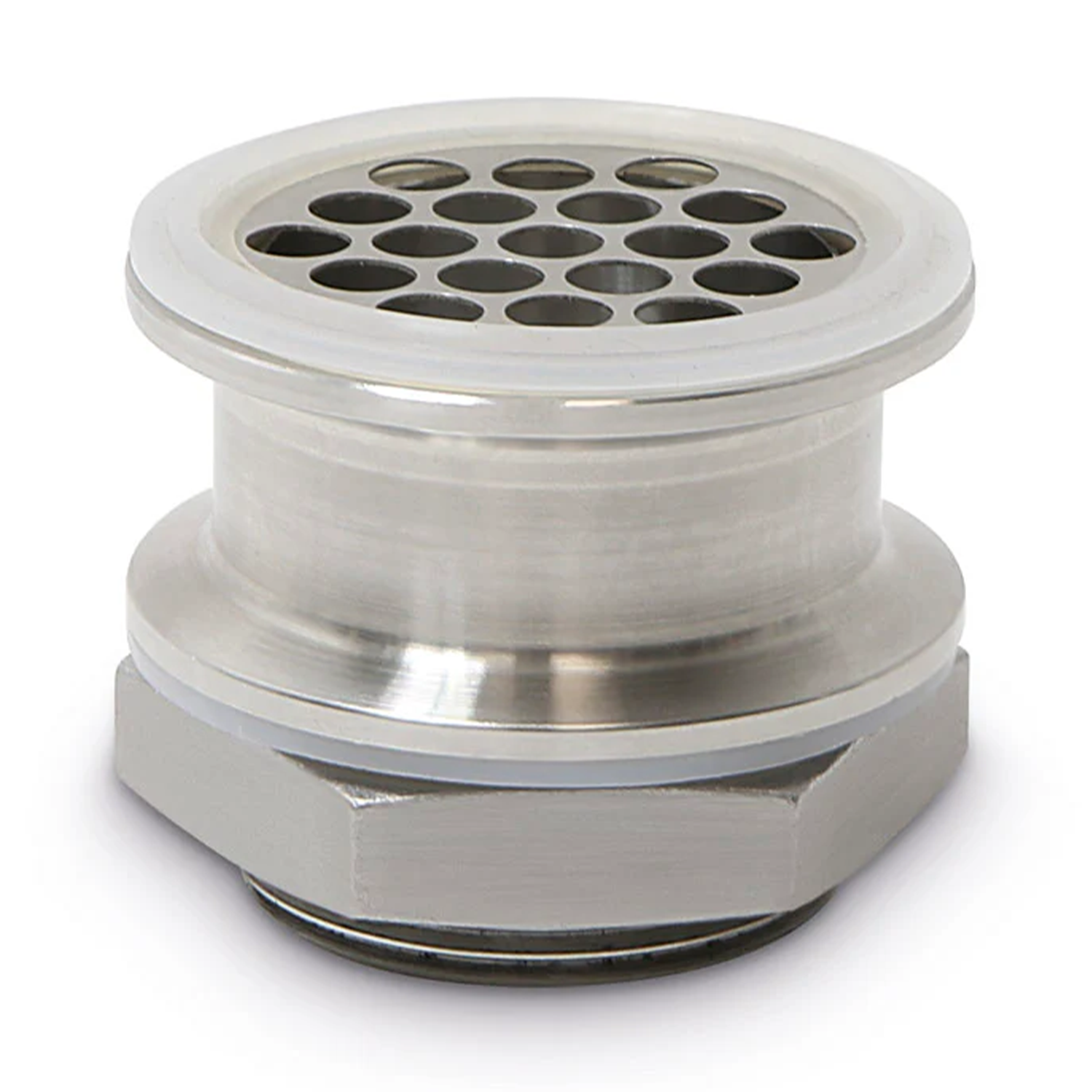

Convert a threaded connection to a 2" tri-clamp connection with ease. The Create+ Threaded Adapter Set converts a DN40 (or 1 ½ " BSPP) threaded connection to a 2" tri-clamp connection, allowing you to connect your existing Still Spirits Alembic or T500 distilling setup to 2"tri-clamp accessories.
Refer to instructions for information on how to convert your specific equipment.
DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.
Key Features
-
Convert from DN40 (or 1 ½ " BSPP) threaded connection to 2" tri-clamp connection
-
Connect to 2" tri-clamp distilling accessories
-
304 grade stainless steel construction
-
High temperature resistant food grade silicone
Specifications
-
Dimensions: 3.14" x 3.14" x 2.55"
-
Weight: ~0.88 lbs Approx.
NOTE: The Threaded Adapter Set is designed primarily for small to medium-sized distilling setups that do not have heavy, off-center attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
-
A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
-
A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-center weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
NOTE: The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.

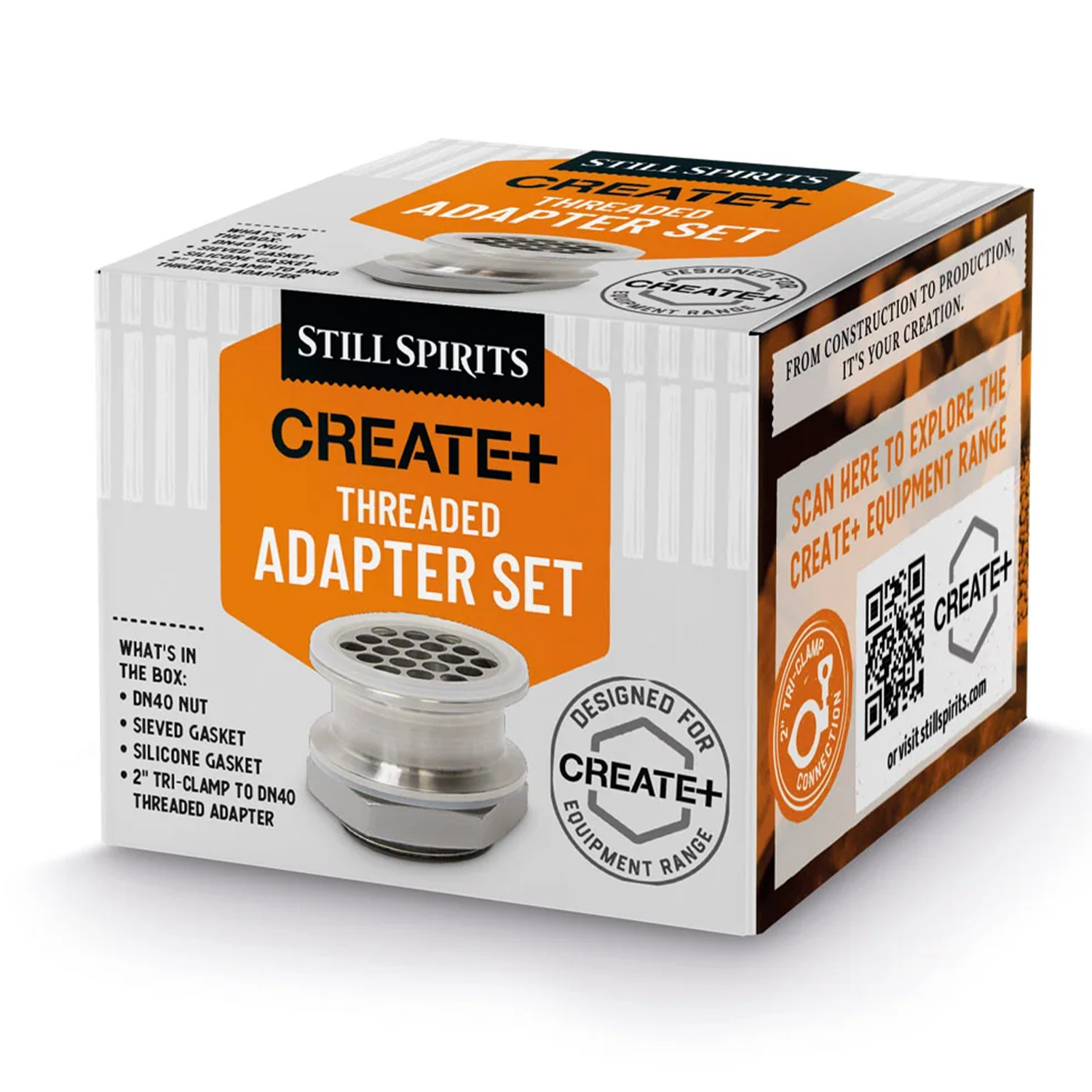

Included in Box
-
DN40 Nut
-
Sieved Gasket
-
Silicone Gasket
-
2" Tri-Clamp to DN40 Threaded Adapter
