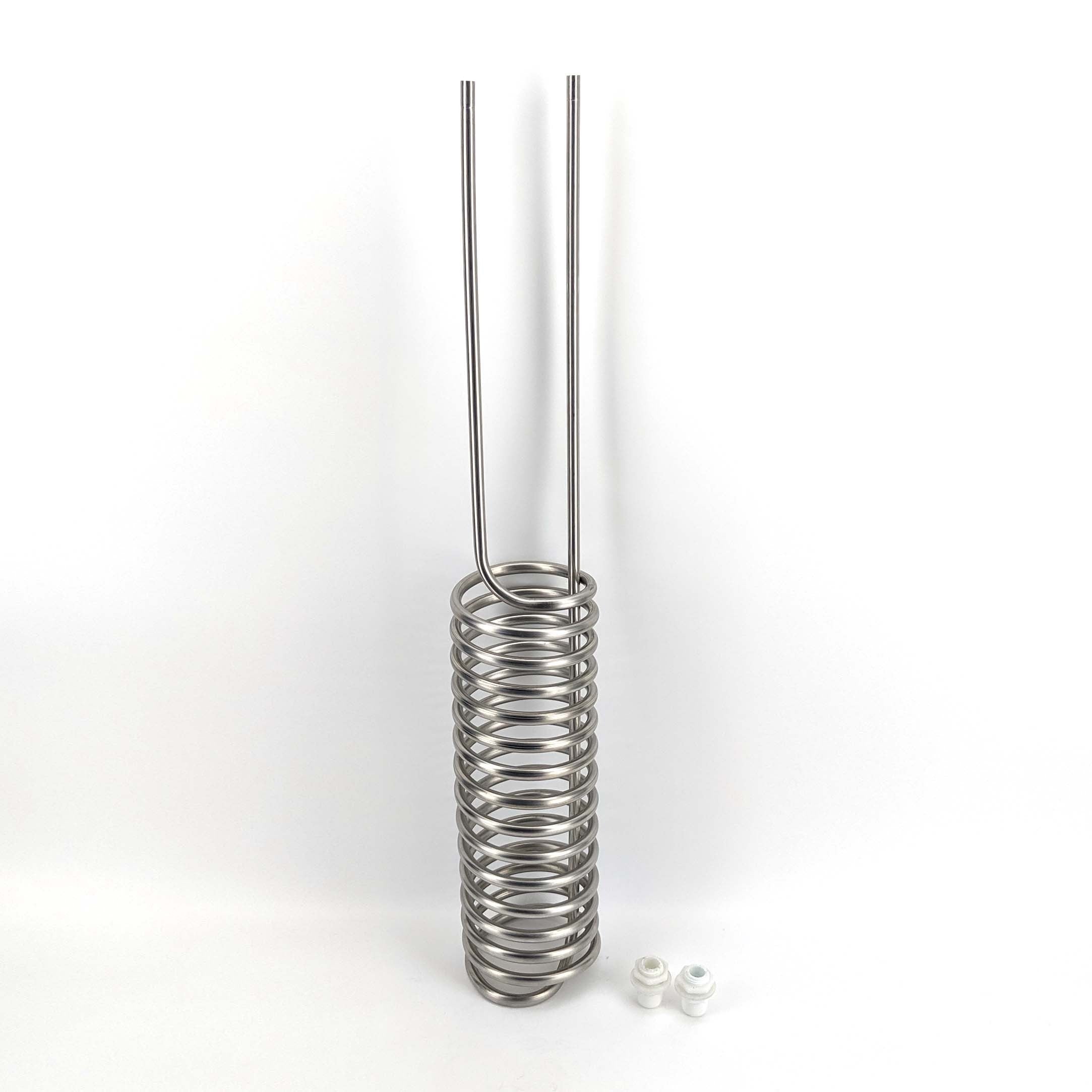

The Temp Twister Cooling Coil installs easily on all models of FermZilla fermenter and can be used with virtually any fermenter with an opening diameter of 4-3/8" or wider. The inlet and outlet of the coil are extra long so the coil can be used with every sized FermZilla. In order to cut them to an appropriate length for your application, we recommend this compact pipe cutter.

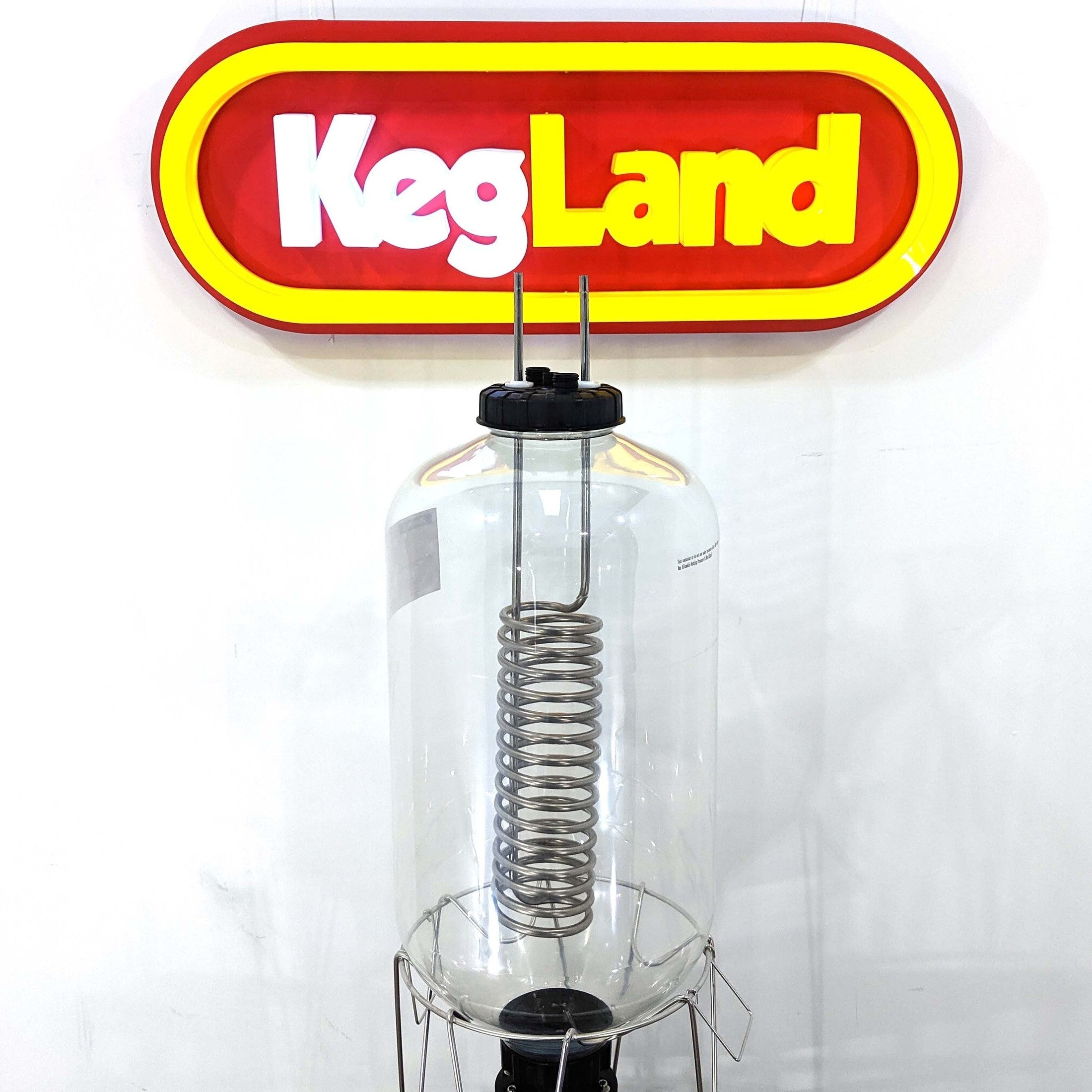

To install, simply drill two 22 mm holes into the lid of the fermenter and use the included Duotight bulkhead fittings to attach the coil to the lid. The FermZilla will still be pressurizable after installing the Temp Twister, just be careful to drill the holes no wider than needed to fit the Duotight bulkheads.
Specifications:
-
Coil Diameter - 4.33"
-
Coil Height - 14"
-
Overall Length - 26.75"
-
Tubing Diameter - 3/8" OD
-
Made from 304 Stainless Steel
-
Includes 2 x 9.5 mm Duotight bulkheads
Kegland Part number: KL14618
